Steinel L 800 C Anthracite

Steinel L 800 C Anthracite

ELDAS® no. 941 003 669 · EAN-No. 4007841 079291

Technical data Highlights Illustrations Wiring diagrams Downloads Videos Accessories
Steinel Bluetooth Mesh

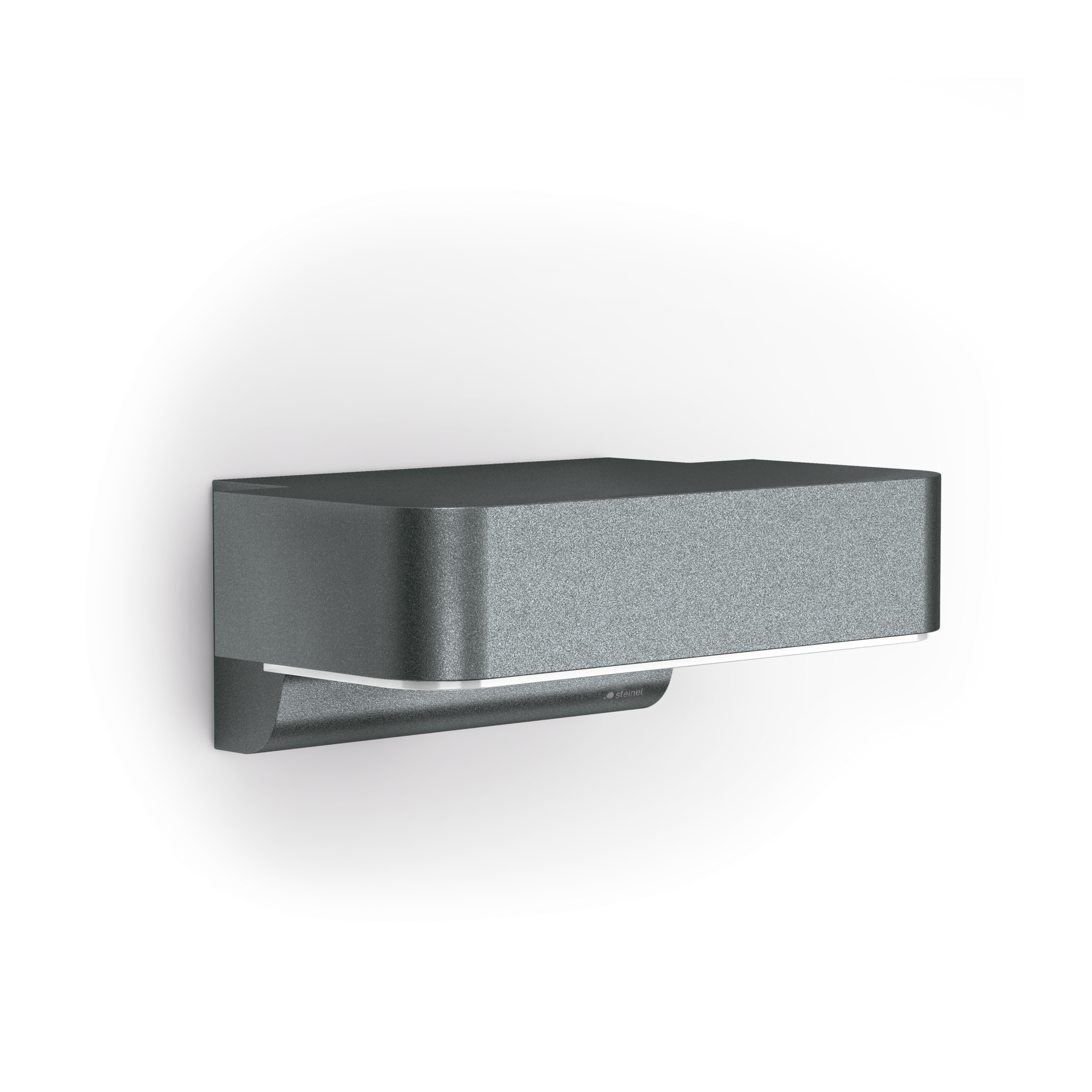

Steinel L 800 C Anthracite

Outdoor wall light for façades and entrances. Light up and down, invisible HF sensor.

ELDAS® no. 941 003 669

EAN-No. 4007841 079291

Price: Please log in to see prices

Light output

Down Up - Down

House number sheet included

No

Colour temperature

3000 K

Colour

Anthracite

With motion detector

No Yes

Welcome to one of the most attractive LED outdoor lights of our time: the L 800 C downlight. This is a marriage between sophisticated product design and durable material quality in the form of high-quality aluminium. The result is a high-end product for staging exterior home walls and facades in atmospheric light. Warm white light (3,000 K) with 466 lm at just 7,5 W ensures an inviting lighting mood. The attractive outdoor light can be interconnected in a flash via Bluetooth. Wireless – and unobtrusive. And is therefore very easy to integrate into sensor-controlled lighting networks, for example. Naturally, though, this elegant outdoor light can also be used as a stand-alone solution for wonderful lighting effects. _x000D_

  • Outdoor light without motion detector, with effective downward lighting (downlight)
  • Elegant and modern design with high-quality aluminium housing

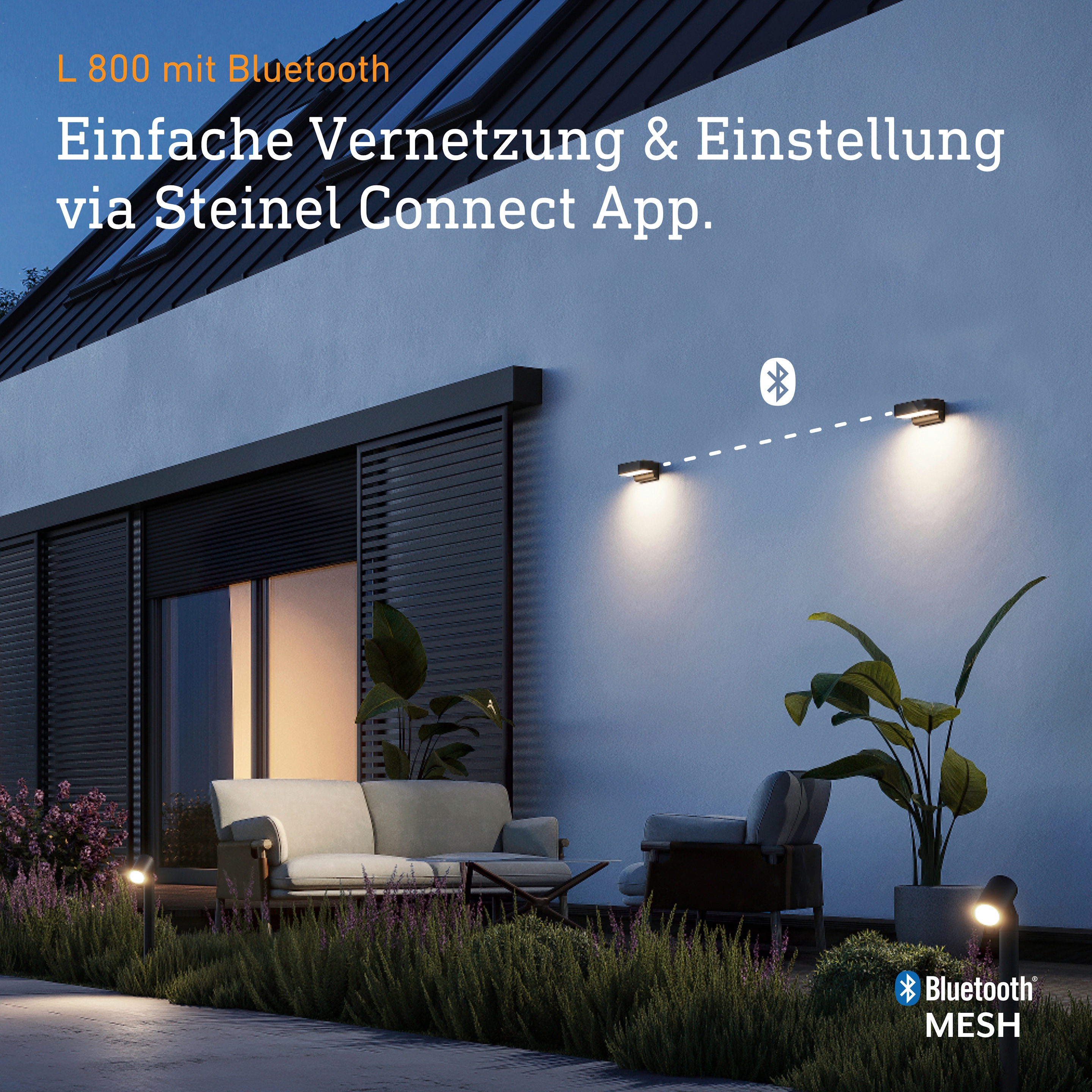

  • Wireless networking via Bluetooth and easy setting via STEINEL Connect App
  • Functions: adjustable basic and main light (basic light only in combination with a Bluetooth sensor luminaire)
  • Warm white light (3000 K) and long-life 7,5 W LEDs with 466 lm

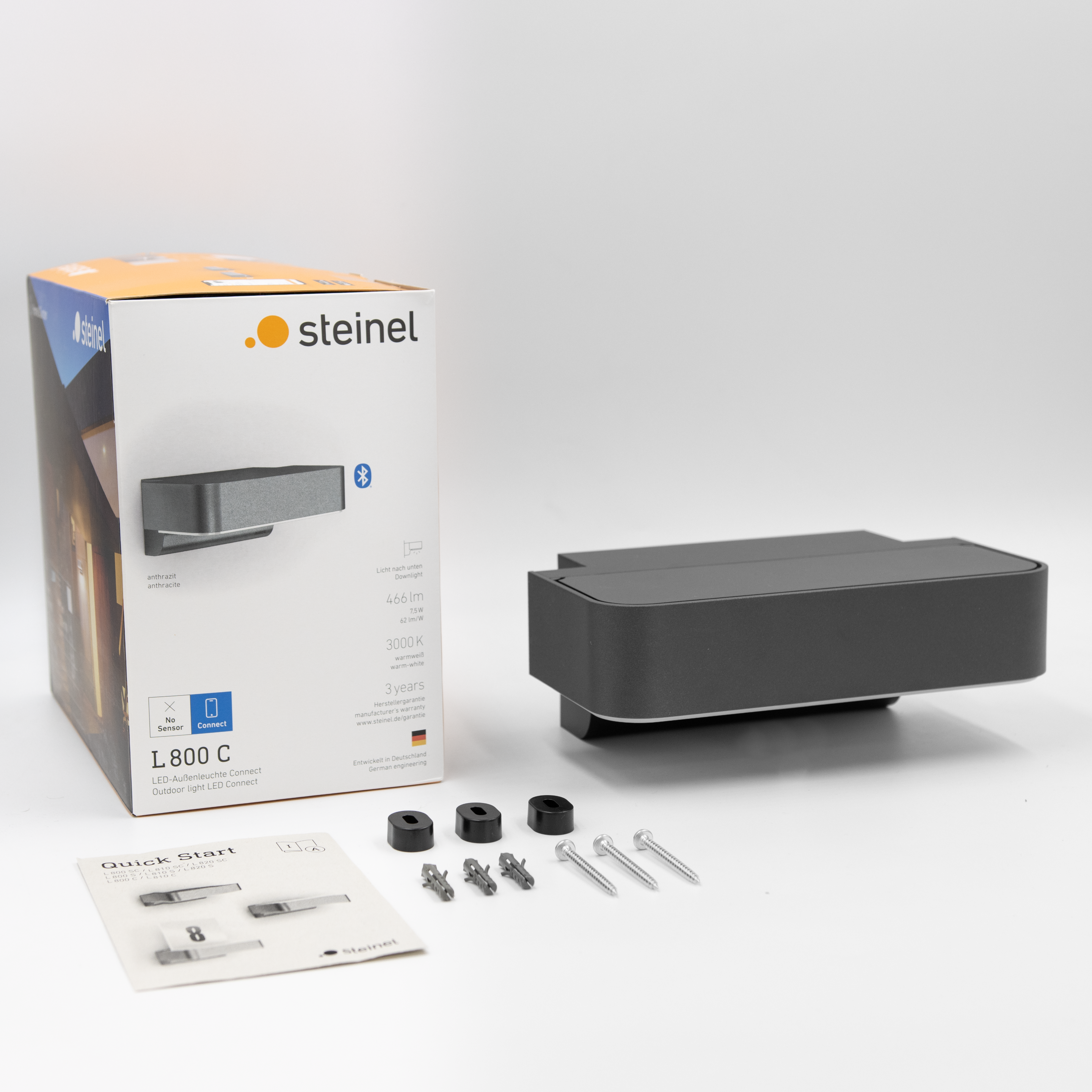

  • Incl. mounting accessories - plastic-free packaging

Variants

Version Without sensor
Colour Anthracite
Light output Down

Dimensions

Dimensions L × W × H 146 x 230 x 88 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 7,5 W

Sensor technology

Max. mounting height 2,50 m
Transmission power < 1 mW
Mounting height 1,8 – 2,5 m
Optimal mounting height 2,0 m

Connectivity

Networking Yes
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via Bluetooth

Lighting technology

Measured luminous flux 360° 466 lm
Colour temperature 3000 K
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Active and Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch No
Base light function Yes
Base light function detail only in combination with the SC version
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Base light function in percent 10 – 100 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature -20...+40 °C
Housing material Aluminium
Cover material Opal plastic
Mounting location Wall
Application location Outdoors
Mounting type Surface mounting
Application room all round the building, courtyard & driveway, front door, garden, terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL category Surrounded product with integrated light source

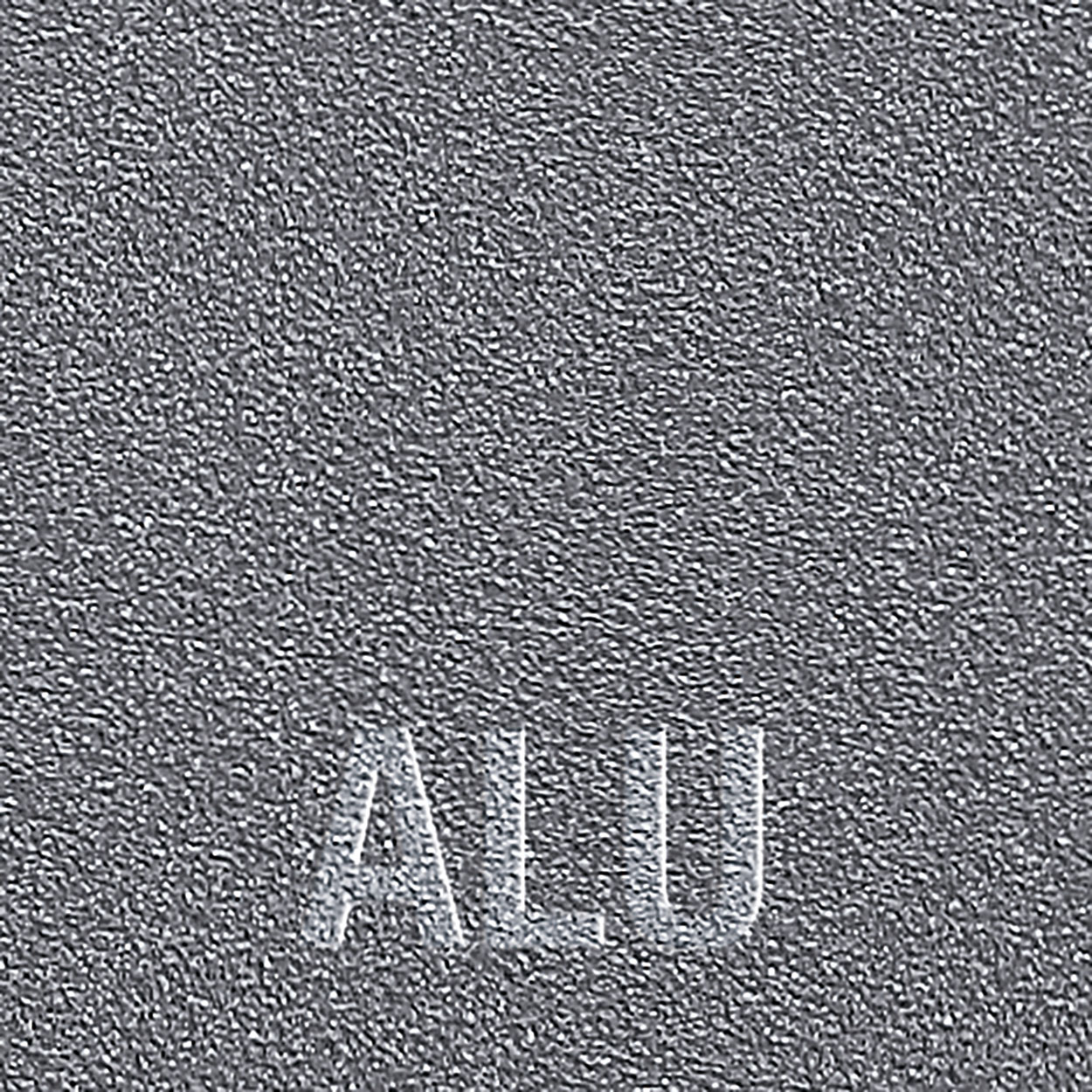

High-quality aluminium

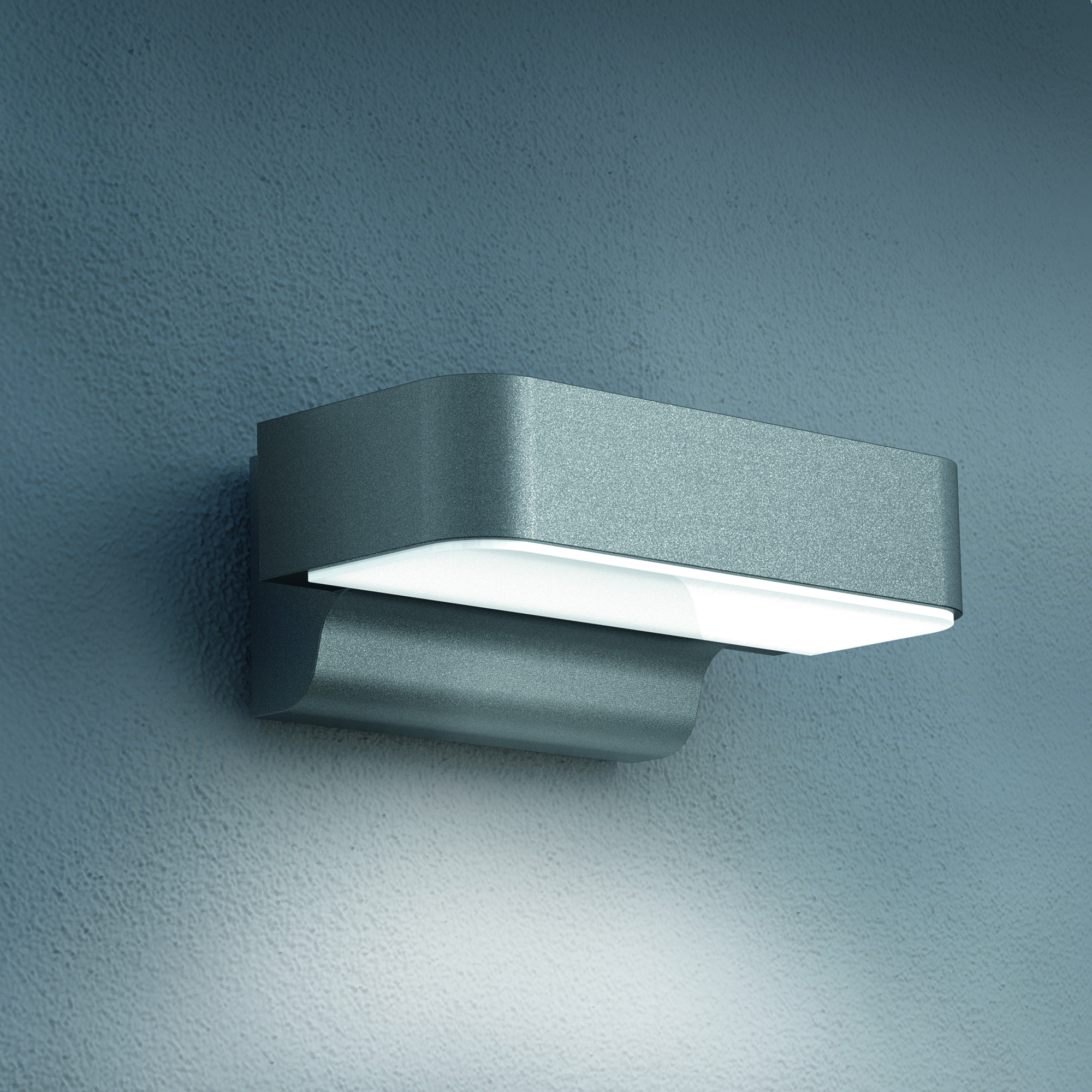

Optional basic lighting level 10 - 100 % (only with bluetooth sensor product)

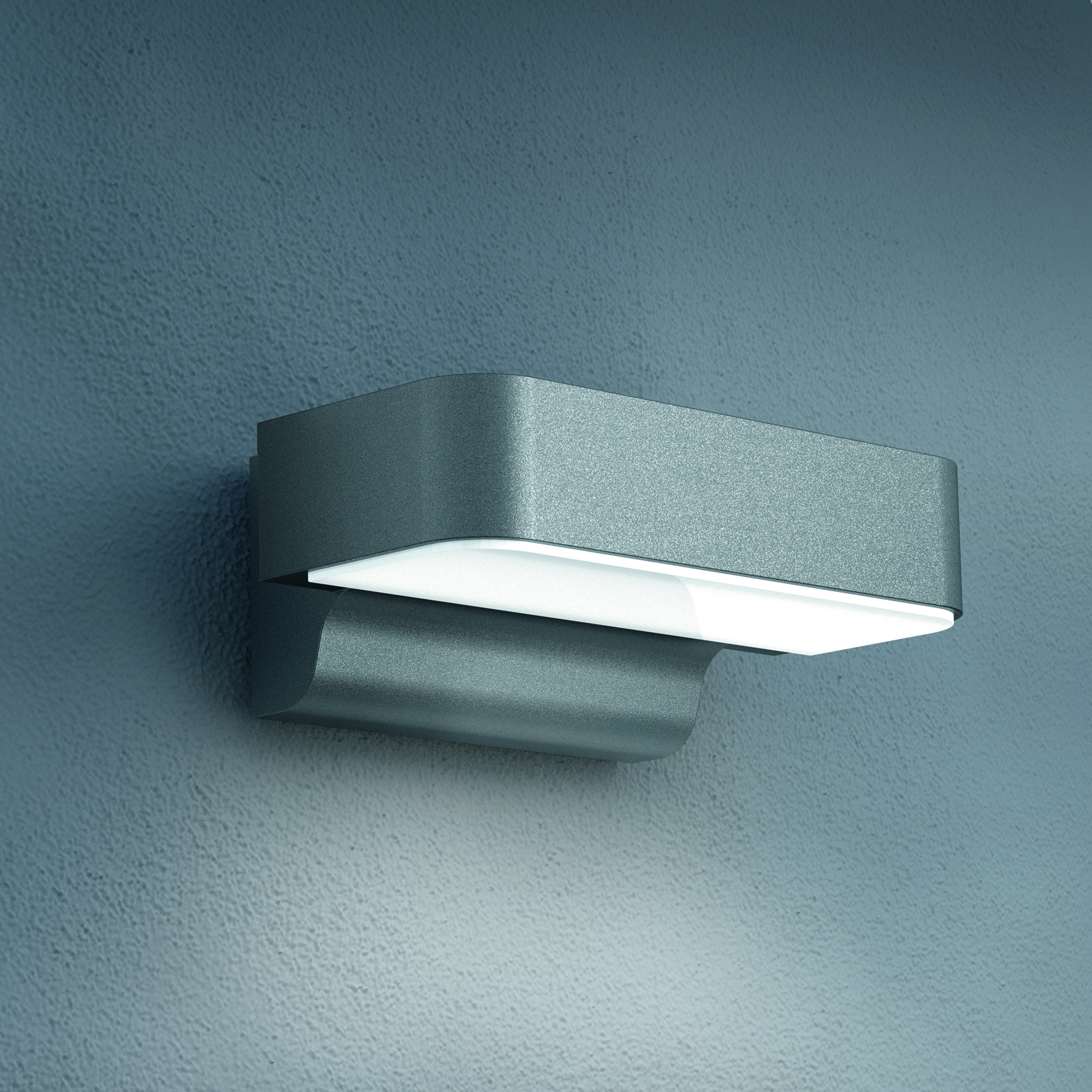

Adjustable main light brightness 10 - 100% (via App)

Intelligent soft light start (only with bluetooth sensor product)

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wireless pushbutton TapDuo C

Wireless pushbutton TapDuo C

Item no. 088620
