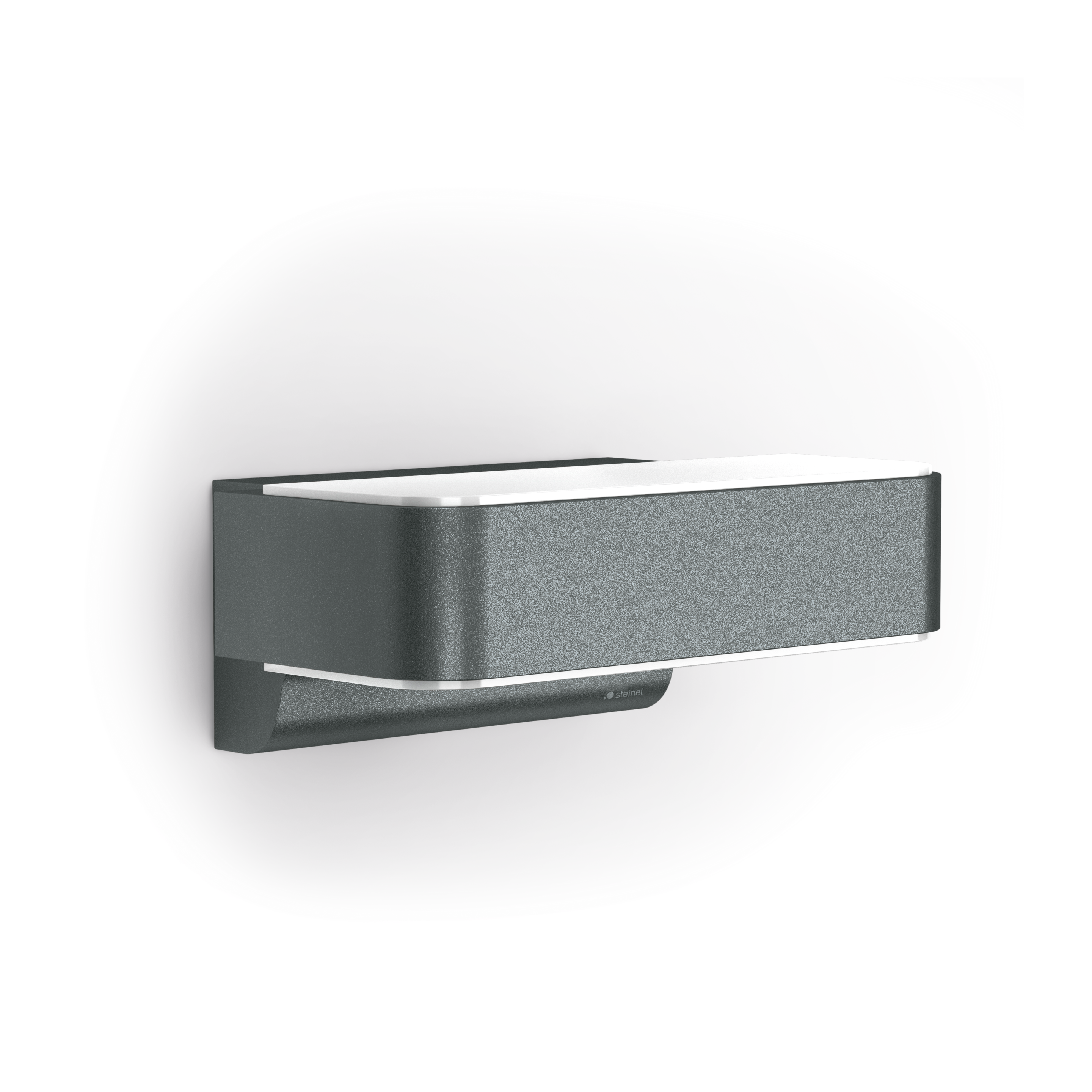

Steinel L 810 C Anthracite

Steinel L 810 C Anthracite

ELDAS® no. 941 003 679 · EAN-No. 4007841 079307

Technical data Highlights Illustrations Wiring diagrams Downloads Videos Accessories
Steinel Bluetooth Mesh

Steinel L 810 C Anthracite

ELDAS® no. 941 003 679

EAN-No. 4007841 079307

Price: Please log in to see prices

Version

Without sensor With sensor

Colour

Anthracite Silver

Welcome to one of the most attractive LED outdoor lights of our time: the L 810 C up/downlight. This is a marriage between sophisticated product design and durable material quality in the form of high-quality aluminium. The result is a high-end product for staging exterior home walls and facades in atmospheric light. Warm white light (3,000 K) with 679 lm at just 9,8 W ensures an inviting lighting mood. The attractive outdoor light can be interconnected in a flash via Bluetooth. Wireless – and unobtrusive. And is therefore very easy to integrate into sensor-controlled lighting networks, for example. Naturally, though, this elegant outdoor light can also be used as a stand-alone solution for wonderful lighting effects. _x000D_

  • Outdoor light without motion detector, with effective lighting upwards and downwards (Up- & Downlight)
  • Elegant and modern design with high-quality aluminium housing

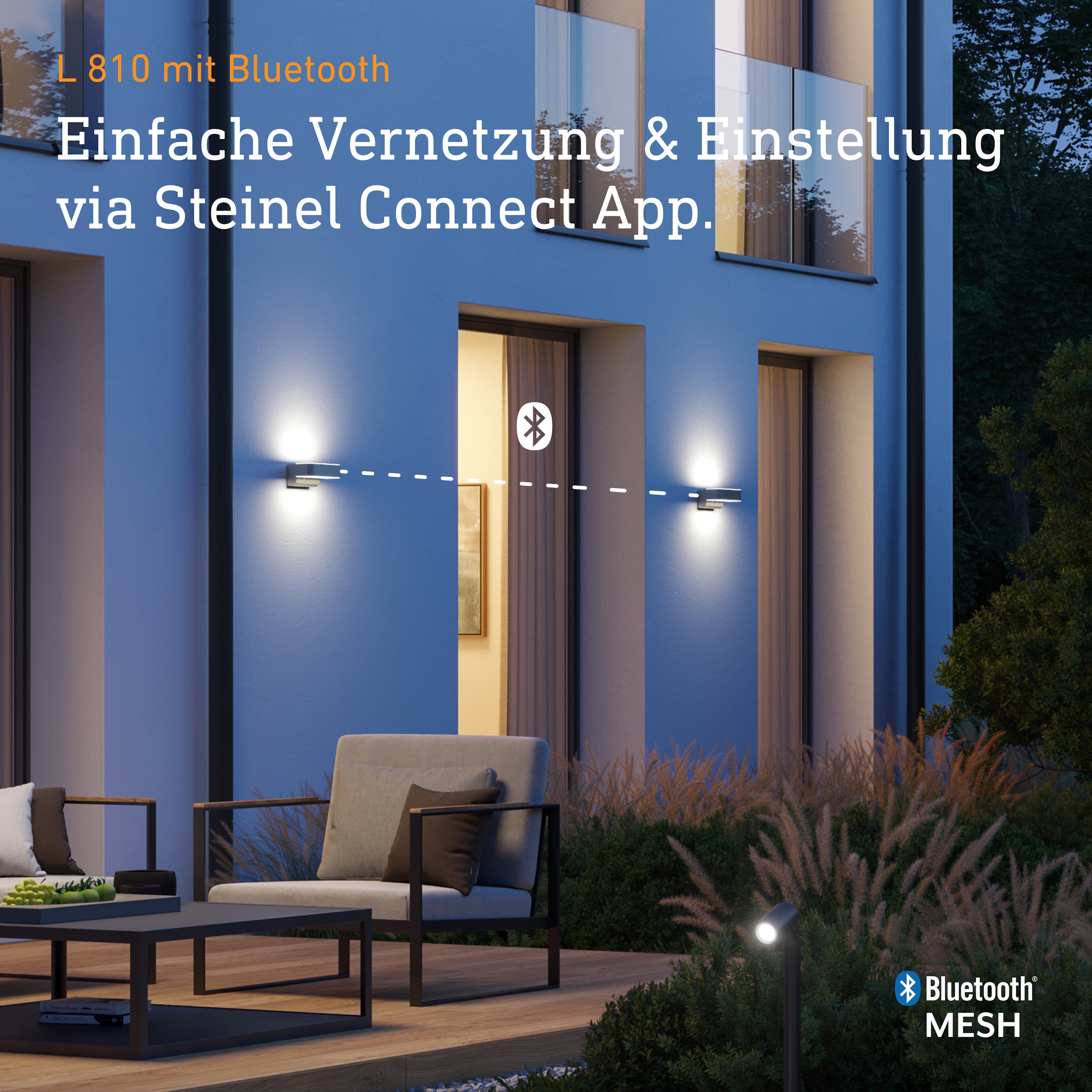

  • Wireless networking via Bluetooth and easy setting via STEINEL Connect App
  • Functions: adjustable basic and main light (basic light only in combination with a Bluetooth sensor luminaire)
  • Warm white light (3000 K) and long-life 9,8 W LEDs with 679 lm

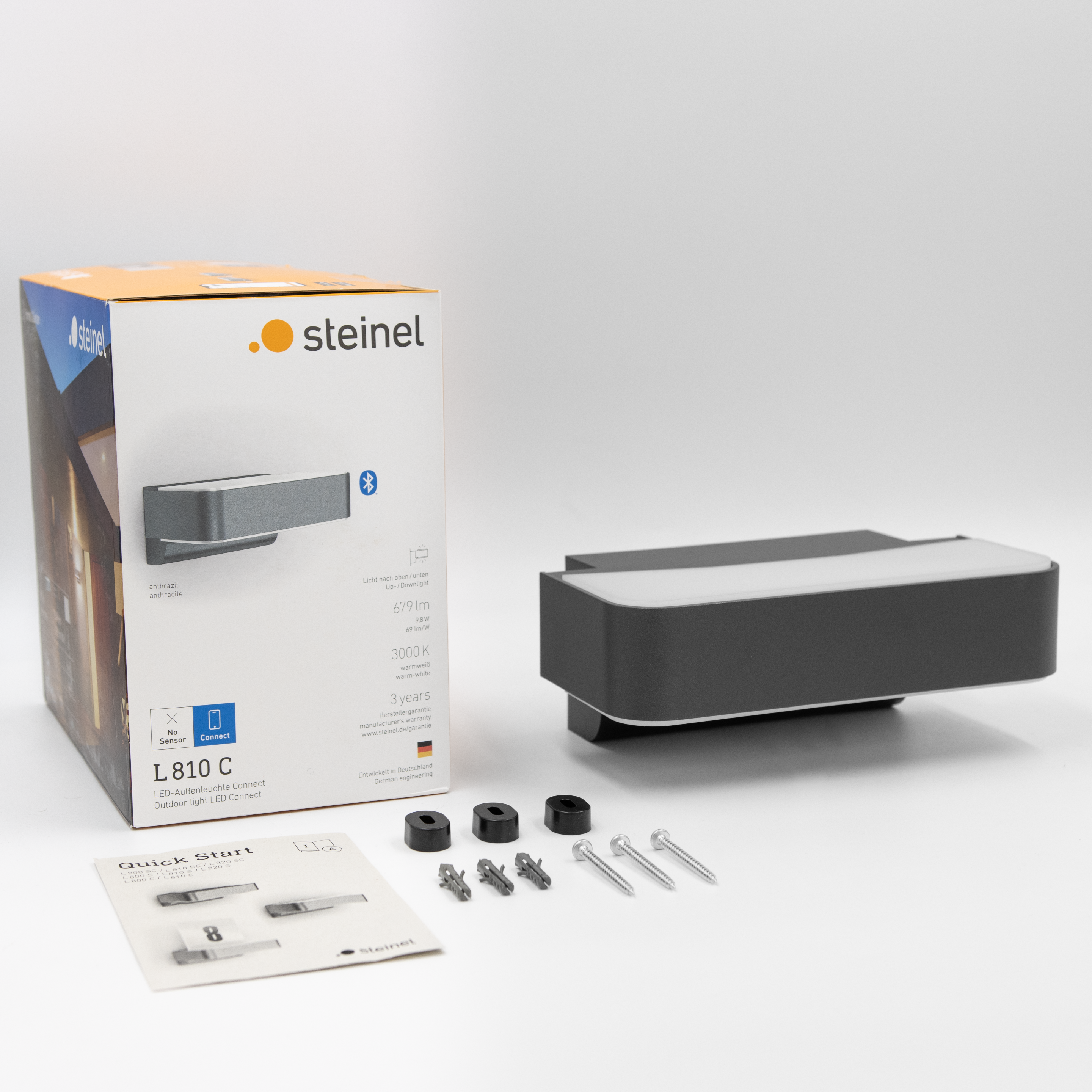

  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 146 x 230 x 91 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,8 W

Sensor technology

Max. mounting height 2,50 m
Transmission power < 1 mW
With motion detector No
Mounting height 1,80 – 2,50 m
Optimal mounting height 2 m

Connectivity

Networking Yes
Networking via Bluetooth

Lighting technology

Measured luminous flux 360° 679 lm
Colour temperature 3000 K
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Active and Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Settings via App Bluetooth
With remote control No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room all round the building courtyard & driveway front door garden terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

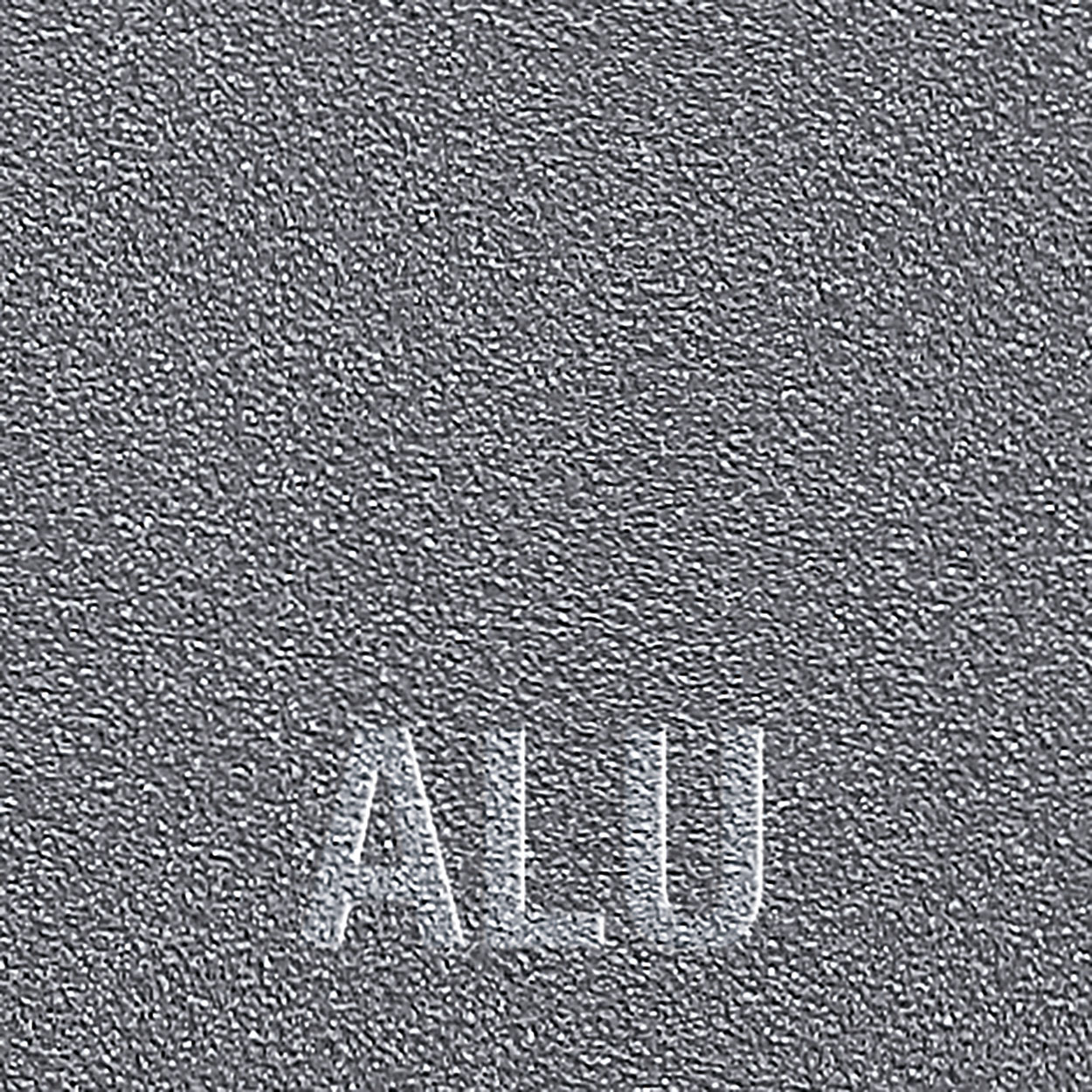

High-quality aluminium

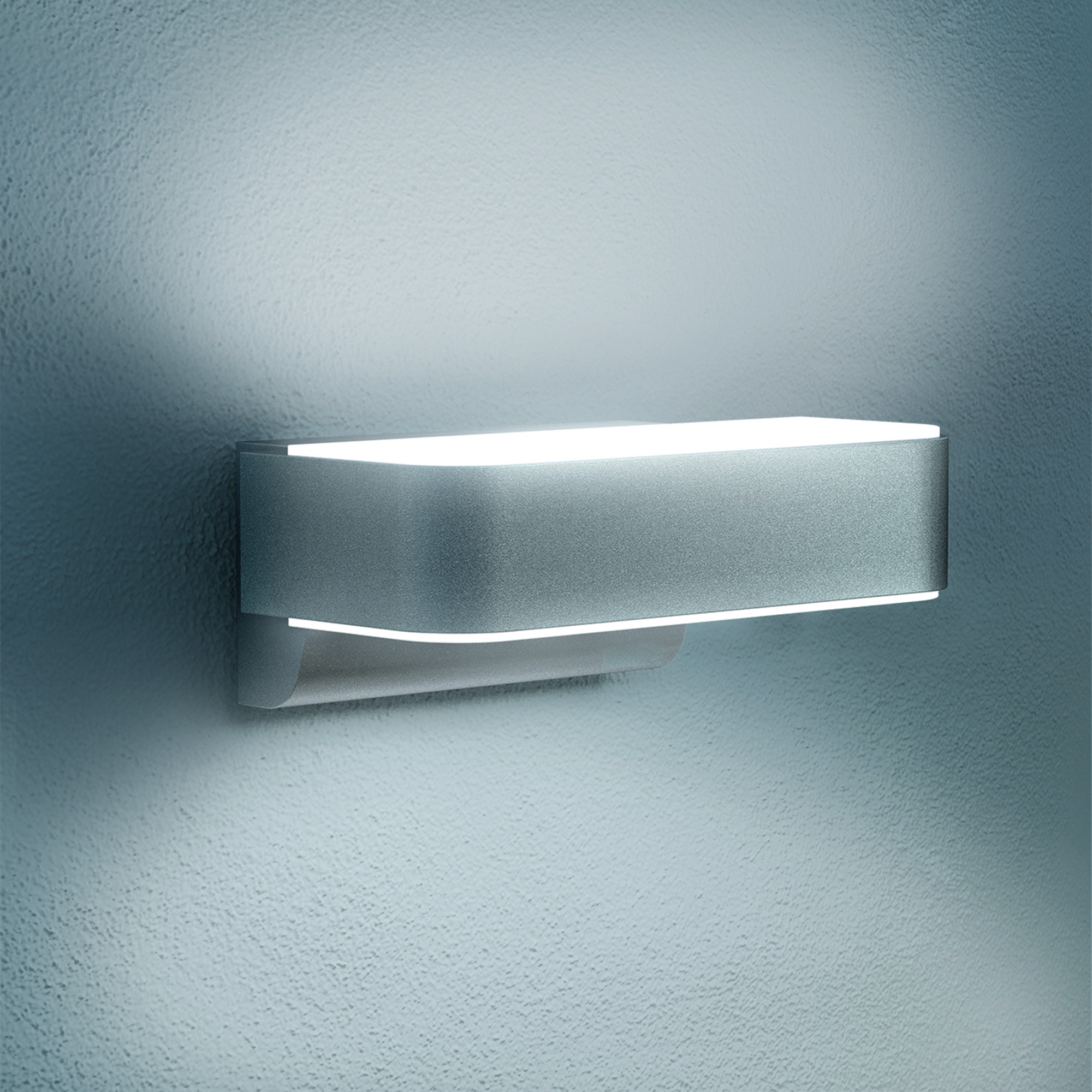

Optional basic lighting level 10 - 100 % (only with bluetooth sensor product)

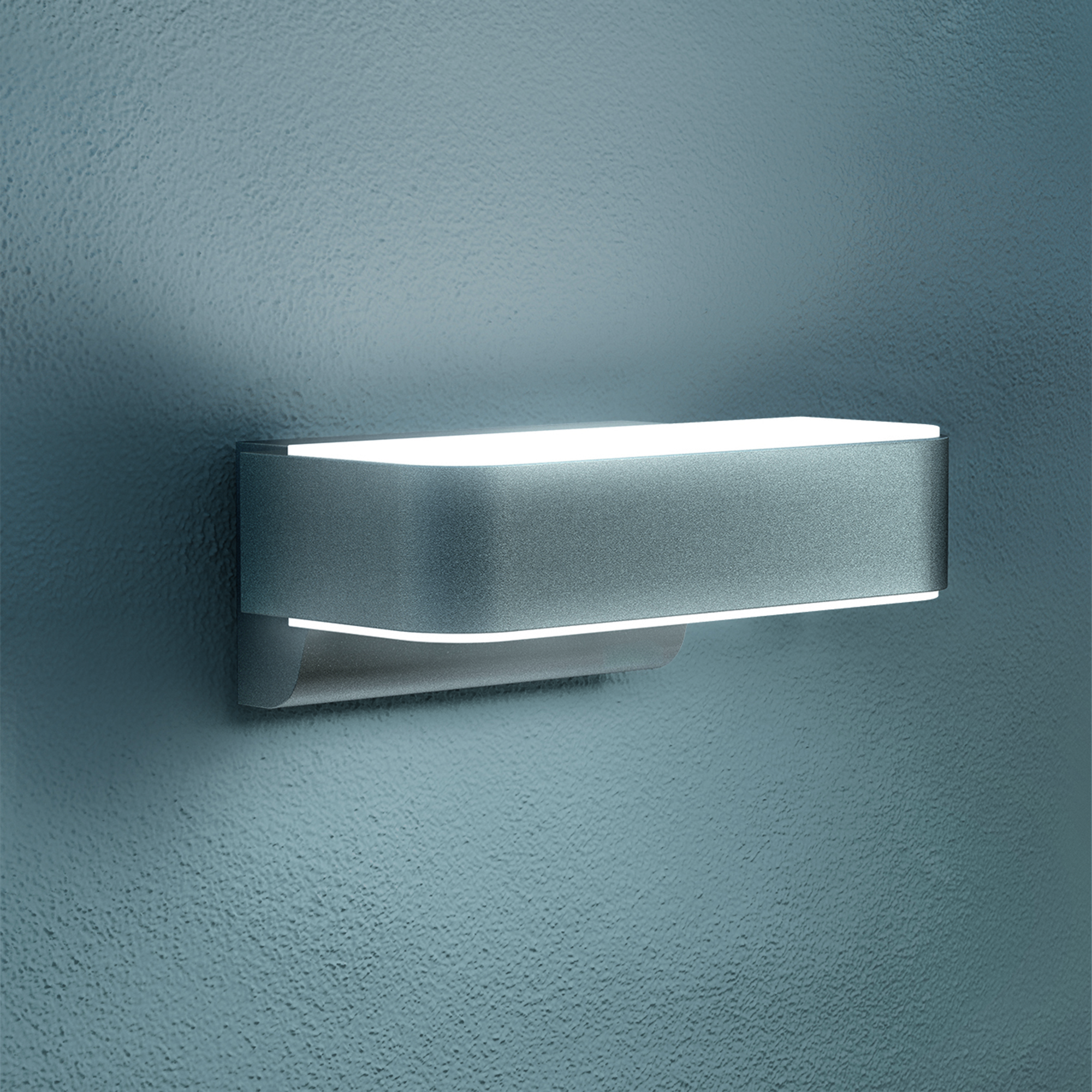

Basic-light function at 10%

Intelligent soft light start (only with bluetooth sensor product)

Technical drawing

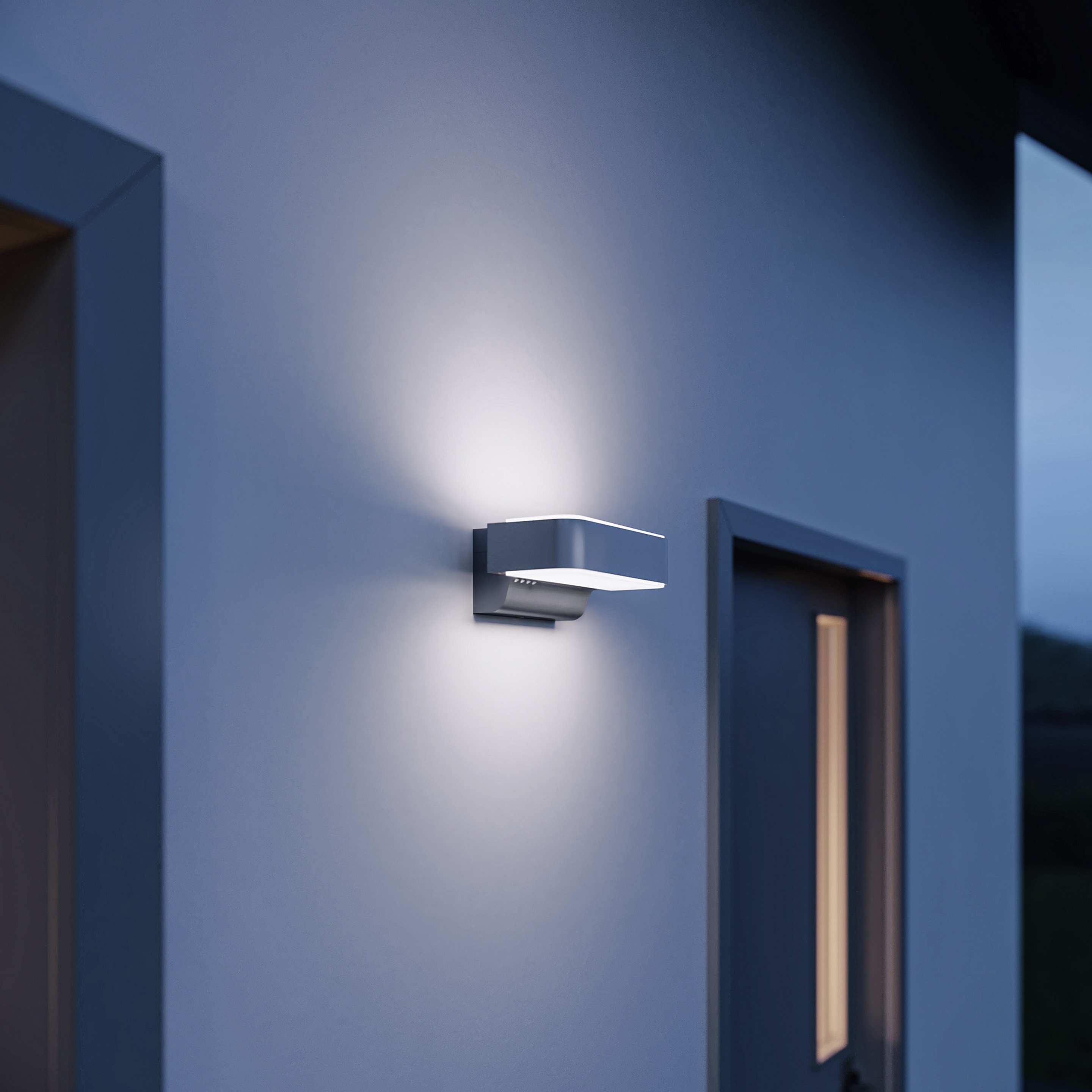

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wireless pushbutton TapDuo C

Wireless pushbutton TapDuo C

Item no. 088620
