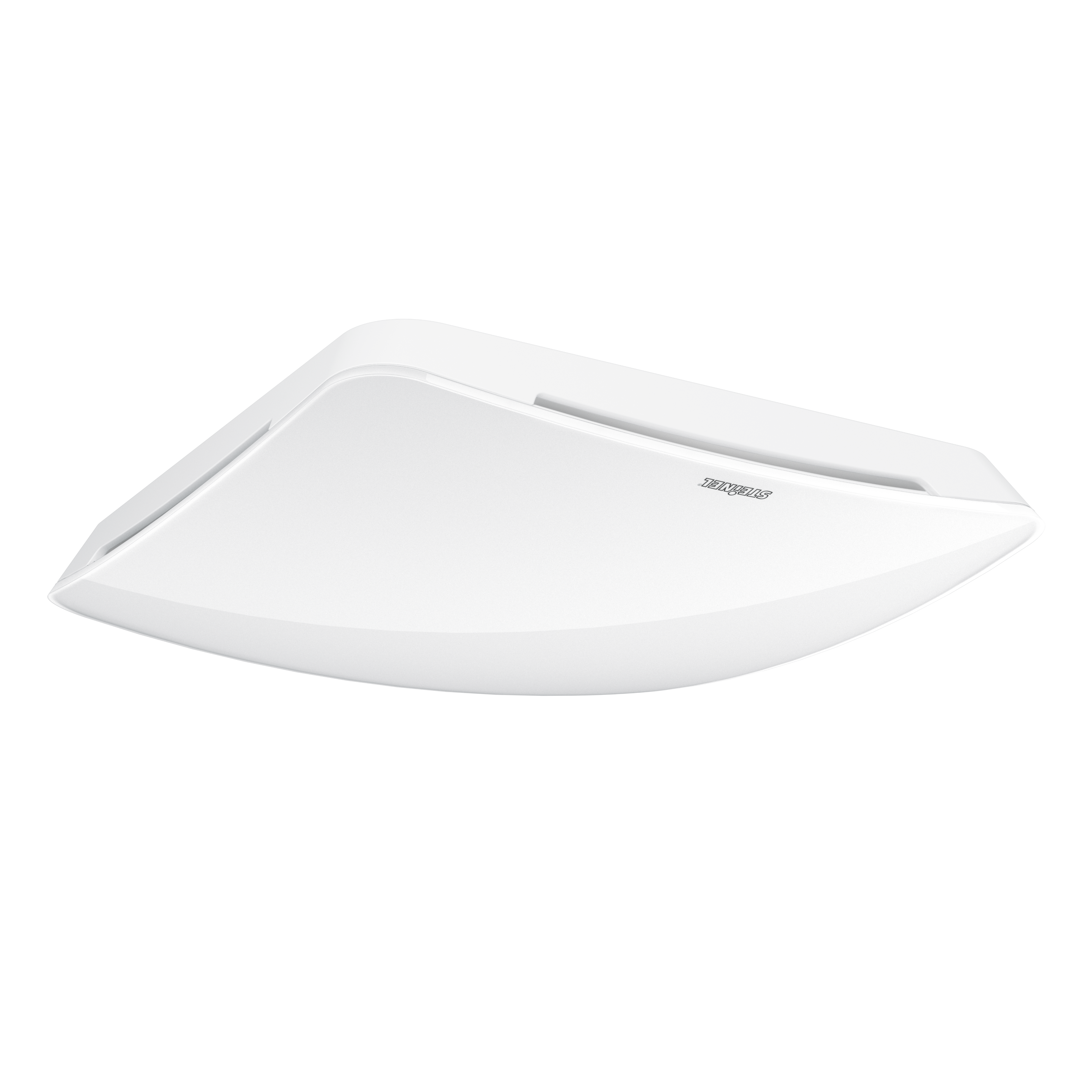

Steinel Multisensor True Presence KNX white

Multisensor for classrooms and offices. Measures presence and indoor climate, LED traffic light.

ELDAS® no. 535 930 001

EAN-No. 4007841 056353

Price: Please log in to see prices

Mounting type

Concealed mounting

Variant

Bluetooth Input-Device DALI-2 Input Device IP (REST API, MQTT, BacNet) KNX KNX - Aerosol

The most precise presence detector ever becomes the ultimate sensory organ. For the true detection of people, brightness, ambient temperature, humidity, air pressure, volatile organic compounds (VOC) and CO2 measurements are necessary. Information that brings the digitalisation of building automation a great deal further. This combination makes the Multisensor True Presence® KNX a good investment in building intelligence, a comfortable environment for people and real efficiency. The best comes from above – precise, digital information for modern building management.

Identification

Version Presence detector

Variants

Version KNX

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 33 x 123 x 123 mm

Electrical

Mains connection 21 – 30 V

Own consumption 1 W

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 12,00 m

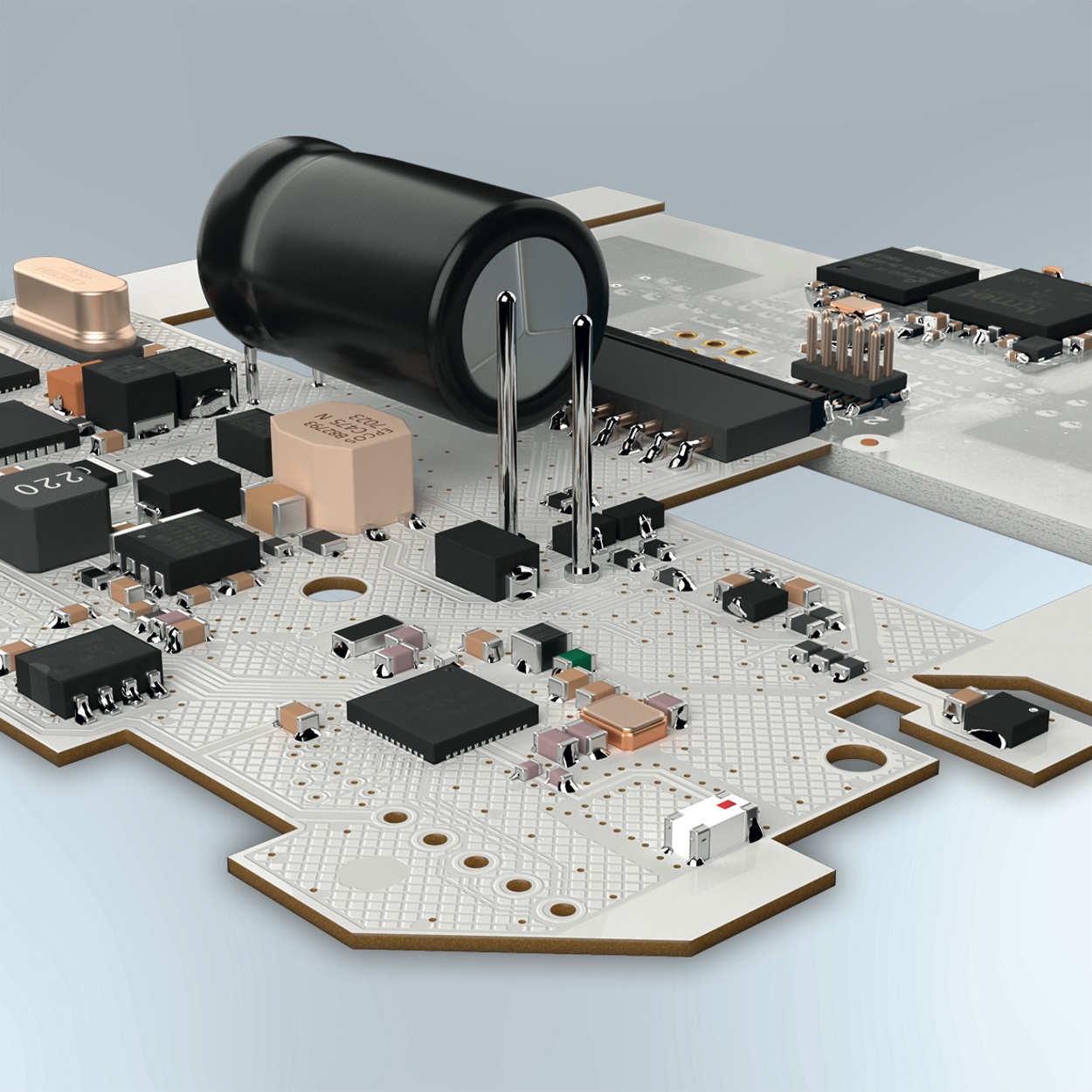

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,0 – 12,0 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

KNX functions Comfort CO2 Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Air pressure Humidity output Presence output Day / night function Dewpoint VOC Temperature output Logic gate

With bus coupler Yes

Control technology Steinel Connect

Wireless networking via BT Open Mesh

Networking via KNX

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 30 s – 1092 min

Base light function Yes

Main light adjustable 0 - 100 %

Settings via ETS software, App, Bluetooth

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location ceiling

Application location Indoors

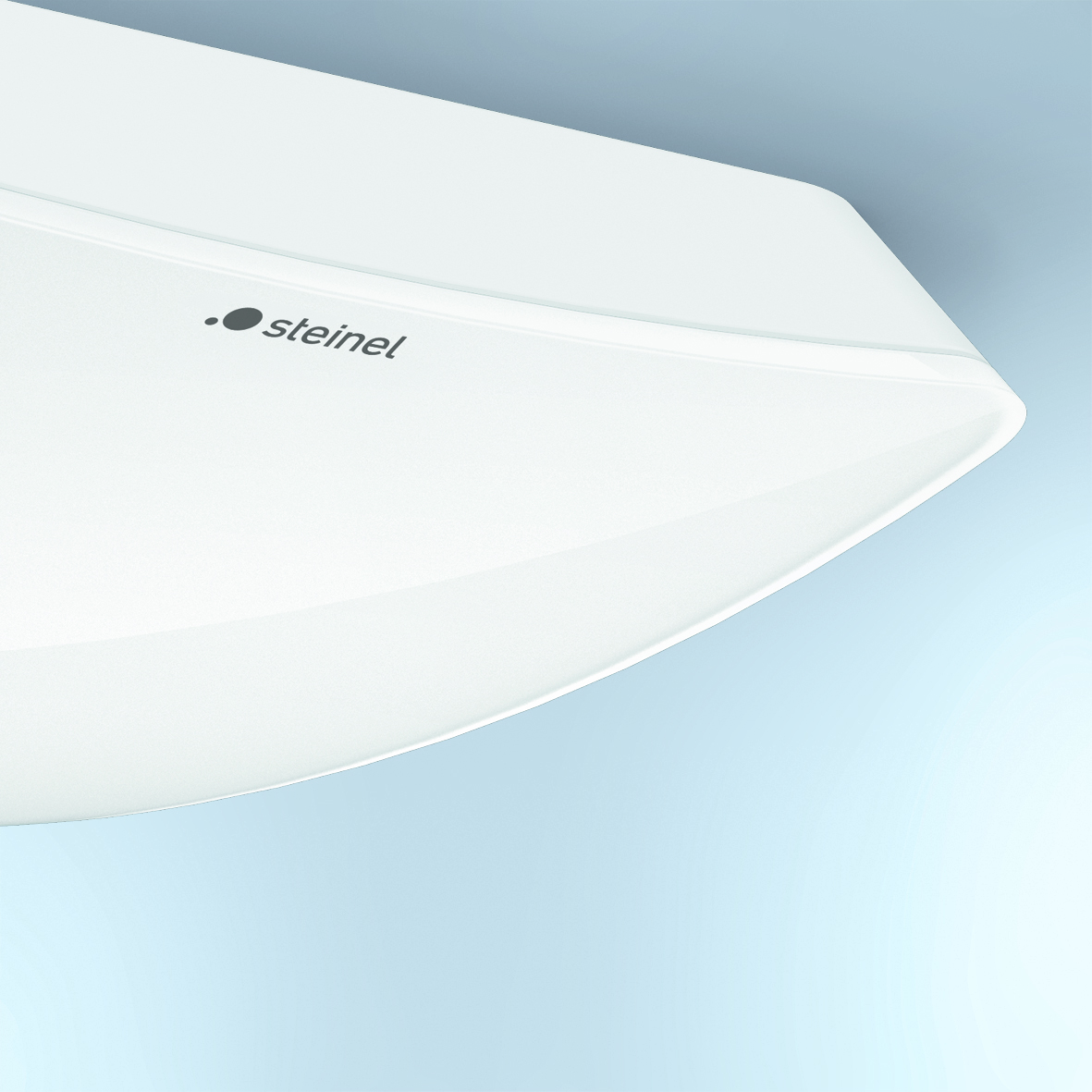

Material Plastic

Application room Indoors, care room, classroom, conference room / meeting room, duty room, hotel room, lecture hall, one-person office, open-plan office, reception / lobby, recreation room, sports hall

Colour White

RAL colour 9003
