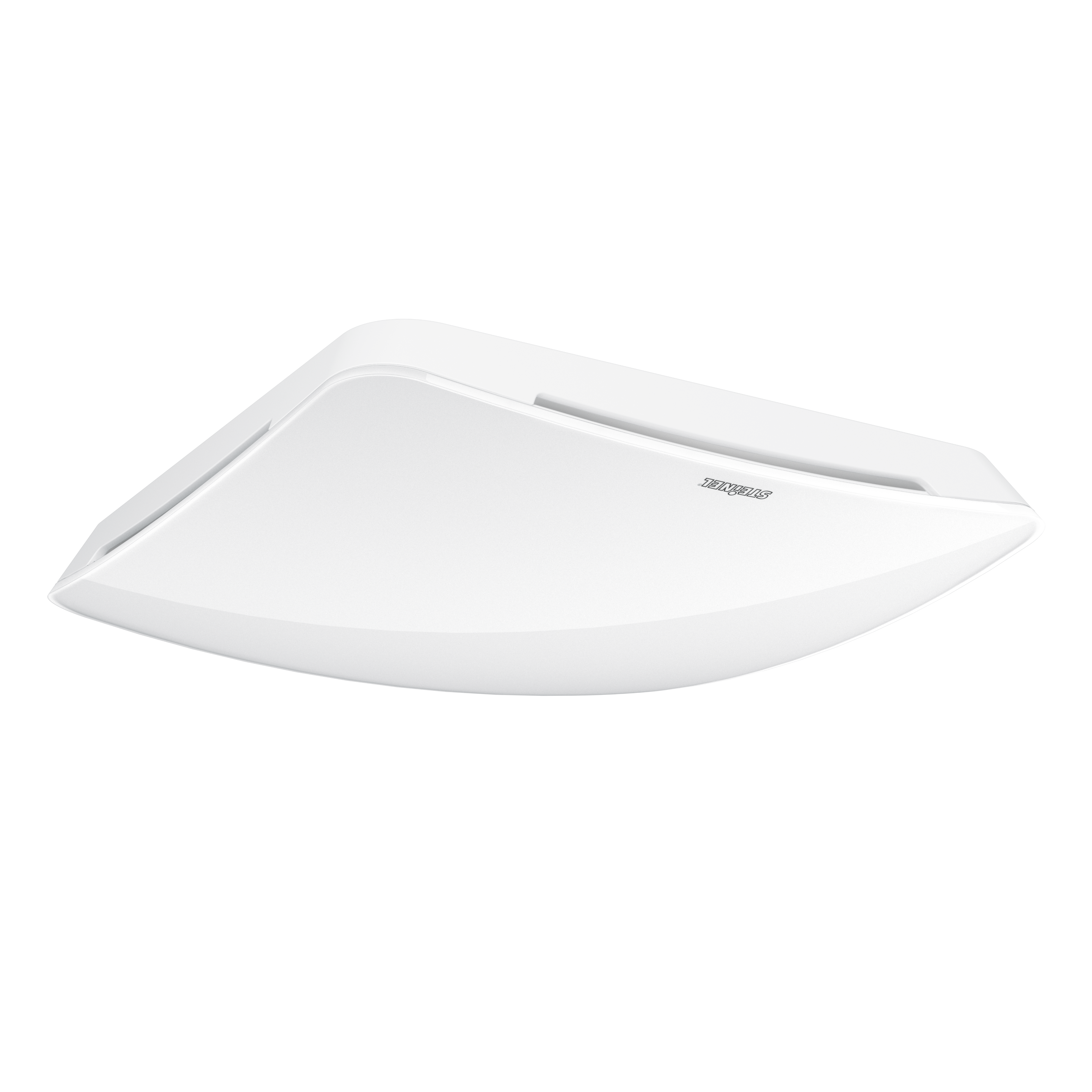

Steinel True Presence Multisensor Aerosol KNX

ELDAS® no. 535 932 808

EAN-No. 4007841 079208

Version

KNX IP (REST API, MQTT, BacNet) DALI-2 Input Device (Slave) Bluetooth Input Device (Slave) KNX Aerosol

Mounting type

Flush-mounted Surface-mounted

The most precise presence detector ever becomes the ultimate sensory organ. Light level, ambient temperature, humidity, air pressure, volatile organic compounds (VOC) and CO2 measurements are necessary for the true detection of people. Information that will help to advance the digitisation of building automation on a lasting basis. In this combination and for the first time, the True Presence® Multisensor Aerosol KNX is also capable of identifying and displaying a potential risk of infection as a communication object for KNX. An investment in building intelligence, in people's sense of well-being and in running the building cost-efficiently. The best comes from above – precise, digital information for modern building management.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 123 x 123 x 33 mm

Electrical

Mains connection 30 V

Own consumption 1 W

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 12,00 m

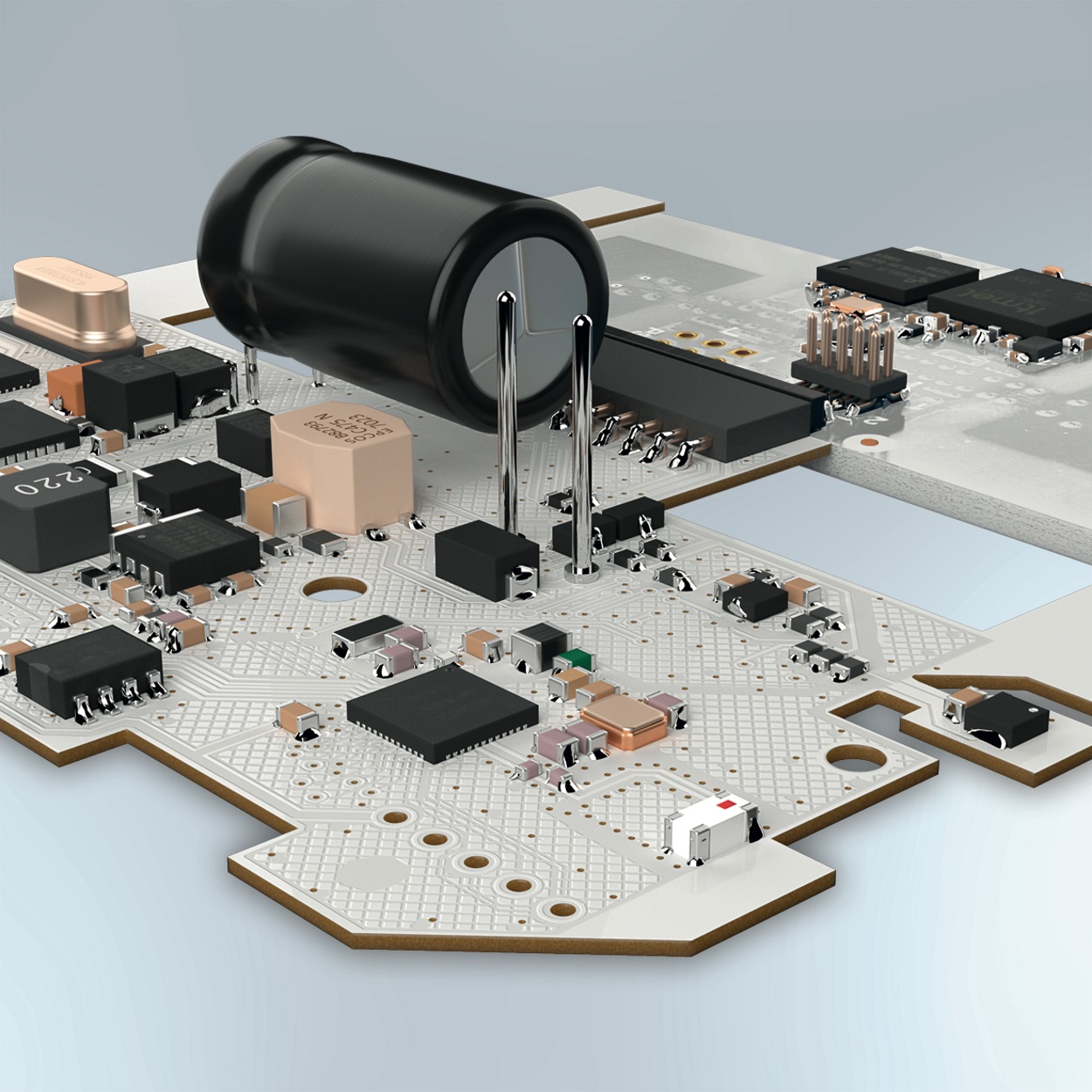

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2 – 12 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Risk of infection Udes air Comfort CO2 Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Logic gate Air pressure Humidity output Presence output Day / night function Dewpoint Temperature output VOC

With bus coupler Yes

Lighting technology

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 30 s – 1092 Min.

Base light function Yes

Main light adjustable 0 - 100 %

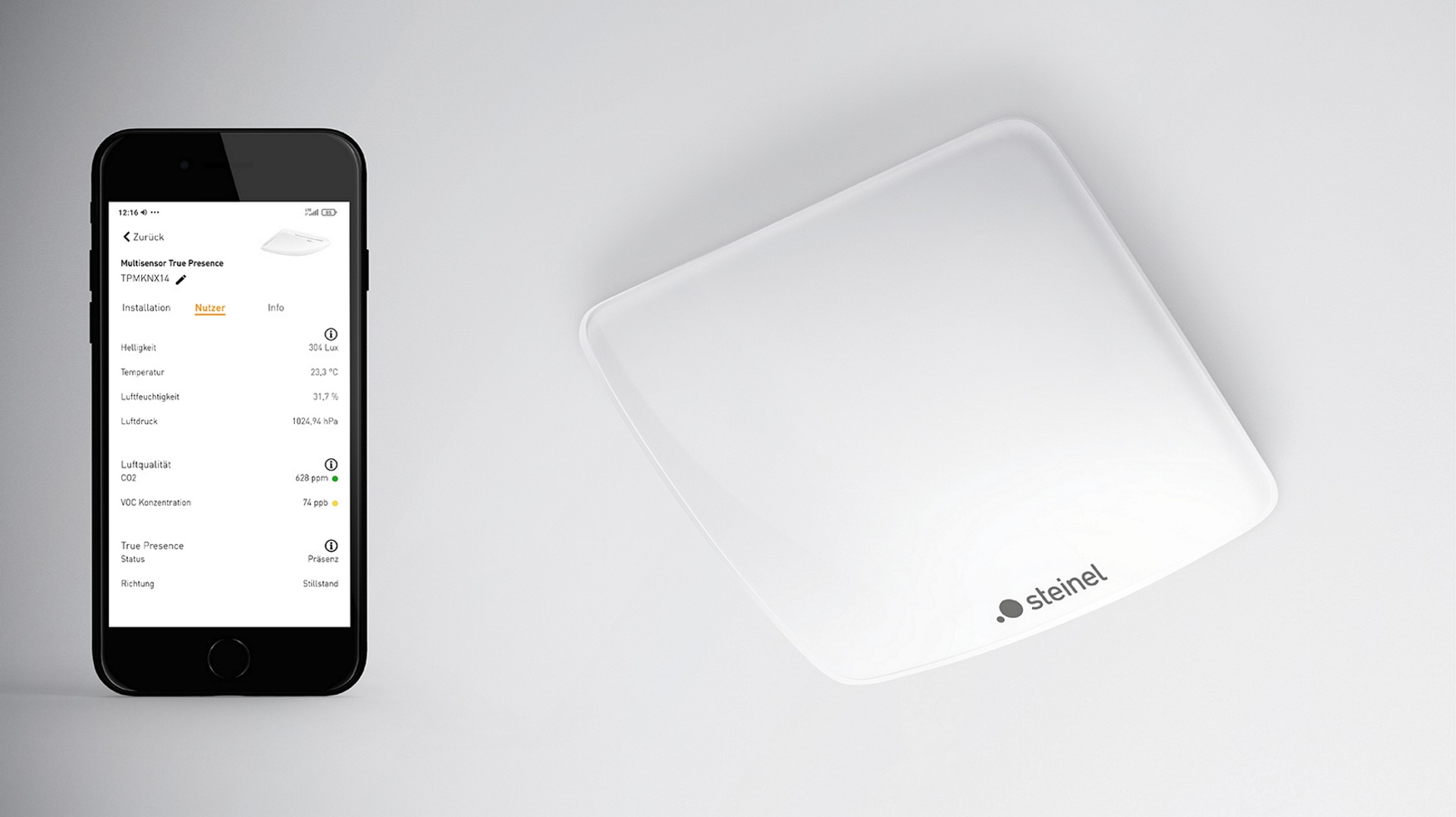

Settings via ETS software Bluetooth Bus

With remote control No

Twilight setting teach Yes

Base light function in percent 0 – 100 %

Base light function percent from 0 %

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

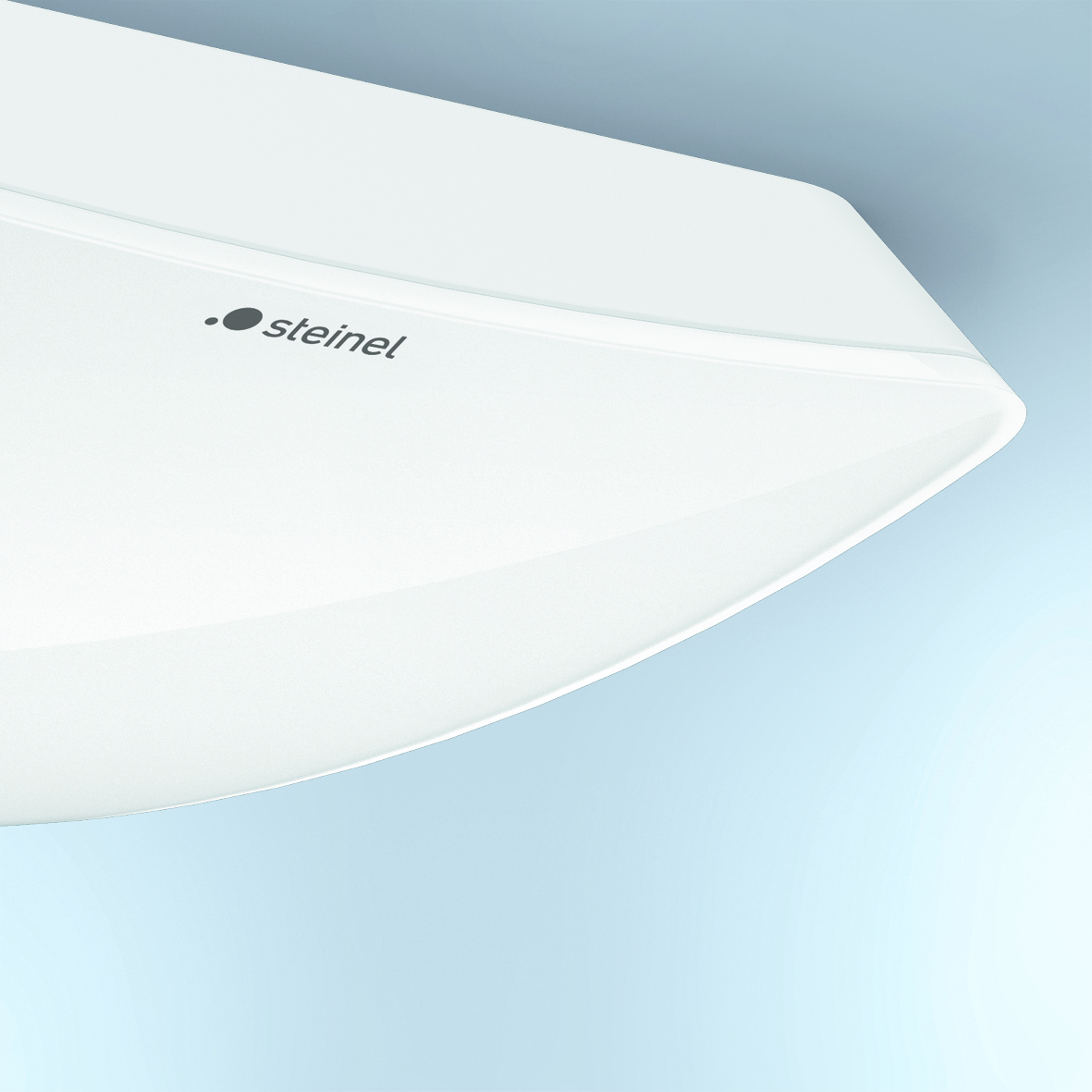

Material Plastic

Application room Indoors classroom conference room / meeting room duty room hotel room kitchenette lecture hall one-person office open-plan office recreation room

Colour white

RAL colour 9003
