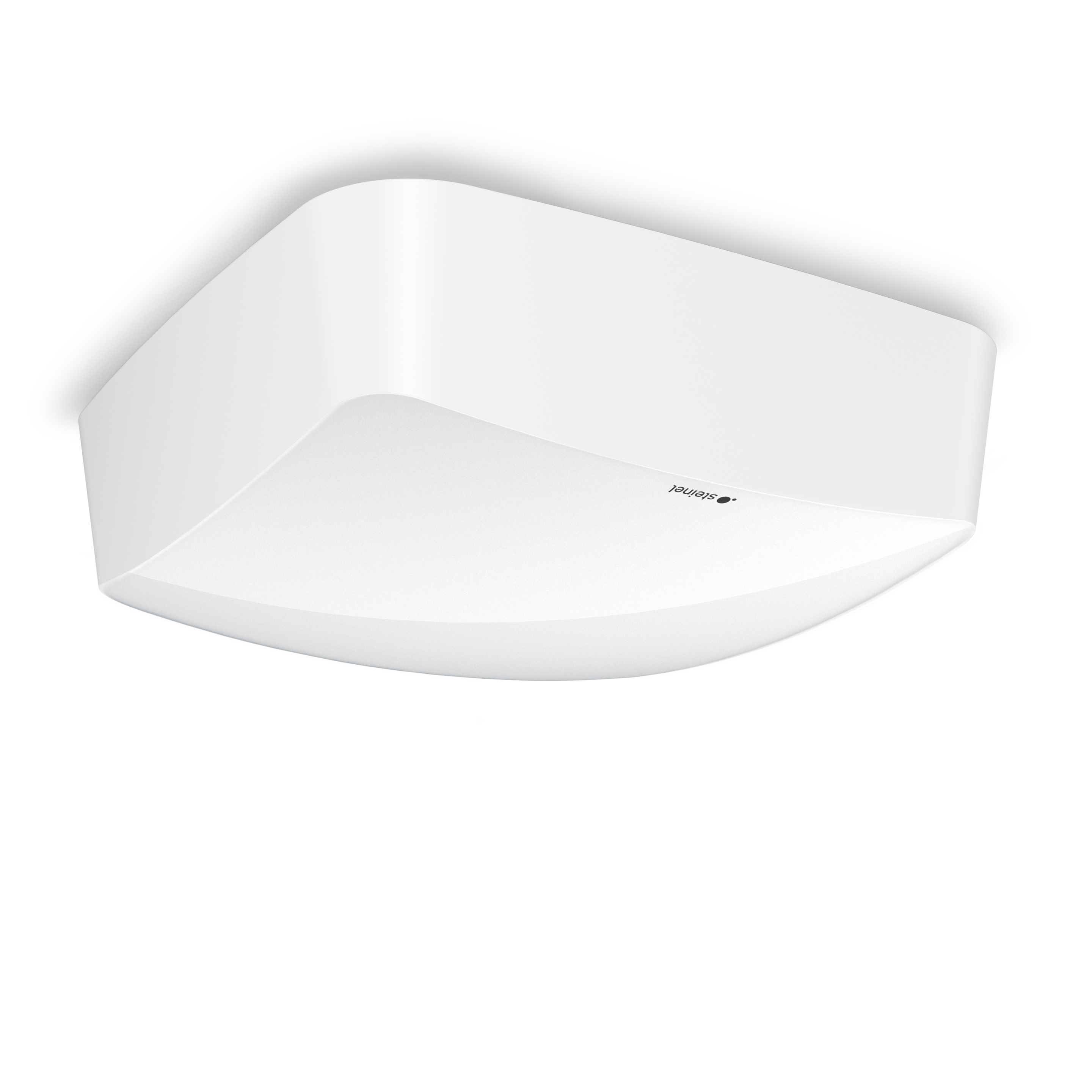

Steinel True Presence BT IPD - surface

Presence detector for offices, hotel rooms and lecture halls. Reliably knows if someone is in.

ELDAS® no. 535 933 308

EAN-No. 4007841 064525

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Colour

White

Mounting type

Concealed mounting Surface mounting

Variant

230V, 1 channel 230V, 2 channels Bluetooth Input-Device DALI-2 Application Controller IP (REST API, MQTT, BacNet)

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Variants

Version Bluetooth Input Device

Colour White

Mounting type Surface mounted

Dimensions

Dimensions L × W × H 45 x 123 x 123 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Sensor technology

Max. mounting height 12,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,0 – 12,0 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

Control technology Steinel Connect

Wireless networking via BT Open Mesh

Networking via Bluetooth

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch No

Base light function No

Main light adjustable No

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, WC / washroom, care room, changing room, classroom, conference room / meeting room, dining hall / staff restaurant, duty room, high-bay warehouse, hotel room, kitchenette, lecture hall, one-person office, open-plan office, production facilities, reception / lobby, recreation room, sports hall, warehouse

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

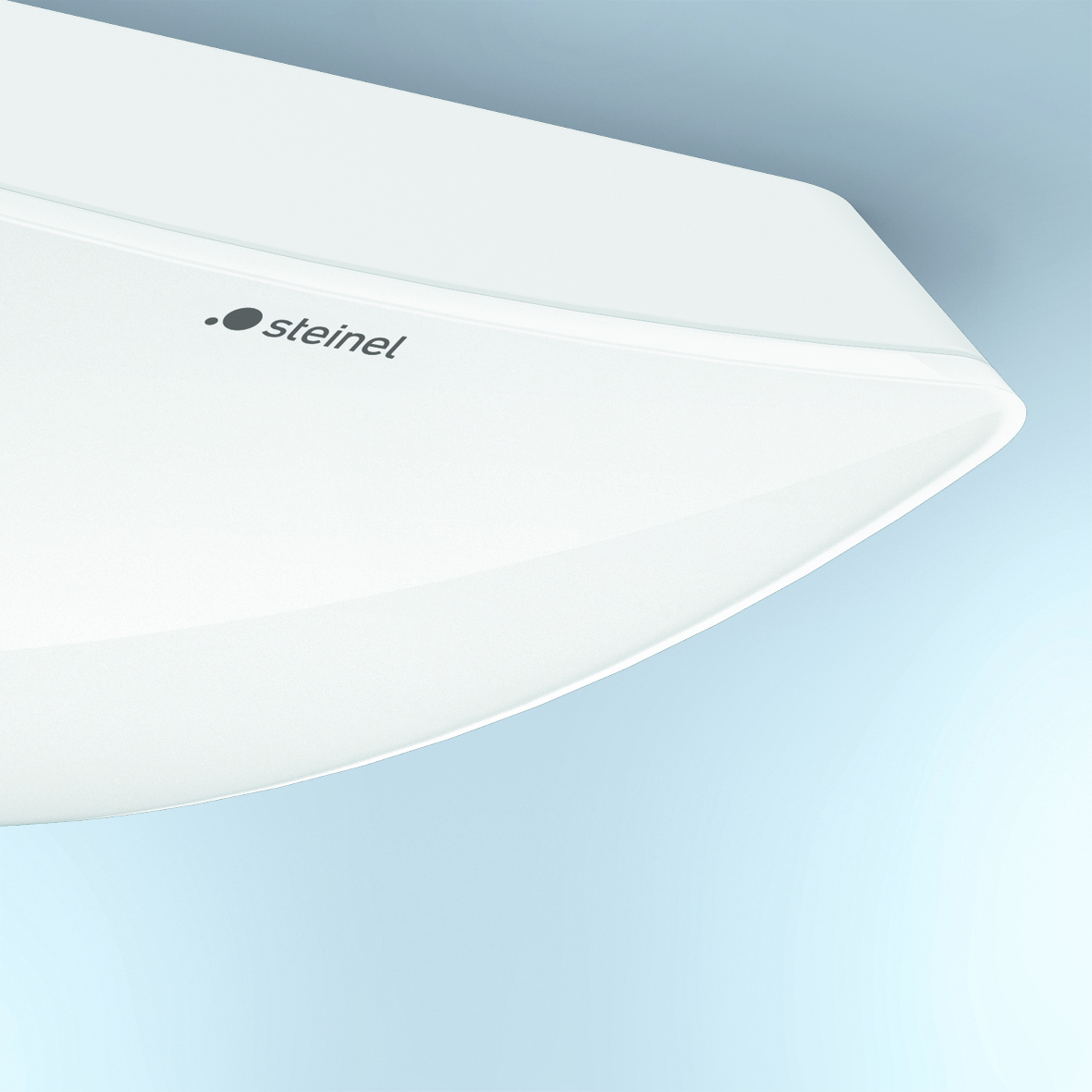

UV-resistant plastic

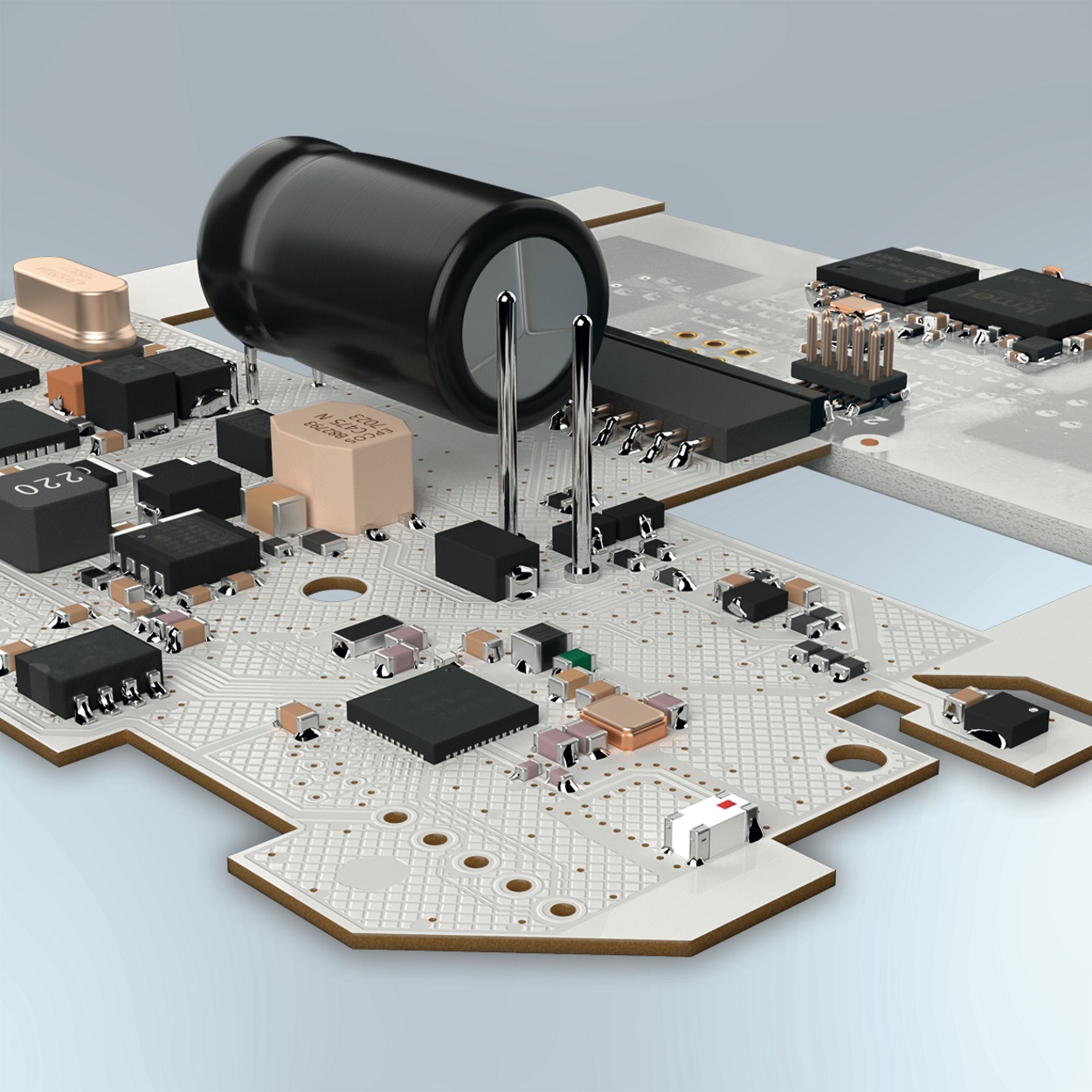

Digital high frequency sensor

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity
