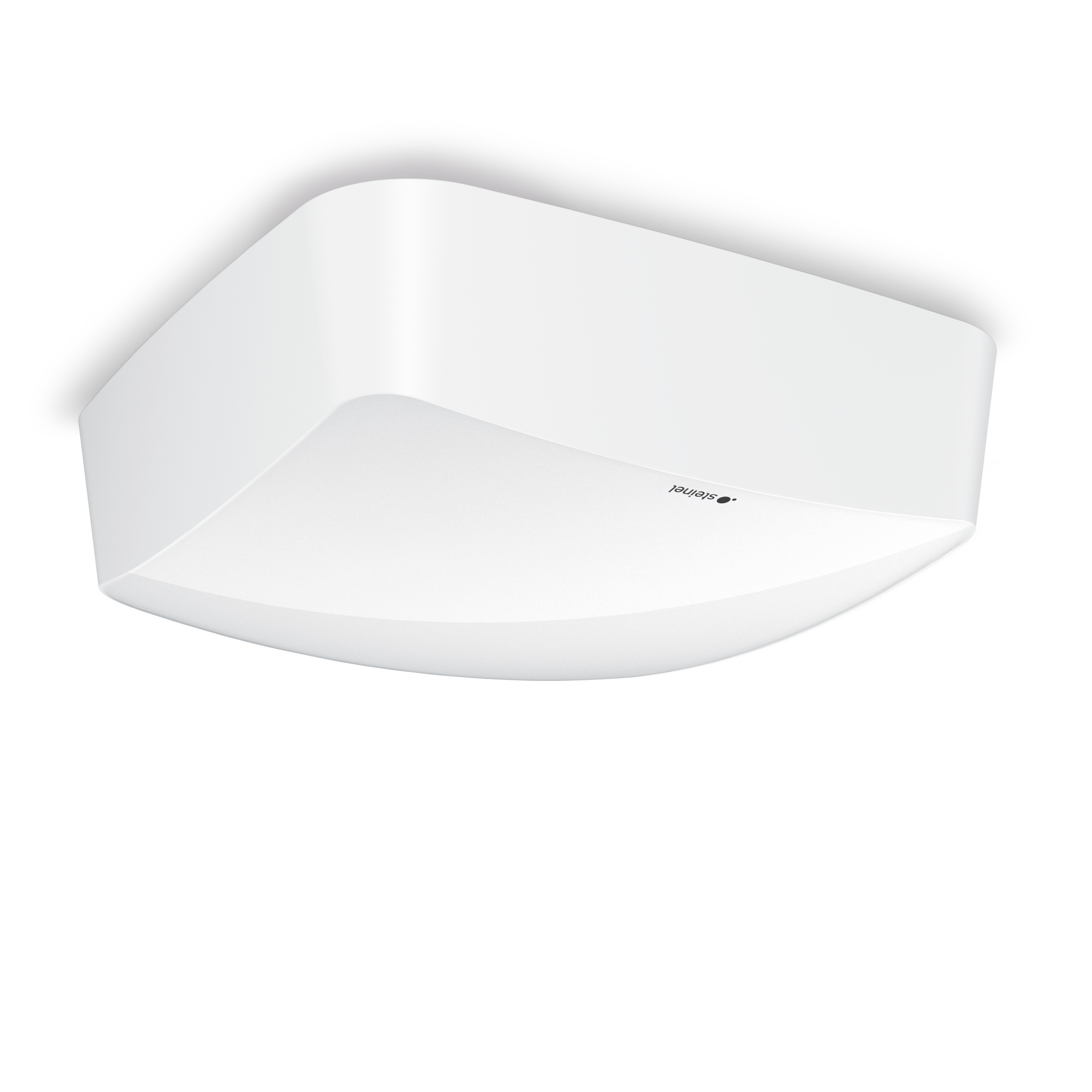

Steinel True Presence IP - surface

ELDAS® no. 535 933 408

EAN-No. 4007841 066024

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 45 x 123 x 123 mm

Electrical

Own consumption 1,1 W

Supply voltage detail Passive PoE SELV, standard PoE (IEEE 802.3 af)

Sensor technology

Max. mounting height 12,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,00 – 12,00 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Networking via Bluetooth DALI bus

With bus coupler Yes

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bluetooth Web-Interface

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room Indoors WC / washroom care room changing room classroom conference room / meeting room dining hall / staff restaurant duty room high-bay warehouse hotel room kitchenette lecture hall one-person office open-plan office production facilities reception / lobby recreation room sports hall warehouse

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

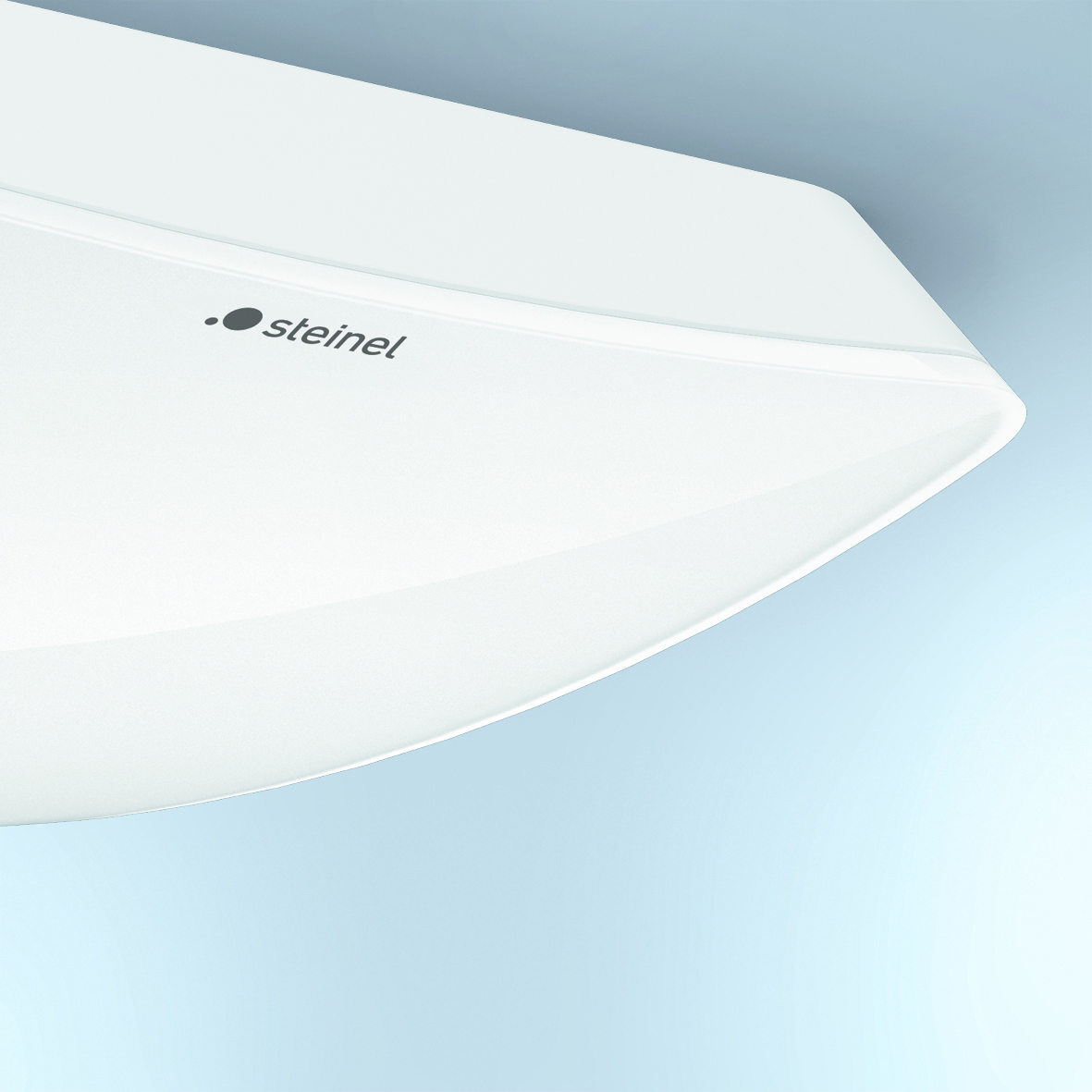

UV-resistant plastic

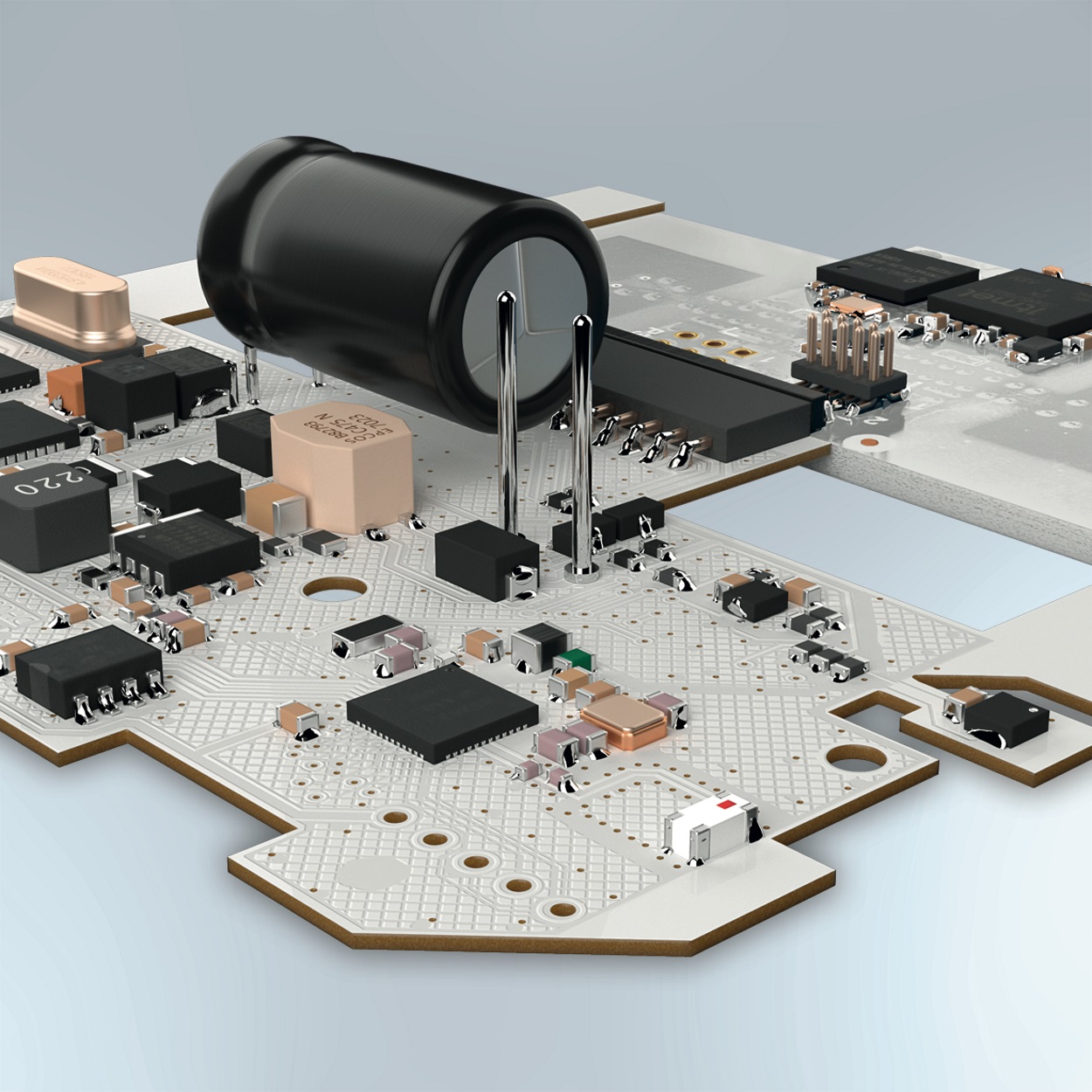

Digital high frequency sensor

Technical drawing

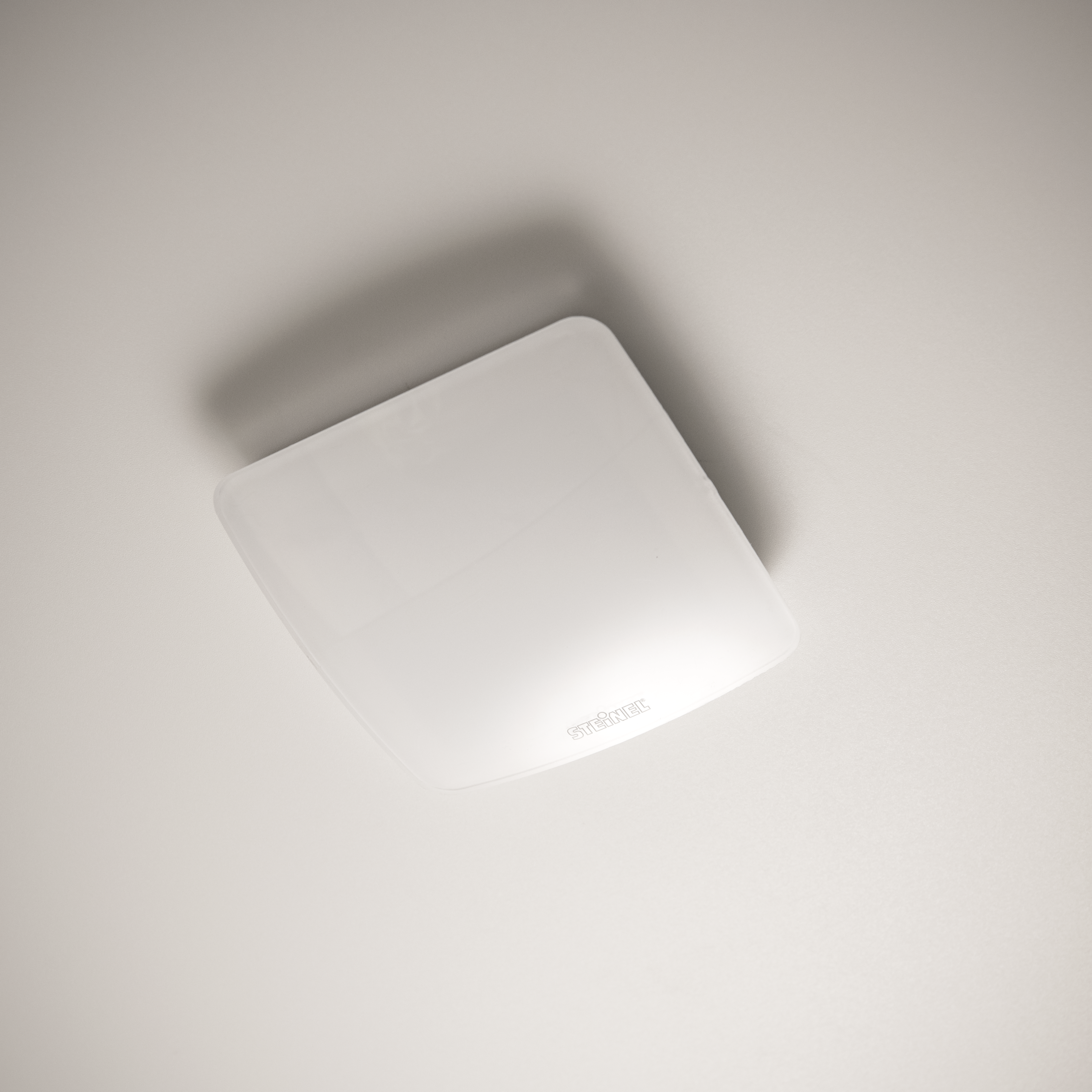

Sensor detection range

Data sheet User manual Declaration of conformity
