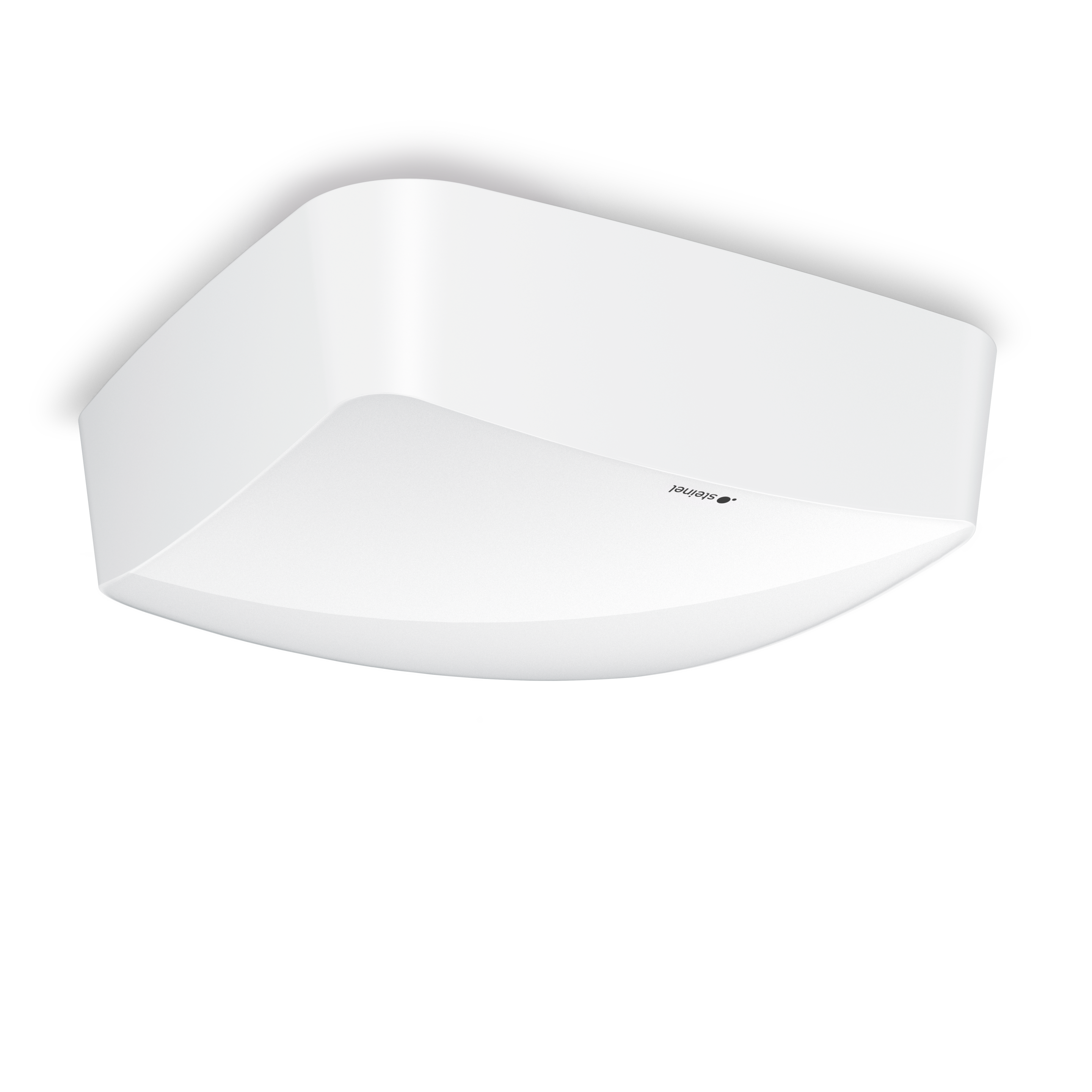

Steinel True Presence COM2 - surface white

Presence detector for offices and hotel rooms. Detects true presence, splash-proof.

ELDAS® no. 535 903 113

EAN-No. 4007841 086237

Price: Please log in to see prices

Colour

Black White

Mounting type

Concealed mounting Surface mounting

Variant

230V, 1 channel 230V, 2 channels Bluetooth Input-Device DALI-2 Input Device IP (REST API, MQTT, BacNet)

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Variants

Version 230V COM2
Colour White
Mounting type Surface mounted

Dimensions

Dimensions L × W × H 45 x 123 x 123 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 2000 W
Switching output 1 resistive 2000 W
Switching output 1 low-voltage halogen lamps 1000 VA
Own consumption 1 W
Switching output 1 number of LED/fluorescent lamps 8 pcs.
Switching output 1 potential-free No
Switching output 2 resistive 230 W
Switching output 2 potential-free Yes

Sensor technology

Max. mounting height 12,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 7,2 GHz
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 15 m (177 m²)
Tangential range Ø 15 m (177 m²)
Mounting height 2,0 – 12,0 m
Presence range Ø 15 m (177 m²)
True Presence range Ø 9 m (64 m²)
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via Bluetooth Mesh

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 30 s – 30 min
Base light function No
Main light adjustable Yes
Functions Group parameterisation, Semi-/fully automatic, Lighting scenario, Manual ON / ON-OFF, Neighbouring group function, Normal / test mode
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Ambient temperature -20...+50 °C
Mounting location ceiling
Application location Indoors
Material Plastic
Application room Indoors, WC / washroom, care room, changing room, classroom, conference room / meeting room, dining hall / staff restaurant, duty room, high-bay warehouse, hotel room, kitchenette, lecture hall, one-person office, open-plan office, production facilities, reception / lobby, recreation room, sports hall, warehouse
Colour White
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

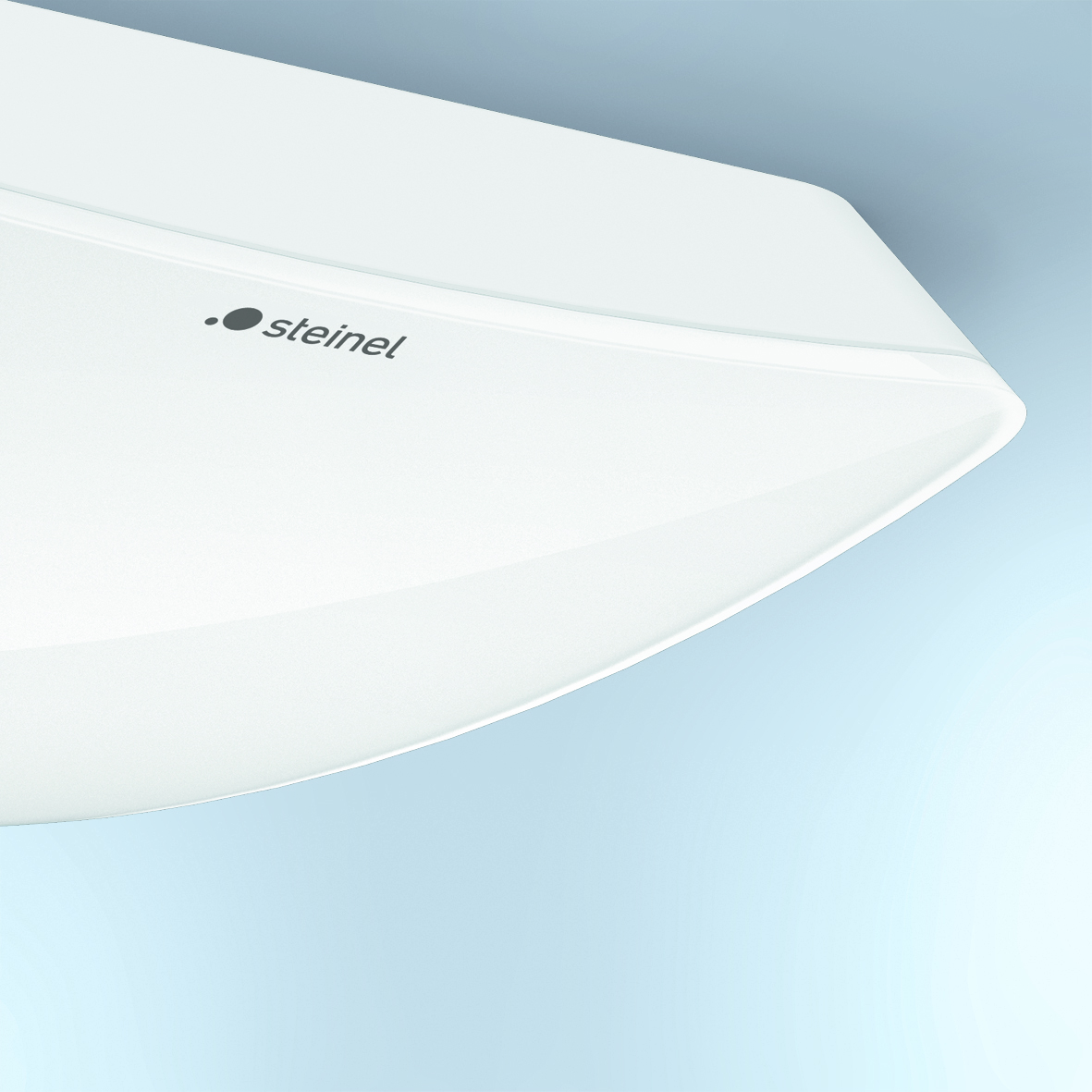

UV-resistant plastic

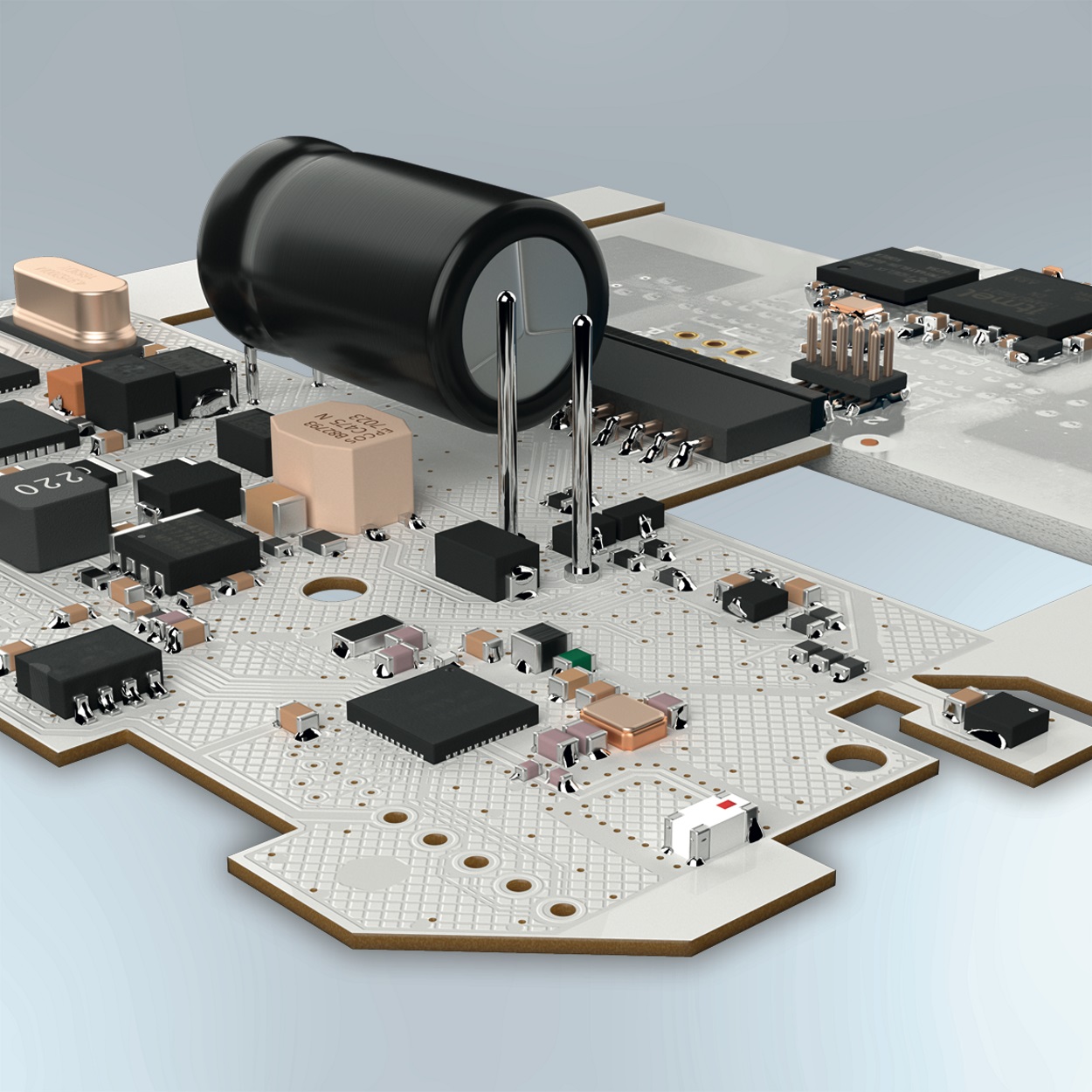

Digital high frequency sensor

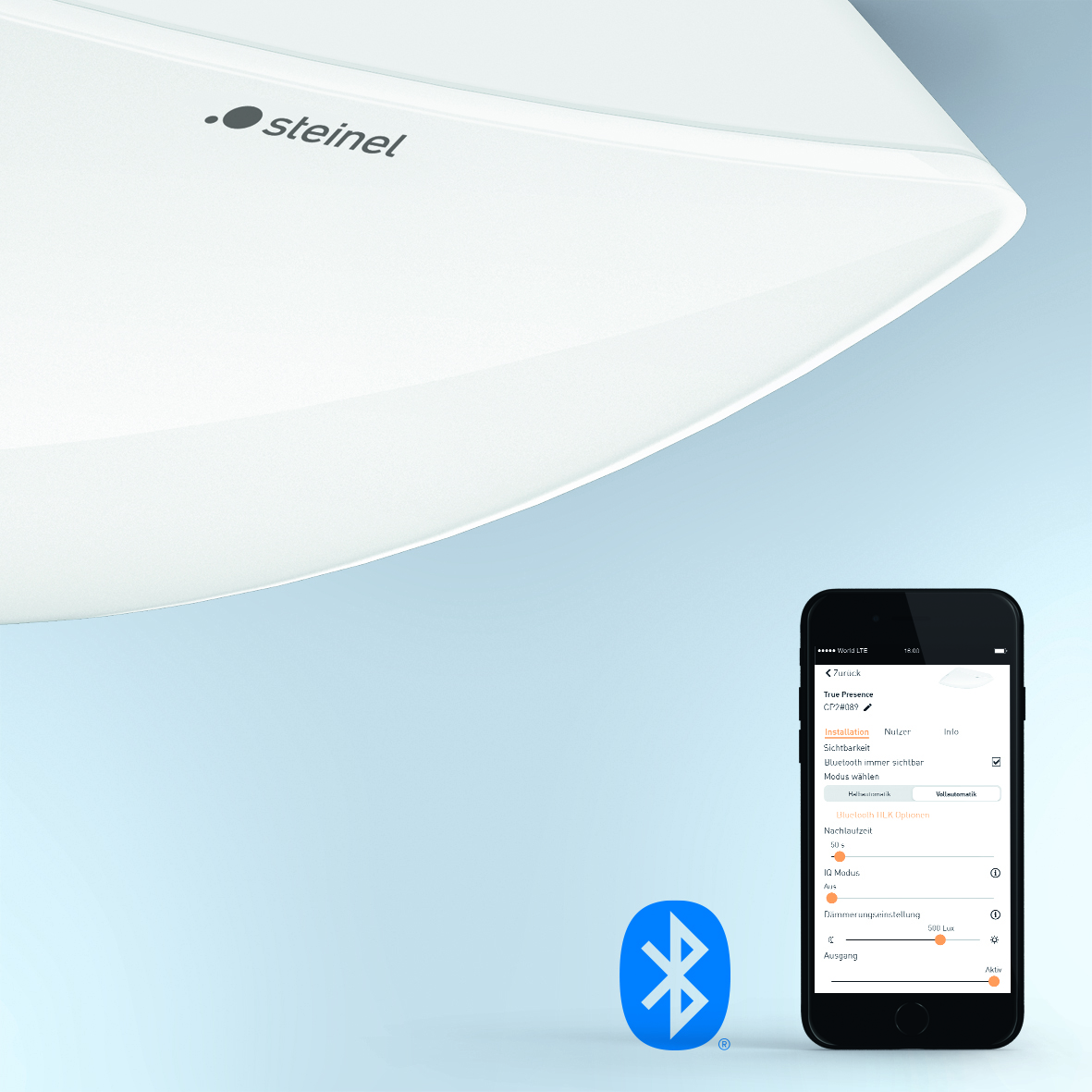

Interconnectable and adjustable via Bluetooth

Technical drawing

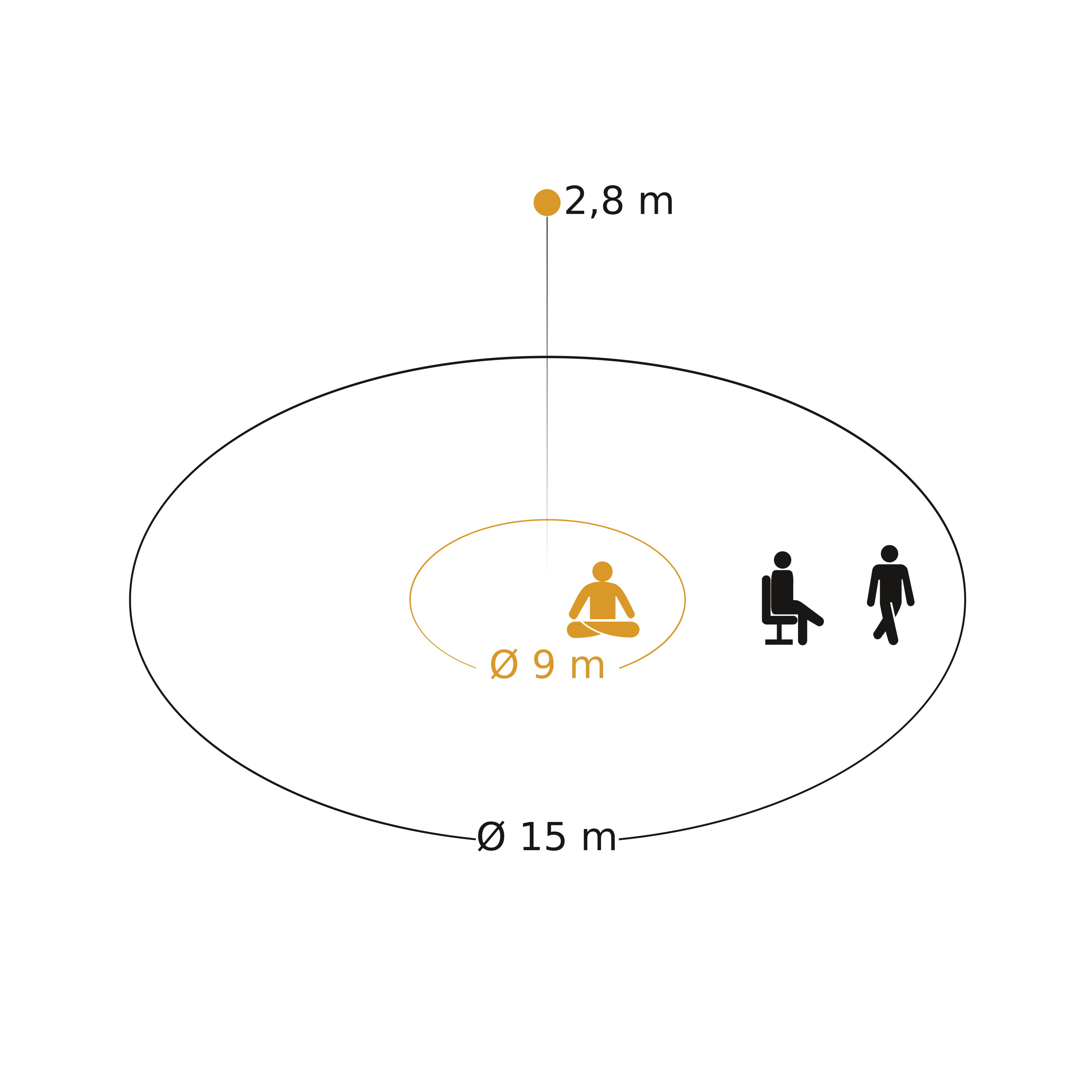

Sensor detection range

Wiring diagram 1

Master circuit diagram
