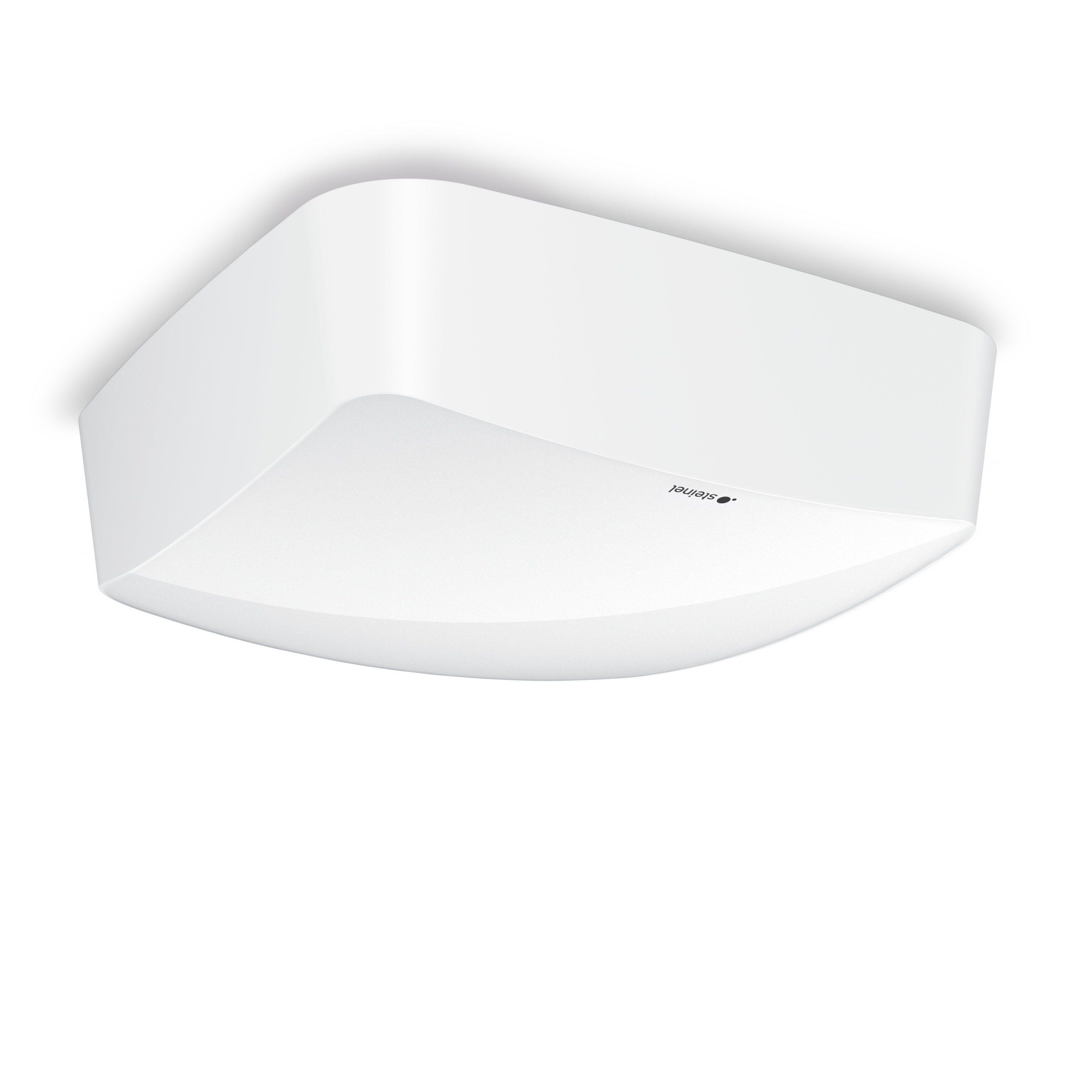

Steinel True Presence DALI-2 Input Device - surface

Steinel True Presence DALI-2 Input Device - surface

ELDAS® no. 535 903 074 · EAN-No. 4007841 064501

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel Bluetooth Mesh

Steinel True Presence DALI-2 Input Device - surface

ELDAS® no. 535 903 074

EAN-No. 4007841 064501

Price: Please log in to see prices

Version

230V COM1 IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Electrical

Mains connection 220 – 240 V
Control output DALI Addressable/slave

Sensor technology

Max. mounting height 12,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 7,2 GHz
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 15 m (177 m²)
Tangential range Ø 15 m (177 m²)
Mounting height 2 – 12 m
Presence range Ø 15 m (177 m²)
True Presence range Ø 9 m (64 m²)
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Bluetooth Mesh
Number of DALI participants 1
With bus coupler Yes

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Base light function No
Main light adjustable No
Settings via Bluetooth Bus
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP20
Ambient temperature from -20 up to 50 °C
Mounting location ceiling
Application location Indoors
Mounting type Surface wiring
Material Plastic
Application room Indoors WC / washroom care room changing room classroom conference room / meeting room dining hall / staff restaurant duty room high-bay warehouse hotel room kitchenette lecture hall one-person office open-plan office production facilities reception / lobby recreation room sports hall warehouse
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

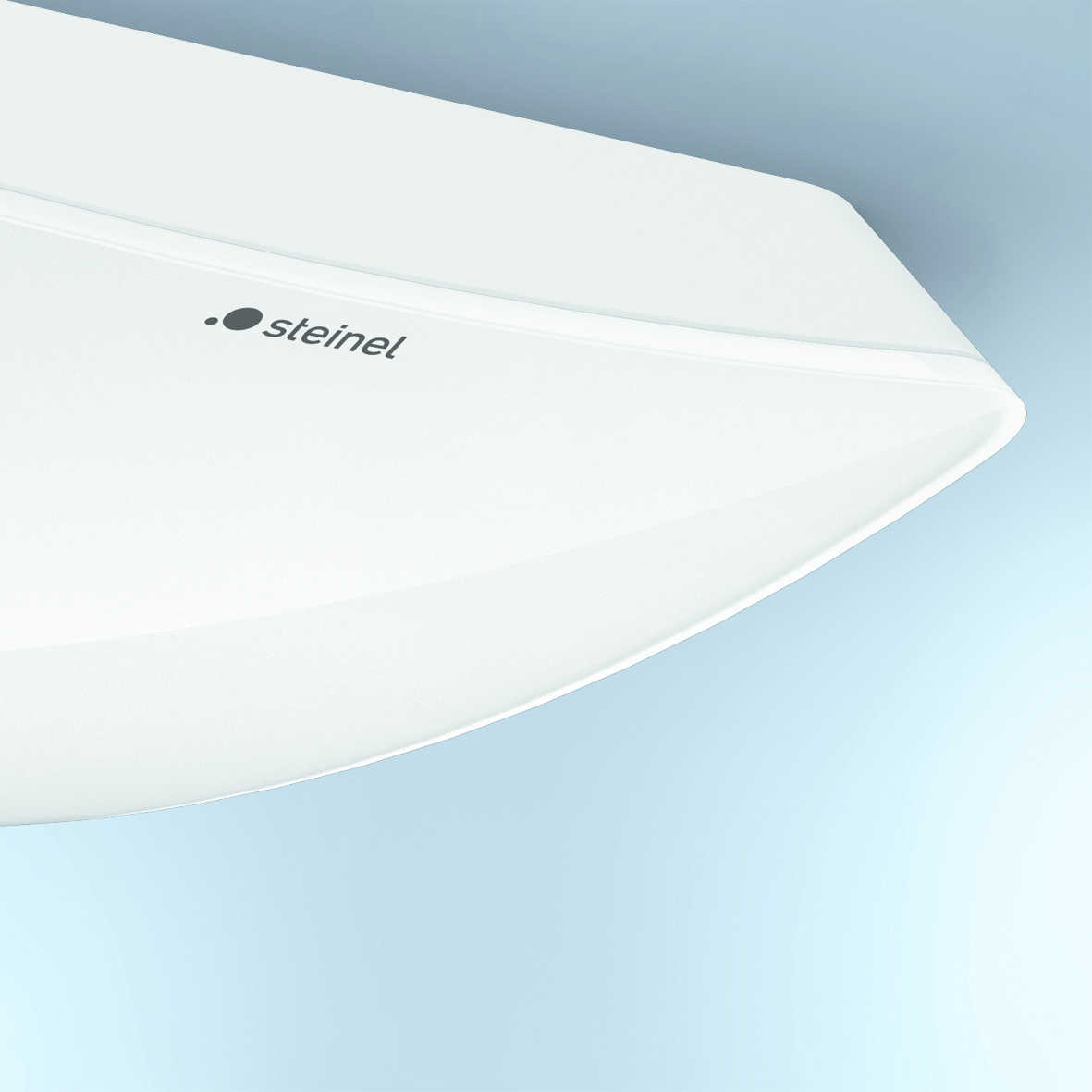

UV-resistant plastic

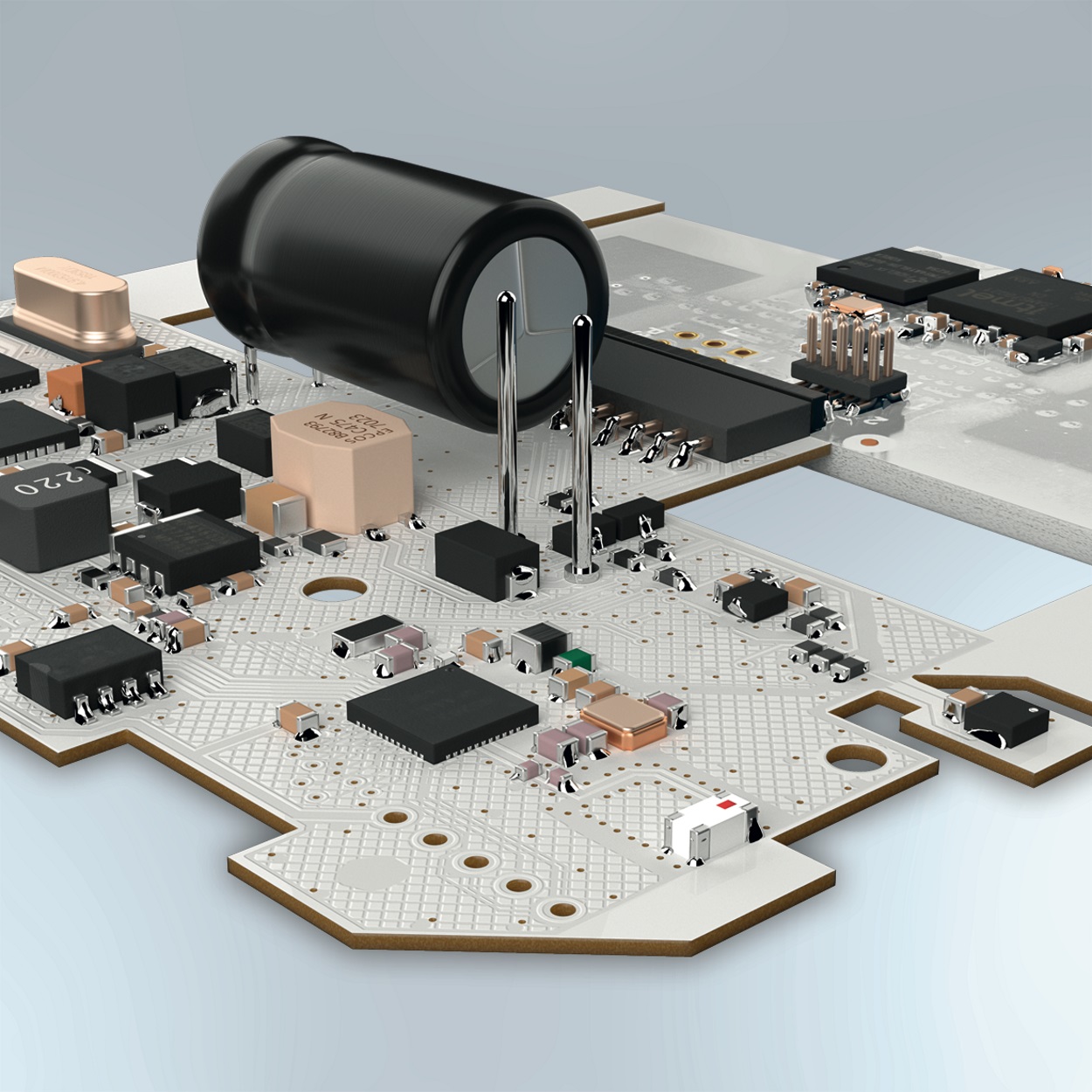

Digital high frequency sensor

Technical drawing

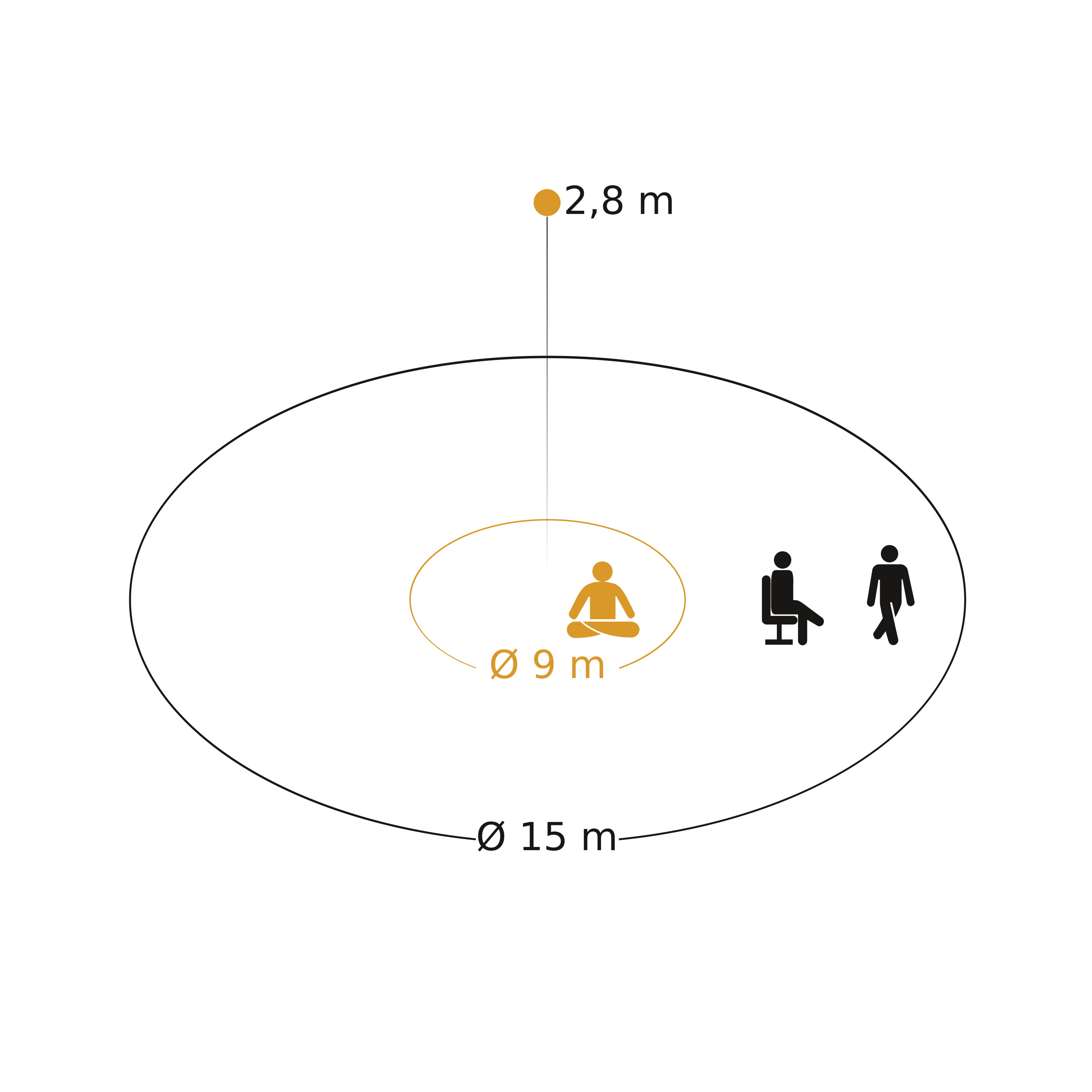

Sensor detection range

Wiring diagram 1

Circuit diagram for interconnecting DALI-2 APC with DALI-2 IPD
