Steinel XLED ONE Anthracite

Steinel XLED ONE Anthracite

ELDAS® no. 941 501 319 · EAN-No. 4007841 065201

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

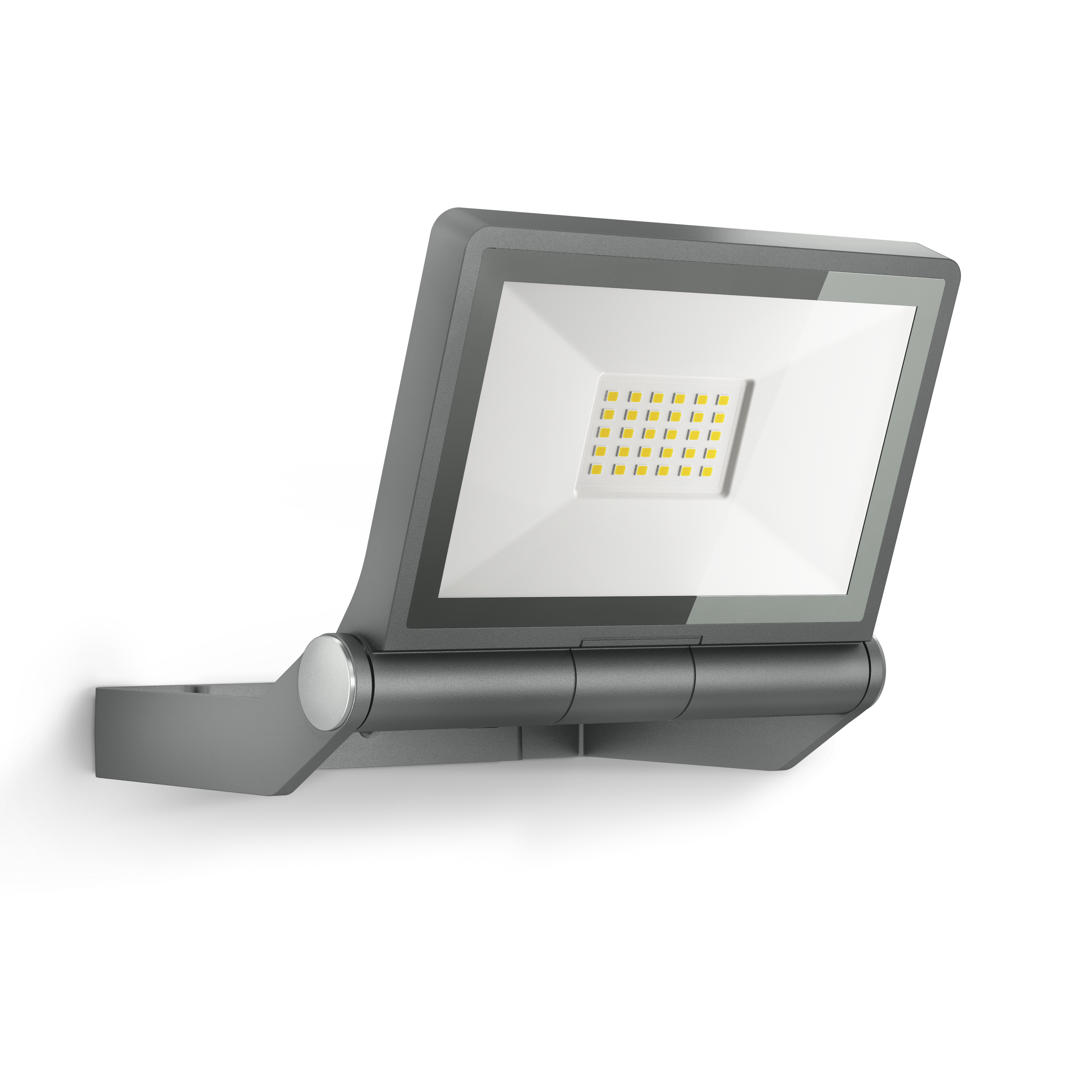

Steinel XLED ONE Anthracite

LED floodlight without sensor for yards and driveways. Wall or ceiling, swivelling panel.

ELDAS® no. 941 501 319

EAN-No. 4007841 065201

Price: Please log in to see prices

With motion detector

No Yes

Colour

Anthracite White

Luminous flux

2050 lm 4200 lm

The wall and ceiling spot is available with and without sensor. Warm white 3000 K, 2050 lm and a powerful reflector in both versions provide perfect illumination to light up any point outside the home – and, thanks to its energy-saving 17,8 W, also the eyes of those who own it. The LEDs fitted in the spots promise an astonishingly long service life of over 30 years.

  • Spotlight without motion detector for wall and ceiling mounting
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

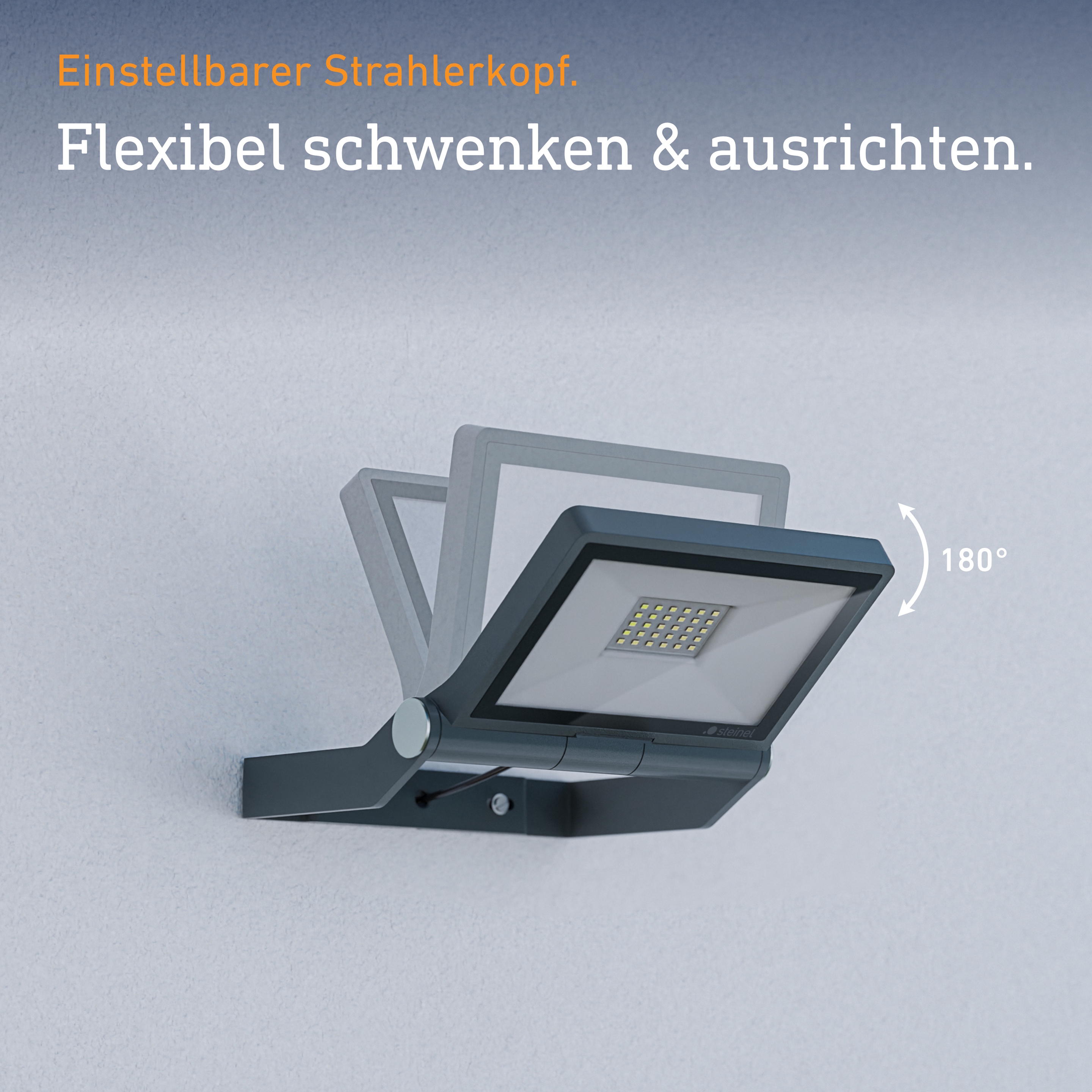

  • LED panel can be swivelled vertically by 180°
  • Warm white light (3000 K) and long-life 17,8 W LEDs with 2050 lm, with an illumination of max. 300 sqm
  • Incl. mounting accessories - plastic-free packaging

Variants

Luminous flux 2550 lm

Dimensions

Dimensions L × W × H 173 x 229 x 195 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 17,8 W

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 2050 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80 - 89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Efficiency without cover 110 lm/W

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 36000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch No
Base light function No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature -20...+40 °C
Housing material Aluminium
Cover material Clear glass

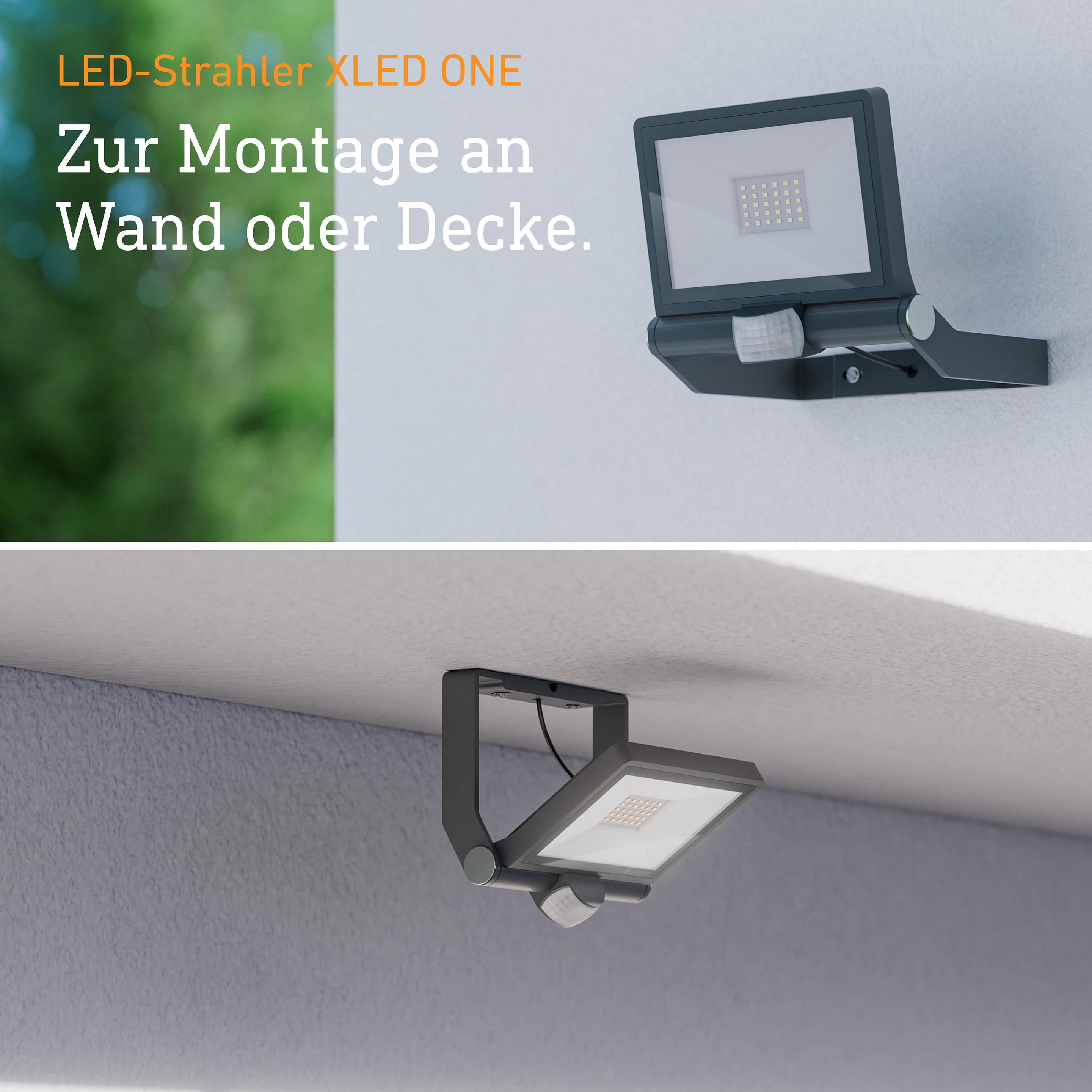

Mounting location ceiling, wall
Application location Outdoors
Mounting type Surface mounting

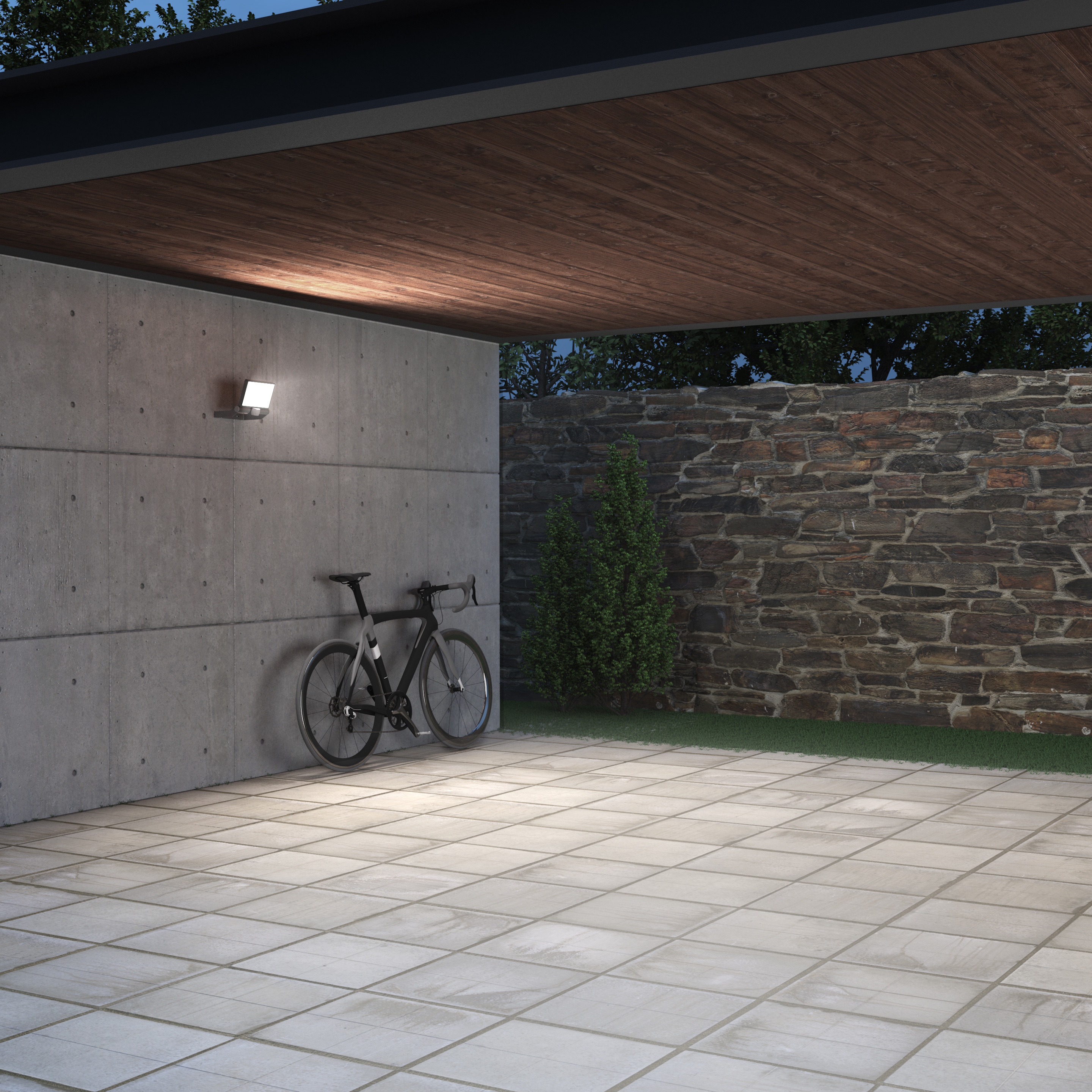

Application room all round the building, courtyard & driveway, outdoors
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL energy efficiency class E
EPREL category Light source

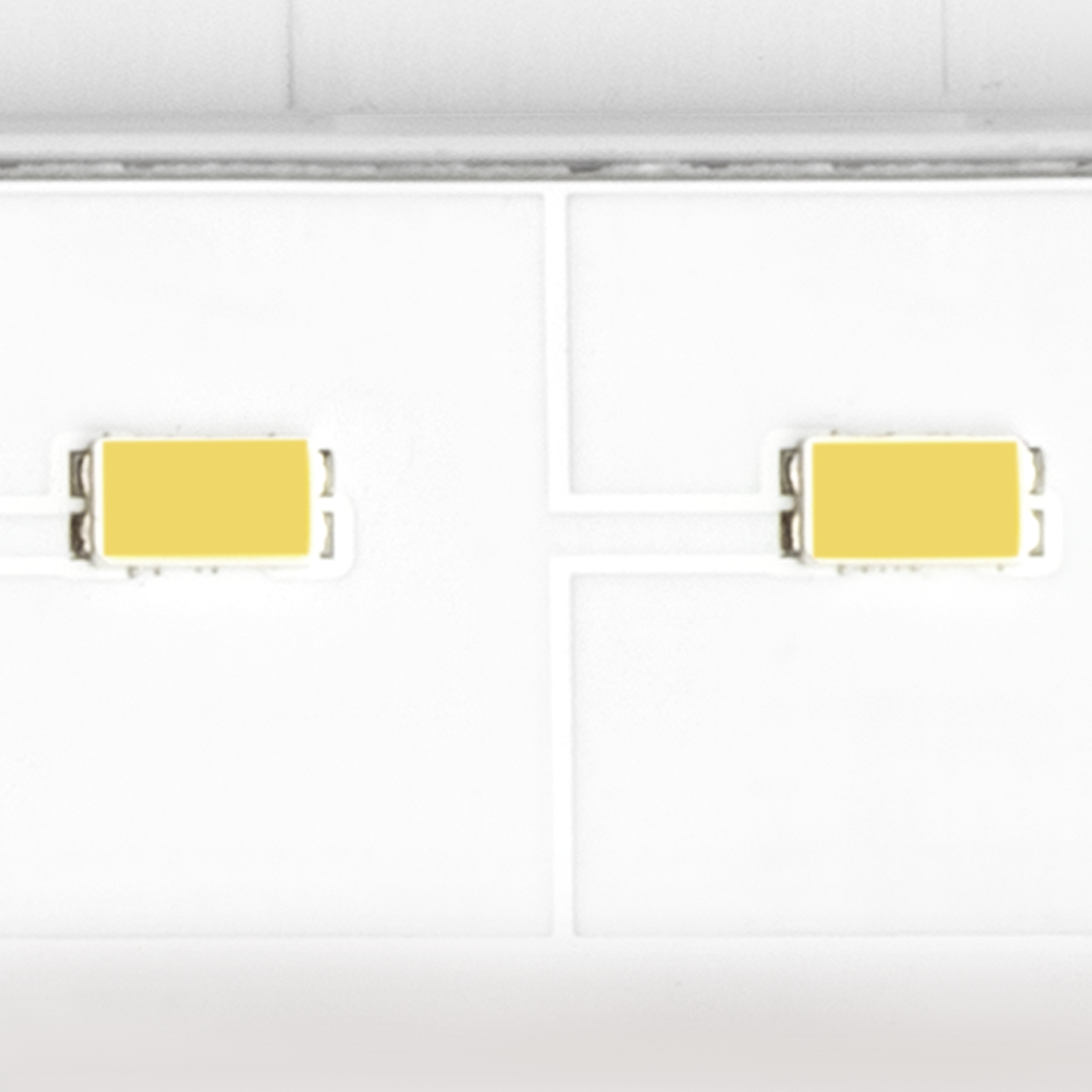

Including STEINEL LED system

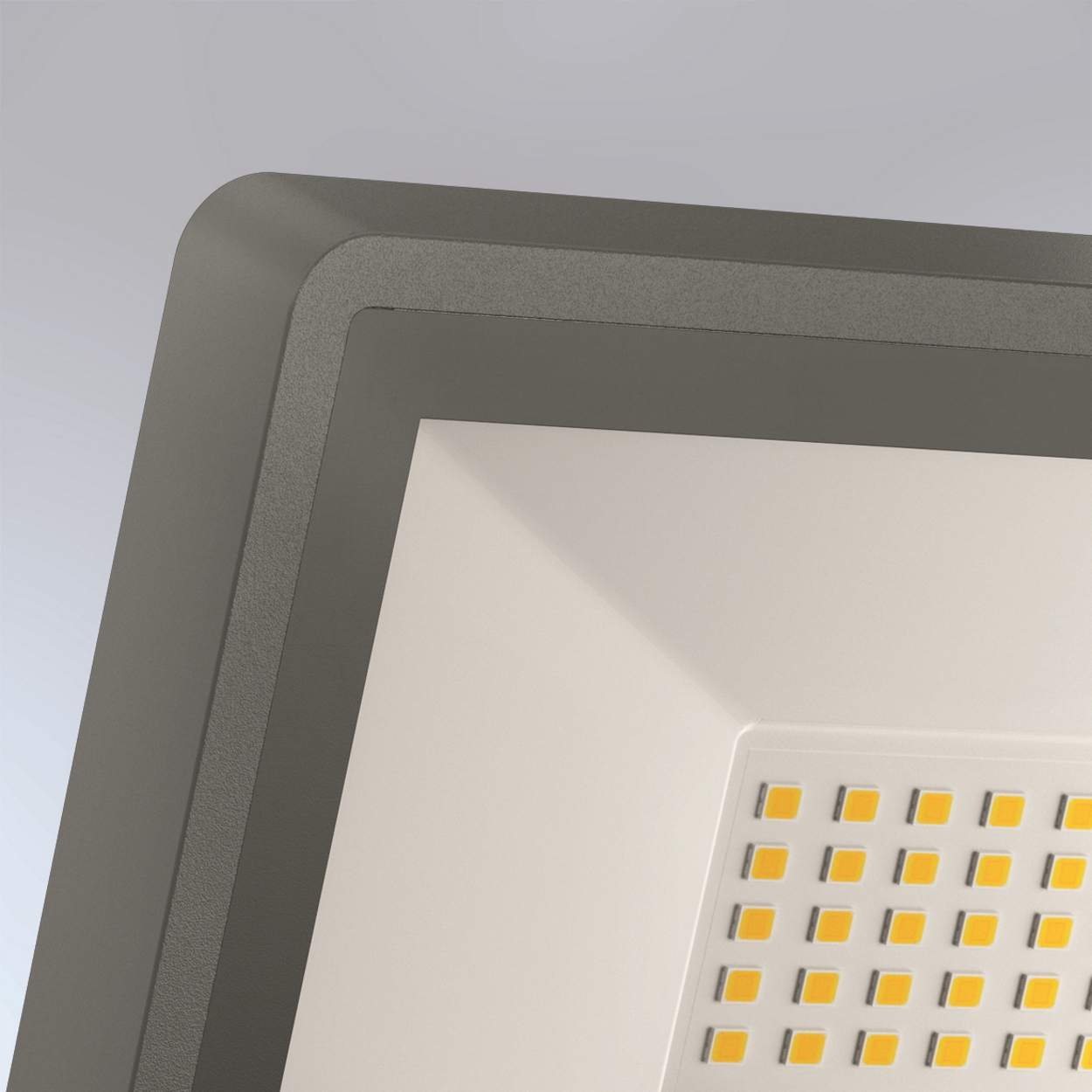

UV resistant material

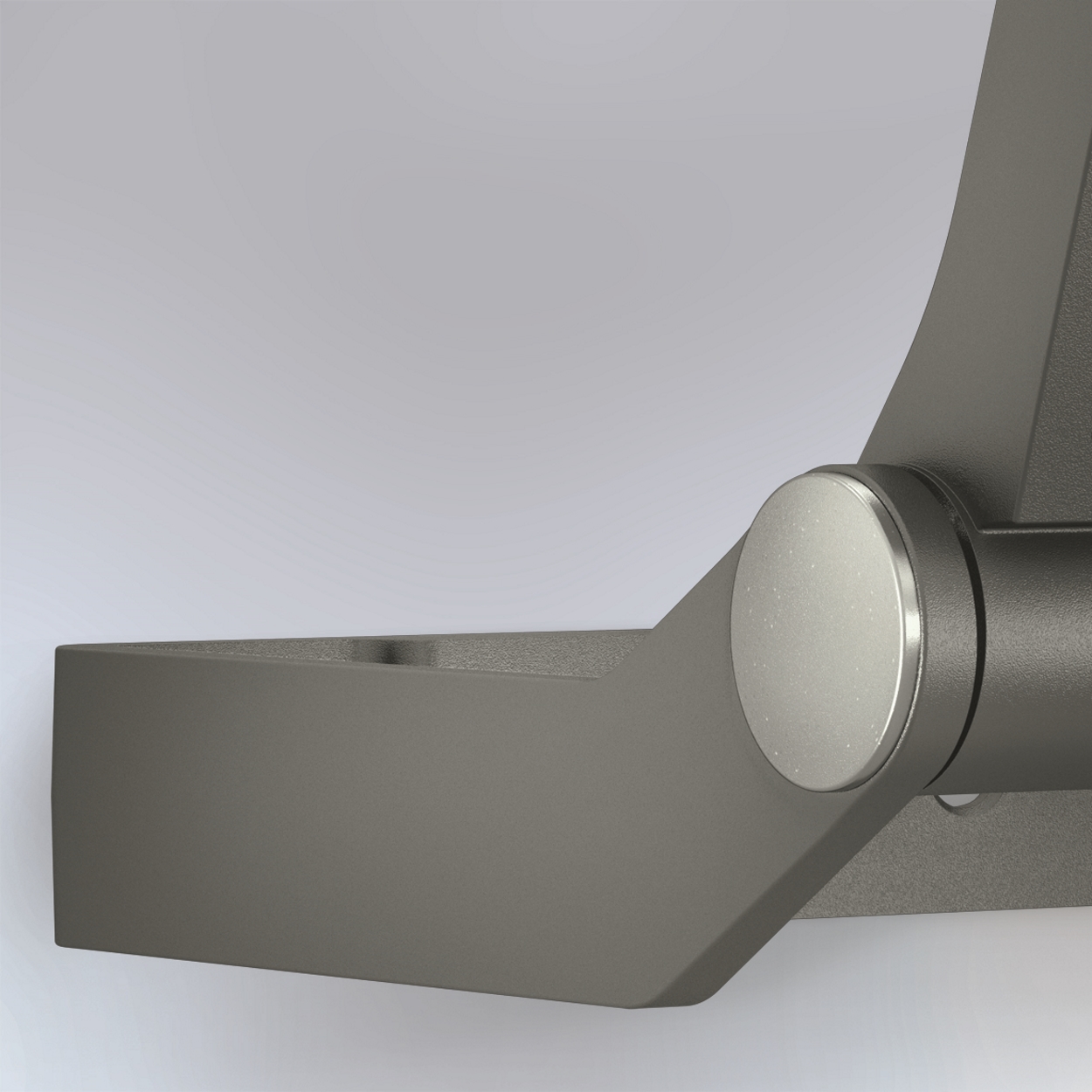

High-quality aluminium

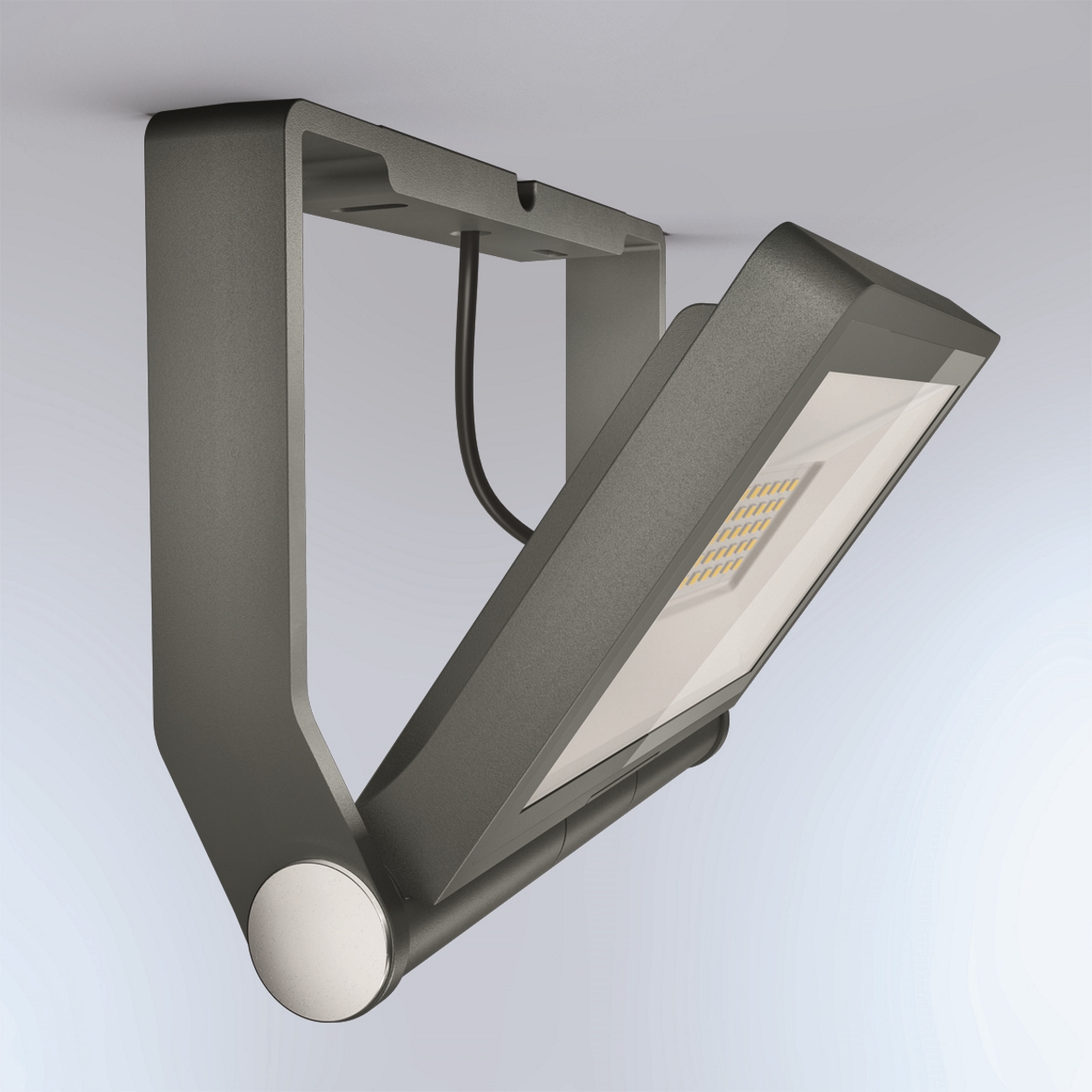

Suitable for mounting on ceilings

Technical drawing

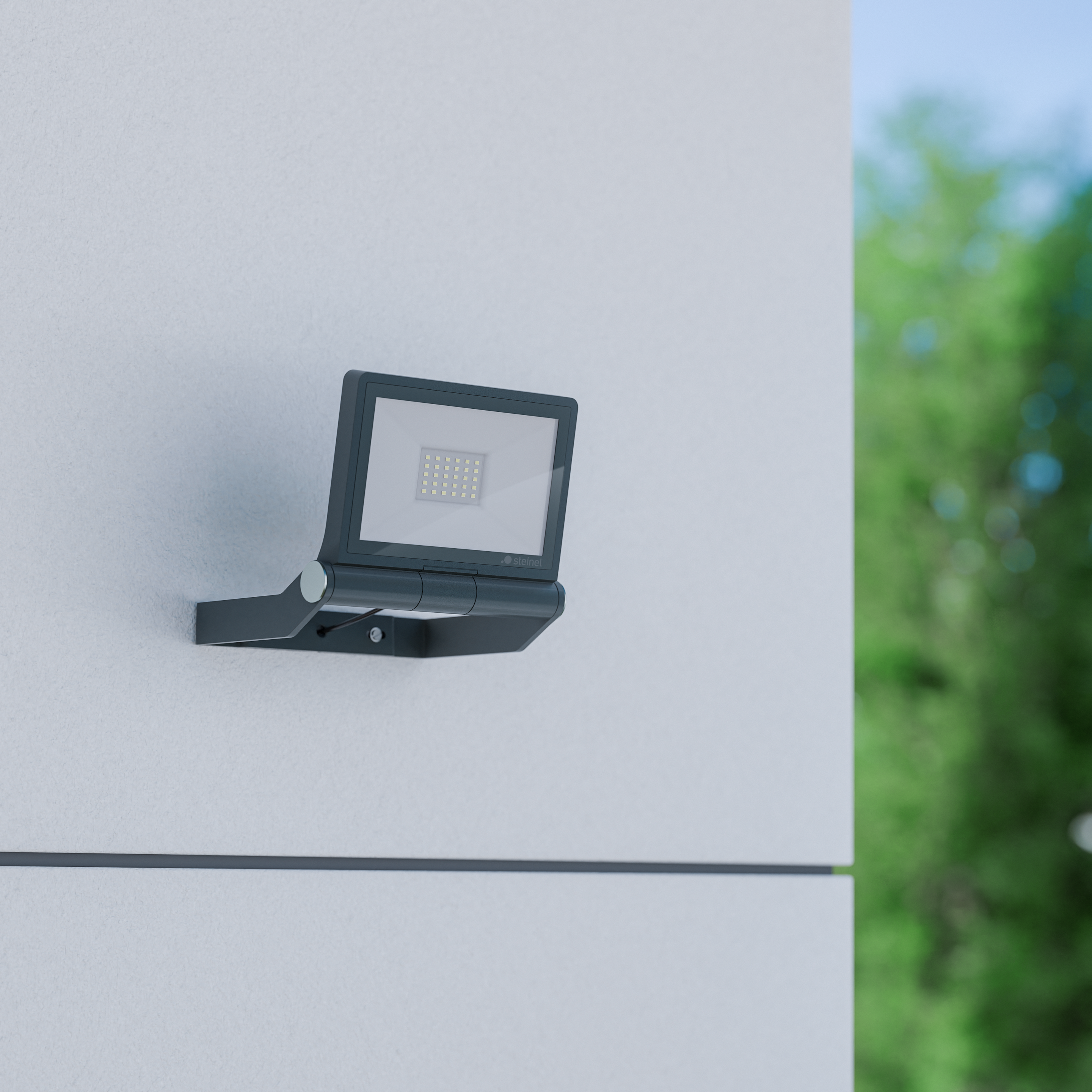

Sensor detection range

Wiring diagram 1

Circuit diagram
