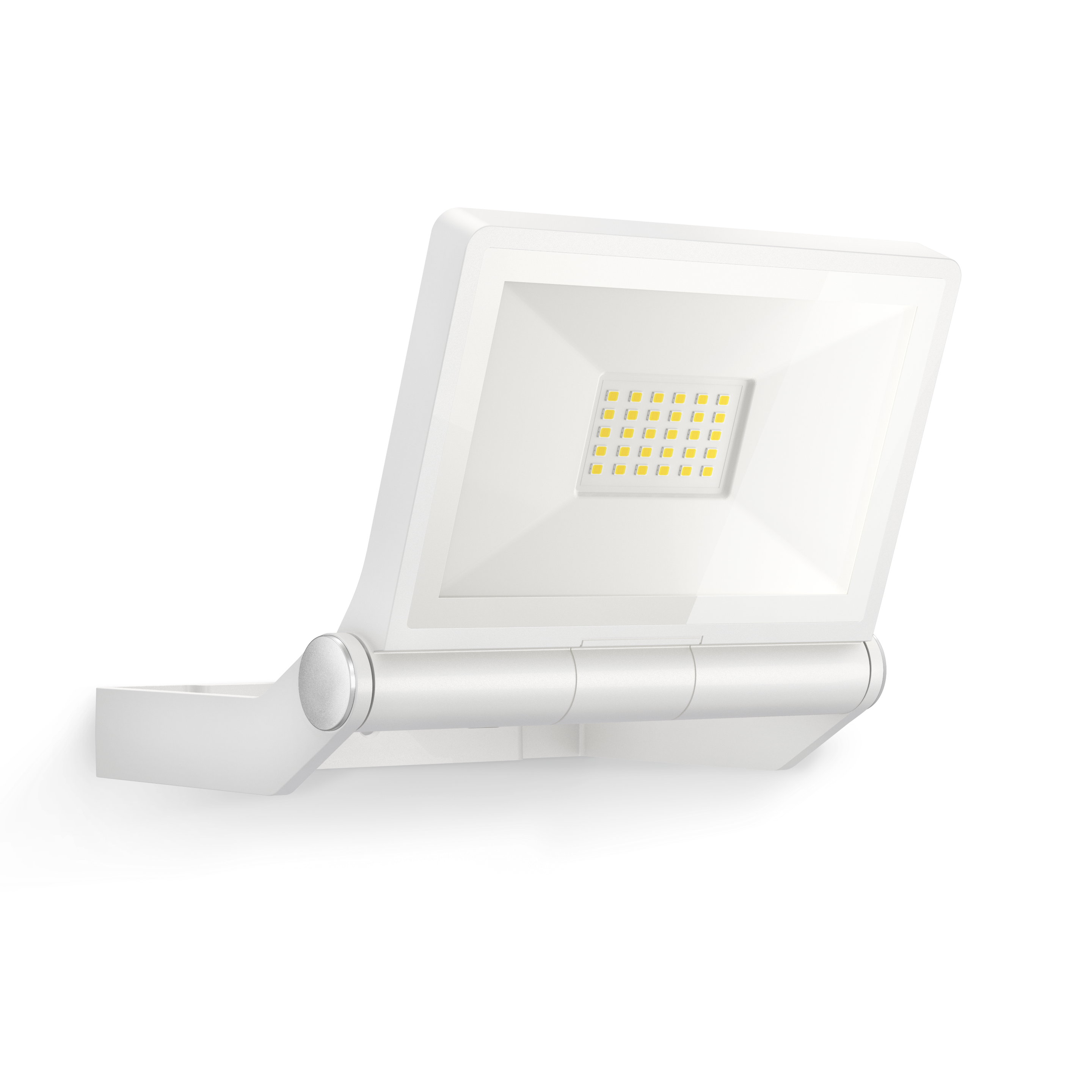

Steinel XLED ONE white

Steinel XLED ONE white

ELDAS® no. 941 501 389 · EAN-No. 4007841 065218

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

Steinel XLED ONE white

ELDAS® no. 941 501 389

EAN-No. 4007841 065218

Price: Please log in to see prices

Colour

Anthracite white

The wall and ceiling spot is available with and without sensor. Warm white 3000 K, 2050 lm and a powerful reflector in both versions provide perfect illumination to light up any point outside the home – and, thanks to its energy-saving 17,8 W, also the eyes of those who own it. The LEDs fitted in the spots promise an astonishingly long service life of over 30 years.

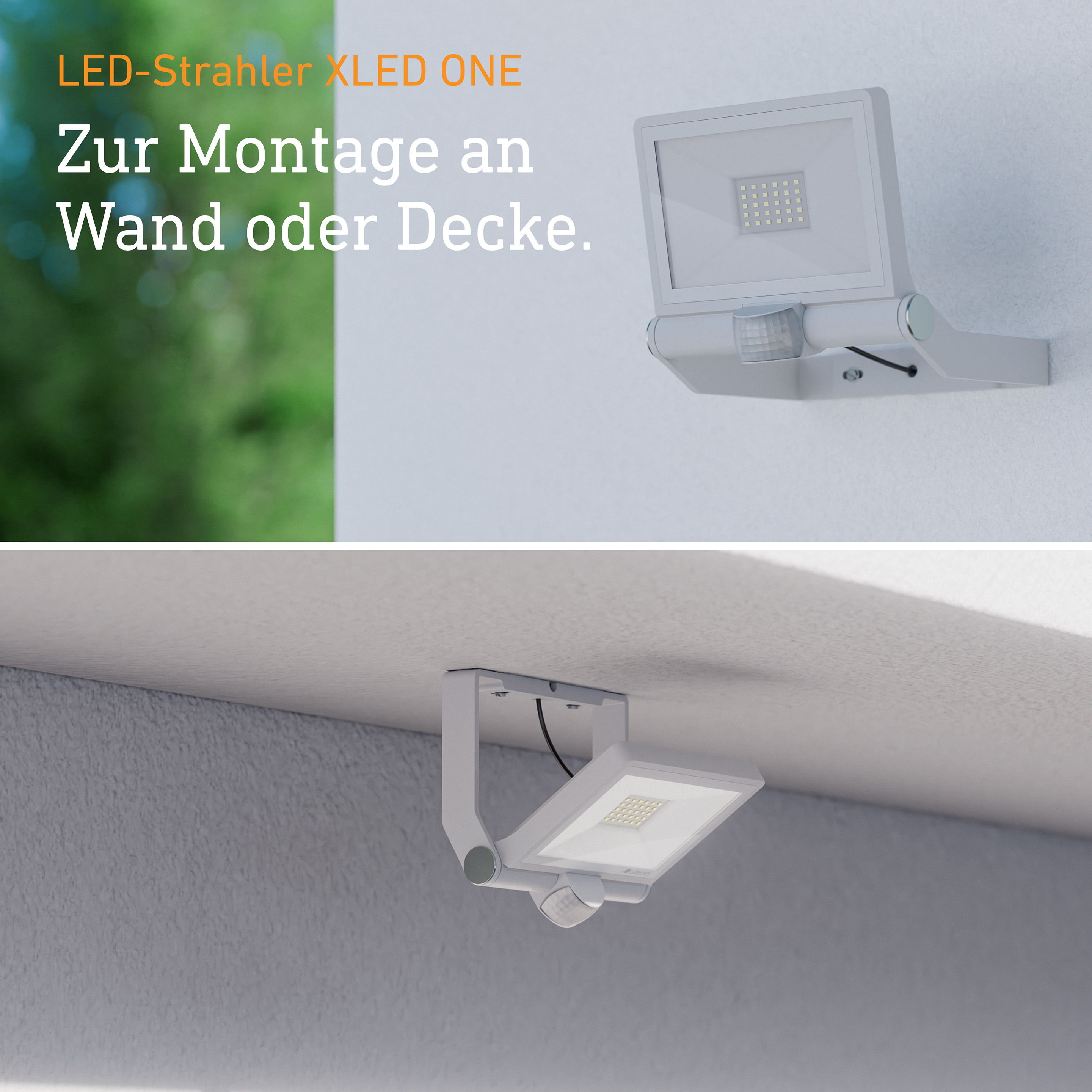

  • Spotlight without motion detector for wall and ceiling mounting
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

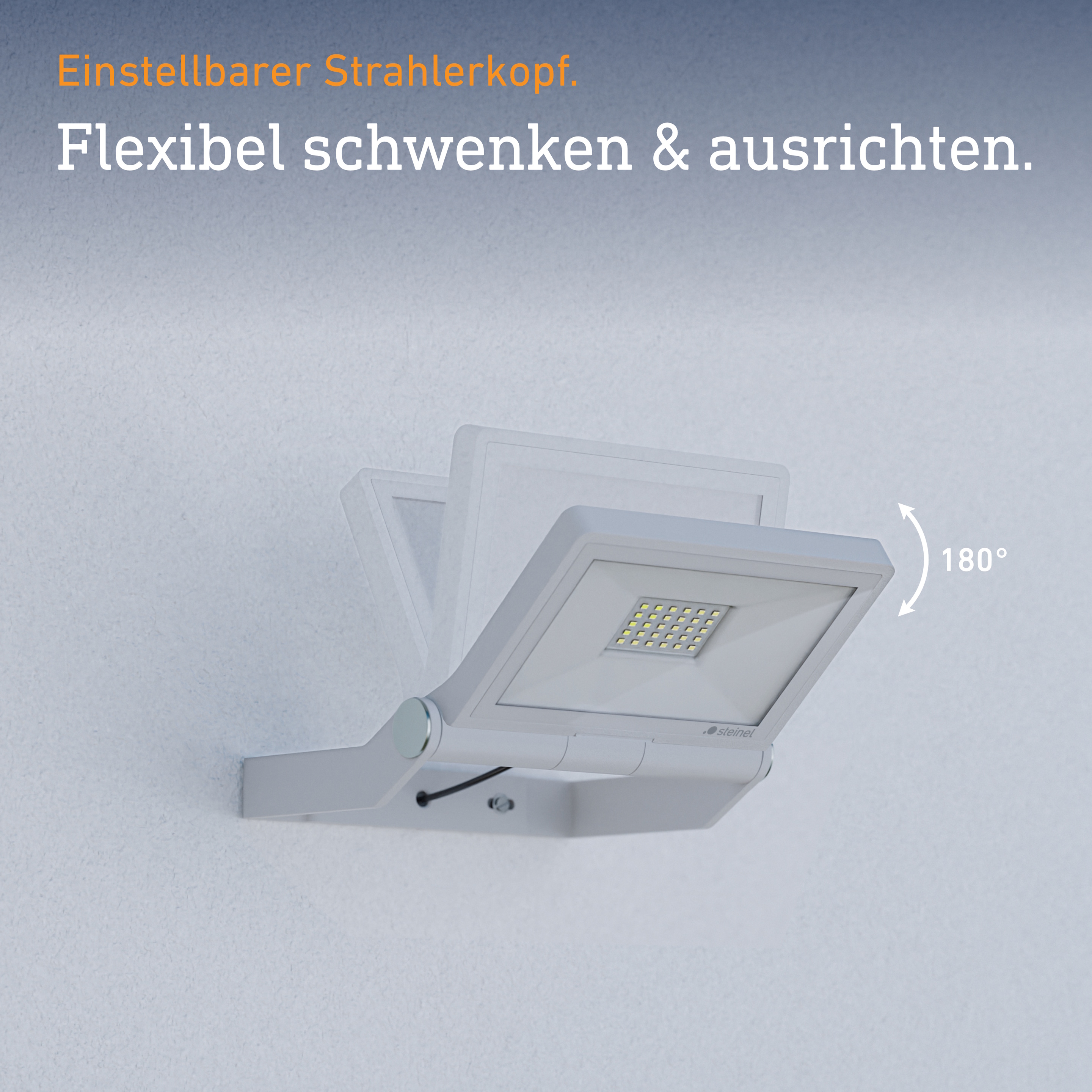

  • LED panel can be swivelled vertically by 180°
  • Warm white light (3000 K) and long-life 17,8 W LEDs with 2050 lm, with an illumination of max. 300 sqm
  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 173 x 229 x 195 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 17,8 W

Sensor technology

With motion detector No

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 2050 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Efficiency without cover 110 lm/W

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 36000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch No
Base light function No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Glass transparent
Mounting location ceiling wall
Application location Outdoors
Mounting type Surface wiring
Application room all round the building courtyard & driveway outdoors
Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL energy efficiency class E
EPREL category Light source

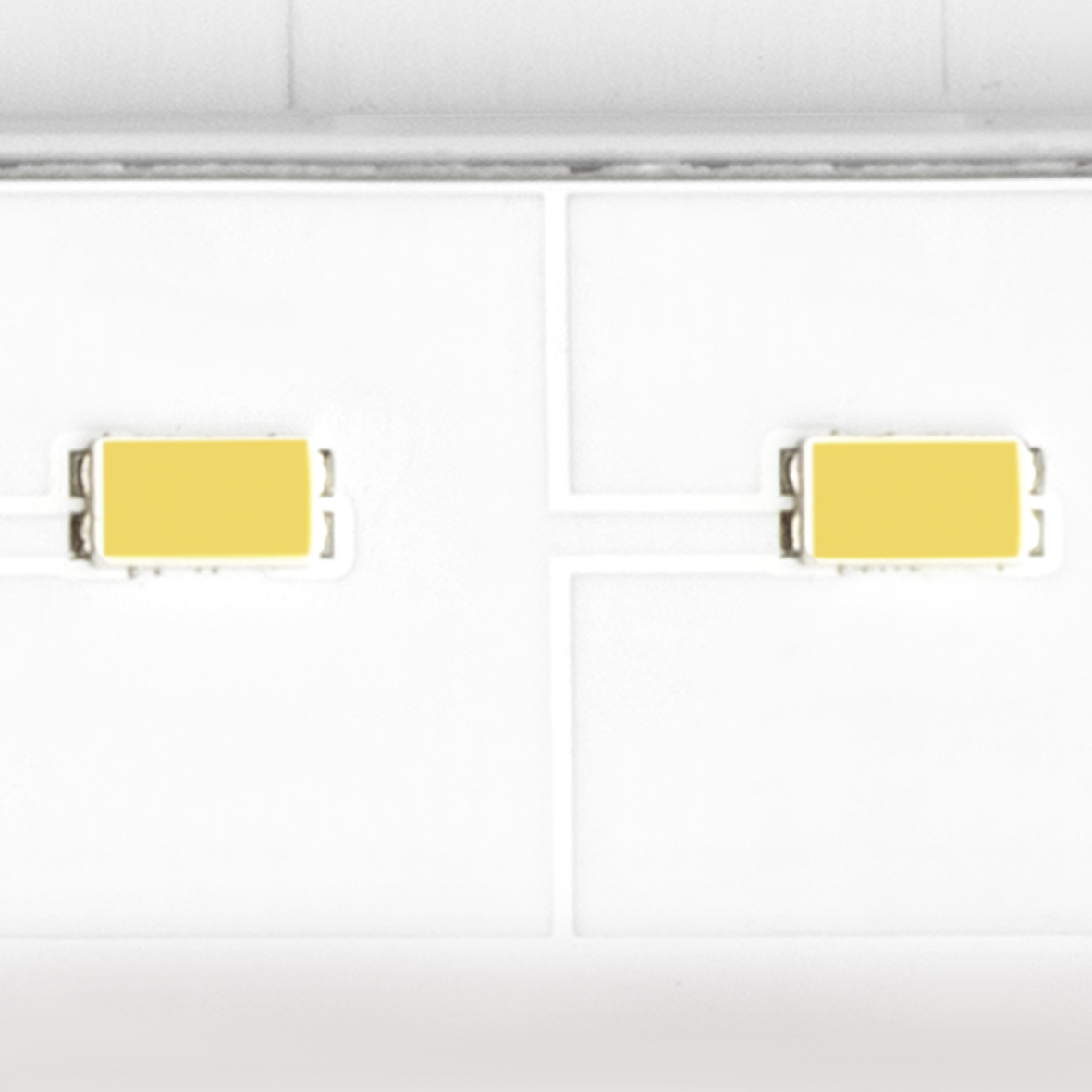

Including STEINEL LED system

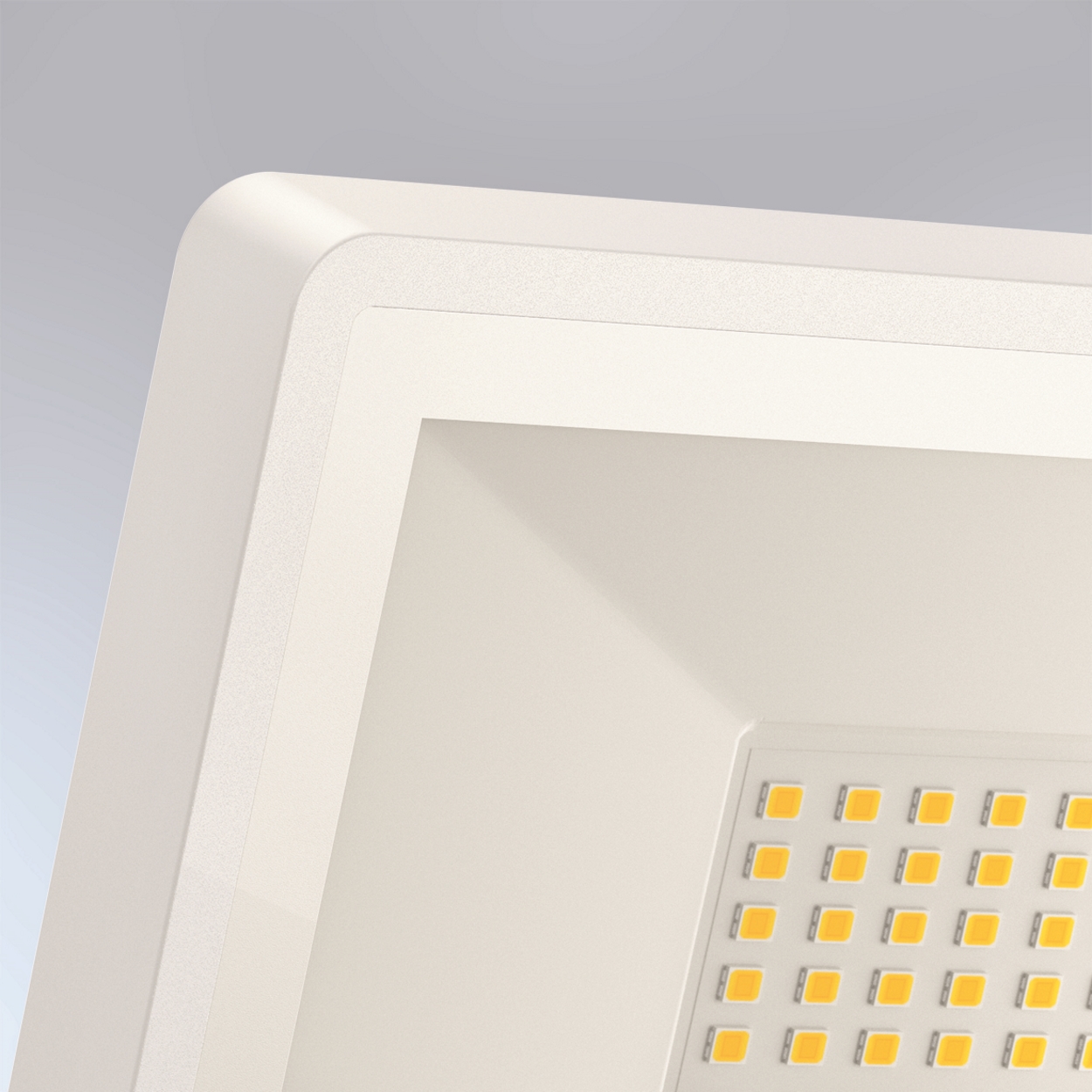

UV resistant material

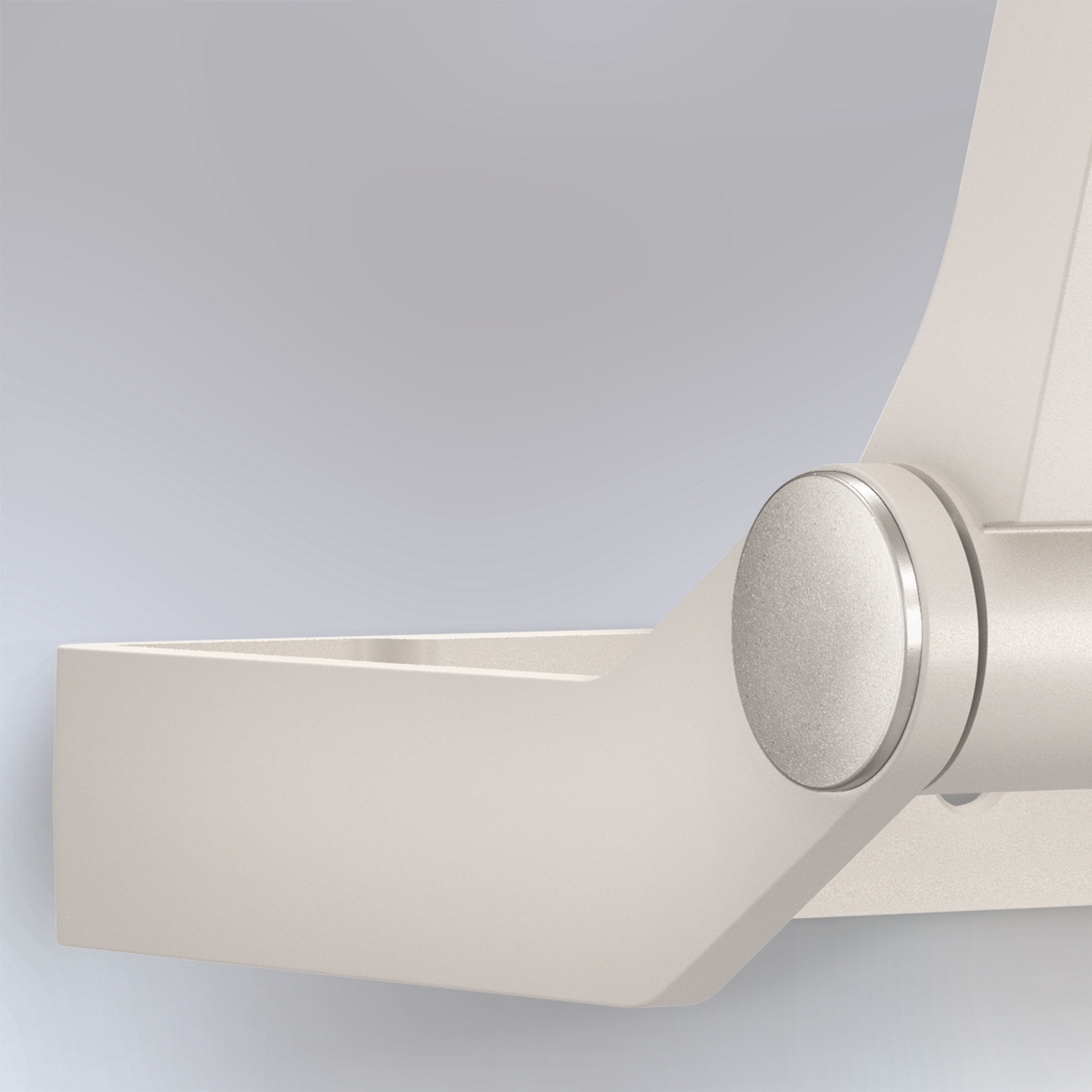

High-quality aluminium

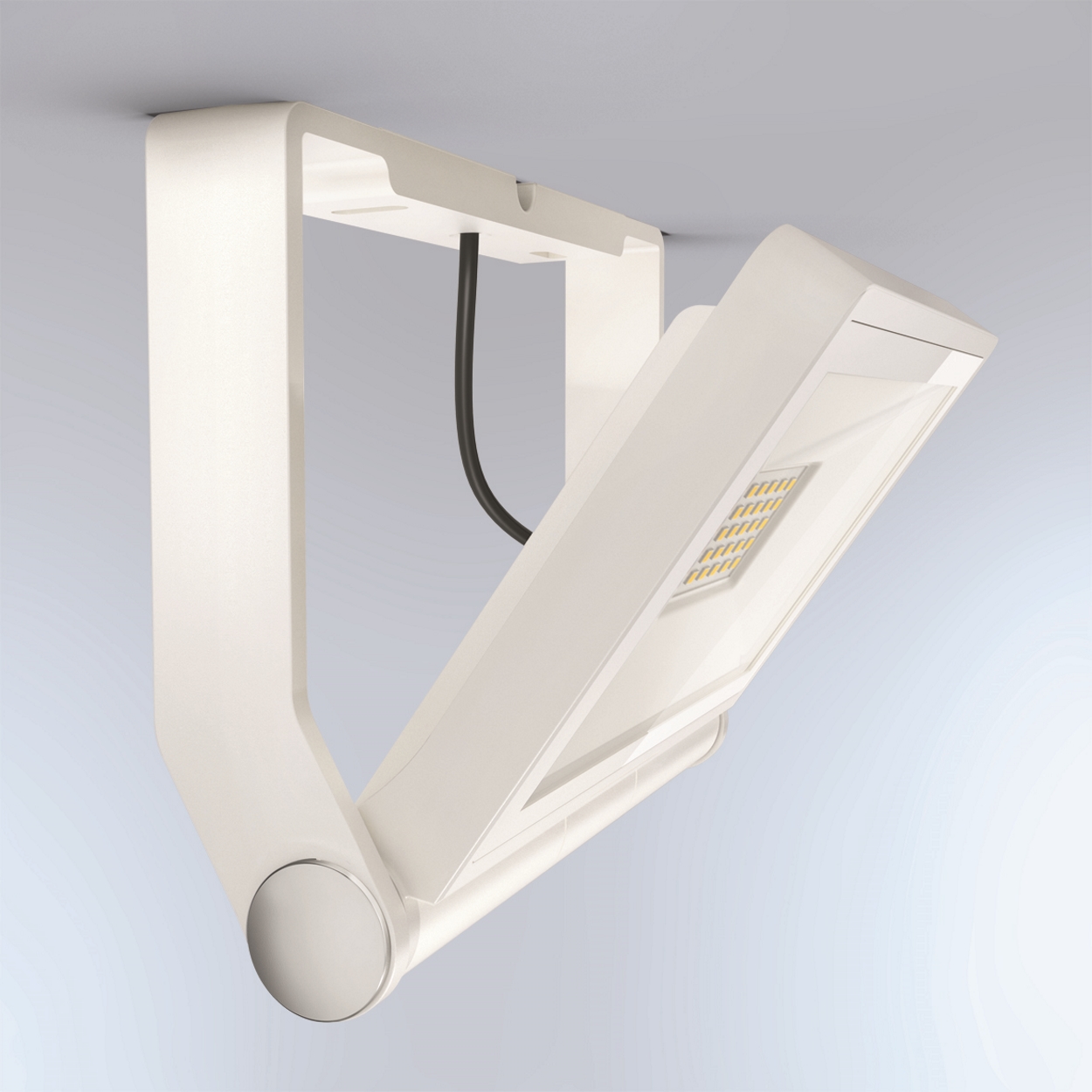

Suitable for mounting on ceilings

Technical drawing

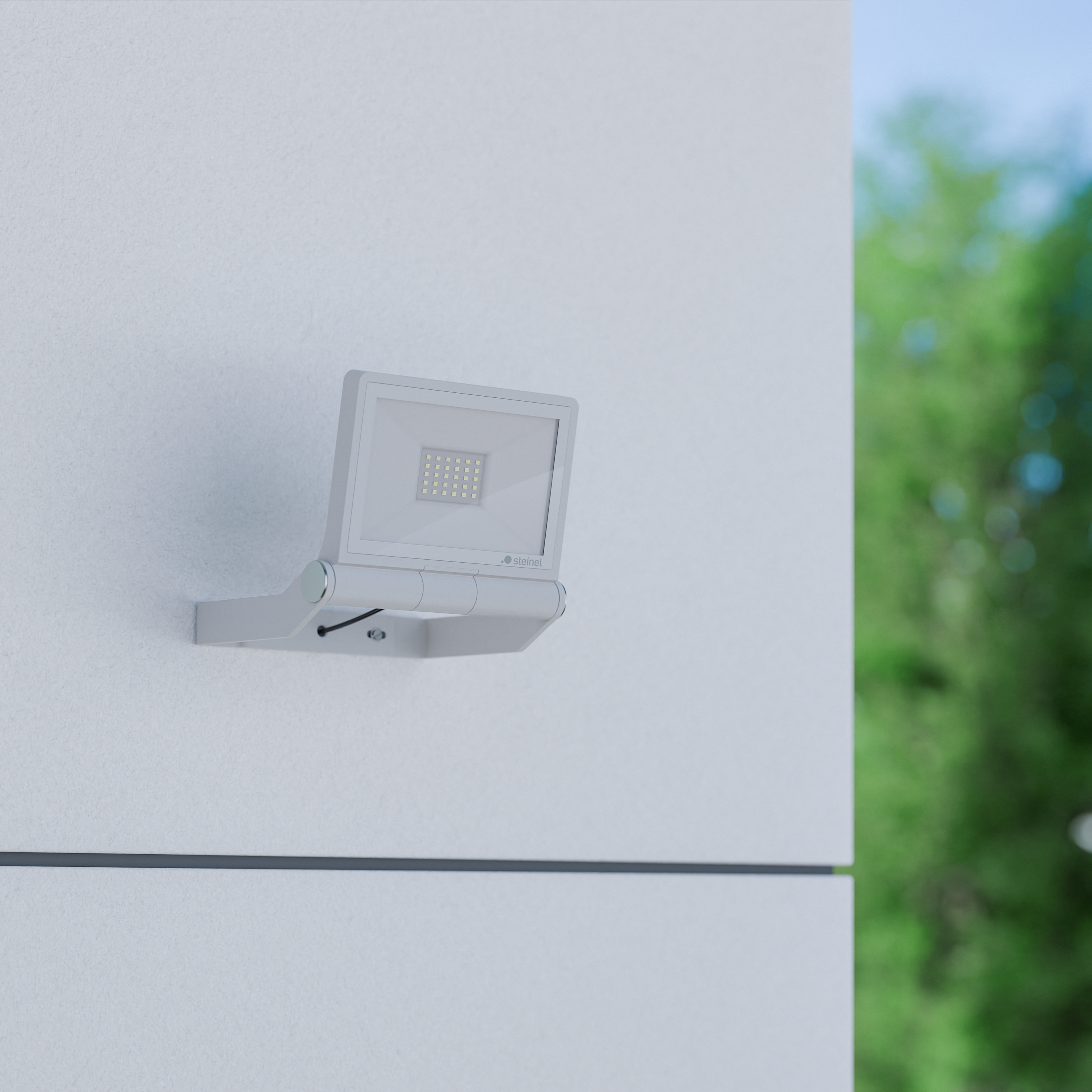

Sensor detection range

Wiring diagram 1

Circuit diagram
