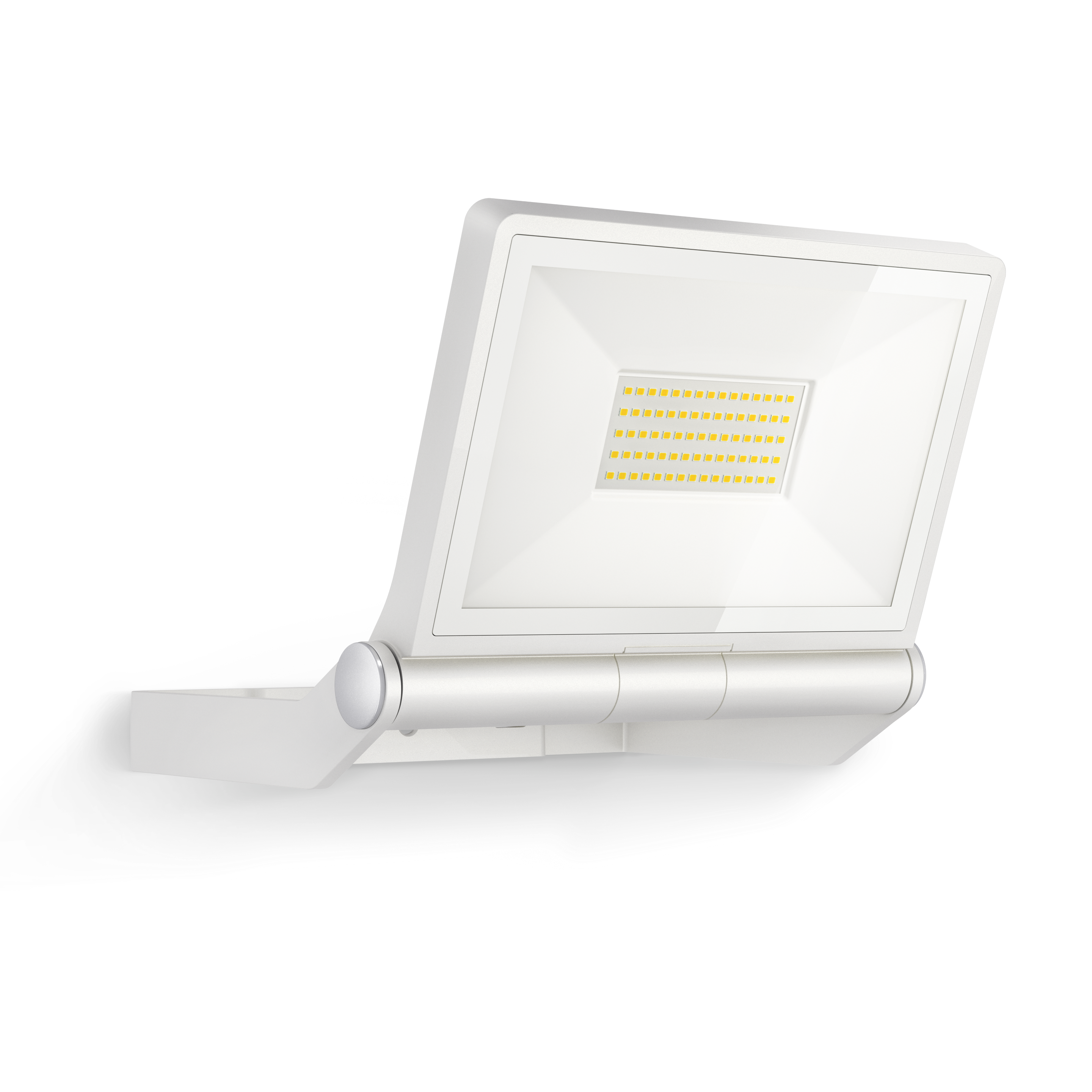

Steinel XLED ONE XL white

ELDAS® no. 941 501 399

EAN-No. 4007841 065232

Price: Please log in to see prices

Colour

Anthracite white

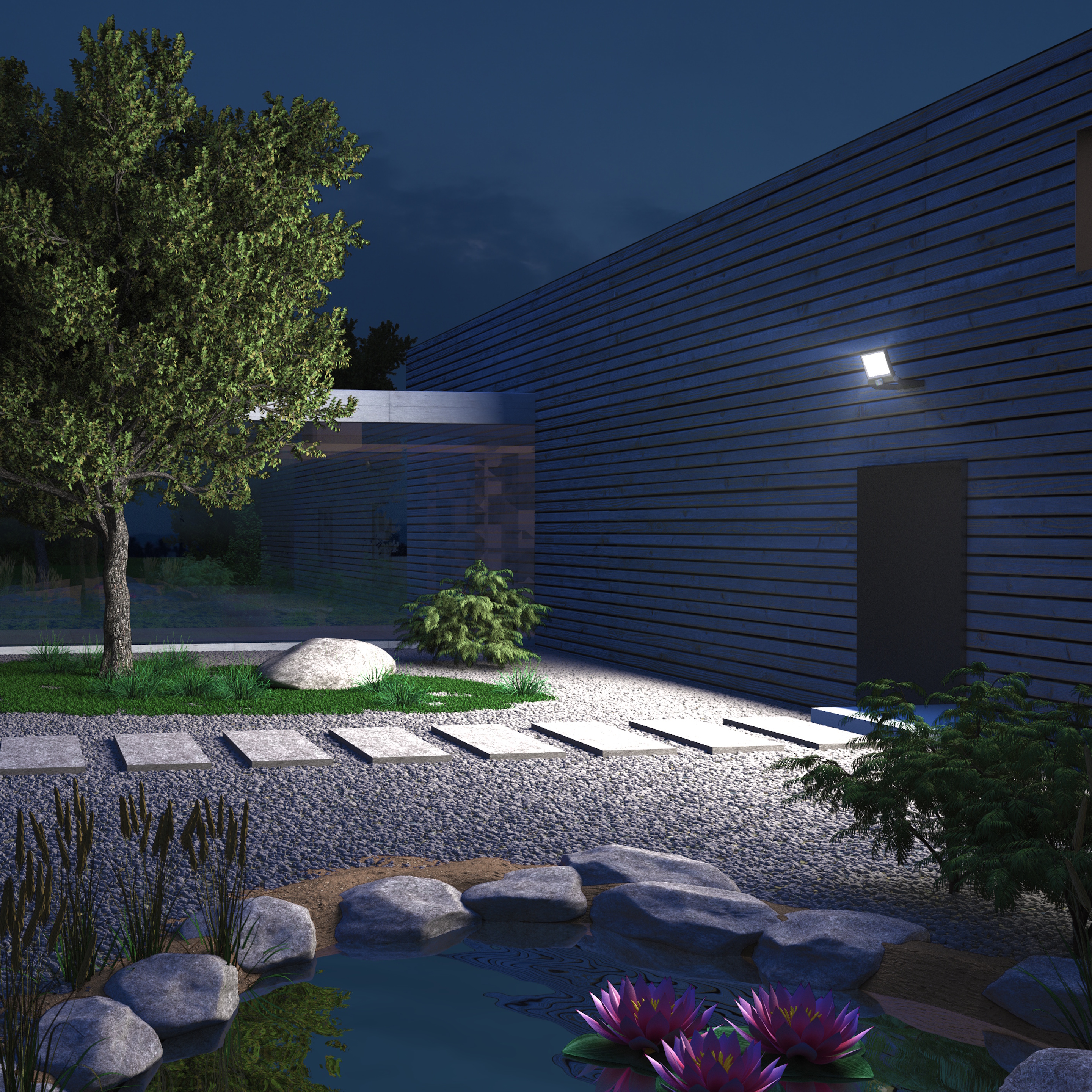

A warm white 3000 K and incredibly bright 4200 lm – XLED ONE XL wall and ceiling spots (42,6 W) turn night into day and captivate with floodlight-type illumination. The LEDs in the spots are rated for a service life of around 30 years, providing decades of outstanding performance wherever they are used outside the home and in the garden. The LED panel can be tilted through 180°. The spot comes with an IP44 protection rating.

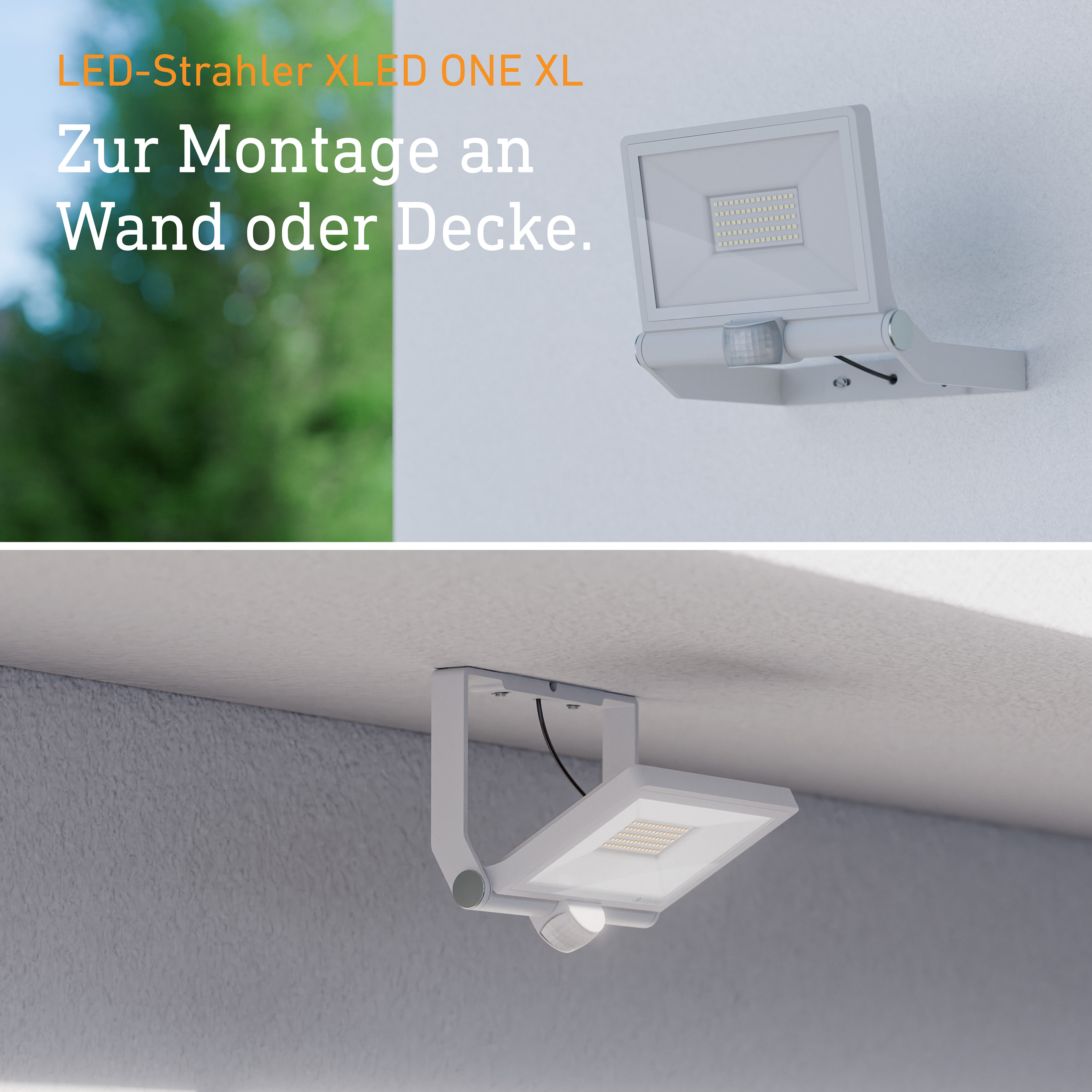

  • Spotlight without motion detector for wall and ceiling mounting with floodlight-like illumination of large areas
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

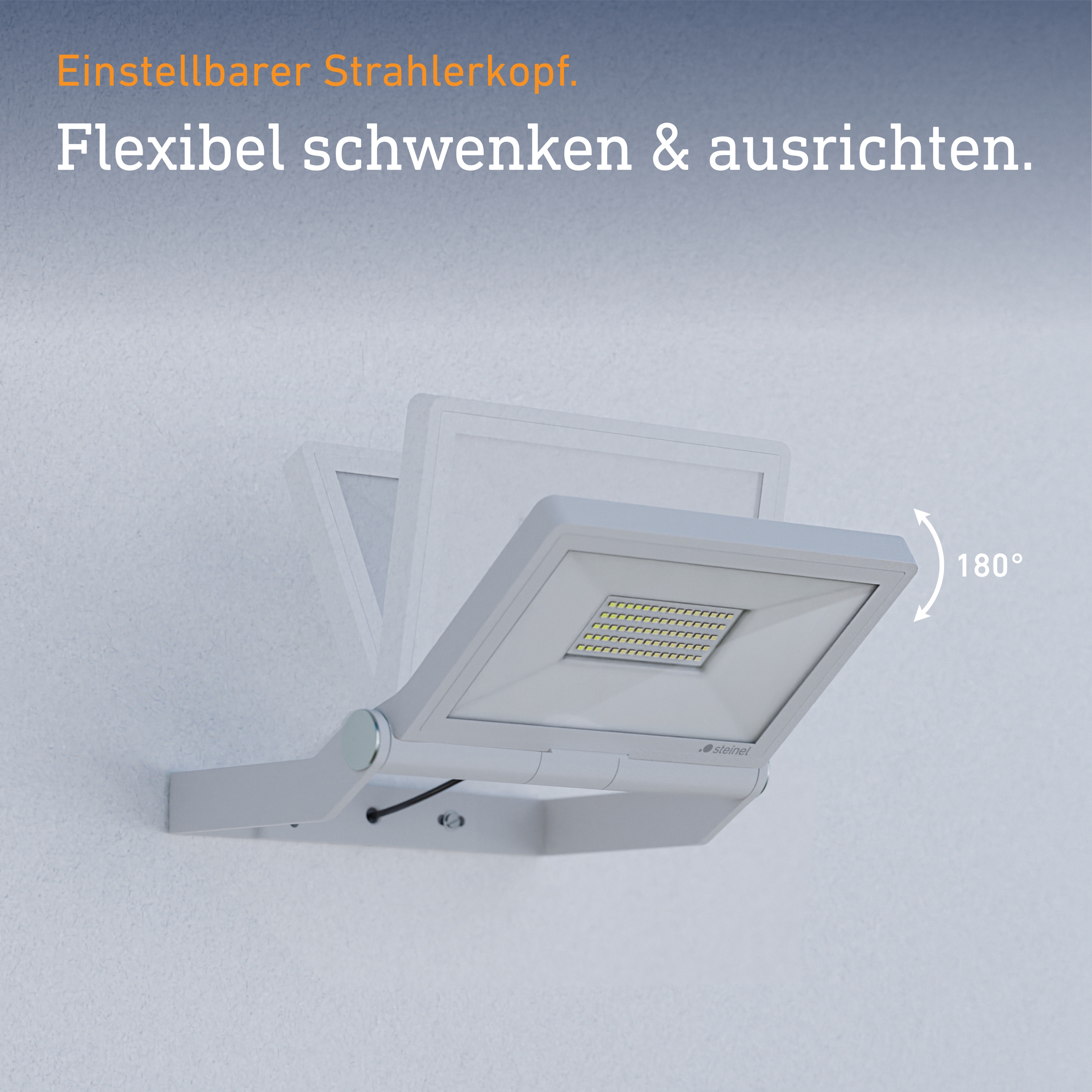

  • LED panel can be swivelled vertically by 180°
  • Warm white light (3000 K) and long-life 42,6 W LEDs with 4200 lm, with an illumination of max. 300 sqm
  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 193 x 259 x 215 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 42,6 W

Sensor technology

With motion detector No

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 4200 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 36000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch No
Base light function No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Glass transparent
Mounting location ceiling wall
Application location Outdoors
Mounting type Surface wiring
Application room courtyard & driveway outdoors
Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL energy efficiency class E
EPREL category Surrounded product with integrated light source

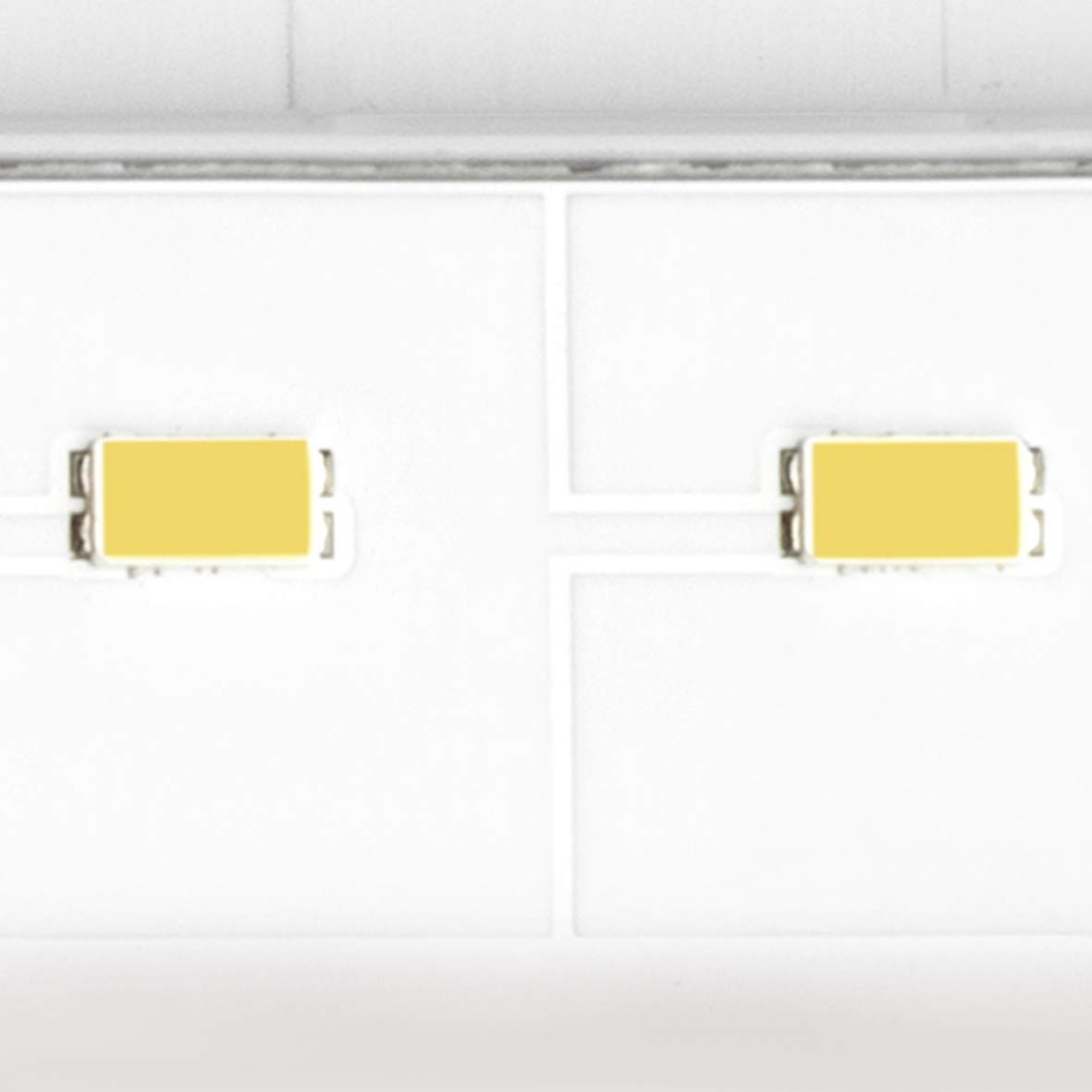

Including STEINEL LED system

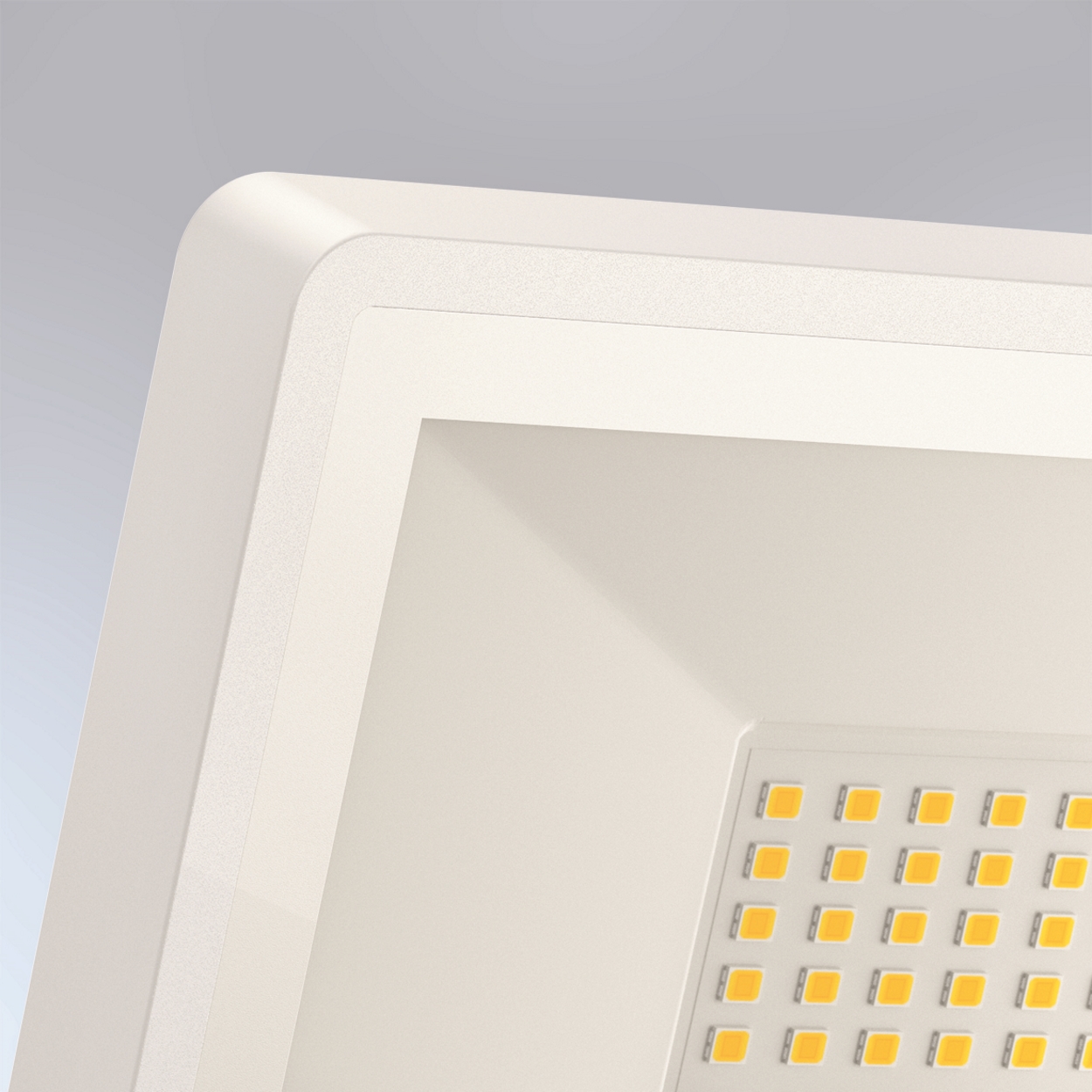

UV resistant material

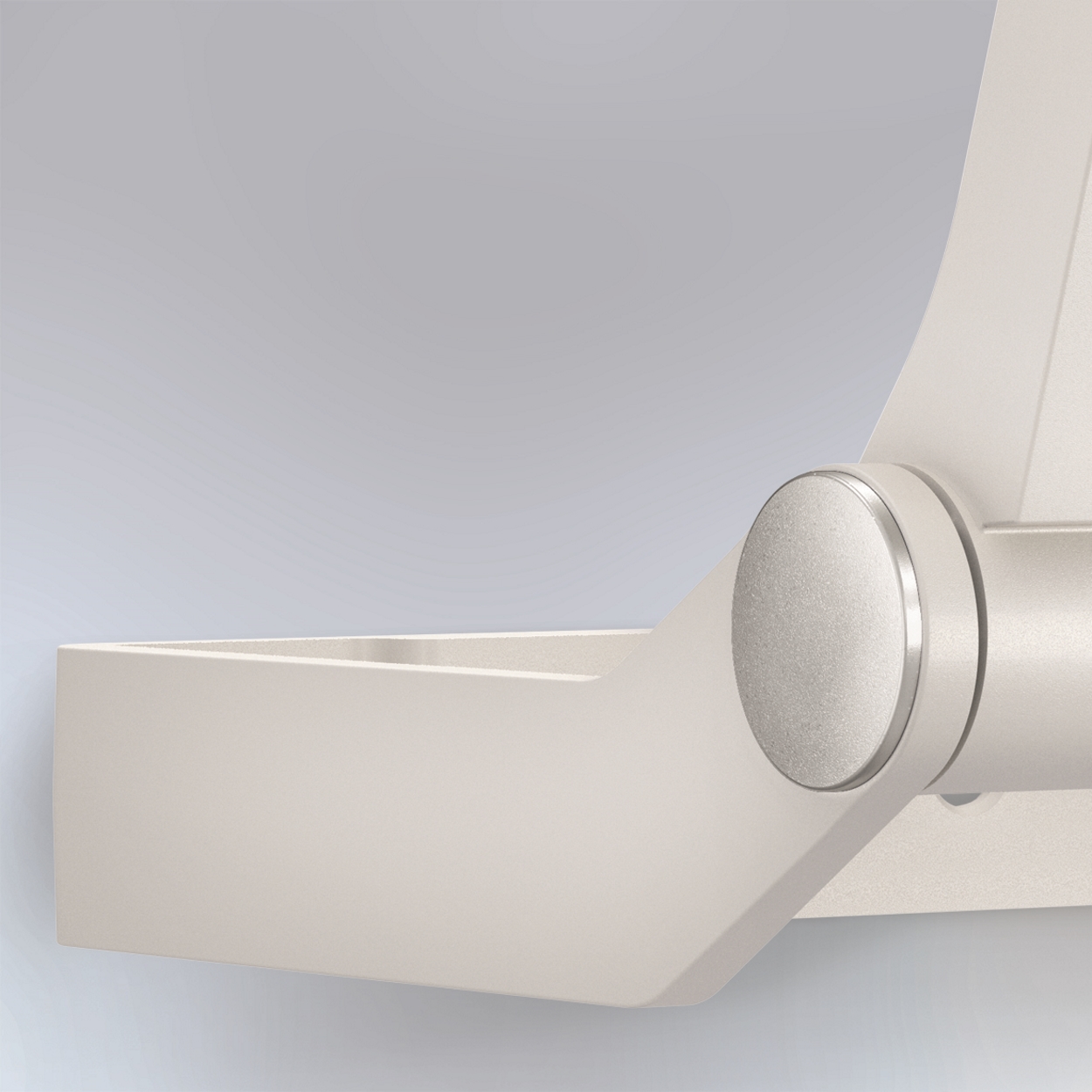

High-quality aluminium

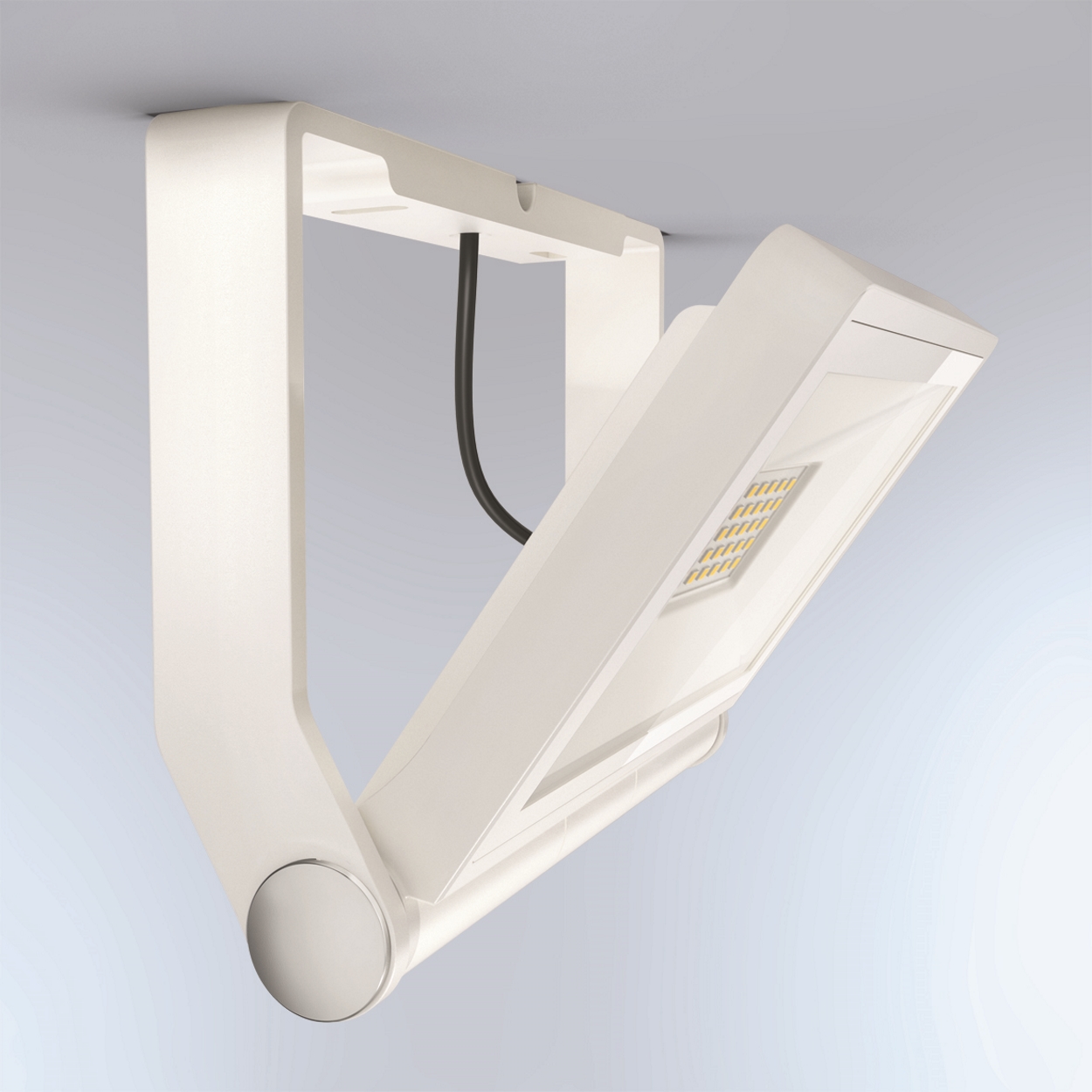

Suitable for mounting on ceilings
