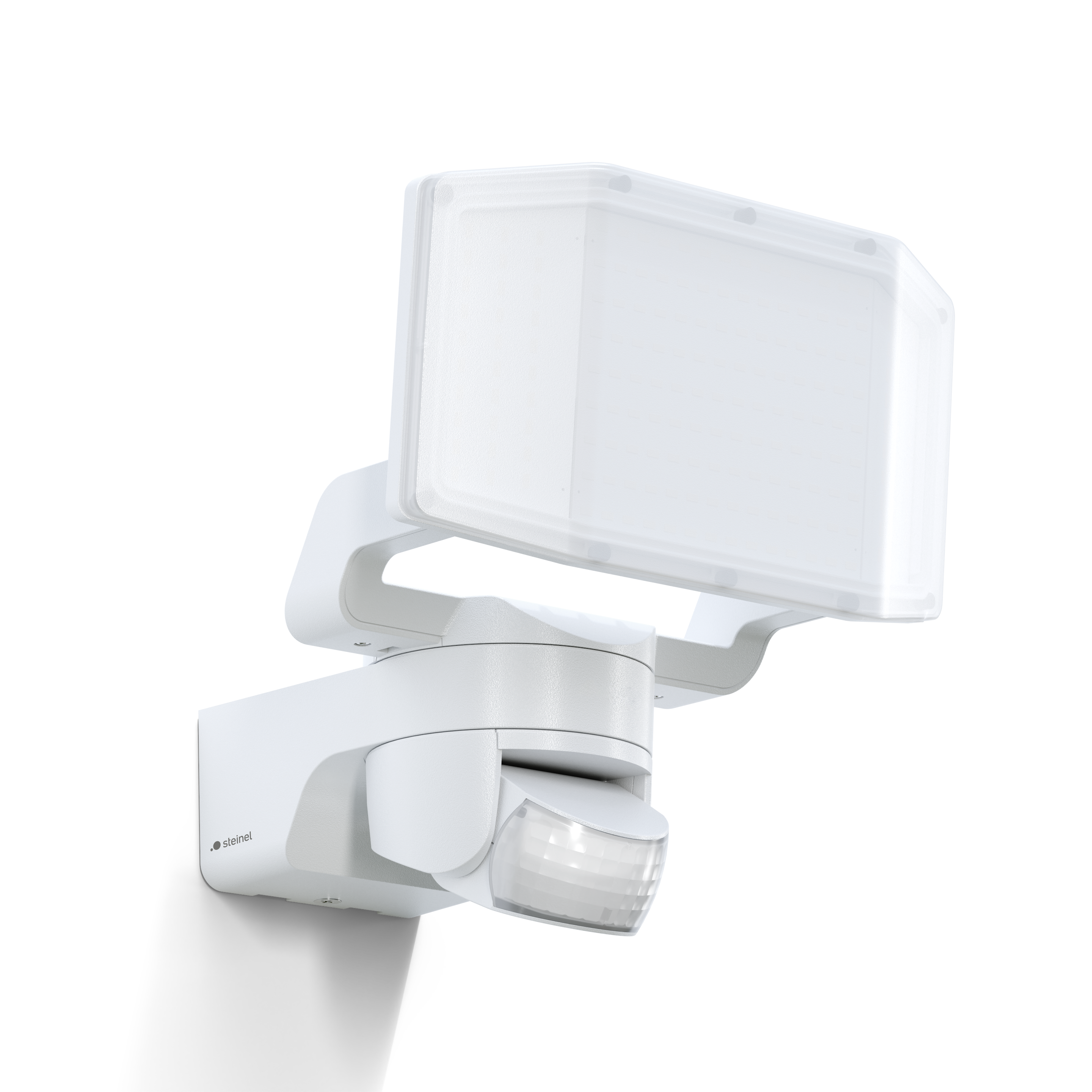

Steinel XLED Protect S with motion detector - white

EAN-No. 4007841 089894

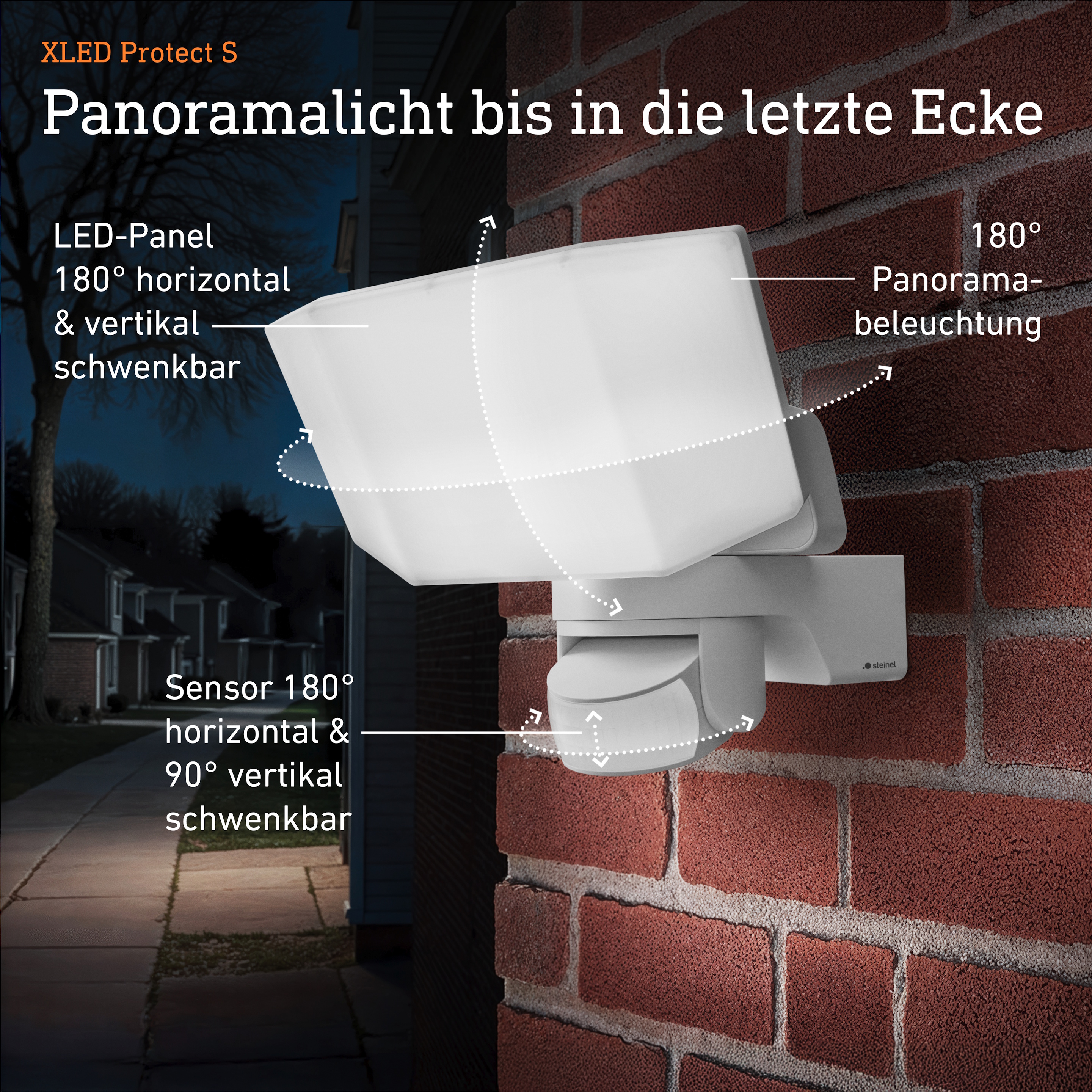

The XLED Protect S sensor outdoor spotlight illuminates every hidden corner. With three powerful illuminated areas, it offers wide-angle panoramic illumination, allowing even hard-to-reach areas to shine in bright light. With 14,3 W output and 1642 lm, the XLED Protect S provides powerful, warm light (3000 K) that perfectly illuminates your surroundings. The 180° sensor with a range of 10 m reliably detects every movement and makes dark corners a thing of the past. Whether up, down, right or left - the spotlight is fully rotatable, tiltable and lockable so that you can adjust it to your requirements. Thanks to its IP54 classification and robust IK03 construction, it is also highly resistant and comes with a 5-year guarantee. Available in the colours anthracite and white and as a version without motion detector.

Wide-angle panoramic lighting: outdoor spotlight with three bright LED light surfaces
High light output: 14,3 W and 1642 lm for powerful, warm white light (3000 K)

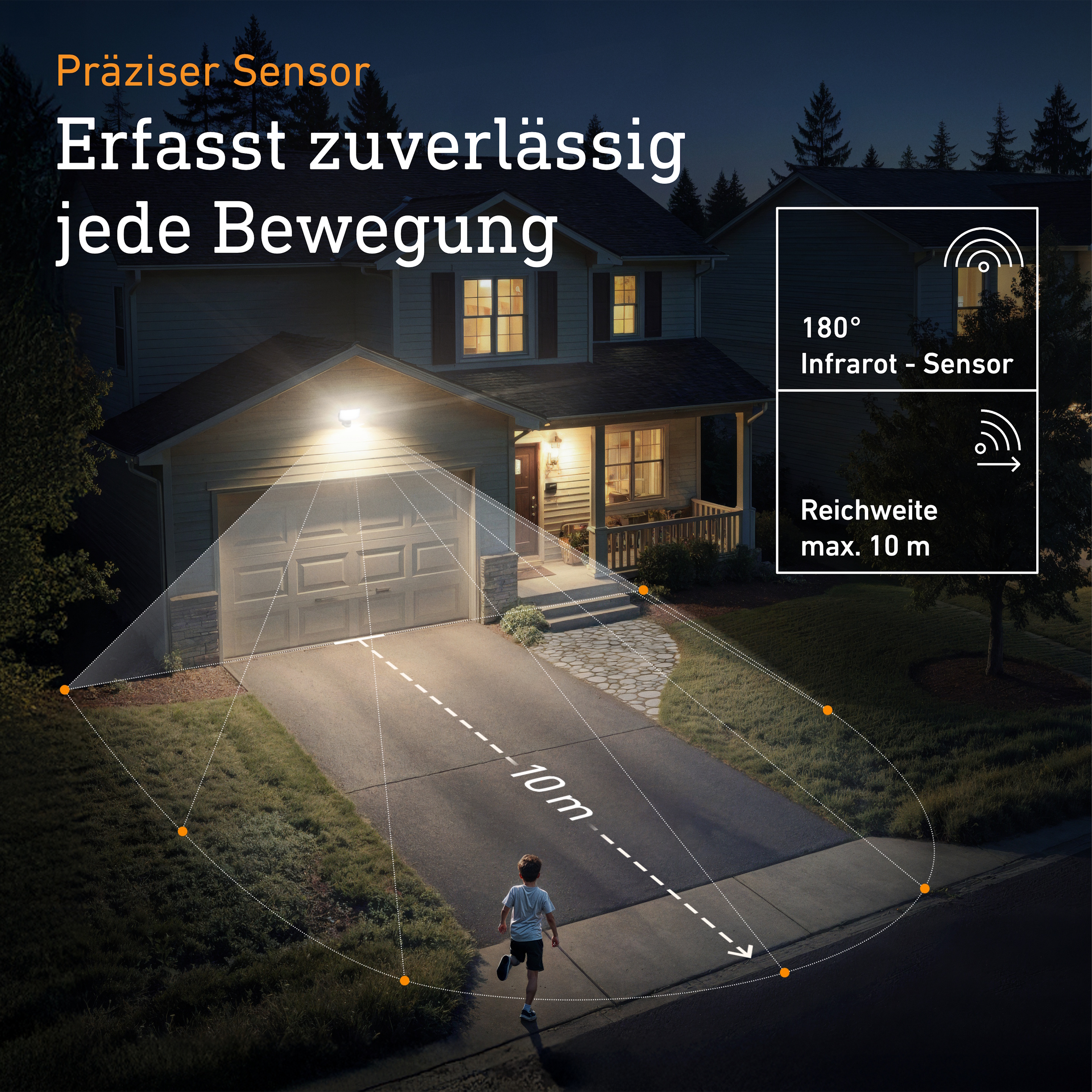

Effective motion detection: 180° sensor with 10 m range reliably detects any movement
Flexible alignment: LED panel can be fully rotated, tilted and locked for precise lighting

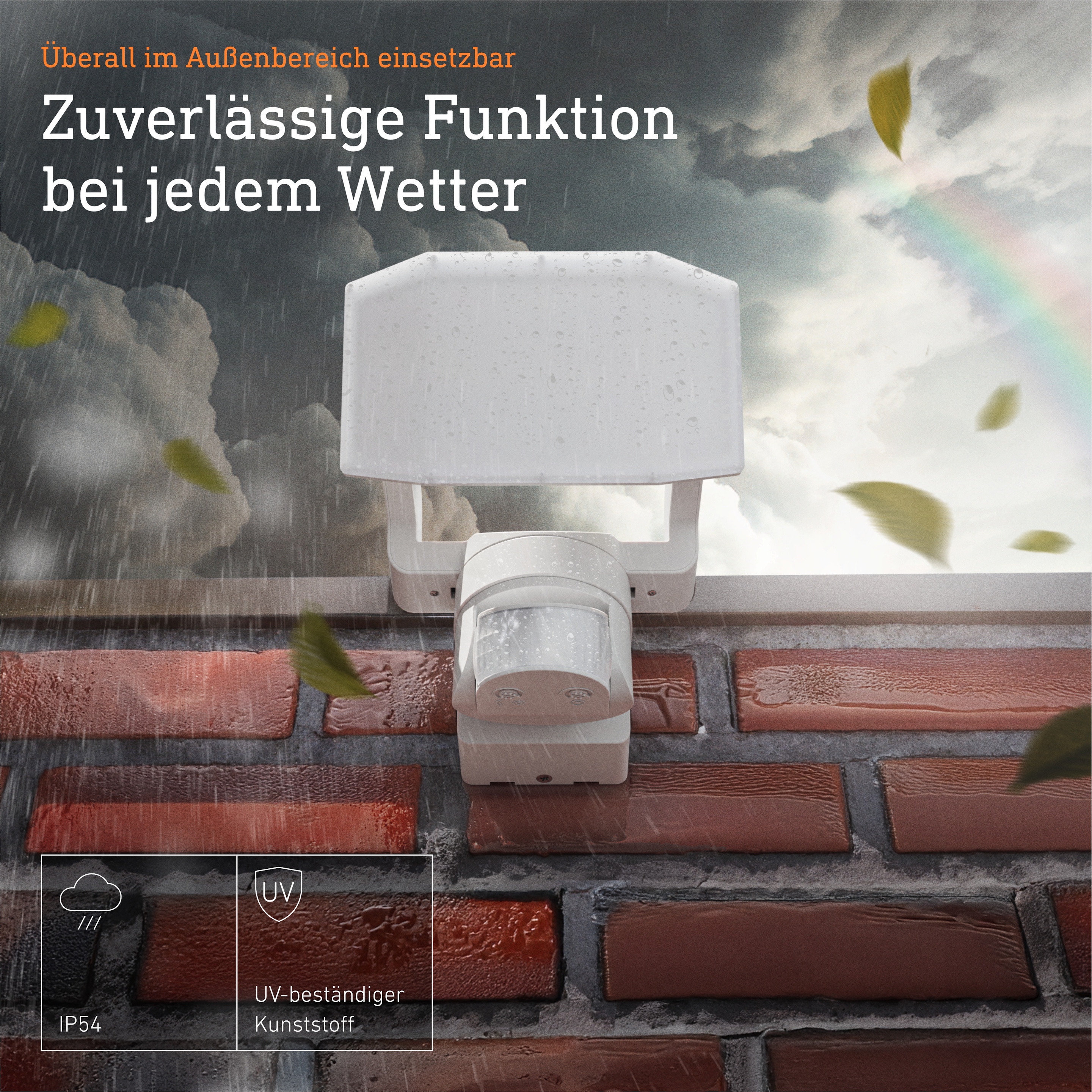

Robust: IP54 classification and IK03 construction for high resistance
Durable: 5-year STEINEL guarantee

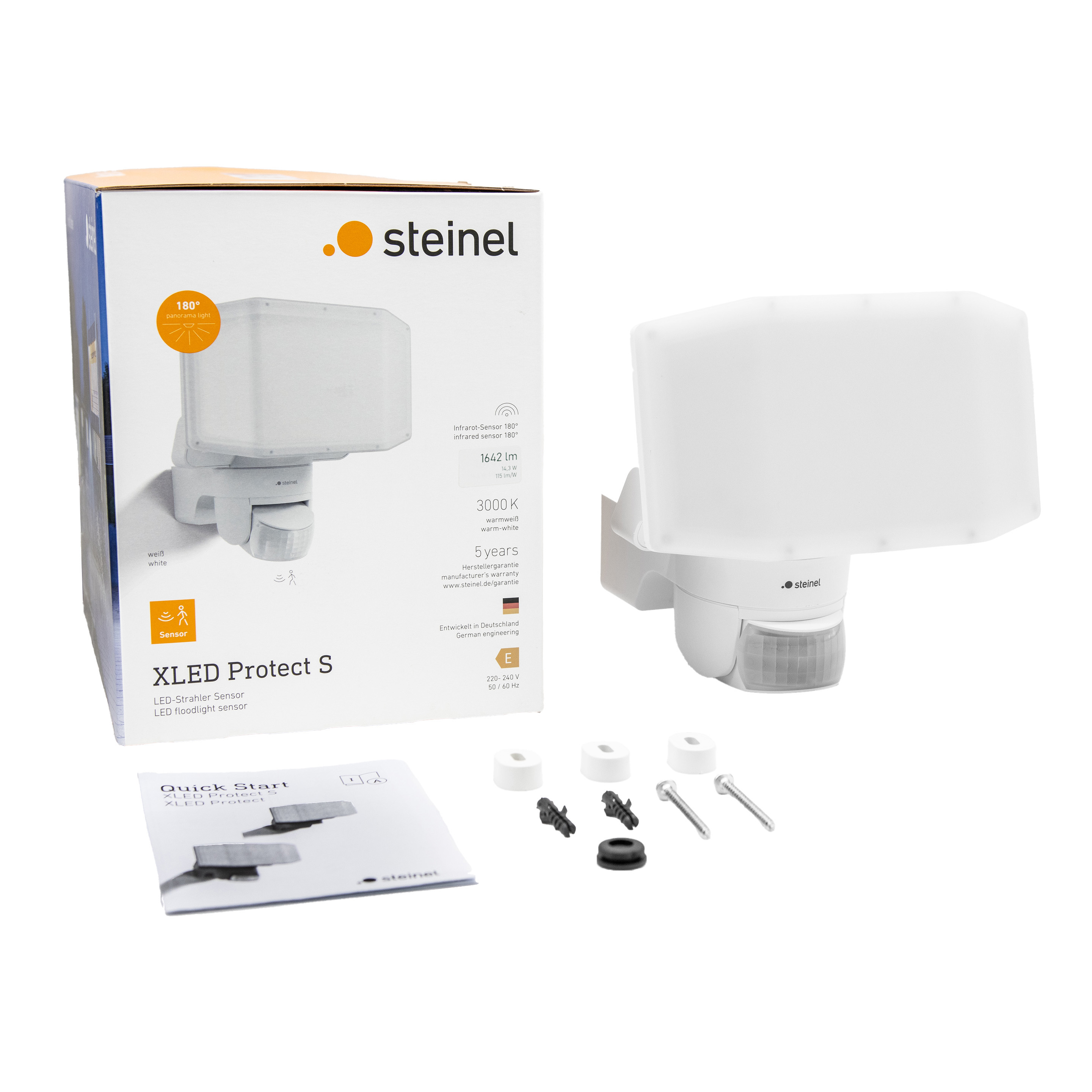

Simple installation: Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 195 x 195 x 187 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 14,3 W

Sensor technology

Max. mounting height 4,00 m

With motion detector Yes

Detection angle 180 °

Opening angle 40 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Radial range r = 5 m (39 m²)

Tangential range r = 10 m (157 m²)

Mounting height 2,00 – 4 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 1642 lm

Colour temperature 3000 K

Colour rendering index = 82

With illuminant Yes, LED lamp

Illuminant LED cannot be replaced

Soft light start No

Constant light regulation No

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch No

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Main light adjustable No

Functions Motions sensor Light sensor Potentiometer

Settings via Potentiometers

Twilight setting teach No

Housing & material

Impact resistance IK03

Protection class (IP) IP54

Protection class II

Ambient temperature from -20 up to 40 °C

Cover material Plastic, opal

Cover material (scope of delivery) sticker

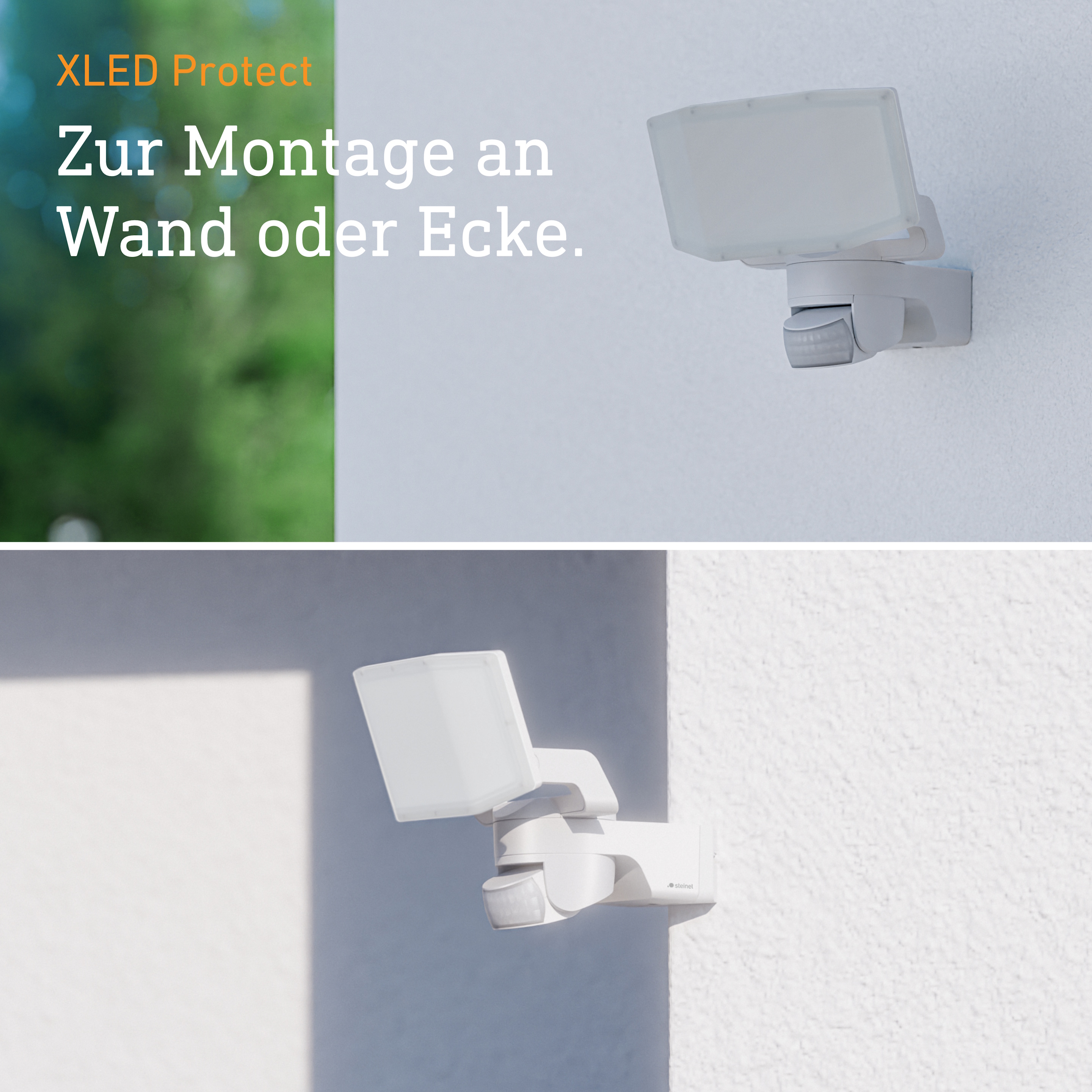

Mounting location corner wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door garden terrace / balcony

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DEKRA

EPREL energy efficiency class E

EPREL category Light source

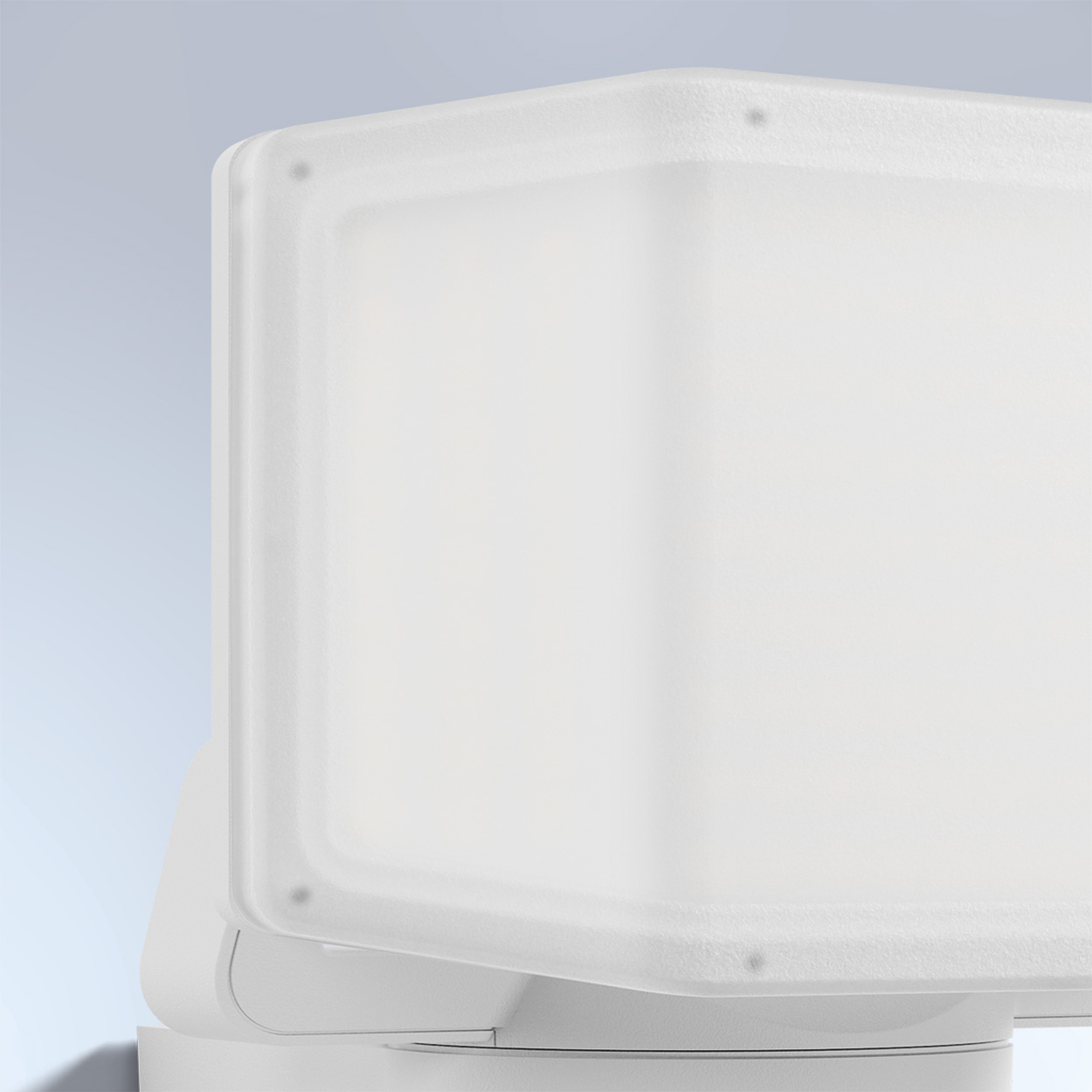

180° panorama light

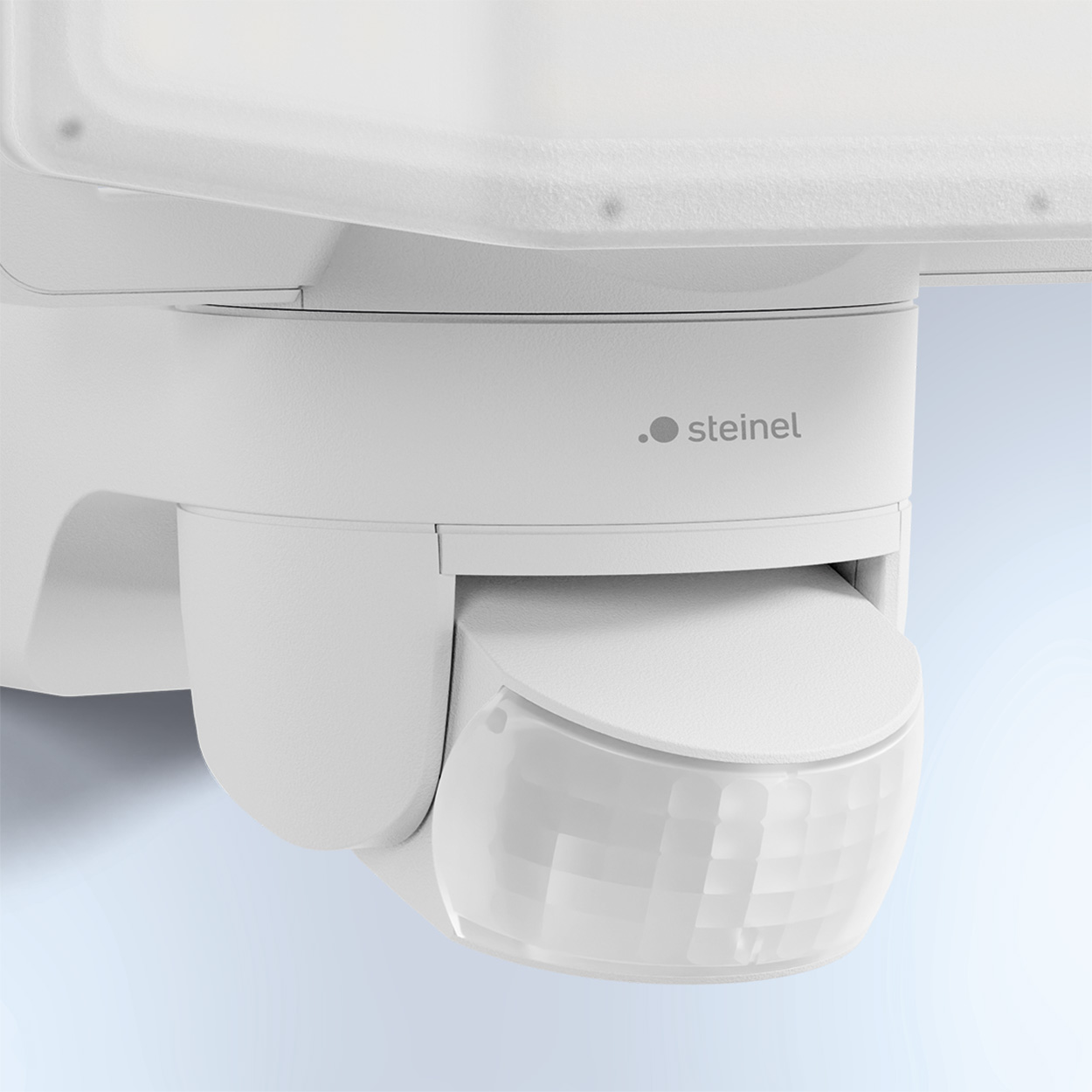

UV resistant material

Colour rendering index Ra ≥82

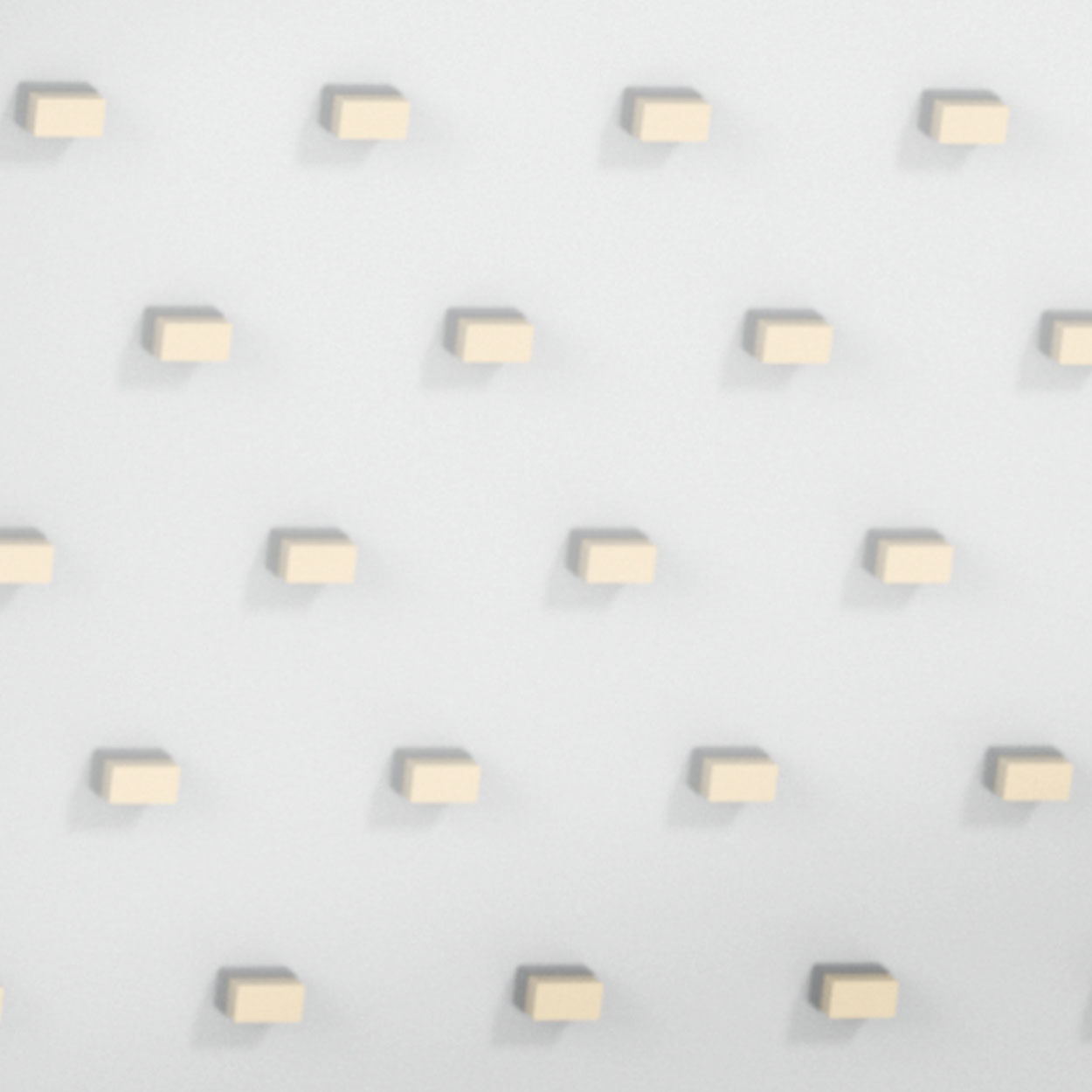

Including STEINEL LED system

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template LDT file (light distribution)
