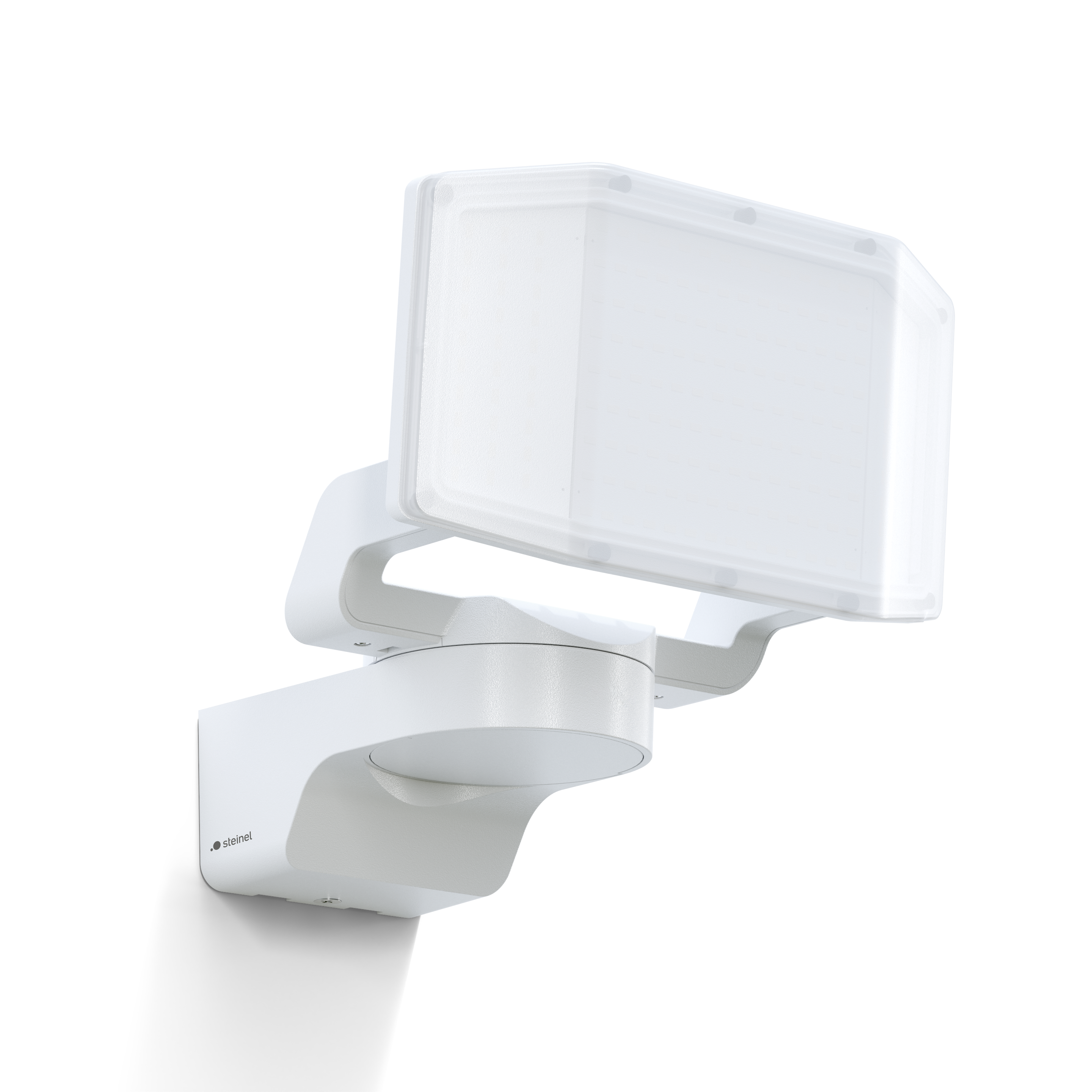

Steinel XLED Protect without motion detector - white

Steinel XLED Protect without motion detector - white

EAN-No. 4007841 090005

Steinel

Steinel XLED Protect without motion detector - white

EAN-No. 4007841 090005

Price: Please log in to see prices

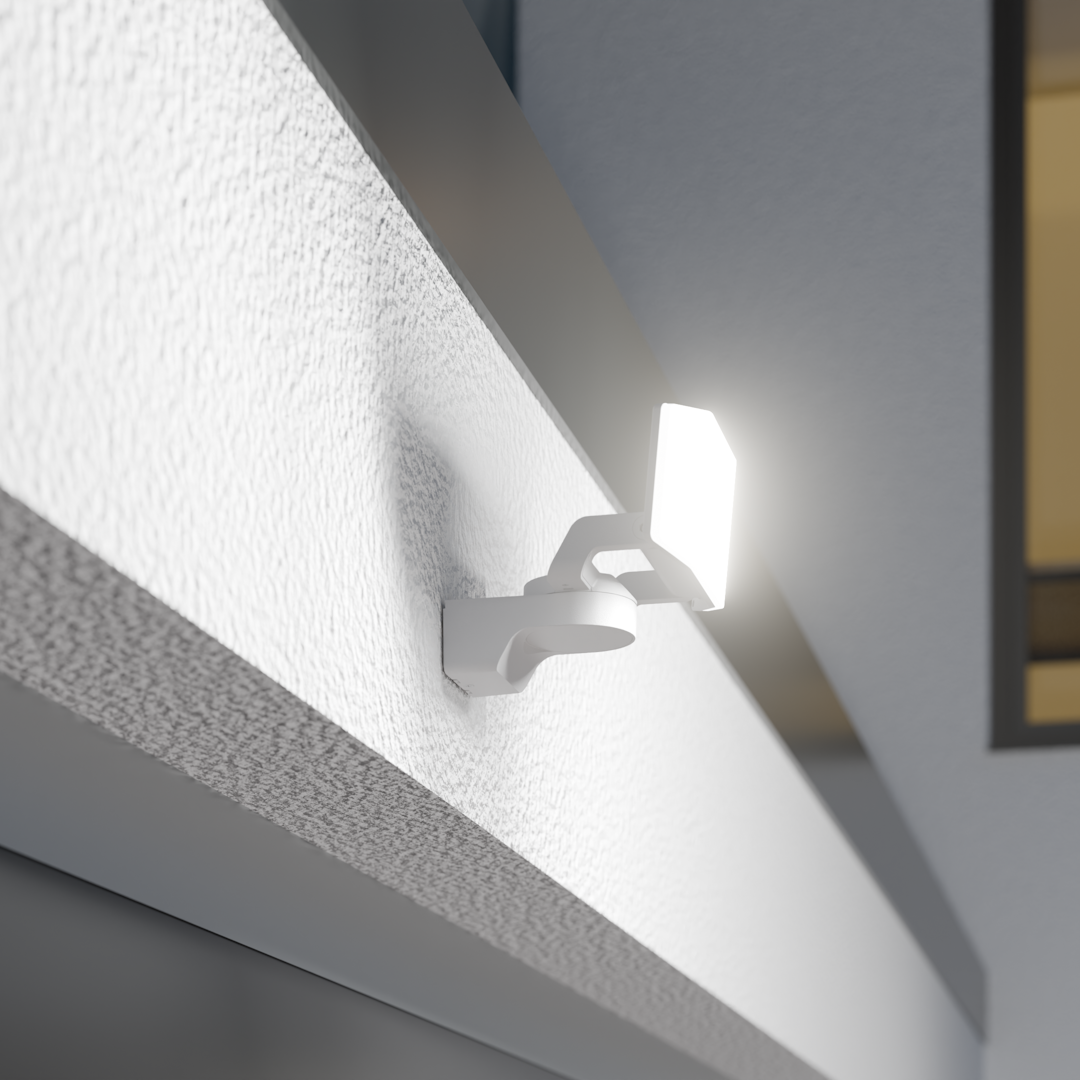

The XLED Protect outdoor spotlight illuminates every hidden corner. With three powerful illuminated areas, it offers wide-angle panoramic illumination, allowing even hard-to-reach areas to shine in bright light. With 13,6 W output and 1642 lm, the XLED Protect provides powerful, warm light (3000 K) that perfectly illuminates your surroundings. Whether up, down, right or left - the spotlight is fully rotatable, tiltable and lockable, so you can adjust it to suit your needs. Thanks to its IP54 classification and robust IK03 construction, it is also highly resistant and comes with a 5-year guarantee. Available in the colours anthracite and white and as a version with motion detector.

  • Wide-angle panoramic lighting: outdoor spotlight with three bright LED light surfaces
  • High light output: 13,6 W and 1642 lm for powerful, warm white light (3000 K)
  • Flexible alignment: LED panel can be fully rotated, tilted and locked for precise lighting
  • Robust: IP54 classification and IK03 construction for high resistance
  • Durable: 5-year STEINEL guarantee

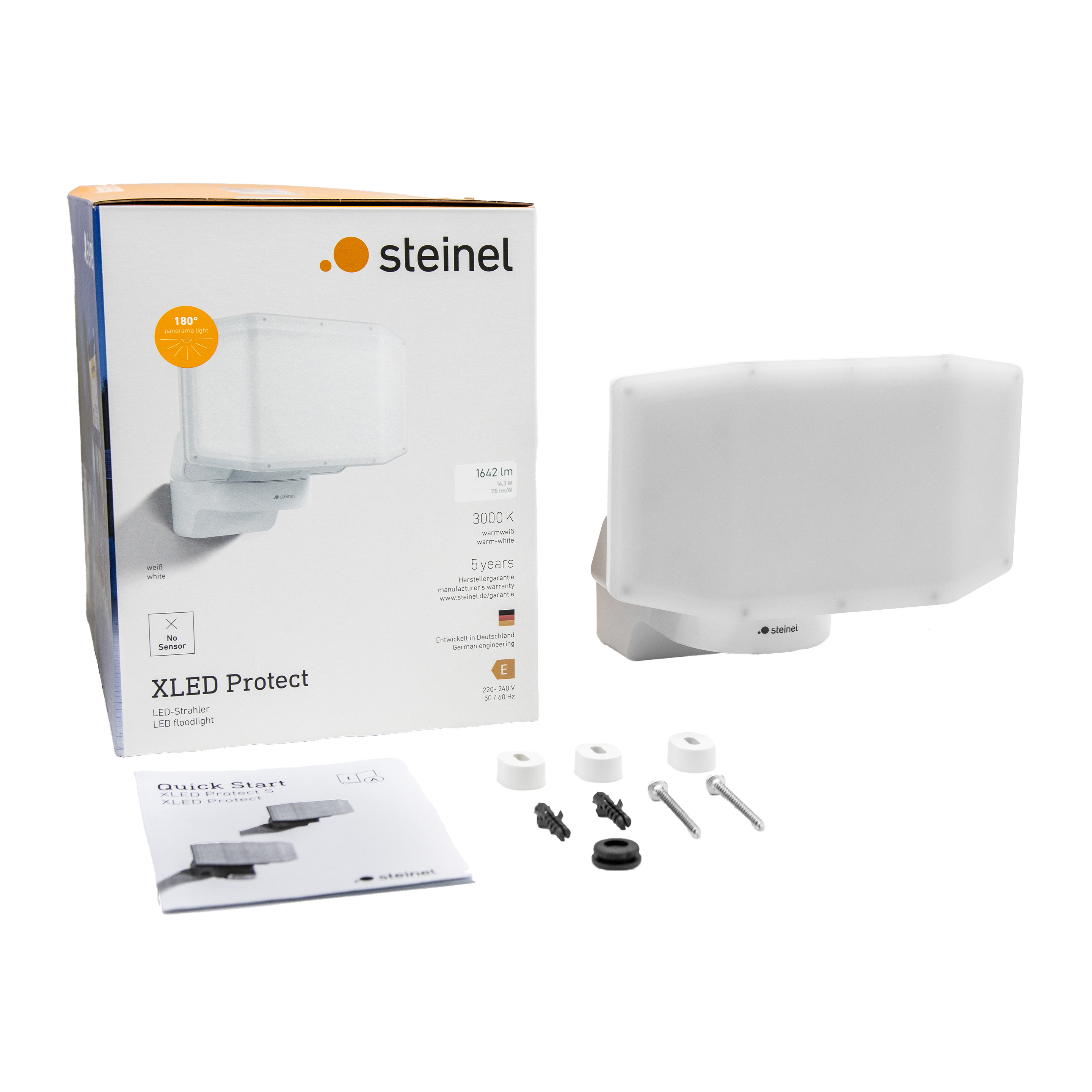

  • Simple installation: Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 195 x 195 x 174 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 13,6 W

Sensor technology

With motion detector No

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 1642 lm
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, LED lamp
Illuminant LED cannot be replaced
Soft light start No
Constant light regulation No

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch No
Base light function No
Main light adjustable No

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature from -20 up to 40 °C
Cover material Plastic, opal

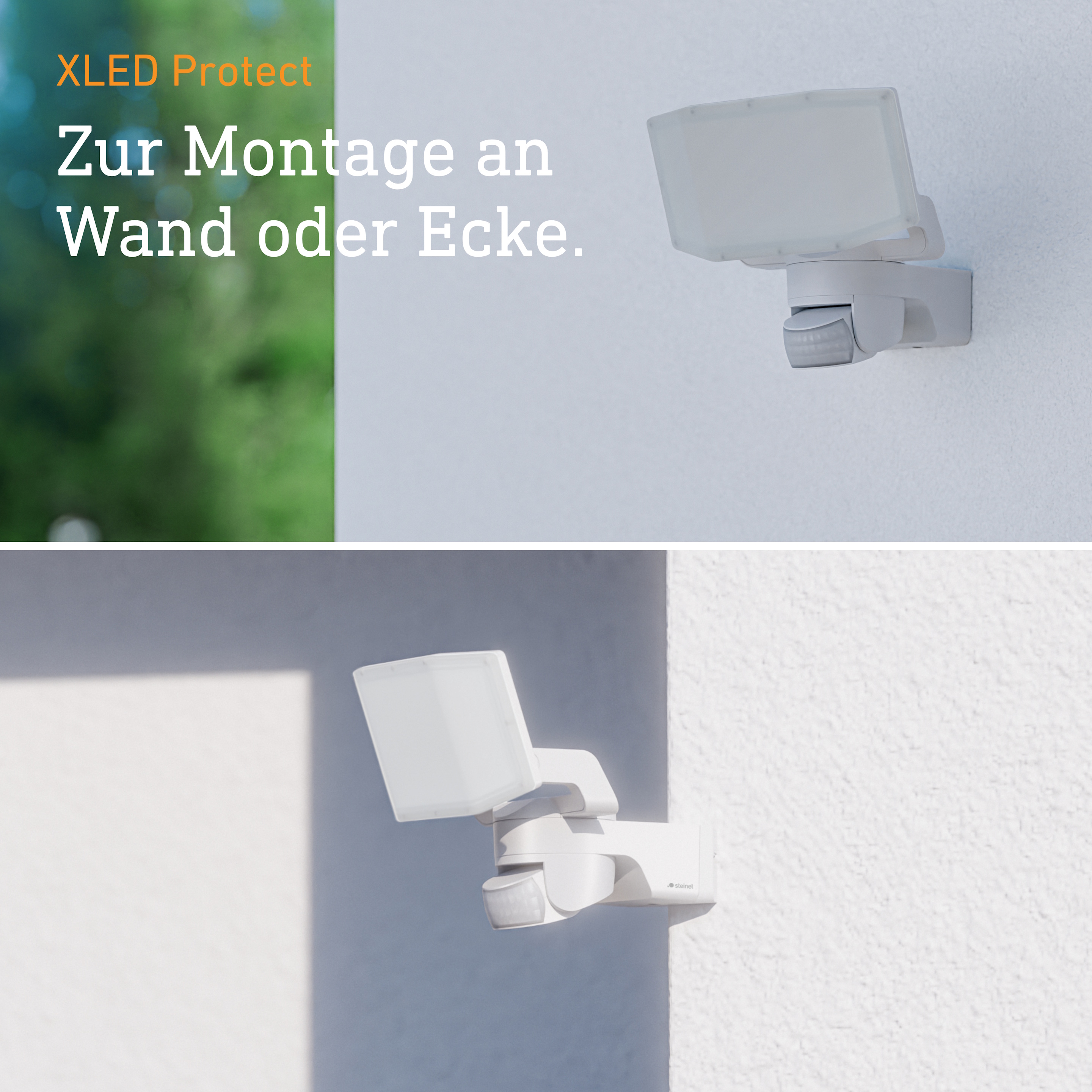

Mounting location corner wall
Application location Outdoors
Mounting type Surface wiring
Application room all round the building courtyard & driveway front door garden terrace / balcony
Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates DEKRA
EPREL energy efficiency class E
EPREL category Light source

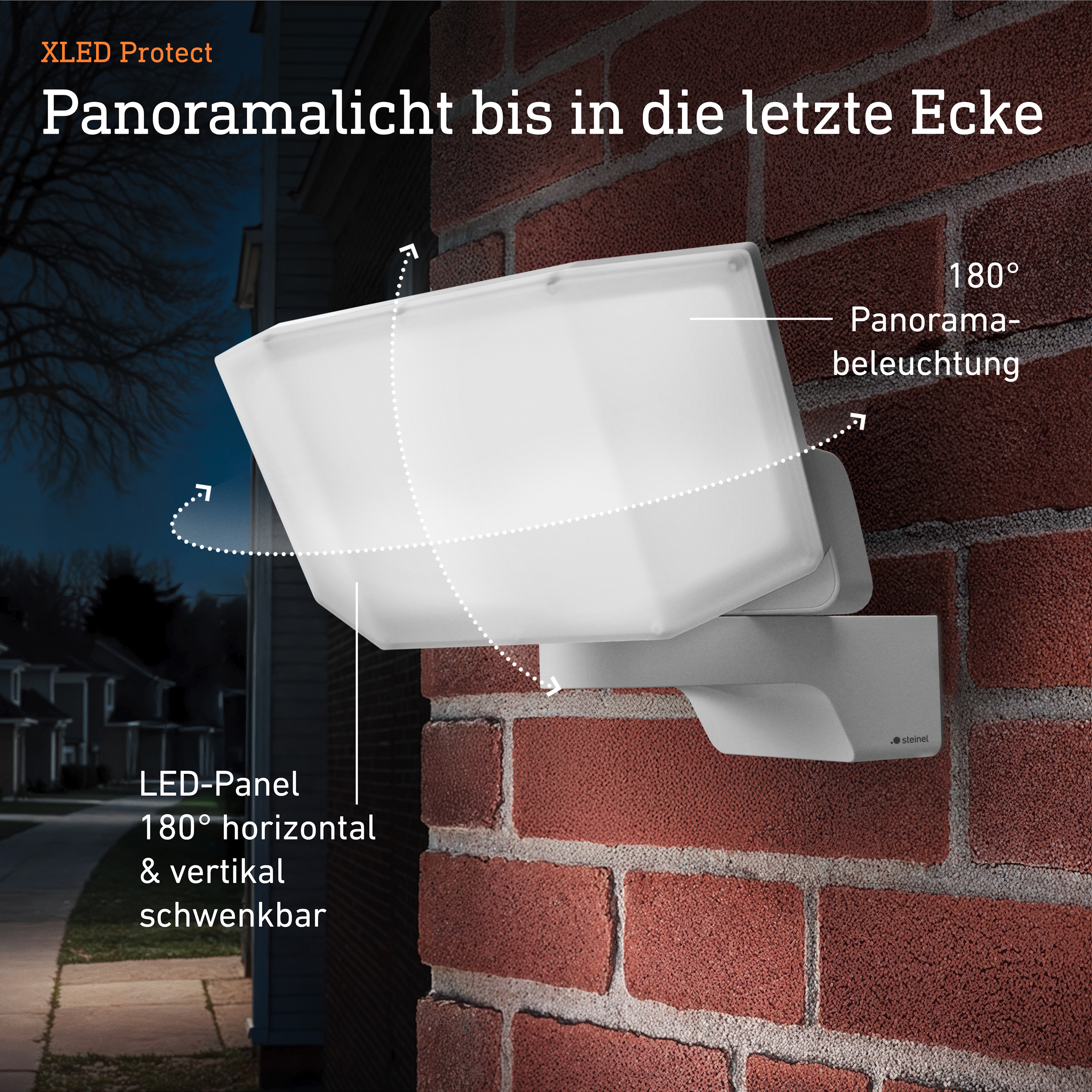

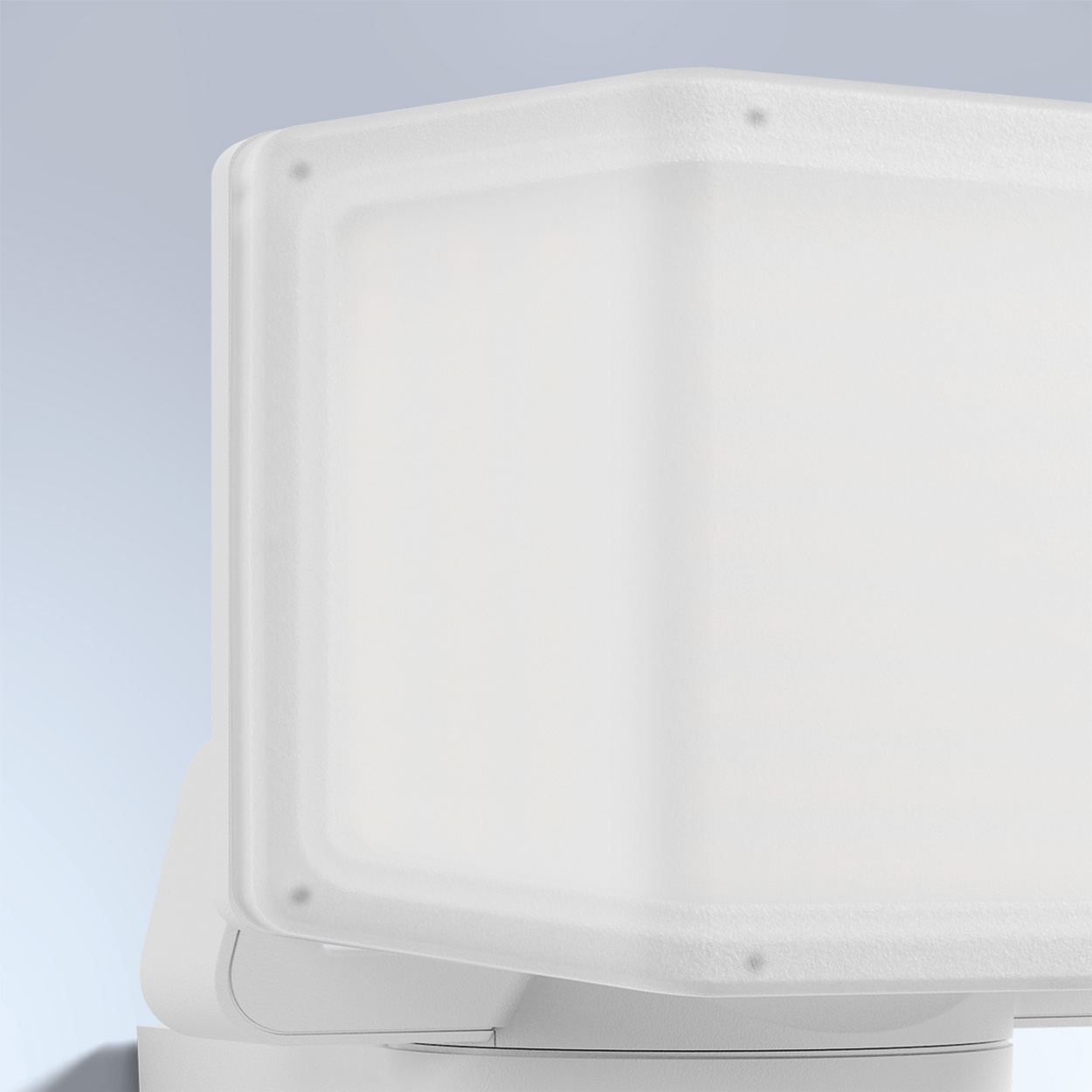

180° panorama light

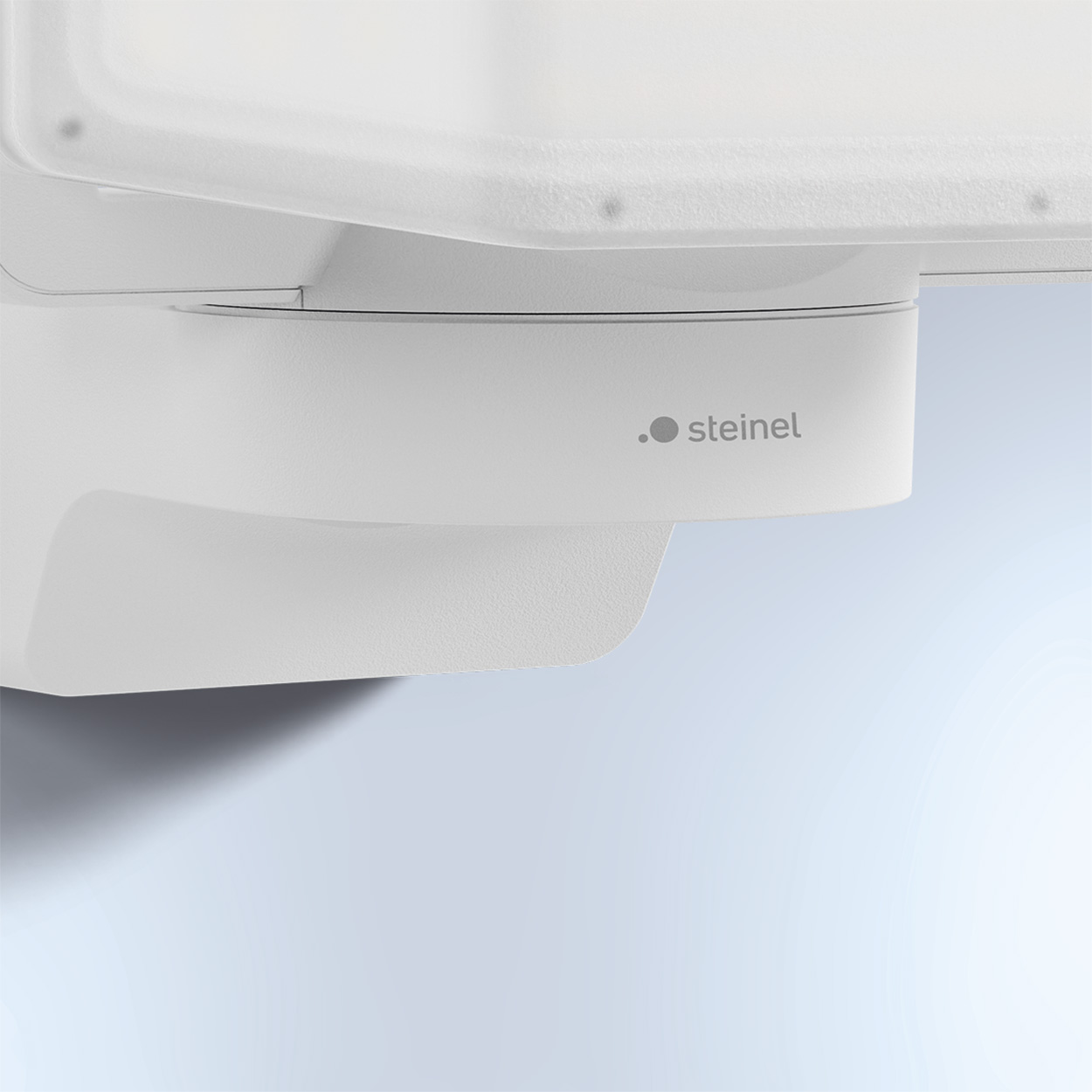

UV resistant material

Colour rendering index Ra ≥82

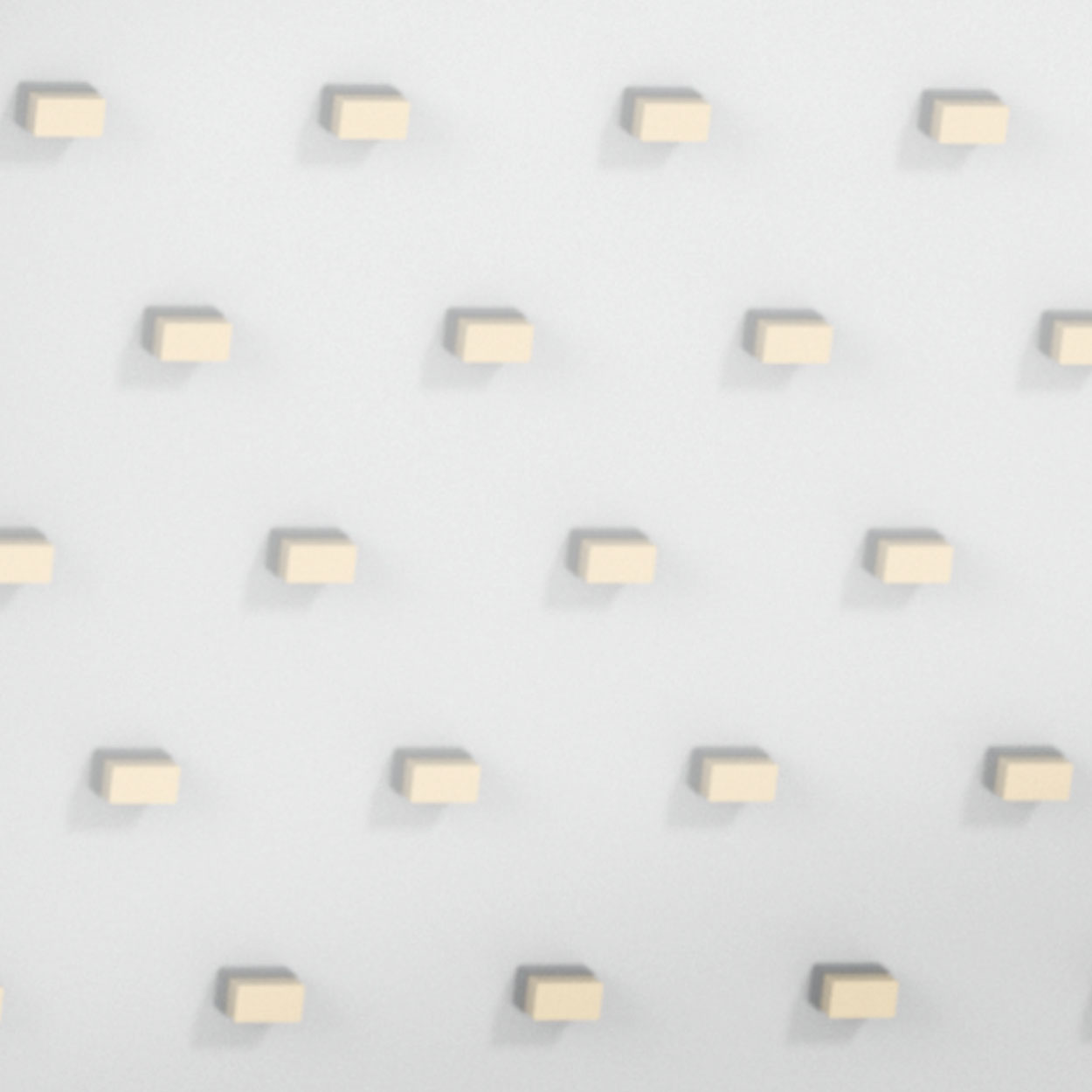

Including STEINEL LED system

Technical drawing

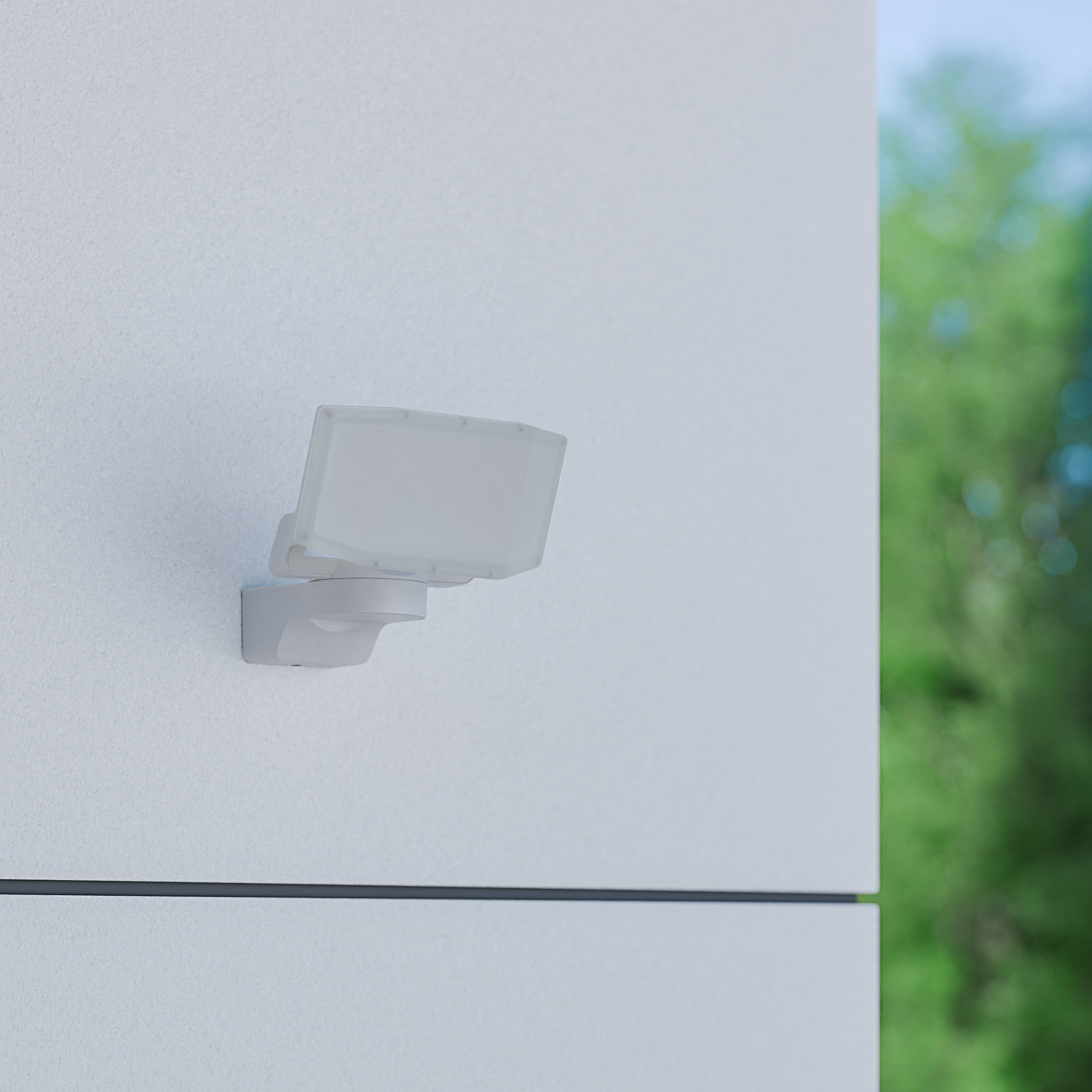

Sensor detection range

Wiring diagram 1

Circuit diagram
