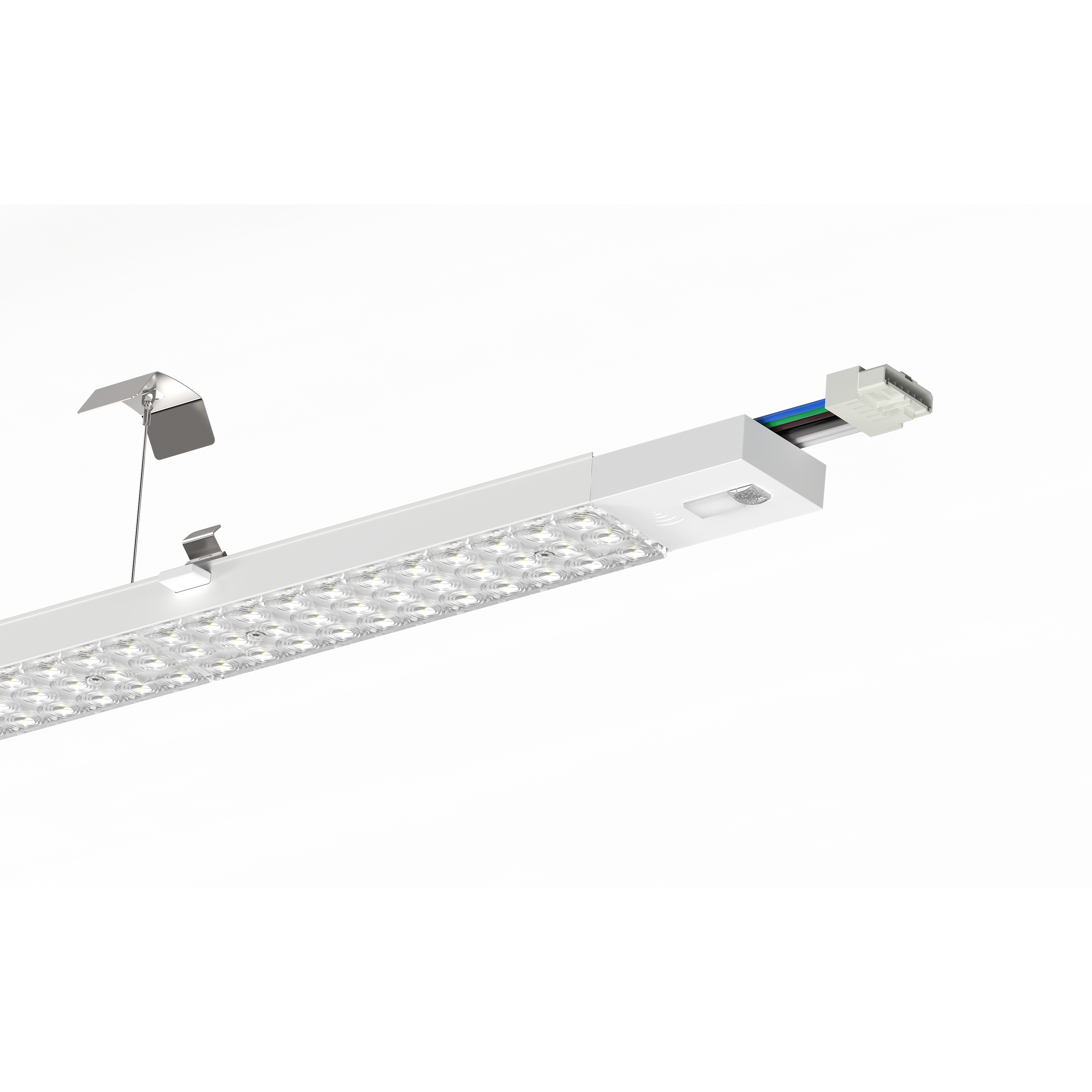

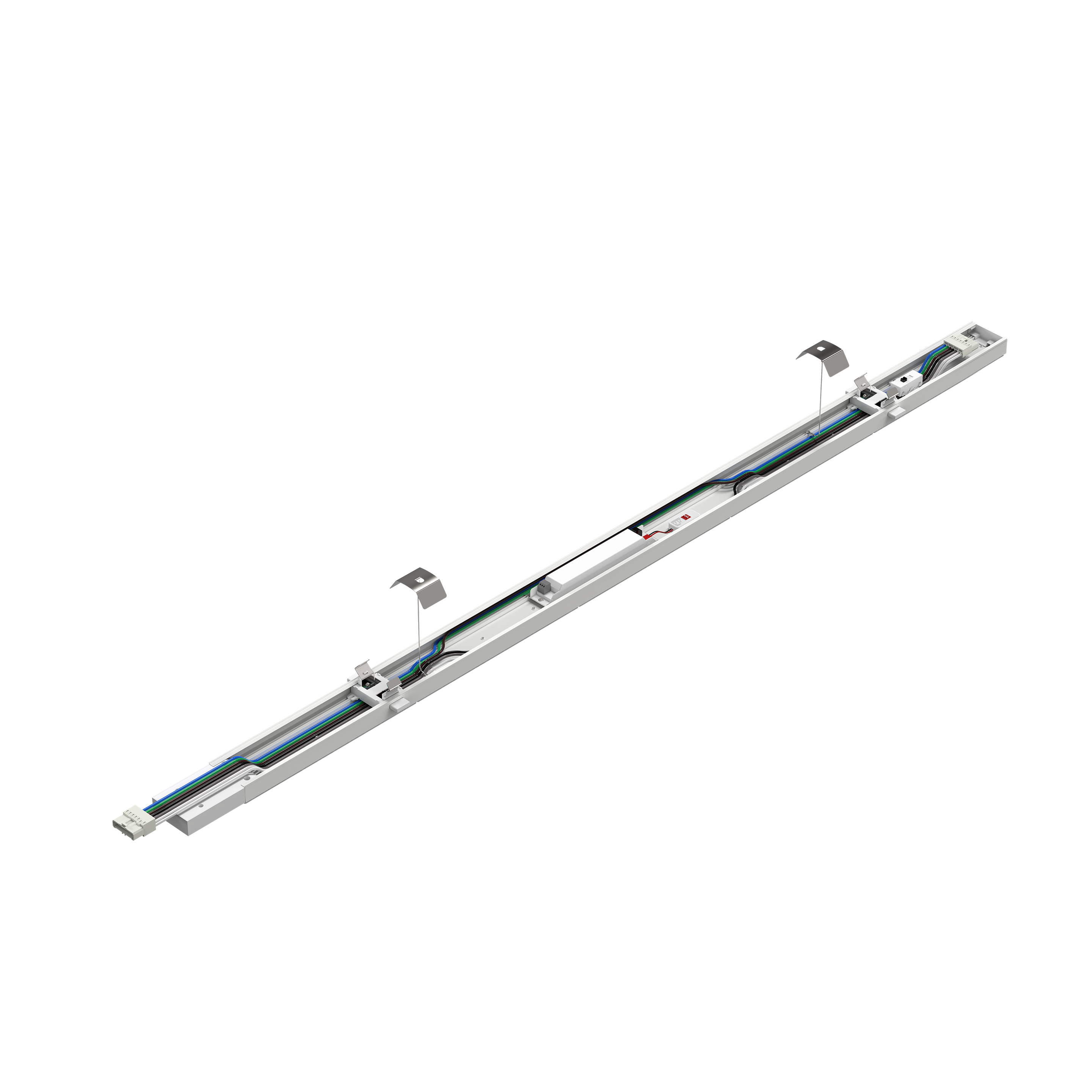

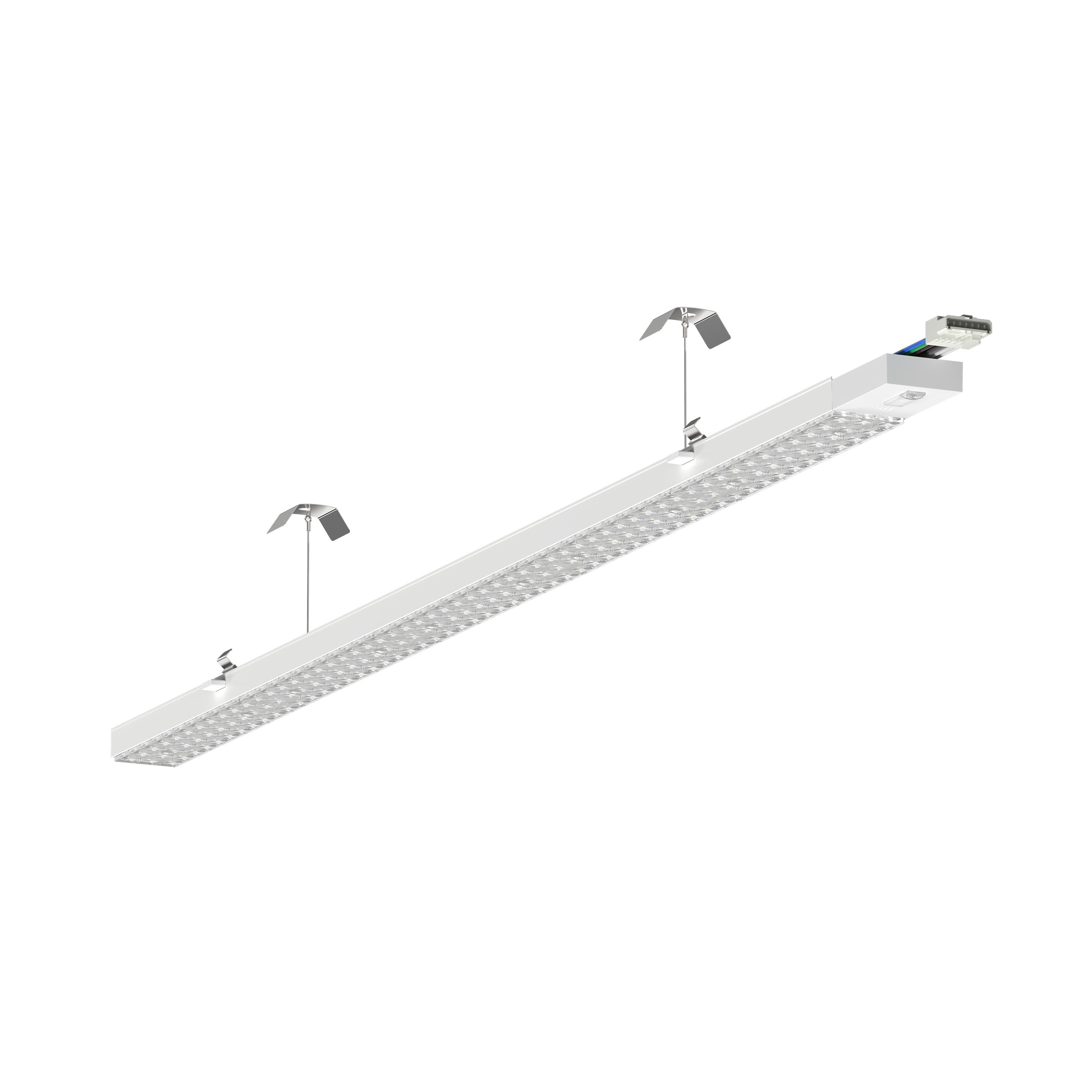

nevalux asali connect B1500 4K 120

LED insert for old T5/T8 trunking. Fits most systems, as DALI or Connect version.

Product code 221580

Price: Please log in to see prices

Control technology

Dali-Leuchte Smartlink Connect

Beam angle

90° 120°

The universal trunking insert asali from nevalux is designed for professional refurbishment of existing trunking with T5 or T8 fluorescent tubes. The luminaire uses the existing trunking installation. Old light modules can be replaced with new modules easily, quickly and without tools. The insert fits most trunking systems available on the market. The intelligent asali Connect application variants have permanently installed presence and brightness sensors in conjunction with Bluetooth networking. This results in a powerful light management system as well as unlimited flexibility in the formation of light groups. The savings achieved in addition to the LED technology are considerable and make it possible to claim subsidies.

Universal luminaire insert for professional refurbishment of continuous rows with T5 or T8 fluorescent tubes
Fits most of the trunking systems available on the market
Available as intelligent Connect version or as conventional DALI luminaire
Up to 95% energy savings with Connect luminaires thanks to constant light control and presence detection
Very high luminaire efficiency with approx. 160 lumens per watt
Also available as office variant with UGR <19

Variants

Luminous flux 10880 lm

Dimensions

Dimensions L × W × H 1528 x 64.7 x 30 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 68 W

Replaceable driver Yes

Type of wiring Through wiring included

LED rated current 310 mA

Maximum number of luminaires per circuit breaker C10: 12x, C13: 15x, C16: 19x, C20: 24x, B10: 7x , B13: 9x, B16: 11x, B20: 14x

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Radial range 4 x 4 m (16 m²)

Tangential range 6 x 6 m (36 m²)

Mounting height < 10 m

Presence range 4 x 4 m (16 m²)

With light sensor Yes

Connectivity

With radio network control Yes

Wireless networking via BT SIG Mesh

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80 - 89

Illuminant LED

Luminous flux 10880 lm

Beam angle 120°

Luminaire luminous efficacy 160 lm/W

Glare value UGR < 26

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes

With emergency light No

Suitable for light band configuration Yes

With program-controlled lighting control Yes

Housing & material

Protection class (IP) IP40

Protection class I

Ambient temperature -20...+45 °C

Housing material Aluminium

Cover material Clear lens

Mounting type Continuous row mounting

Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class C

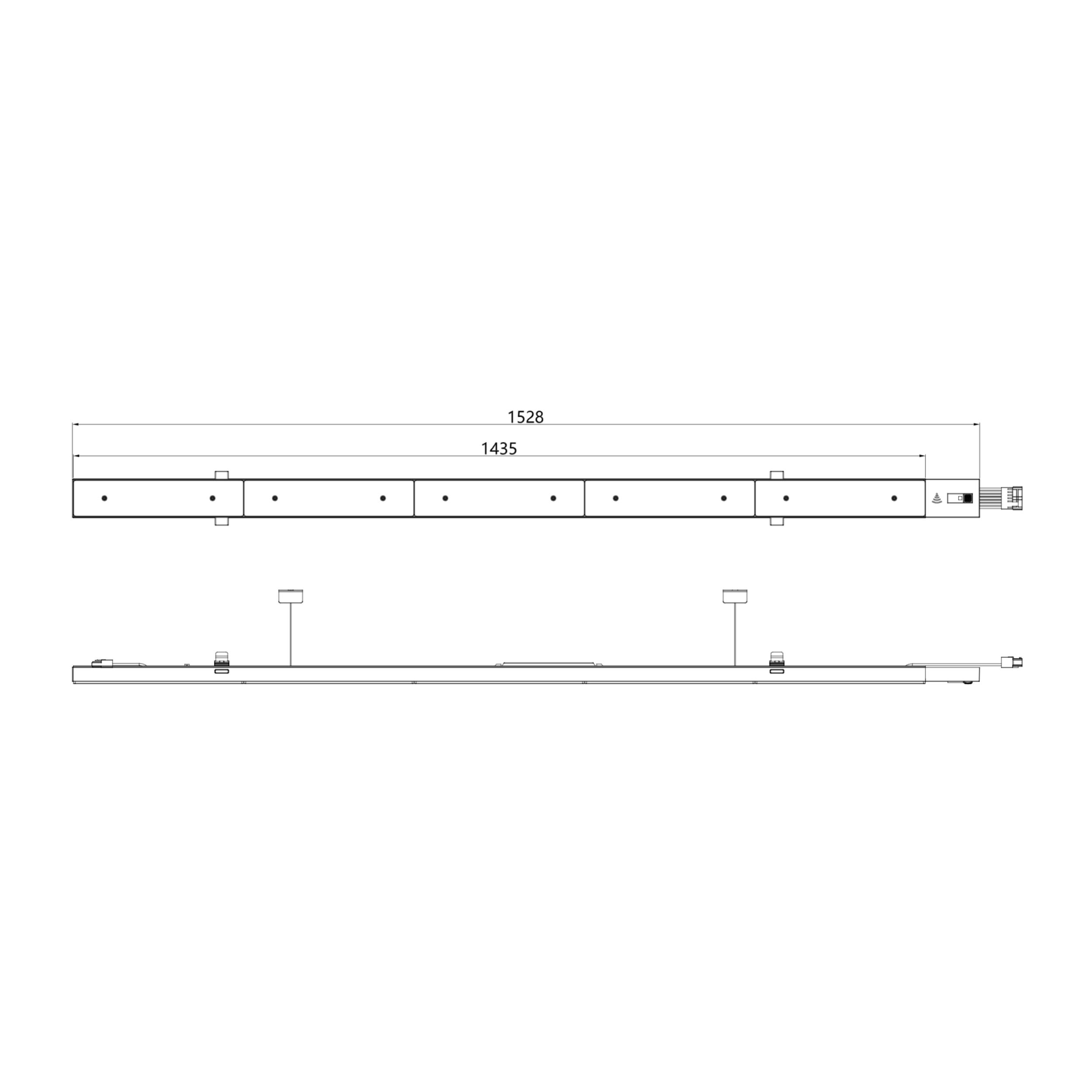

Technical drawing

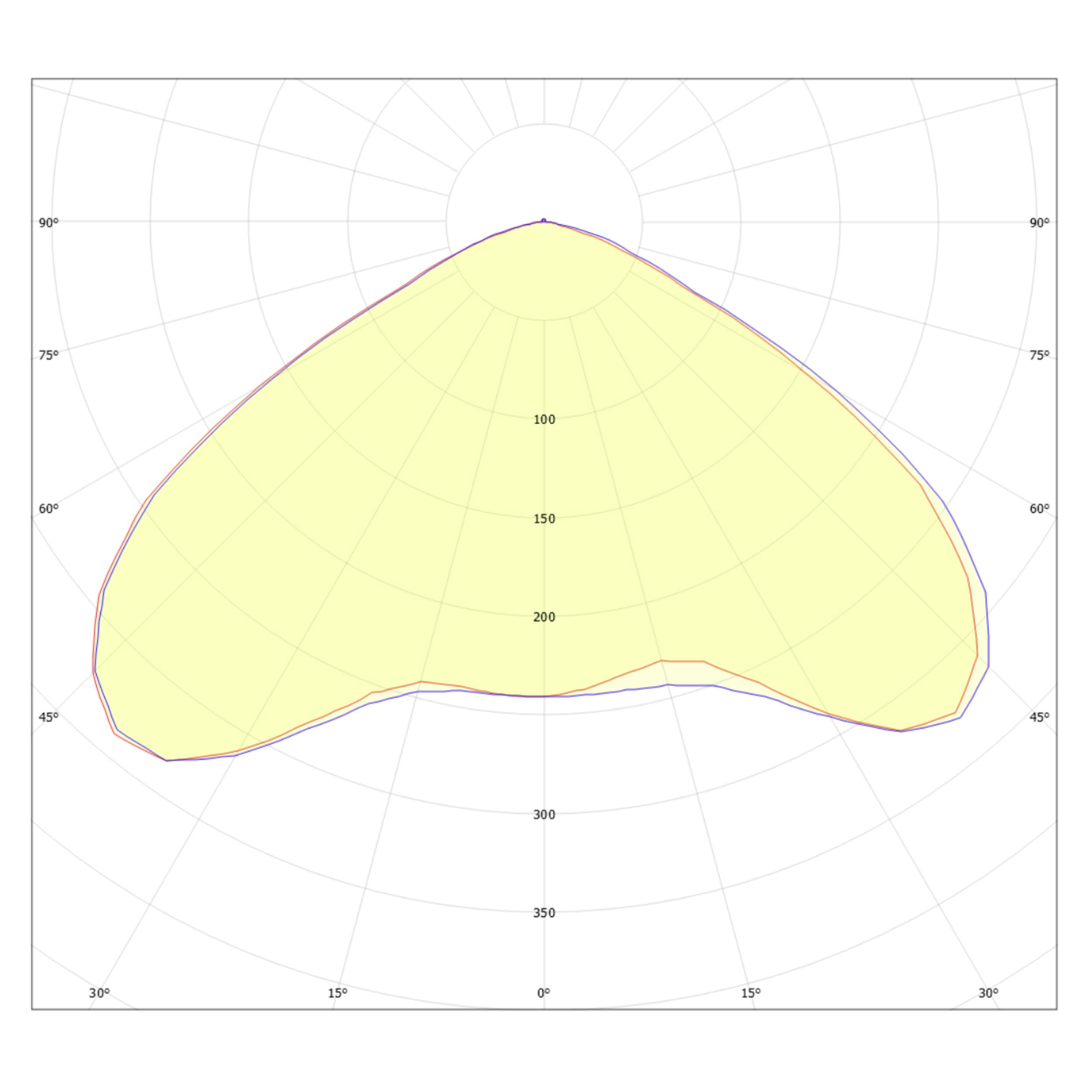

Lichtverteilungskurve

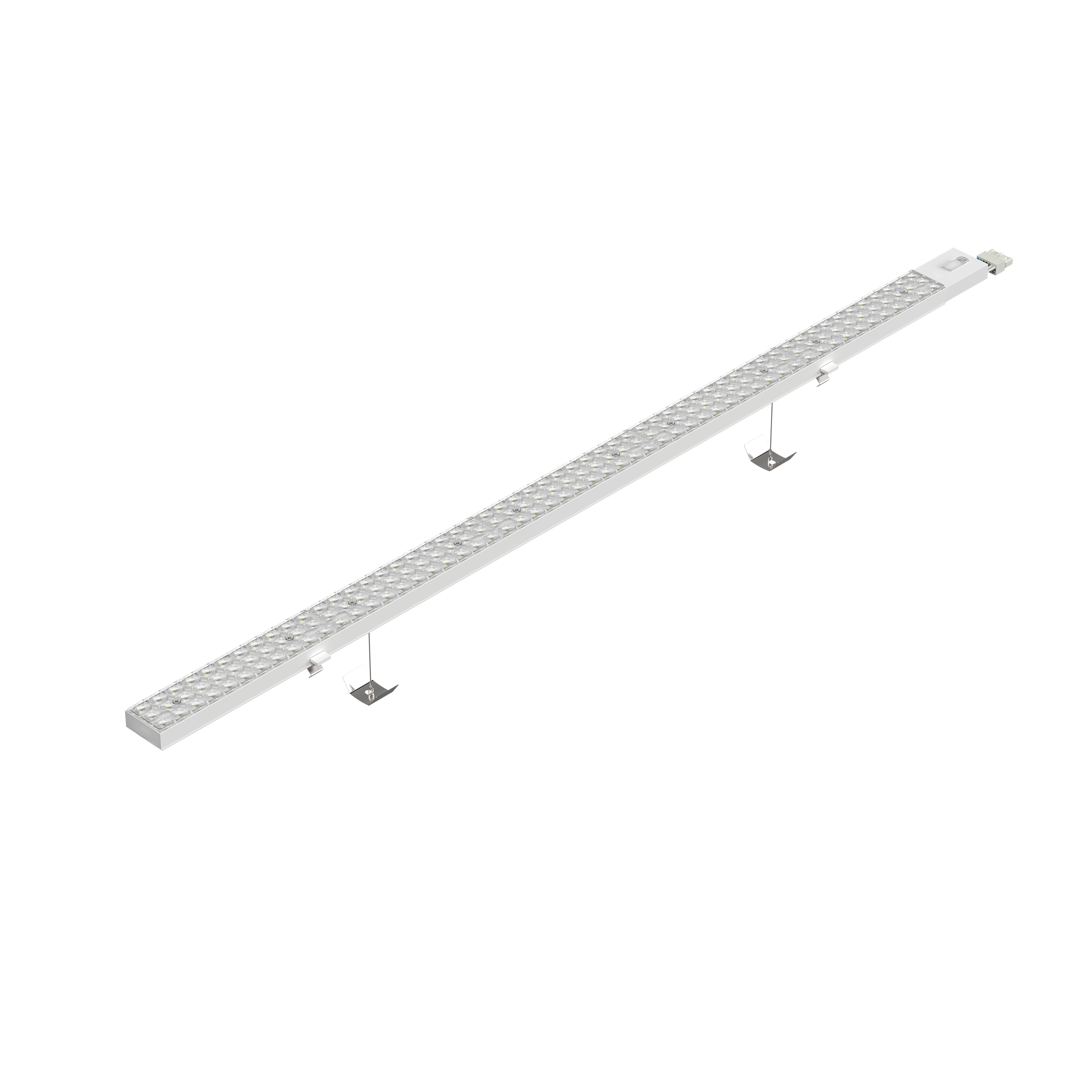

Sensor detection range

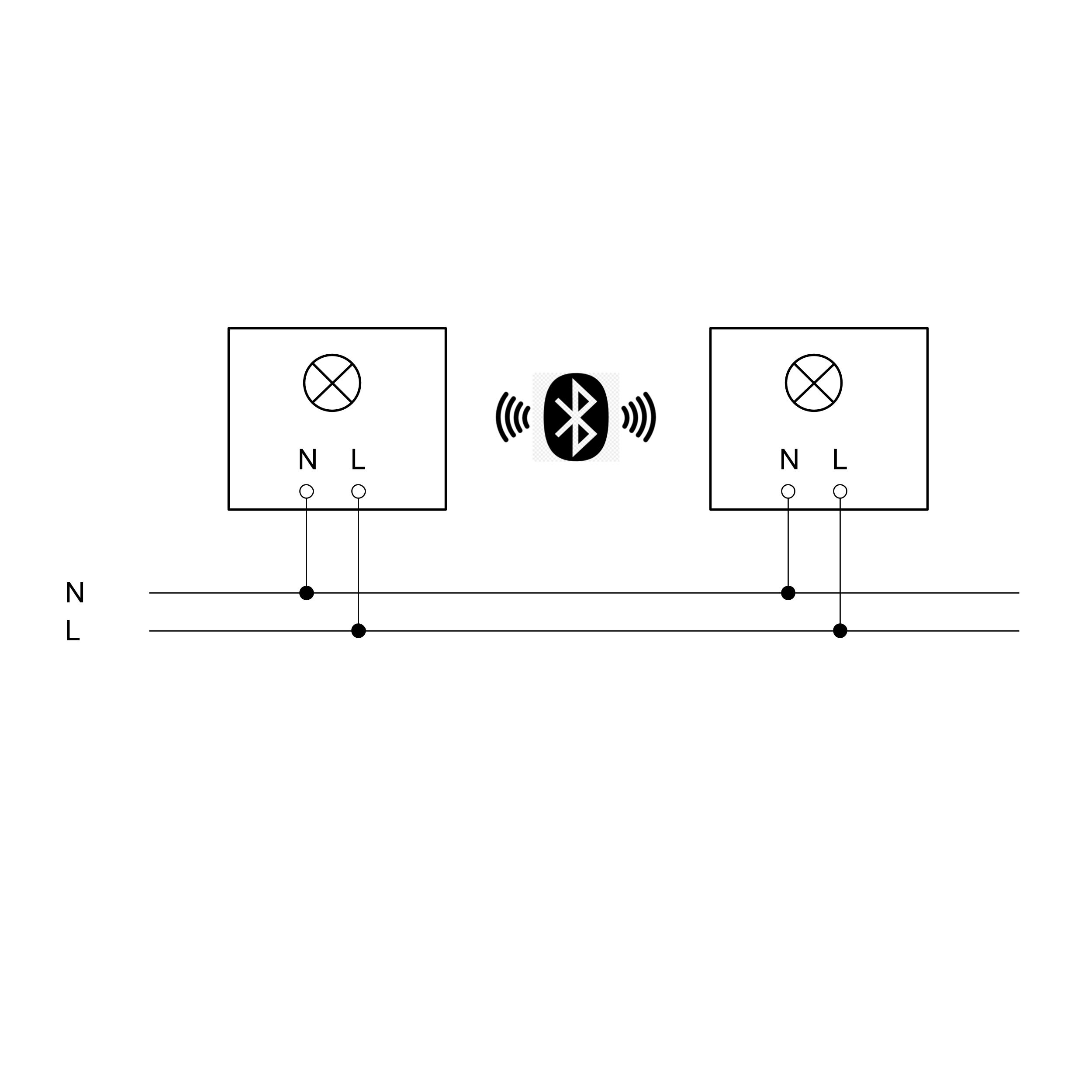

Wiring diagram 1

Wiring diagram networking radio

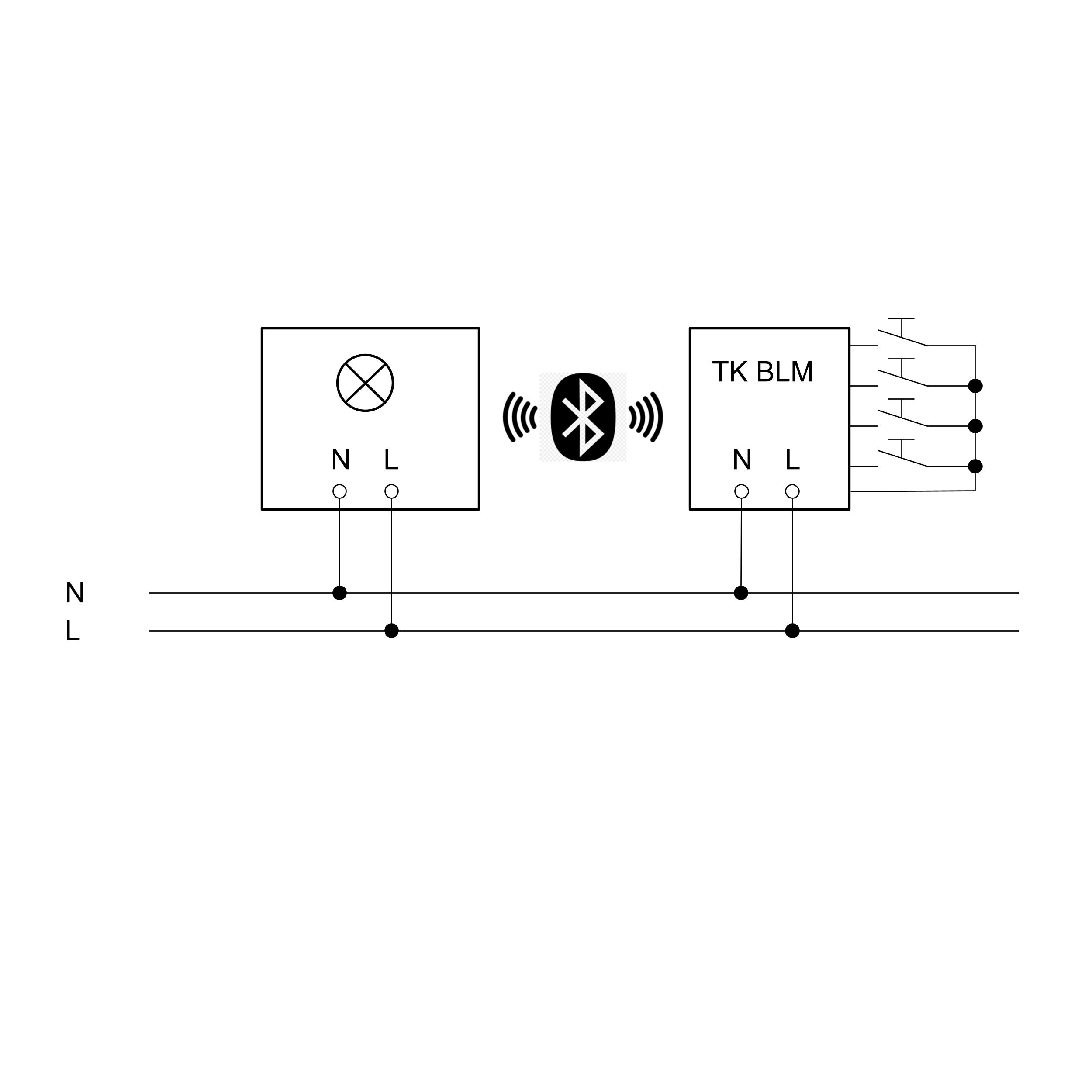

Wiring diagram 2

Wiring diagram pushbutton coupler

Data sheet User manual LDT file (light distribution)
