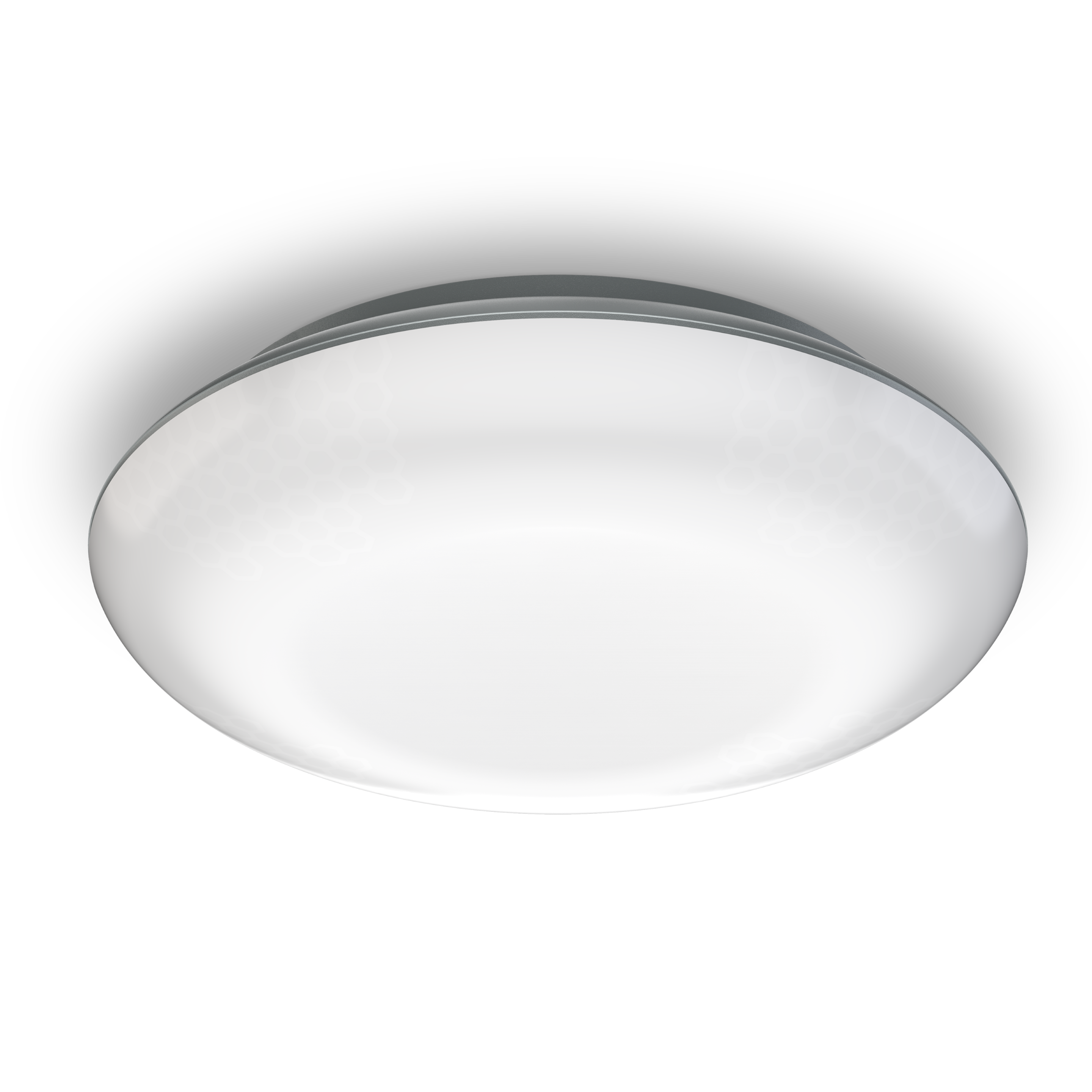

Nevalux DL Vario Quattro S Anthracite

ELDAS® no. 941 300 139

EAN-No. 4007841 057602

This product is being replaced by a successor product.

Go to successor product · DL Vario Quattro S white (035440)

Detects precisely where you want it to. Sensor-switched ceiling light providing reliable 360° all-round detection. Precise definition of the sensor detection zone in four directions thanks to four individually adjustable infrared sensors with a reach from 2 to 8 m. No visible sensor to spoil the design because the light diffuser is also the sensor lens – a patented world first 1000 lm at 9,8 W. With night-light function (10%). Max. mounting height: 6 m.

  • Including STEINEL LED system
  • Integrated sensor lenses
  • 4 infrared sensors adjustable in every direction
  • Reach adjusts in 4directions
  • 4-hour manual override (optional)
  • Impact-resistant material rated to IK07

Dimensions

Dimensions Ø × H 310 x 69 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,8 W
Own consumption 0,5 W

Sensor technology

Max. mounting height 6,00 m
Sensor technology Passiv Infrarot
With motion detector Yes
Opening angle 180 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability No
Range detail Reichweite von 2 - 8 m in 4 Richtungen (je 90 °) einstellbar
Radial range 4 x 4 m (16 m²)
Tangential range 16 x 16 m (256 m²)
Mounting height 2,00 – 6,00 m
Optimal mounting height 2,8 m

Connectivity

Networking Nein
Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 1000 lm
Efficiency 100 lm/W
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Ja, STEINEL LED-System
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light schaltbar, 4 h

Lifetime

LED lifetime max. °C 50000 Std
LED lifetime L70B50 25°C > 60000 Std

Settings

Twilight switch Ja
Twilight setting 2 – 1000 lx
Time setting 5 s – 30 Min.
Base light function Ja
Base light function time 10/30 Min., ganze Nacht
Settings via Potis
With remote control No
Twilight setting teach No
Base light function in percent 10 %
Base light function percent from 10

Housing & material

Impact resistance IK07
Protection class (IP) IP54
Protection class II
Ambient temperature -20 – 35 °C
Housing material Kunststoff
Cover material Kunststoff strukturiert
Mounting location Decke
Application location Außenbereich
Mounting type Aufputz
Material Kunststoff
Application room Flur / Gang Funktionsraum / Nebenraum Treppenhaus Außenbereich Hauseingang Hof & Einfahrt Innenbereich
Colour Anthrazit

Scope of delivery & warranty

Manufacturer warranty 3 Jahre

Certificates & EPREL

Certificates DEKRA EMV
EPREL category Umgebenes Produkt mit integrierter Lichtquelle

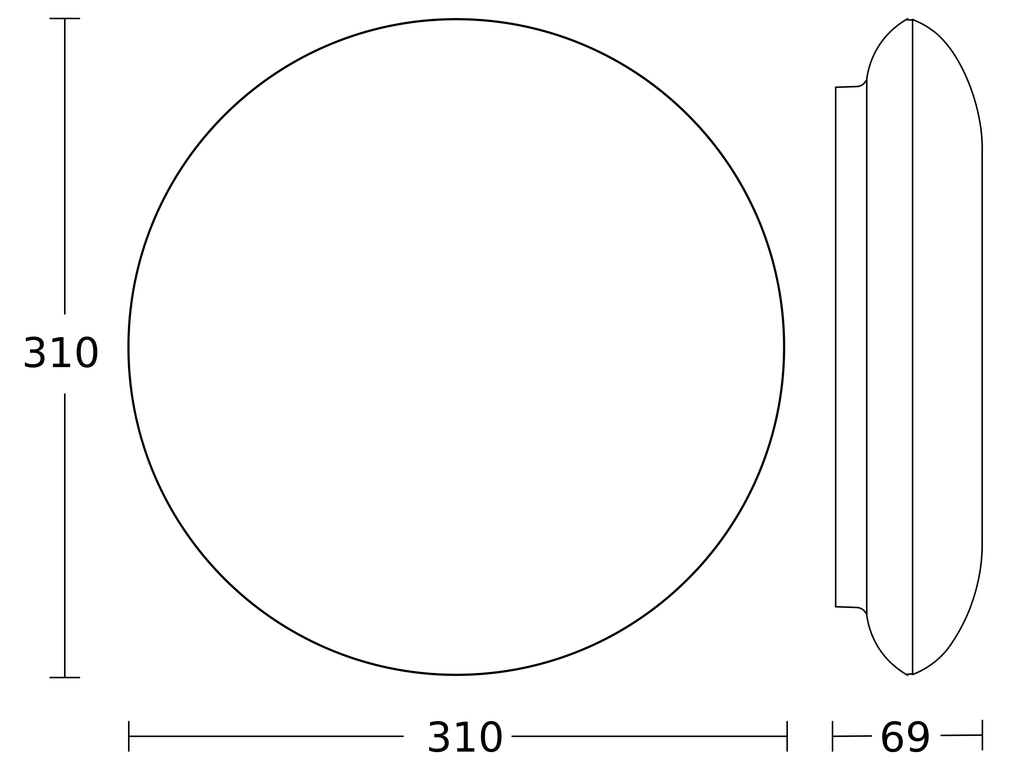

Technical drawing

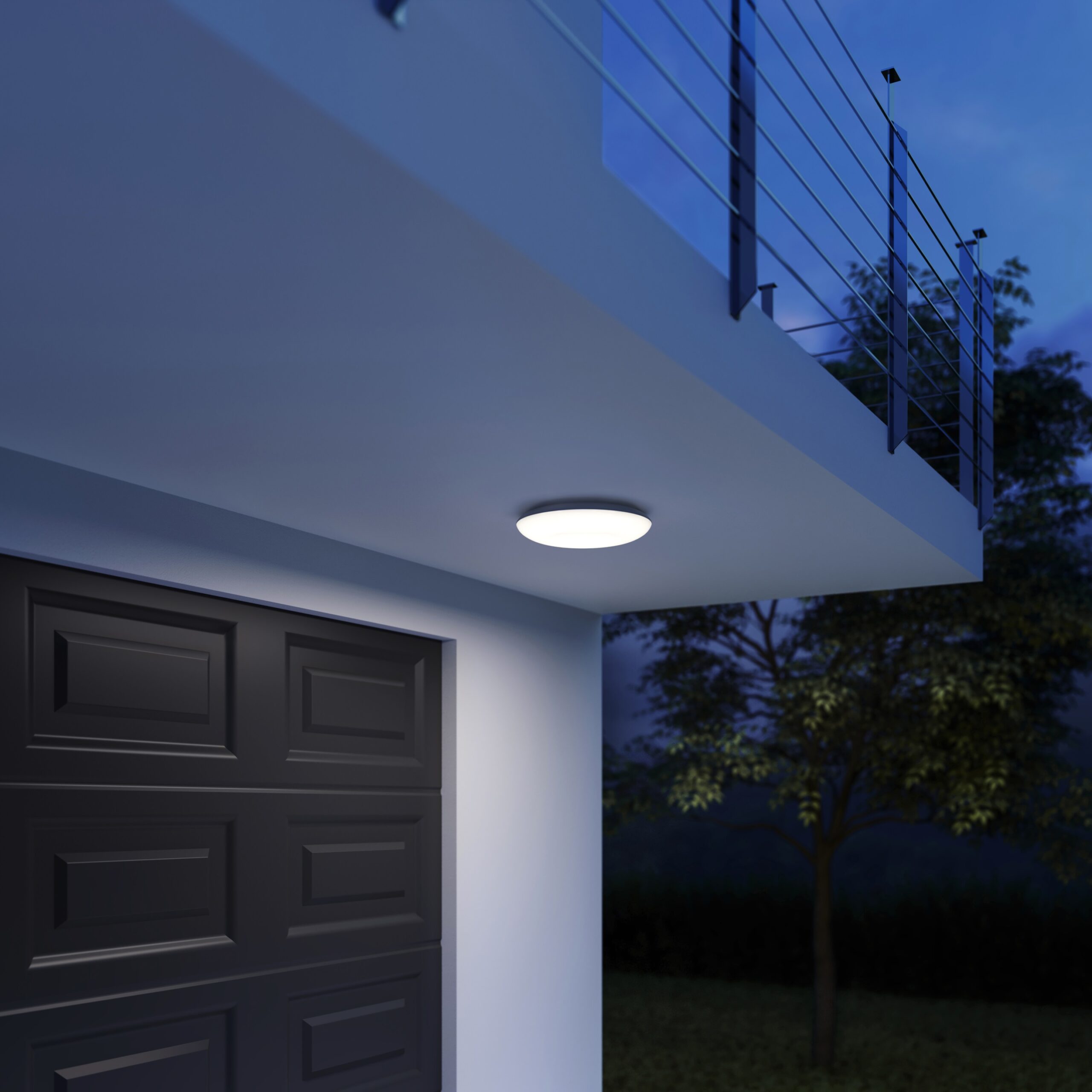

Sensor detection range

Wiring diagram 1

Circuit diagram
