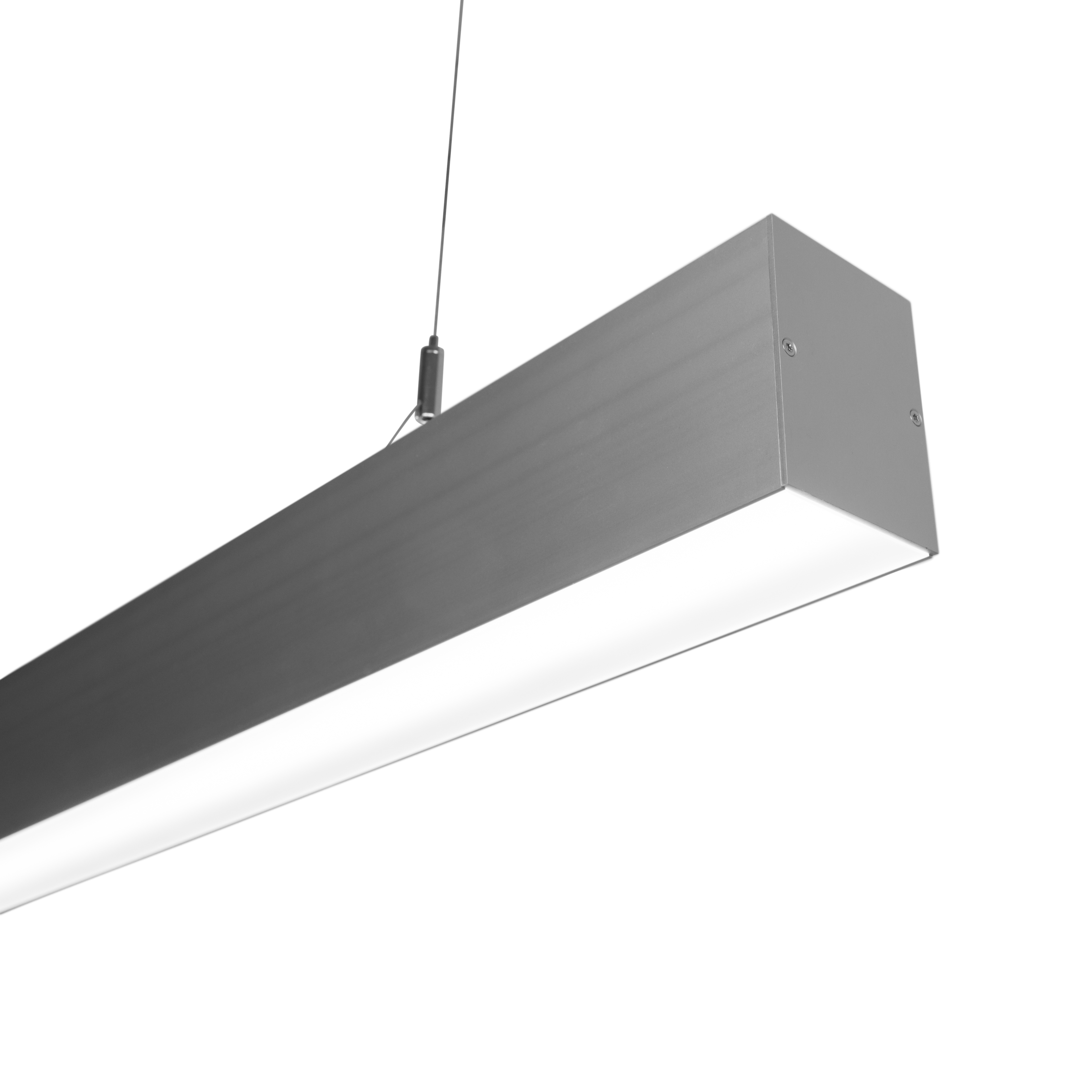

Nevalux elani connect P1500 3K
Product code 221123
Price: Please log in to see prices
Light colour
Version
Colour
Aluminium
white
- Built-in, networkable light management for next generation lighting projects
- up to 70% energy savings compared to a conventional solution thanks to constant light control and presence detection
- For universal use for lighting offices, schools, traffic zones etc.
- Direct and indirect light can be controlled separately
- Variants with 1.5, 2.4 and 3.14 meter length available
- Housing Anodised aluminium
- Swiss Made
Dimensions
Dimensions L × W × H
1500 x 60 x 80 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
47 W
Sensor technology
With motion detector
Nein
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminium
Cover material
Acrylglas opal
Mounting type
Decke Pendel
Colour
Aluminium
Scope of delivery & warranty
Manufacturer warranty
5 years

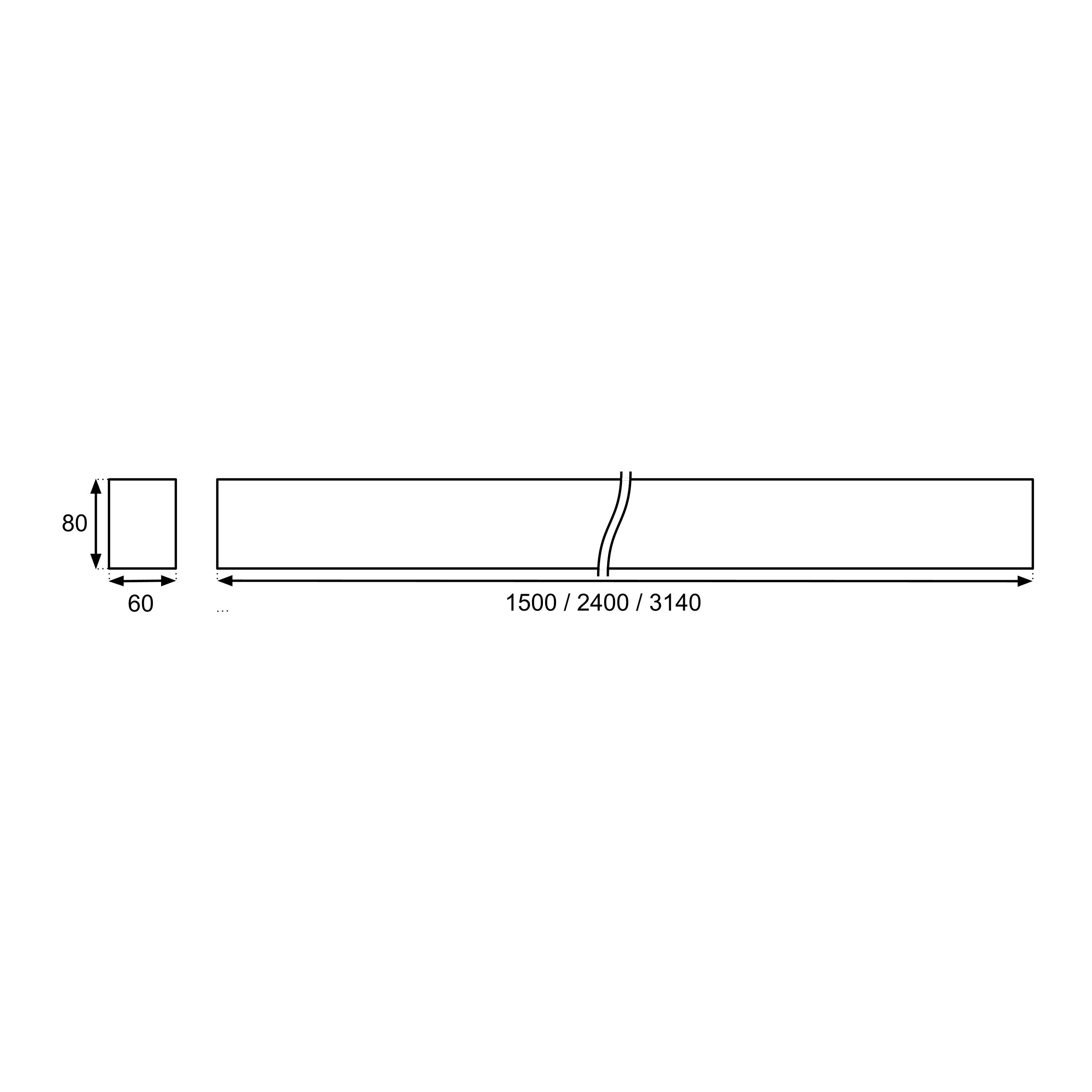

Technical drawing

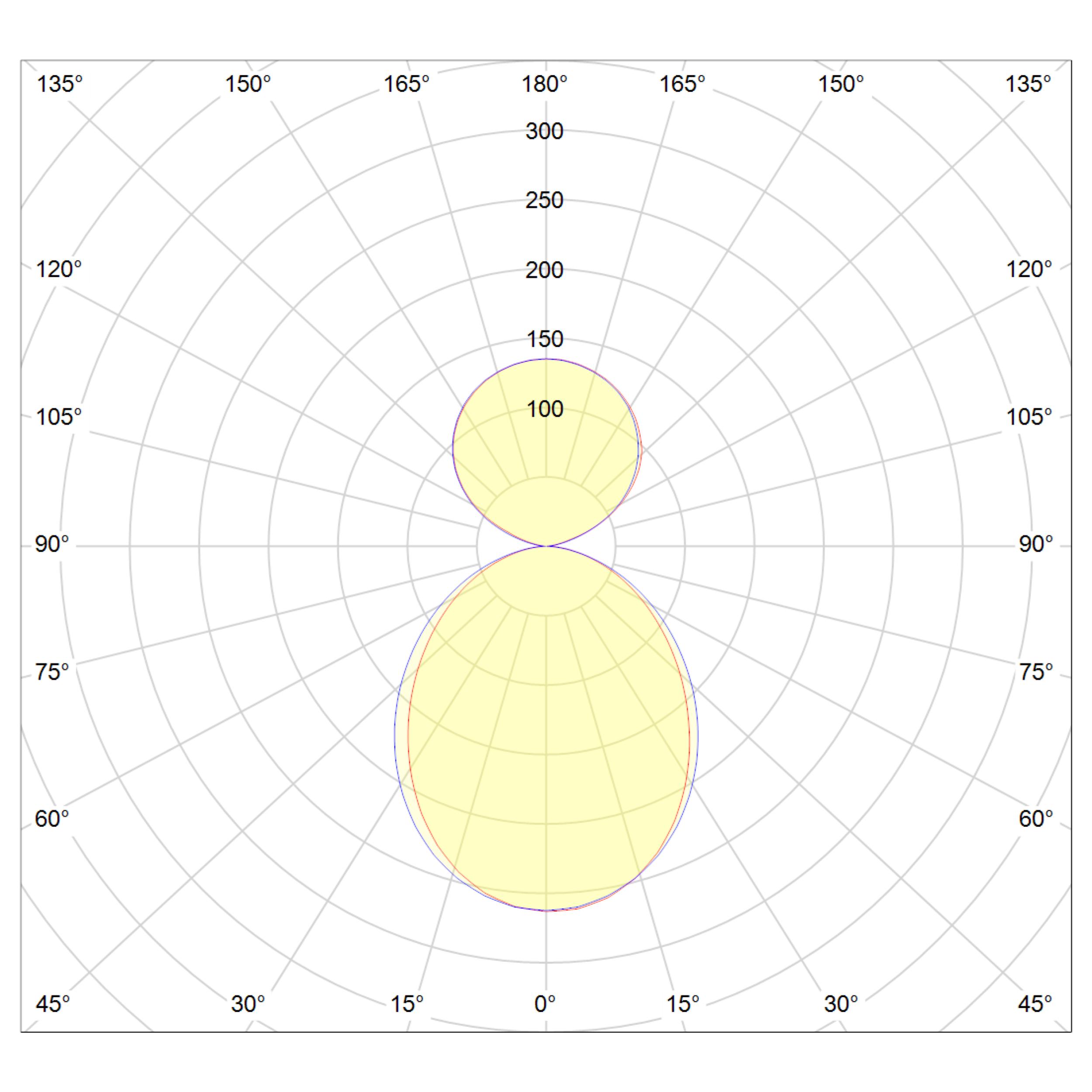

Lichtverteilungskurve

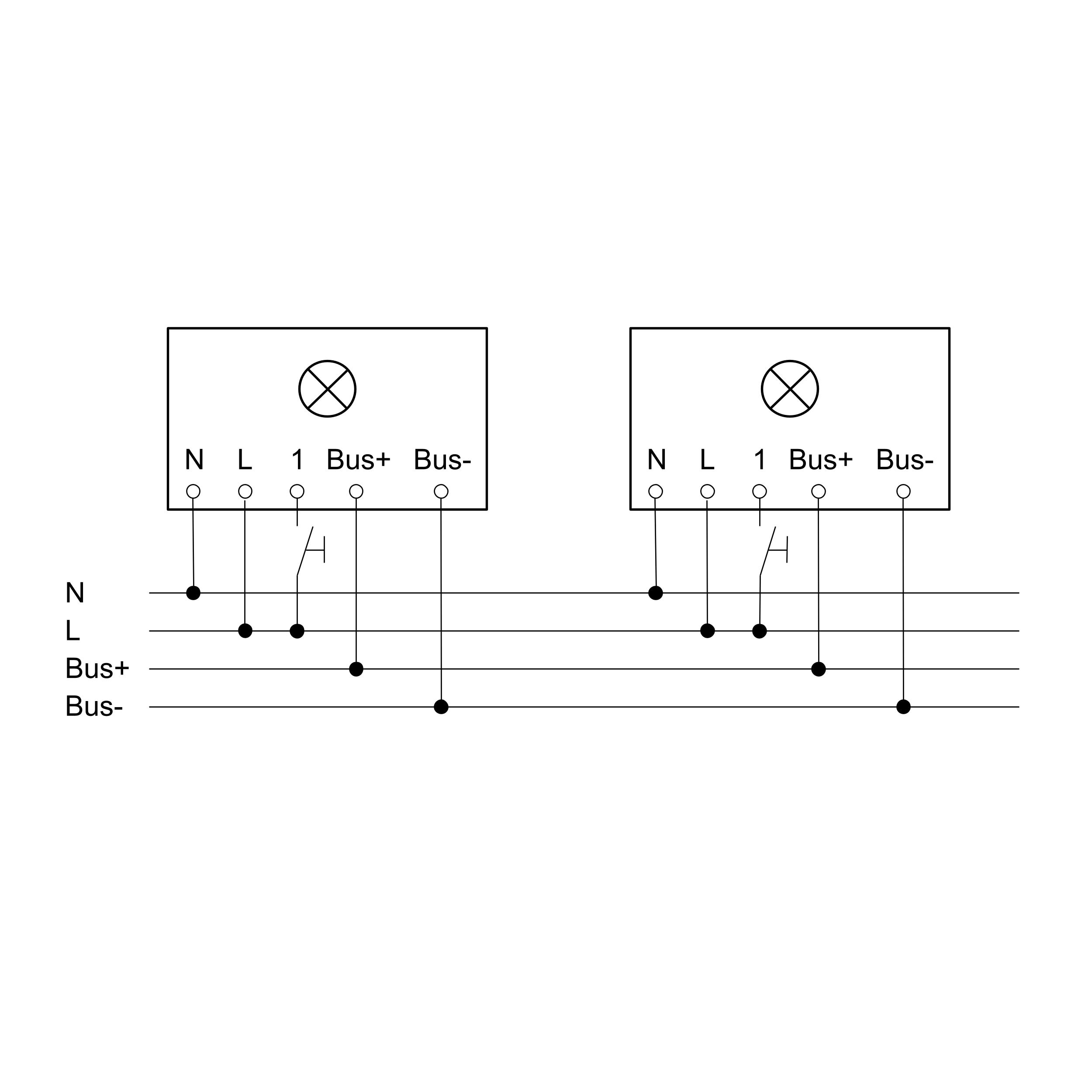

Wiring diagram 1
Wiring diagram networking wire

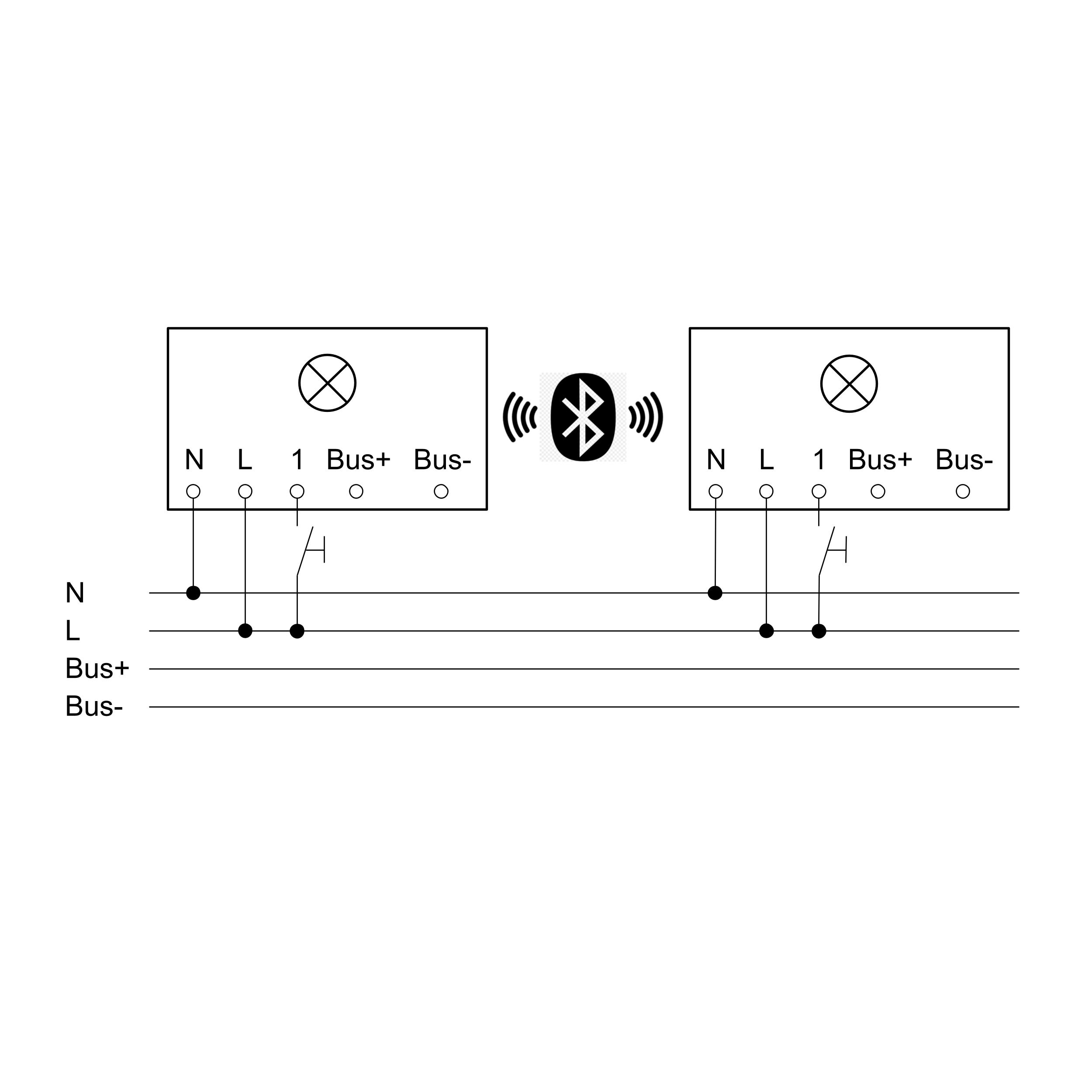

Wiring diagram 2
Wiring diagram networking radio
