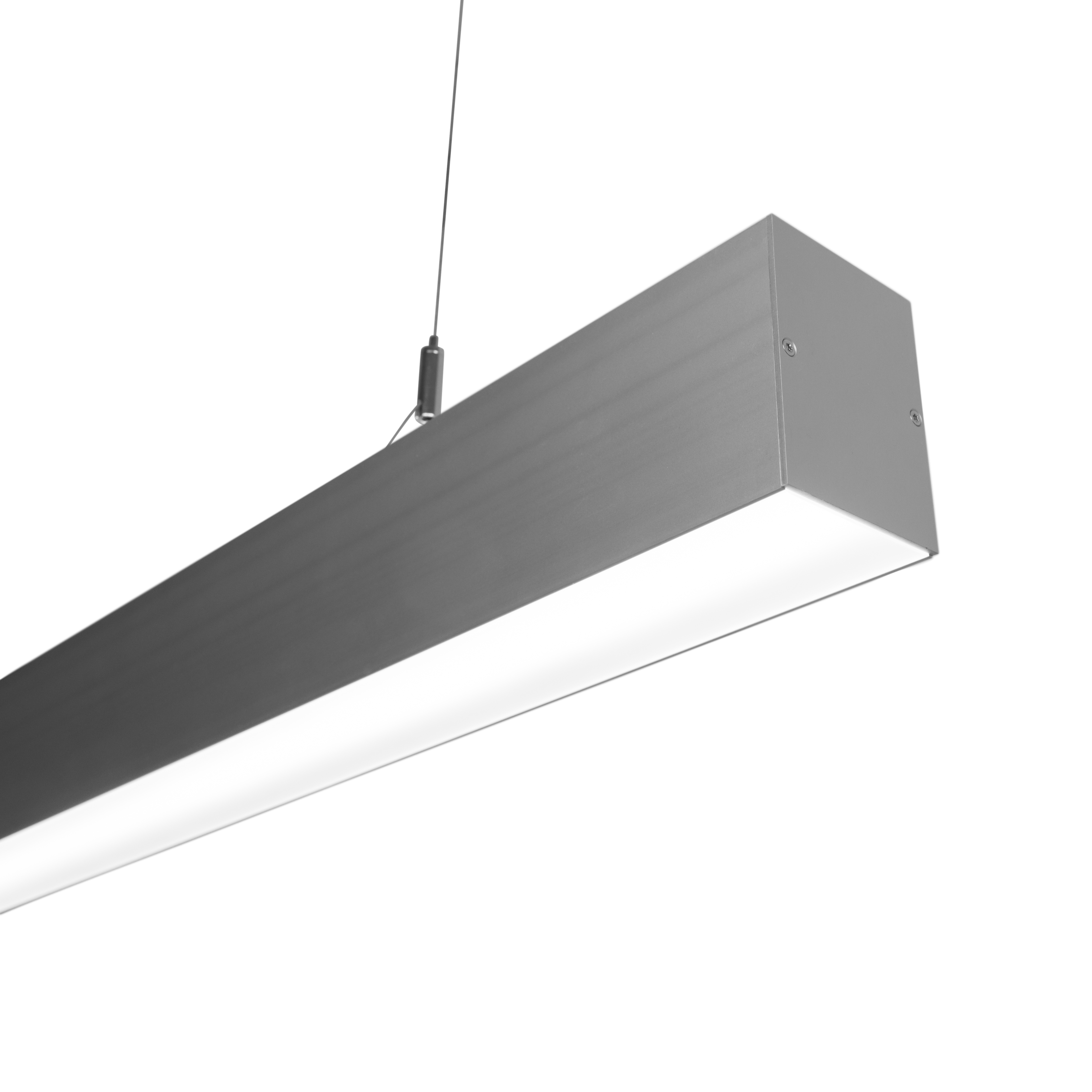

nevalux elani connect P3200 3K
Long ceiling light for offices, schools and corridors. Many lengths, dimmable, Swiss Made.
Product code 221111
Price: Please log in to see prices
Mounting type
Pendant mounting
Surface mounted (ceiling / wall)
Dimensions L × W × H
Control technology
Dali-Leuchte
Smartlink Connect
Colour temperature
Switch selection
The requested variant is not available. Please choose one of the following options.
- Built-in, networkable light management for next generation lighting projects
- up to 70% energy savings compared to a conventional solution thanks to constant light control and presence detection
- For universal use for lighting offices, schools, traffic zones etc.
- Direct and indirect light can be controlled separately
- Variants with 1.5, 2.4 and 3.14 meter length available
- Housing Anodised aluminium
- Swiss Made
Identification
Version
Presence detector
Variants
Version
3140mm - 12560lm
Dimensions
Suspension length
2000 mm
Electrical
Mains connection
21 – 30 V
Power
97 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
Max. mounting height
1,20 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 4 m (25 m²)
Tangential range
r = 12 m (226 m²)
Switching zones
96 switching zones
Mounting height
1,0 – 1,2 m
Presence range
r = 4 m (25 m²)
Optimal mounting height
1,2 m
With light sensor
Yes
Connectivity
Networking
Yes
Type of networking
Master/Slave, Master/Master
KNX functions
Photo-cell controller\nBasic light level function\nLight level\nHVAC output\nConstant-lighting control\nLight output 4x\nAir pressure\nHumidity output\nPresence output\nDay / night function\nDewpoint\nTemperature output\nLogic gate
With bus coupler
Yes
With radio network control
Yes
Wireless networking via
BT SIG Mesh
Networking via
KNX bus
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Soft light start
Yes
Constant light regulation
Yes
Beam angle
Down 105°, Up 115°
Luminaire luminous efficacy
129 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
70000 h
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
60 s – 255 min
Base light function
Yes
Functions
Presence detector logic
Settings via
ETS software, Remote control, Smart Remote
With remote control
Yes
Twilight setting teach
Yes
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Direct/indirect ratio separately controllable
Yes
With program-controlled lighting control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
0...+40 °C
Housing material
Aluminium
Cover material
Acrylic glass opal
Mounting location
Wall
Application location
Indoors
Material
Plastic
Application room
Indoors, WC / washroom, corridor / aisle, function room / ancillary room, kitchenette, one-person office, stairwell
Colour
White
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
EMC\nVDE
EPREL energy efficiency class
D

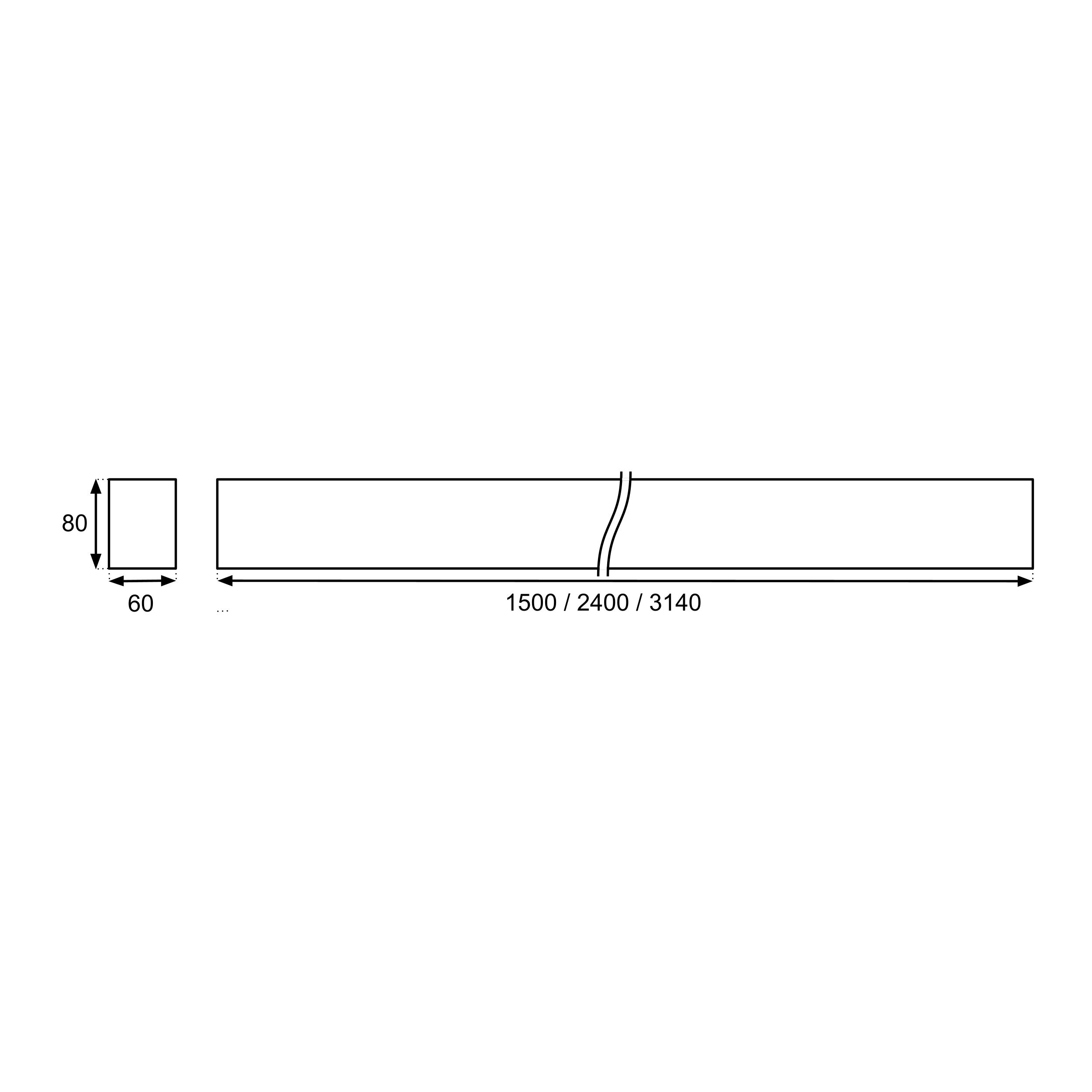

Technical drawing

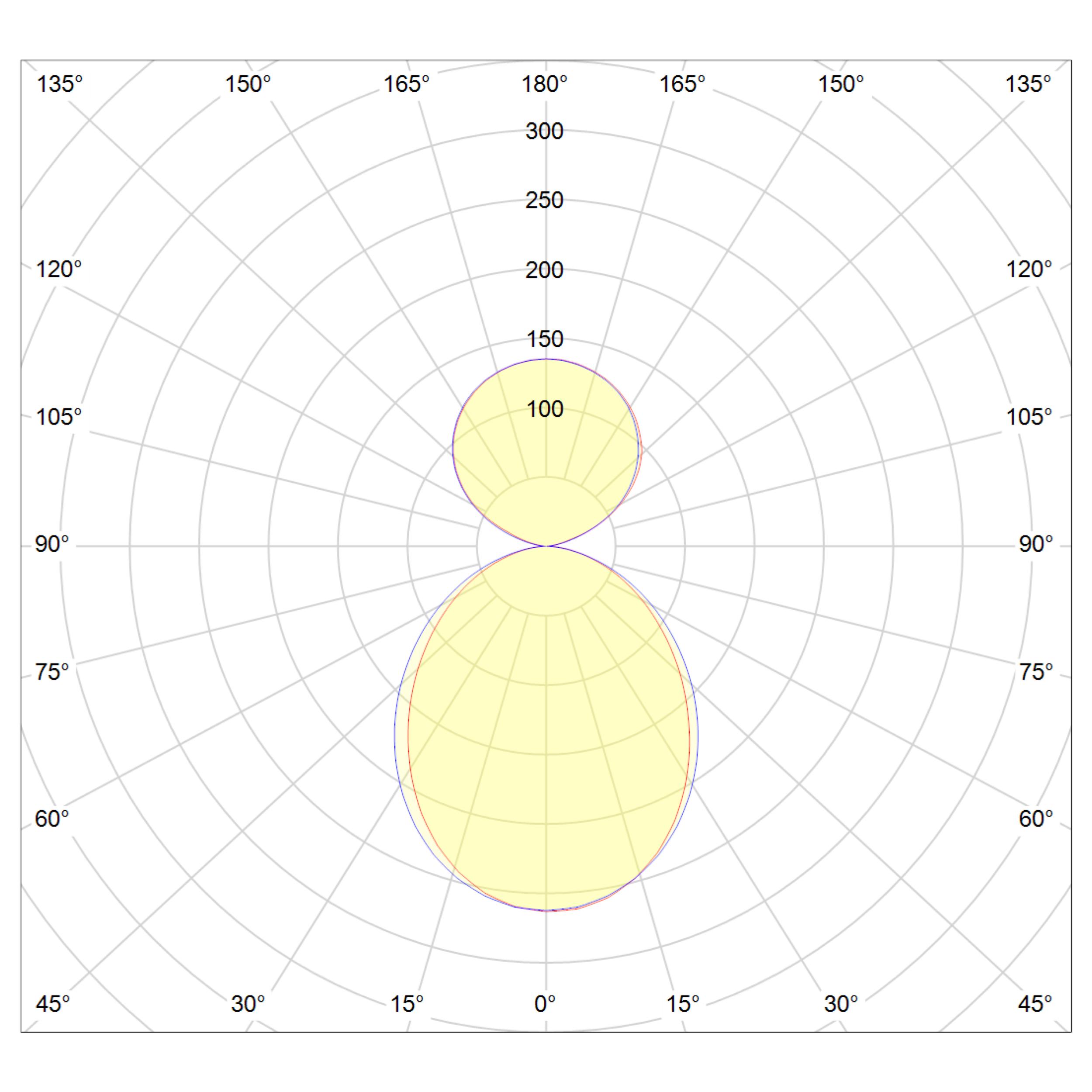

Lichtverteilungskurve

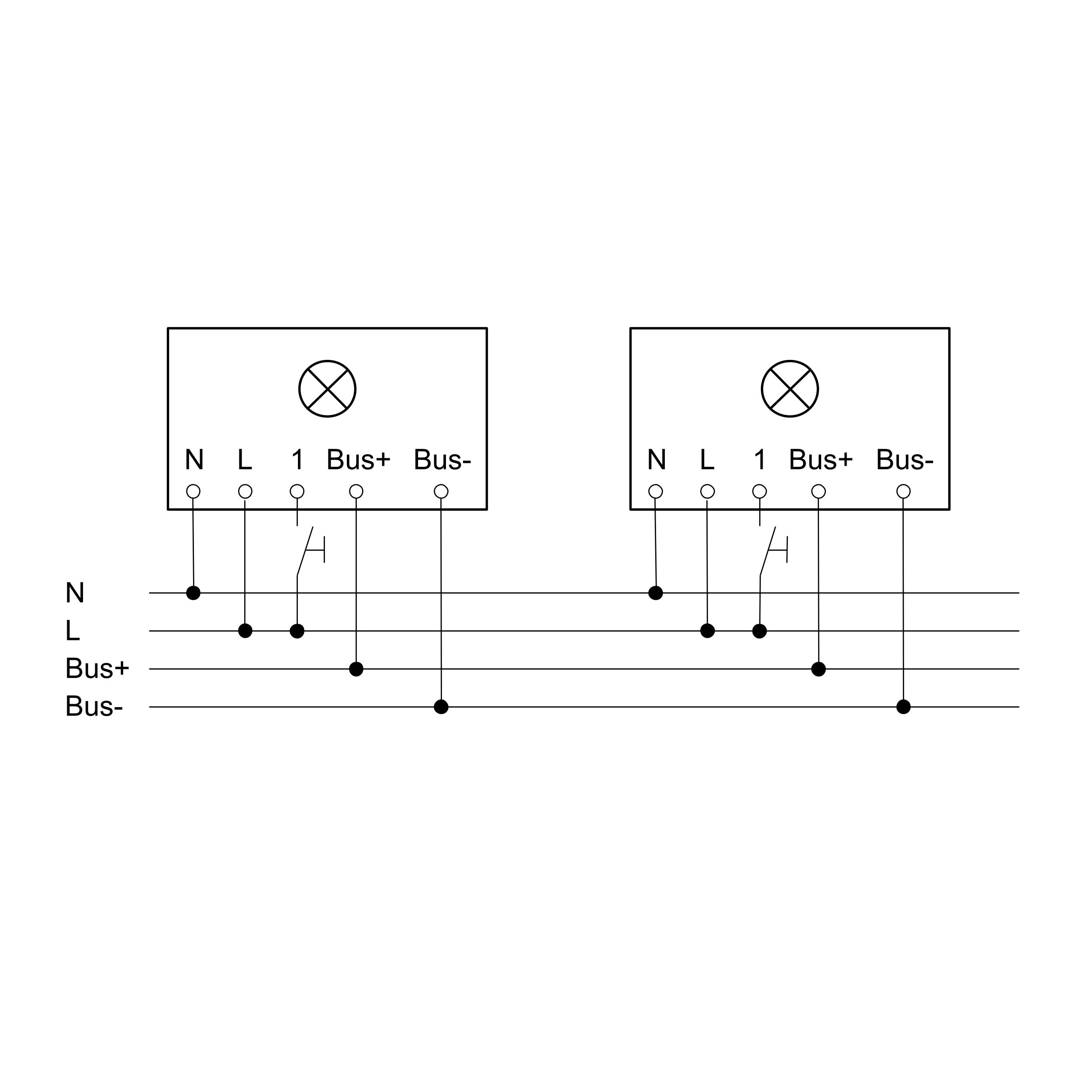

Wiring diagram 1
Wiring diagram networking wire

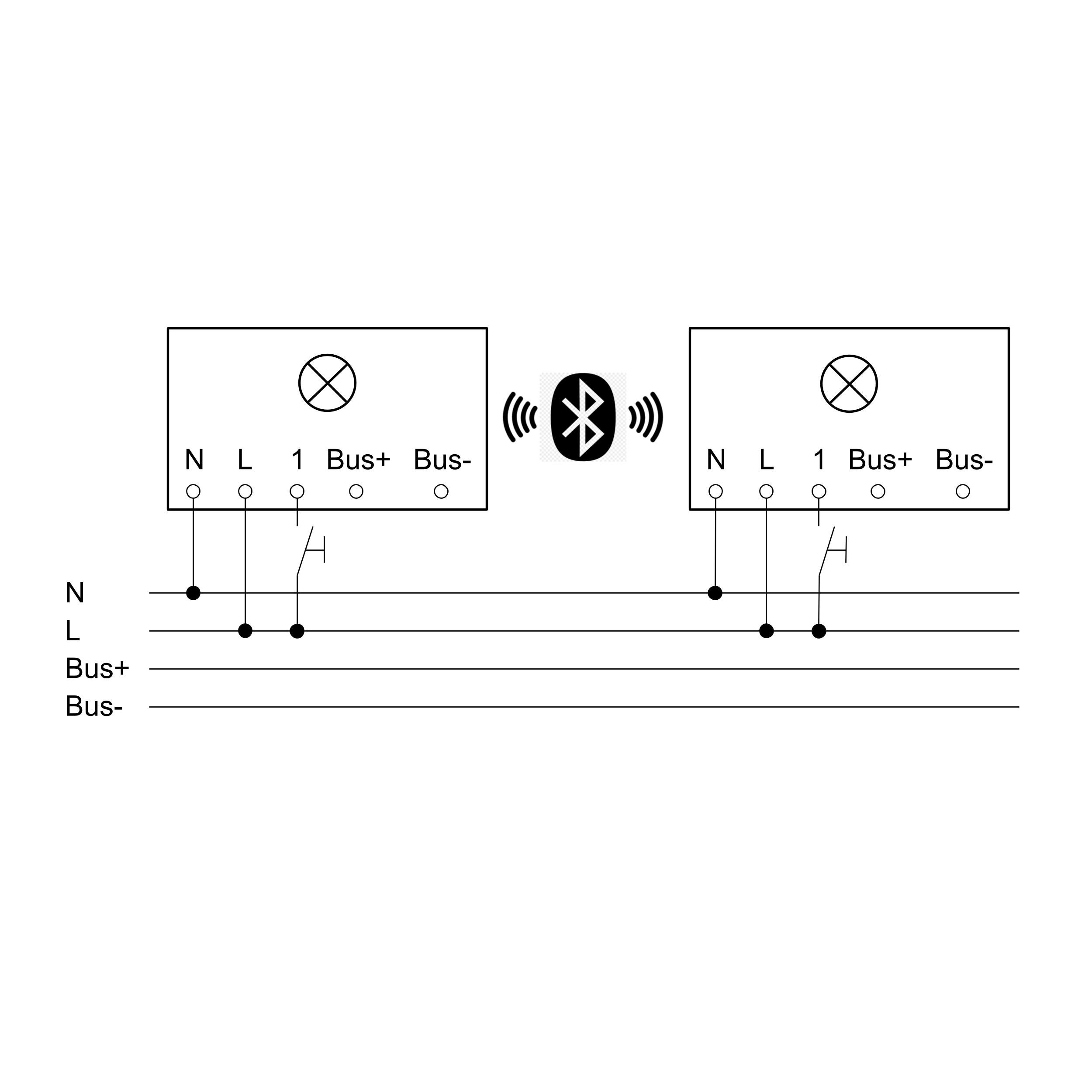

Wiring diagram 2
Wiring diagram networking radio
