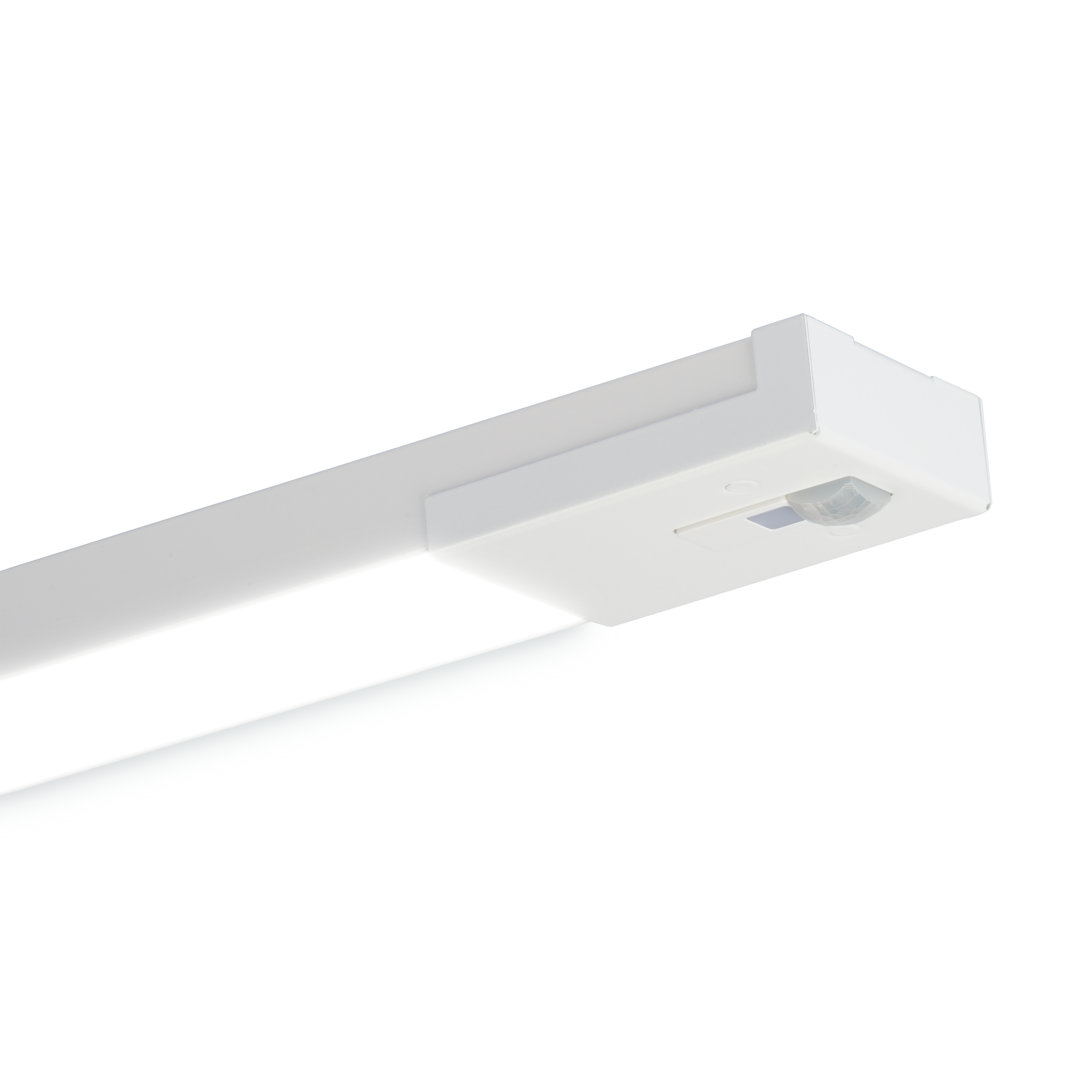

nevalux imani connect B1500 4K

LED insert for old T5/T8 trunking systems. Fits most trunking systems, DALI or Connect.

Product code 221412

Price: Please log in to see prices

Dimensions L × W × H

1225 x 65 x 30 mm 1525 x 65 x 30 mm

Control technology

Dali-Leuchte Smartlink Connect

Version

High Lumenoutput Standard

The universal trunking insert imani from nevalux is designed for professional refurbishment of existing trunking with T5 or T8 fluorescent tubes. The luminaire uses the existing trunking installation including existing through-wiring. Old light modules can be replaced with new modules easily, quickly and without tools. The insert fits most trunking systems available on the market. The intelligent imani Connect application variants have permanently installed presence and brightness sensors in conjunction with Bluetooth networking. This results in a powerful light management system as well as unlimited flexibility in the formation of light groups. The savings achieved in addition to the LED technology are considerable and make it possible to claim subsidies.

Universal luminaire insert for professional refurbishment of continuous rows with T5 or T8 fluorescent tubes
Fits most of the trunking systems available on the market
Available as intelligent Connect version or as conventional DALI luminaire
Up to 95% energy savings with Connect luminaires thanks to constant light control and presence detection
Very high quality workmanship from Swiss manufacturing
Advanced thermal management for long service life

Variants

Luminous flux 6200 lm

Length 1525 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 54 W

Replaceable driver Yes

Type of wiring Suitable for through wiring

LED rated current 370 mA

Maximum number of luminaires per circuit breaker C10: 21x, C13: 28x, C16: 36x, C20: 45x, B10: 13x , B13: 17x, B16: 22x, B20: 27x

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Radial range 4 x 4 m (16 m²)

Tangential range 6 x 6 m (36 m²)

Mounting height < 10 m

Presence range 4 x 4 m (16 m²)

With light sensor Yes

Connectivity

With radio network control Yes

Wireless networking via BT SIG Mesh

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80 - 89

Illuminant LED

Luminous flux 6200 lm

Beam angle 105°

Luminaire luminous efficacy 115 lm/W

Glare value UGR < 24

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes

With emergency light No

Suitable for light band configuration Yes

With program-controlled lighting control Yes

Housing & material

Protection class (IP) IP40

Protection class I

Ambient temperature -20...+45 °C

Housing material Aluminium

Cover material Opal diffuser

Mounting type Continuous row mounting

Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class E

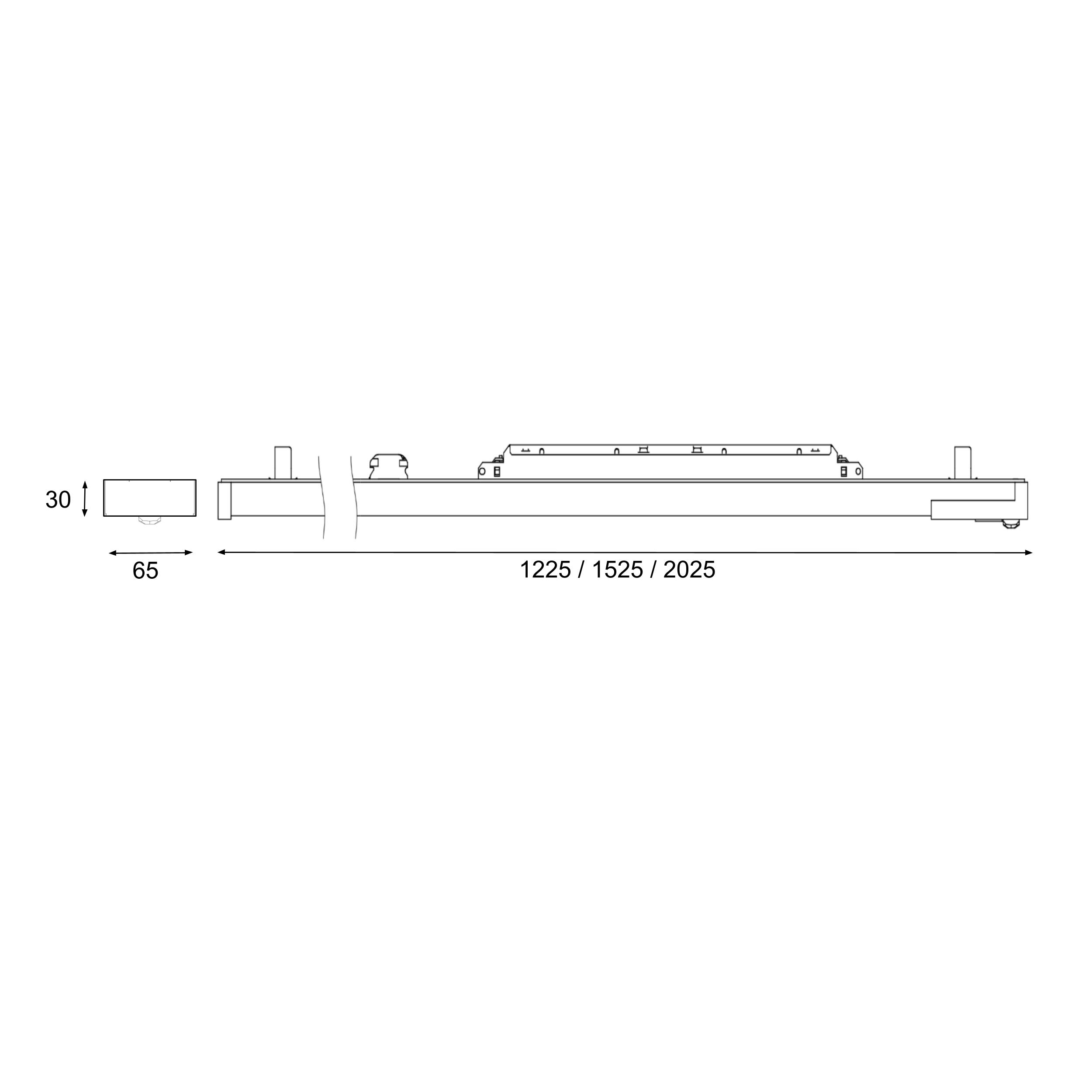

Technical drawing

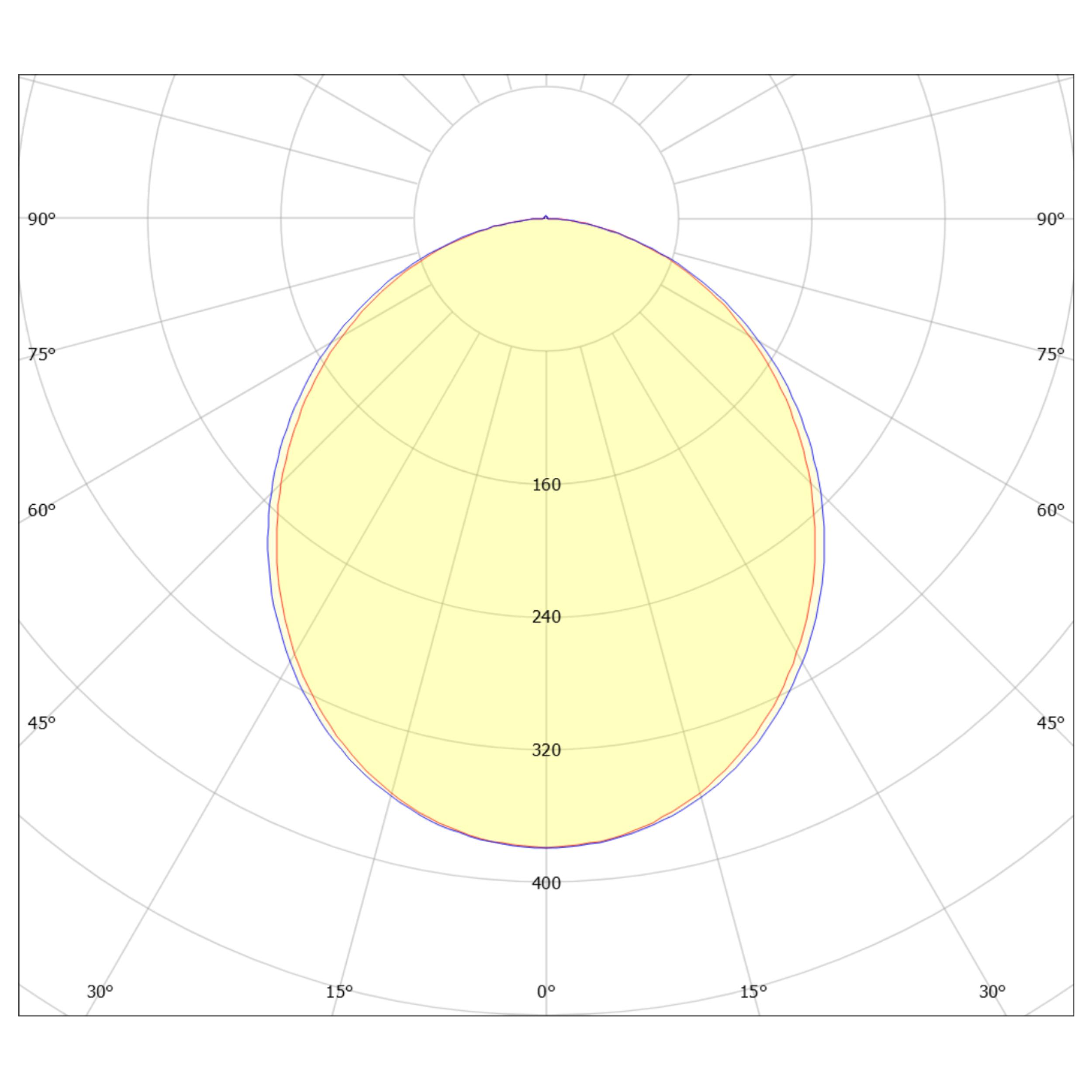

Lichtverteilungskurve

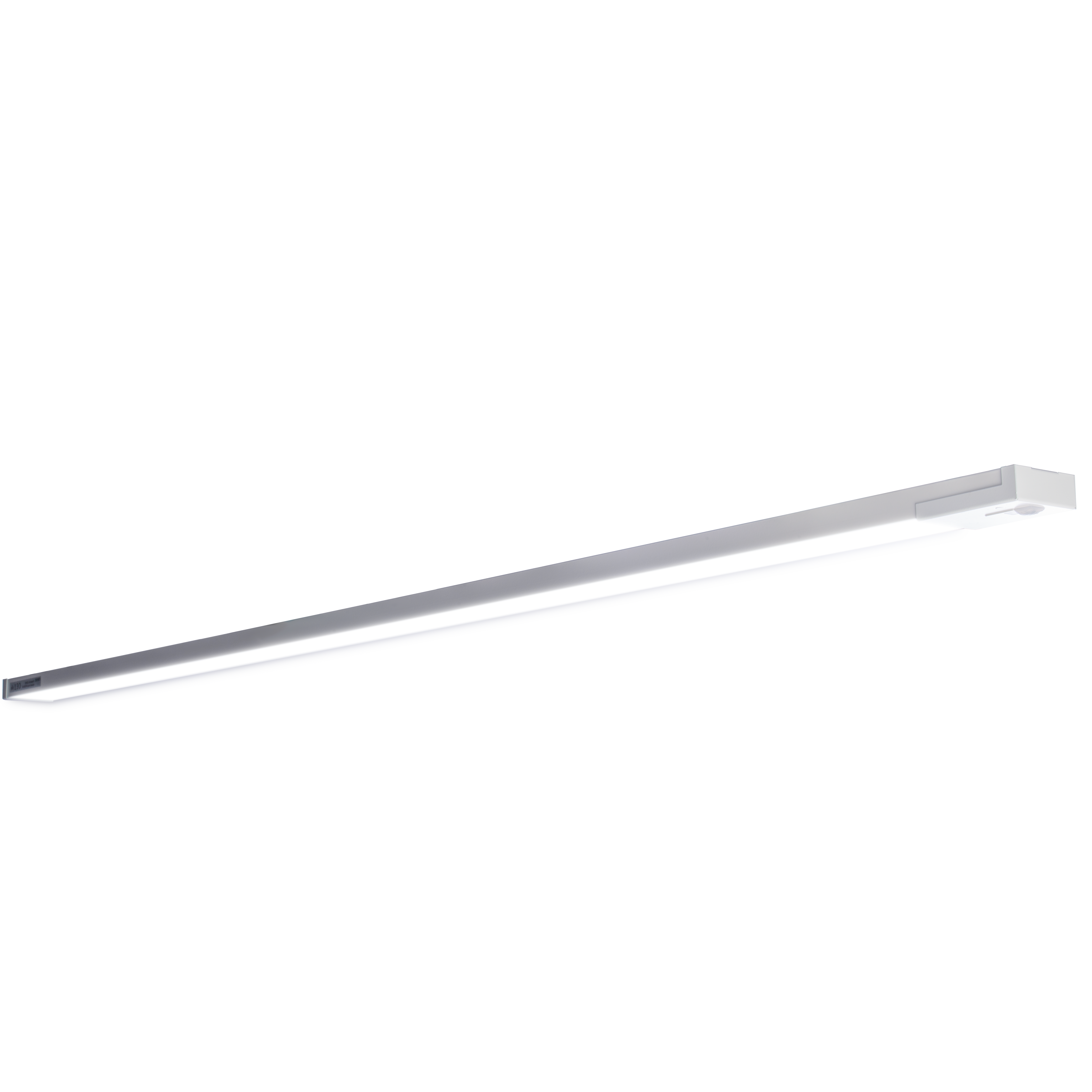

Sensor detection range

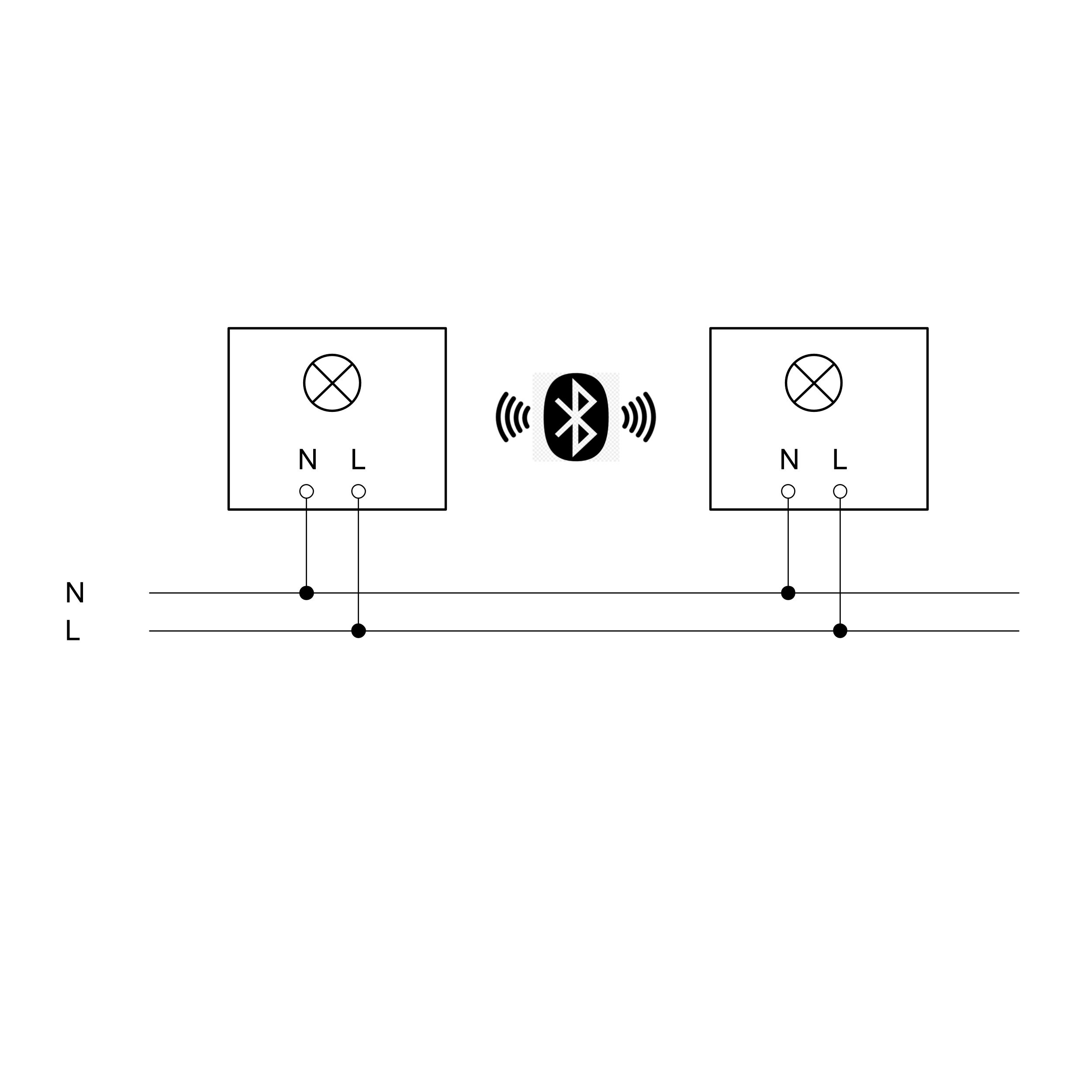

Wiring diagram 1

Wiring diagram networking radio

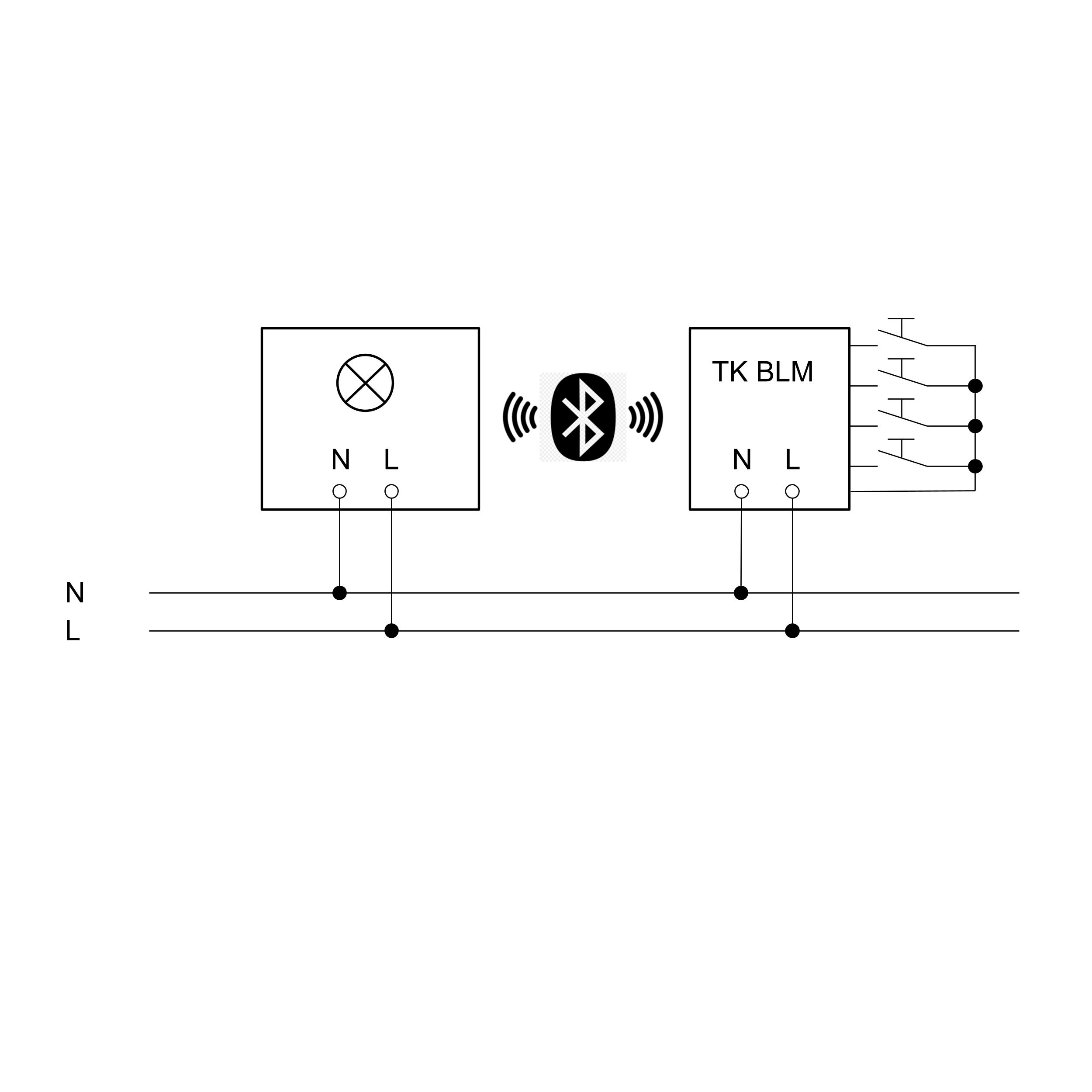

Wiring diagram 2

Wiring diagram pushbutton coupler

Data sheet User manual LDT file (light distribution)
