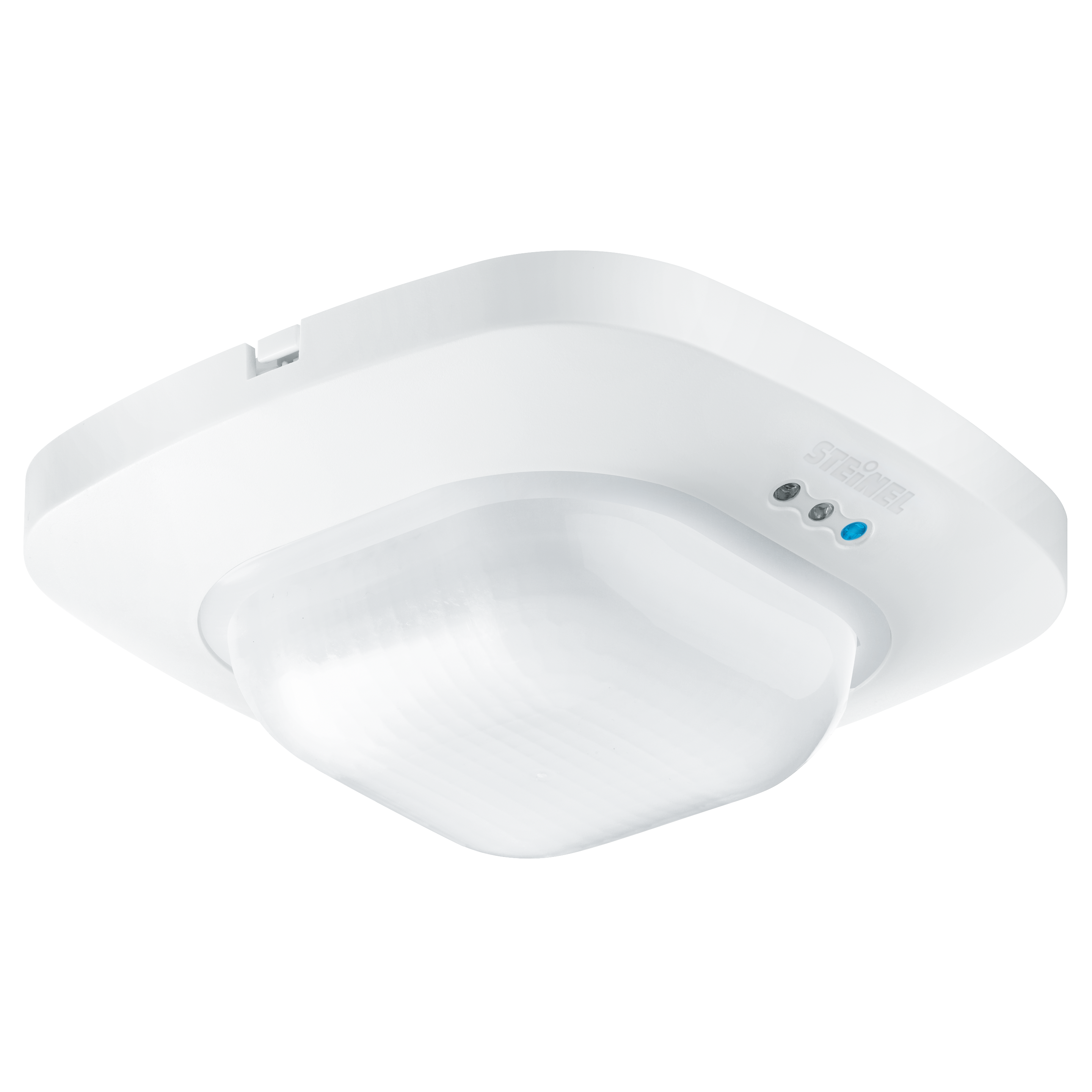

Nevalux IR Quattro HD KNX

ELDAS® no. 535 930 308

EAN-No. 4007841 008789

This product is being replaced by a successor product.

Go to successor product · IR Quattro HD 24m KNX - concealed white (058470)

Detection no finer! Infrared presence detector Presence Control PRO IR Quattro HD KNX for indoors, ideal for medium to large-size offices, conference and meeting rooms, classrooms and lecture theatres, sports halls and warehouses, installation height up to 10 m, with digital BUS interface for controlling 4 lighting channels and HVAC, 4800 switching zones for the ultimate in detection quality, presence detection over a true 64 m2, square detection zone, mechanically scalable.

4 pyros with DSP (Digital Signal Processing)
Optional remote controls
Optional surface-mounting adapter (IP 54, KNX)
Optional guard cage

Identification

Variant KNX

Version Presence detector

Model KNX

Dimensions

Dimensions L × W × H 70 x 120 x 120 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Opening angle 360 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 8 x 8 m (64 m²)

Tangential range 20 x 20 m (400 m²)

Switching zones 4800 switching zones

Mounting height 2,50 – 10,00 m

Presence range 8 x 8 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

KNX functions Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output

With bus coupler Yes

Settings

Twilight setting 10 – 1000 lx

Time setting 0 – 255 min

Base light function time Permanently ON, 1-255 min, all night

Settings via ETS software, Remote control, Bus

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Housing & material

Protection class (IP) IP54

Ambient temperature -25 – 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room Open-plan office, high-bay warehouse, conference room, sports hall, classroom

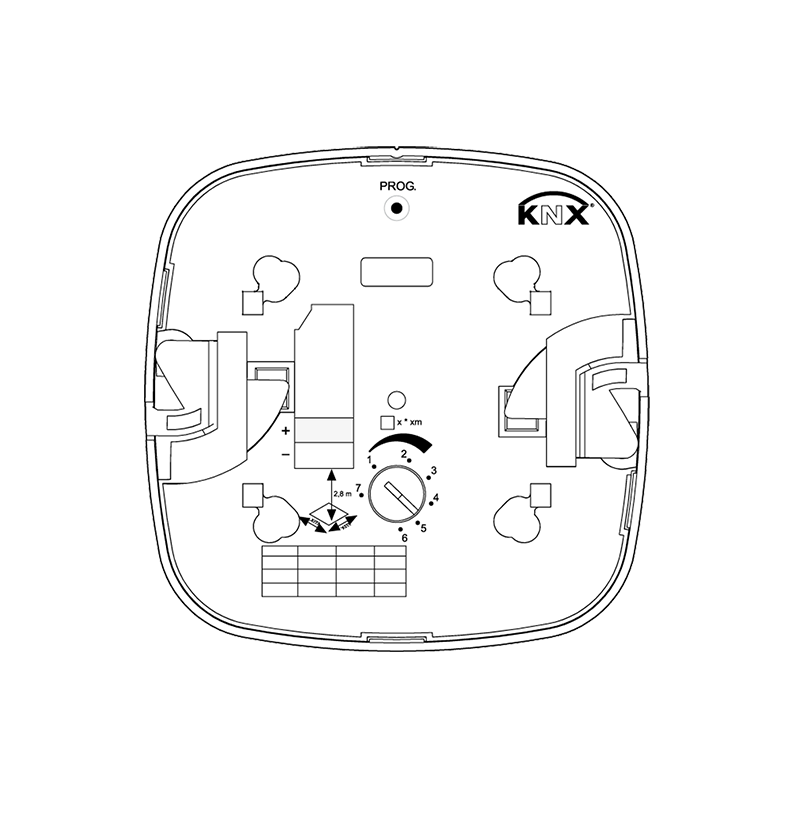

Sensor detection range

Data sheet User manual

Surface-mounting adapter Control PRO AP Box KNX

Item no. 4007841003029

Control PRO guard cage

Item no. 003036

User remote control RC7 KNX

Item no. 592912

Service remote control RC6 KNX

Item no. 4007841593018

Surface-mounted adapter Control Pro IP54 white

Item no. 000363

Remote control Smart Remote

Item no. 009151
