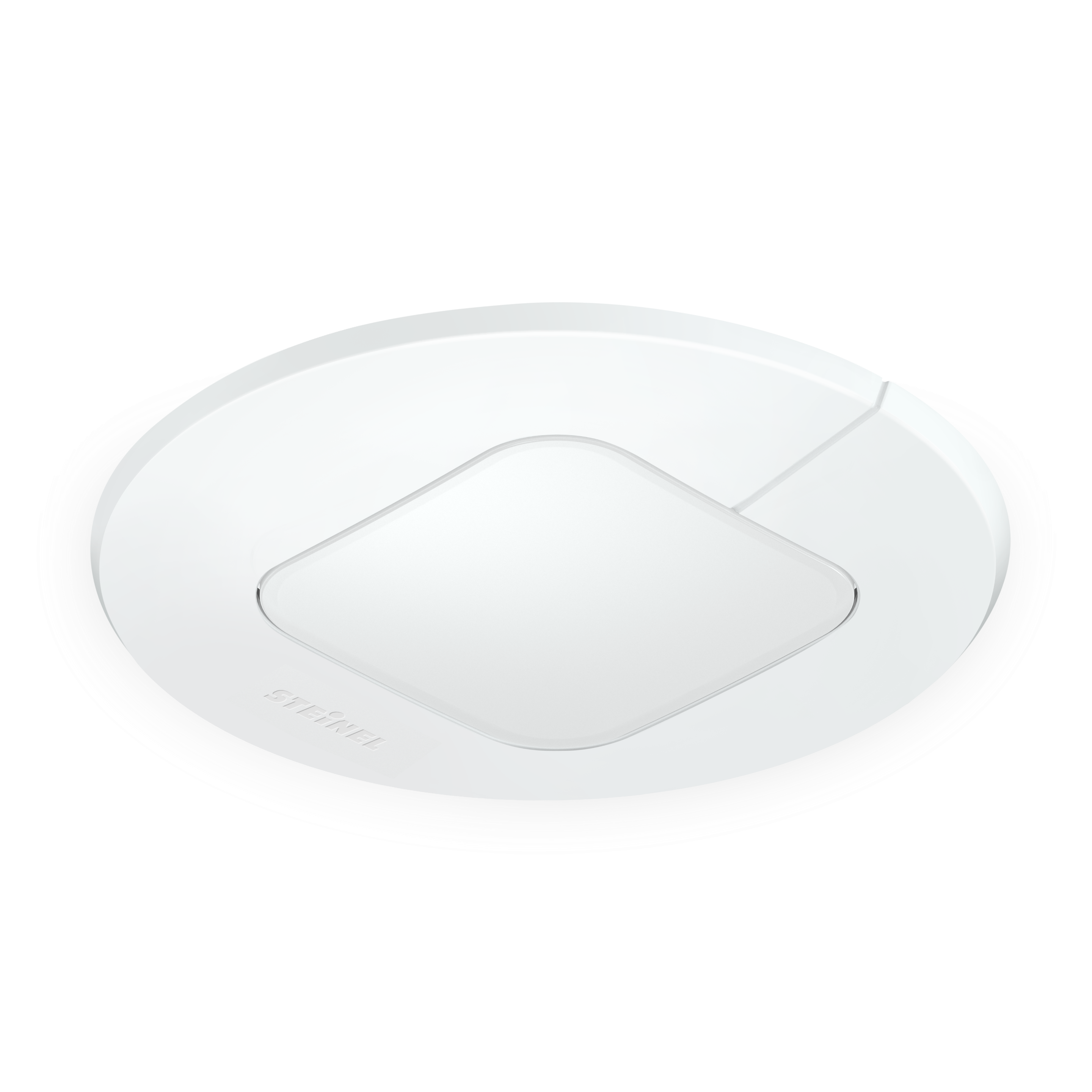

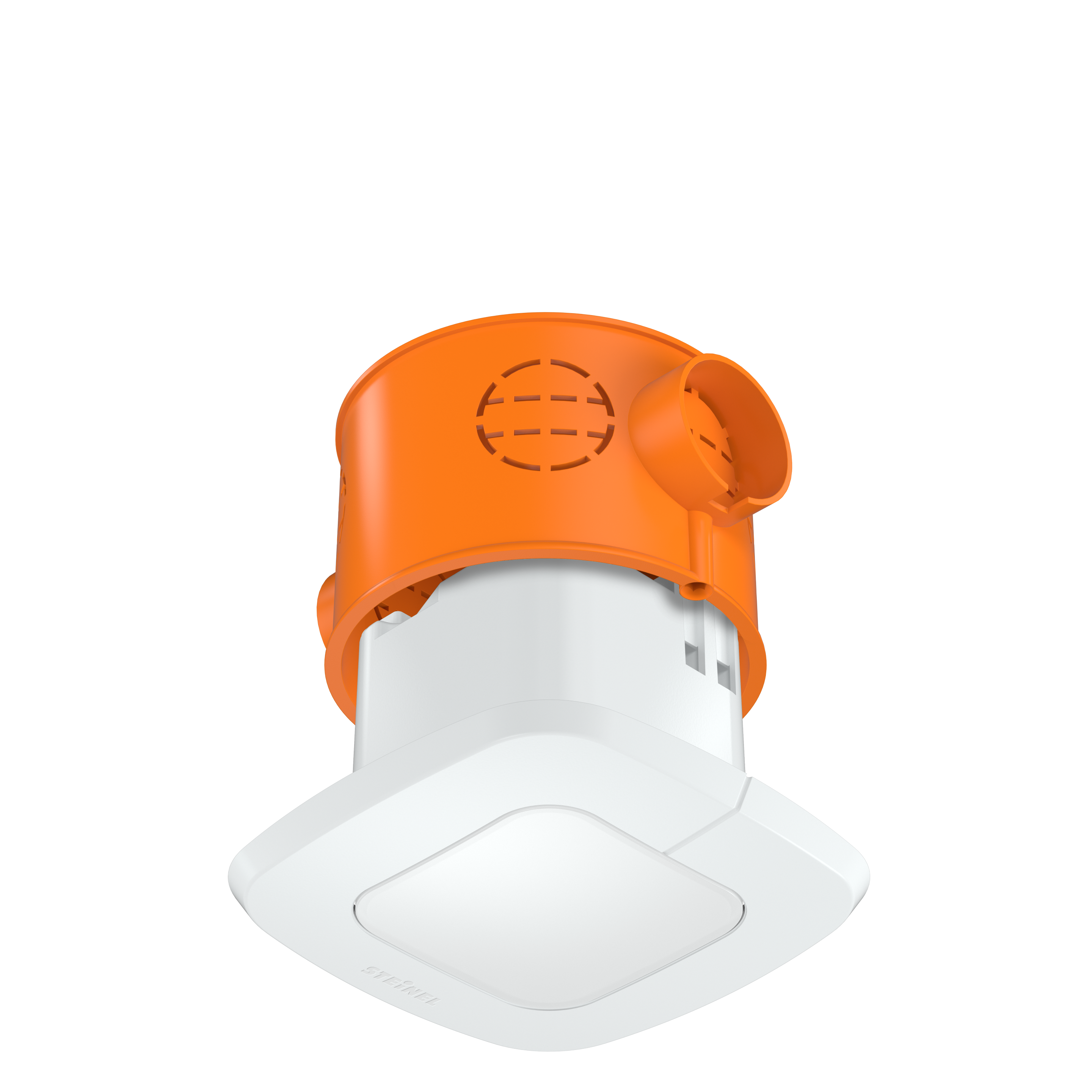

Nevalux IR Quattro SLIM XS COM1 - round

ELDAS® no. 535 930 700

EAN-No. 4007841 035211

This product is being replaced by a successor product.

Go to successor product · IR Quattro SLIM XS 4m COM1 - square (032951)

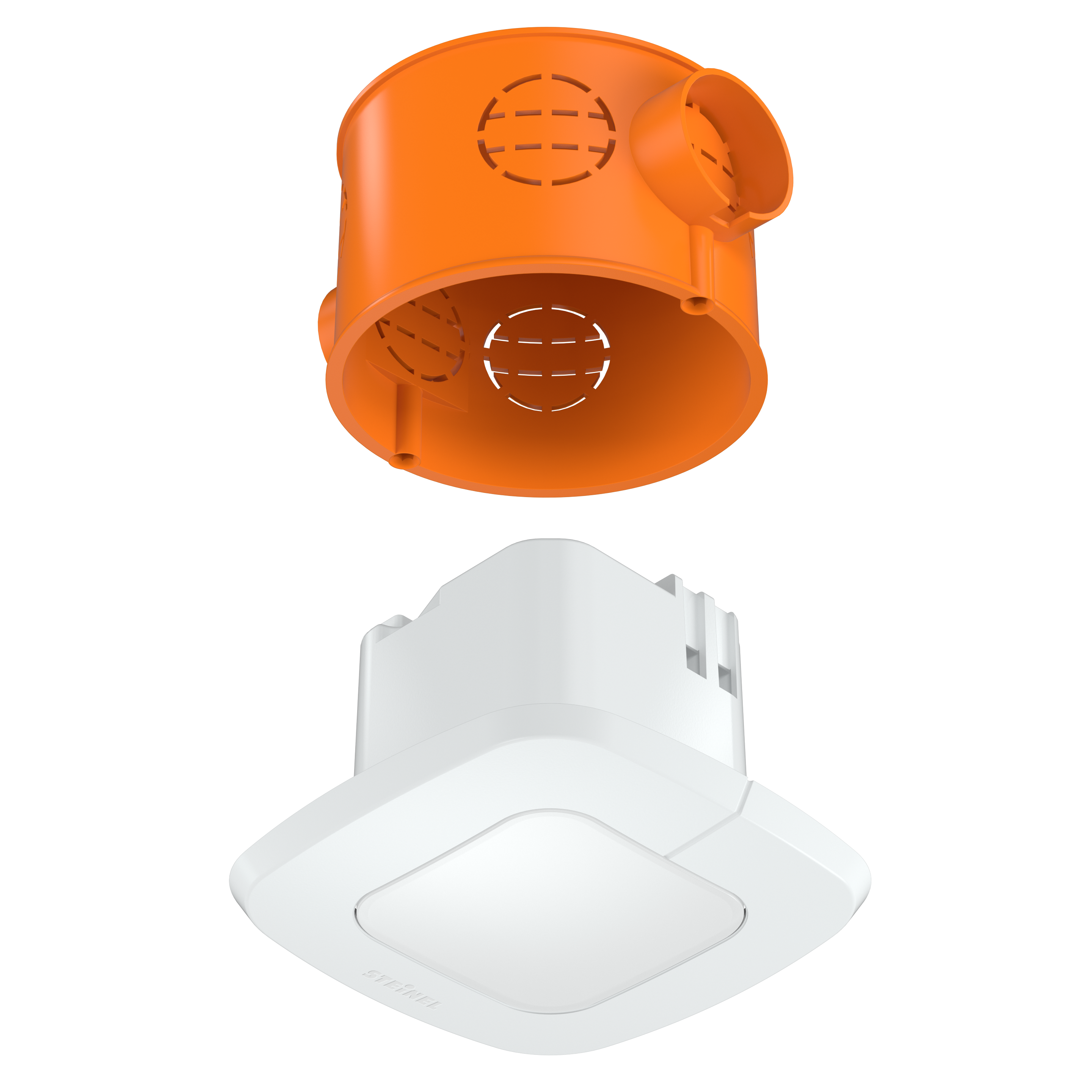

Noticeably Inconspicuous. IR Quattro SLIM XS, the extra-slim presence detector in concealed-box format. Fits into any standard concealed box. Overall height of just 6 mm. High-precision 360° infrared senor with globally unique retina lens and 16 sq.m square presence detection zone (4 x 4 m). Adjustment via remote control or Smart Remote.

Extremely slim overall height
High-quality retina lens
Can only be set using optional remote controls

Identification

Variant COM1 - round

Version Presence detector

Dimensions

Dimensions Ø × H 94 x 55 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8 pcs.

FIL_2_PRO interfaces COM1 (Switching light)

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Opening angle 71 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Range detail Retina lens and hexagonal Fresnel structure

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Switching zones 408 switching zones

Mounting height 2,50 – 4,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

FIL_4_PRO sensor technology Passive infrared

Connectivity

Networking Yes

Type of networking Master/master, Master/slave

Lighting technology

Constant light regulation No

Settings

Twilight setting 10 – 1000 lx

Time setting 30 sec – 30 min

Base light function No

Functions Normal / test mode, Semi-/fully automatic, Manual ON / ON-OFF

Settings via Remote control, Smart Remote

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0 – 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room one-person office, hotel room, care room, function room / ancillary room, WC / washroom, Indoors

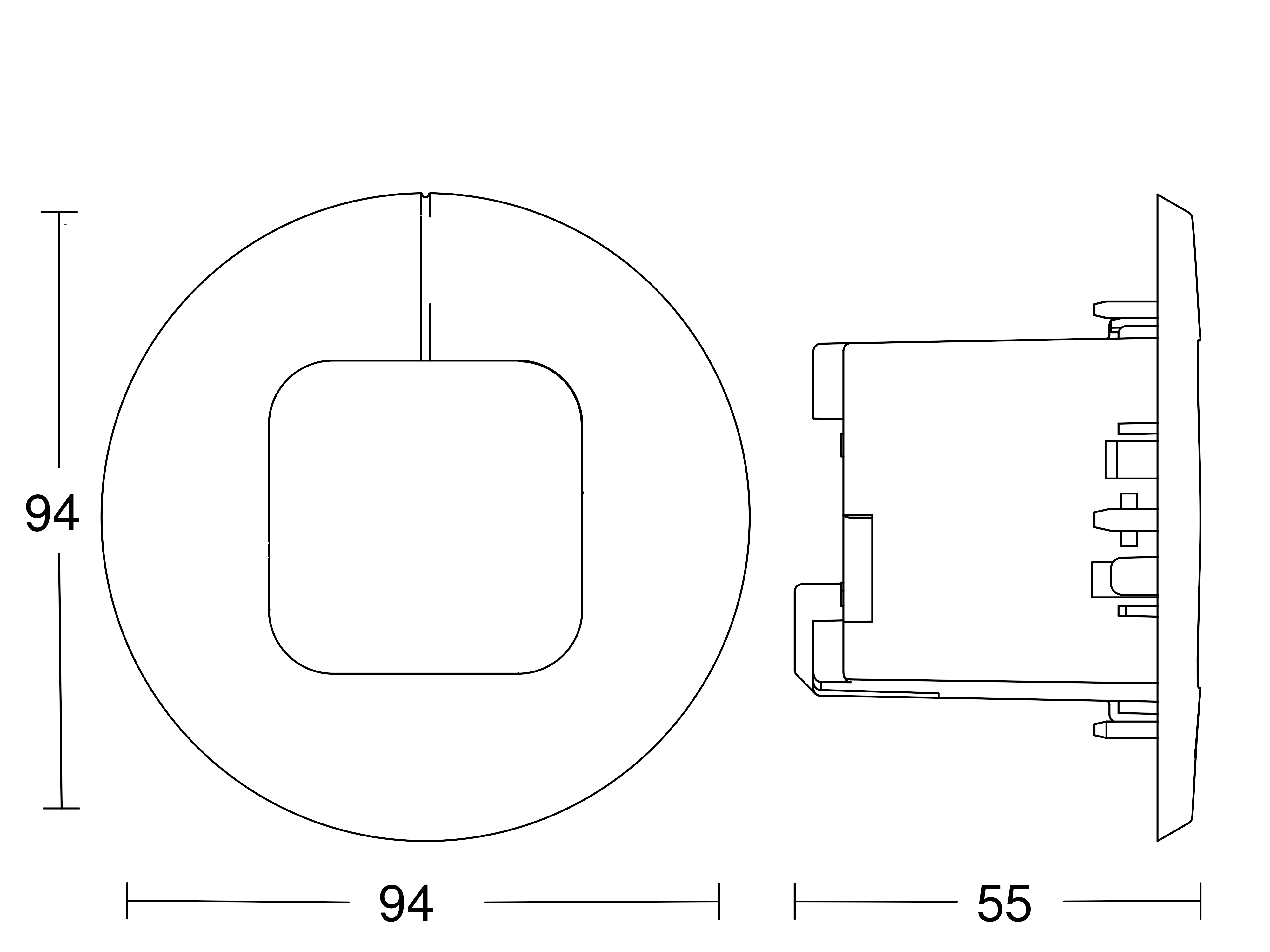

Technical drawing

Sensor detection range

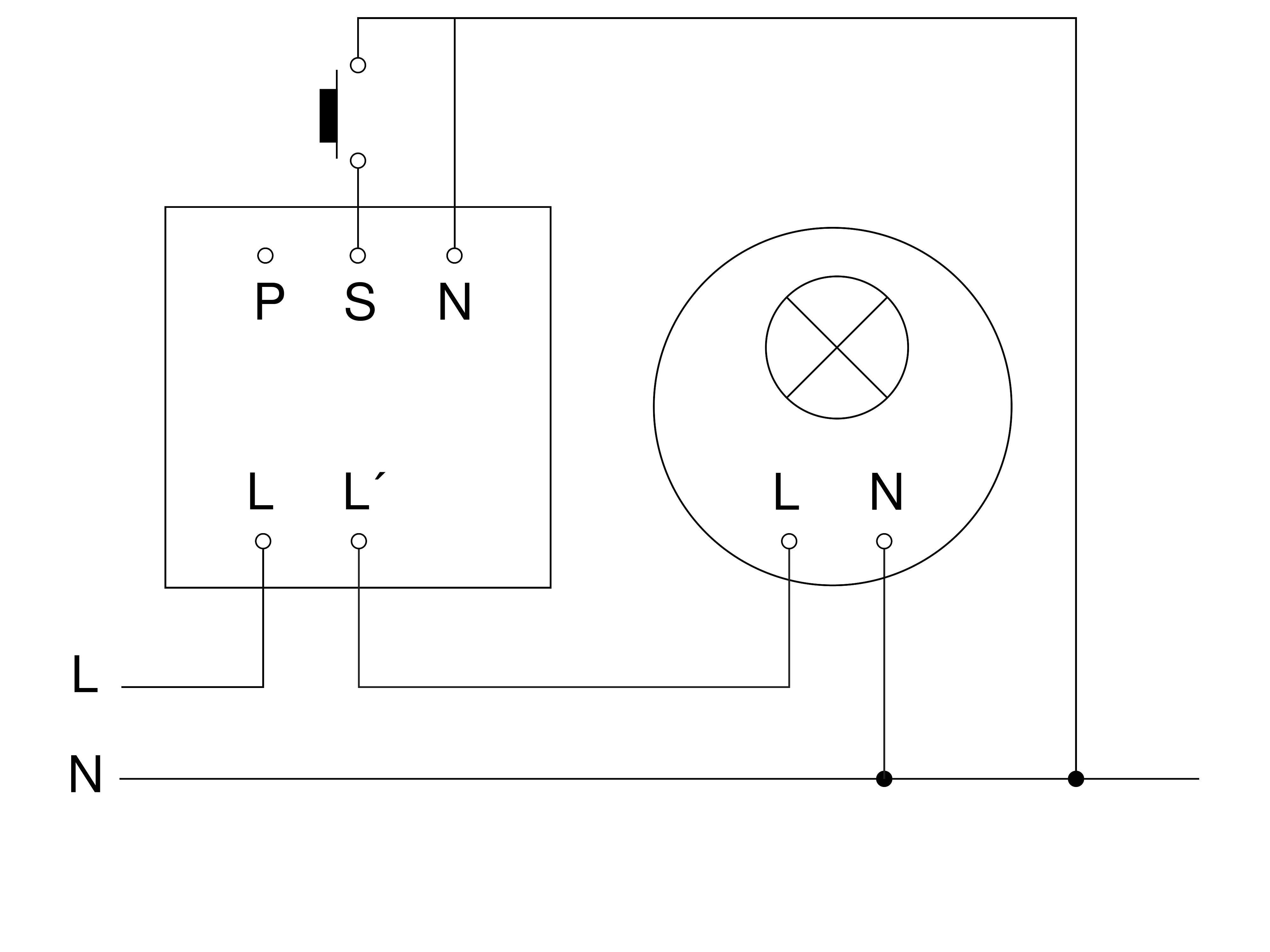

Wiring diagram 1

Master circuit diagram

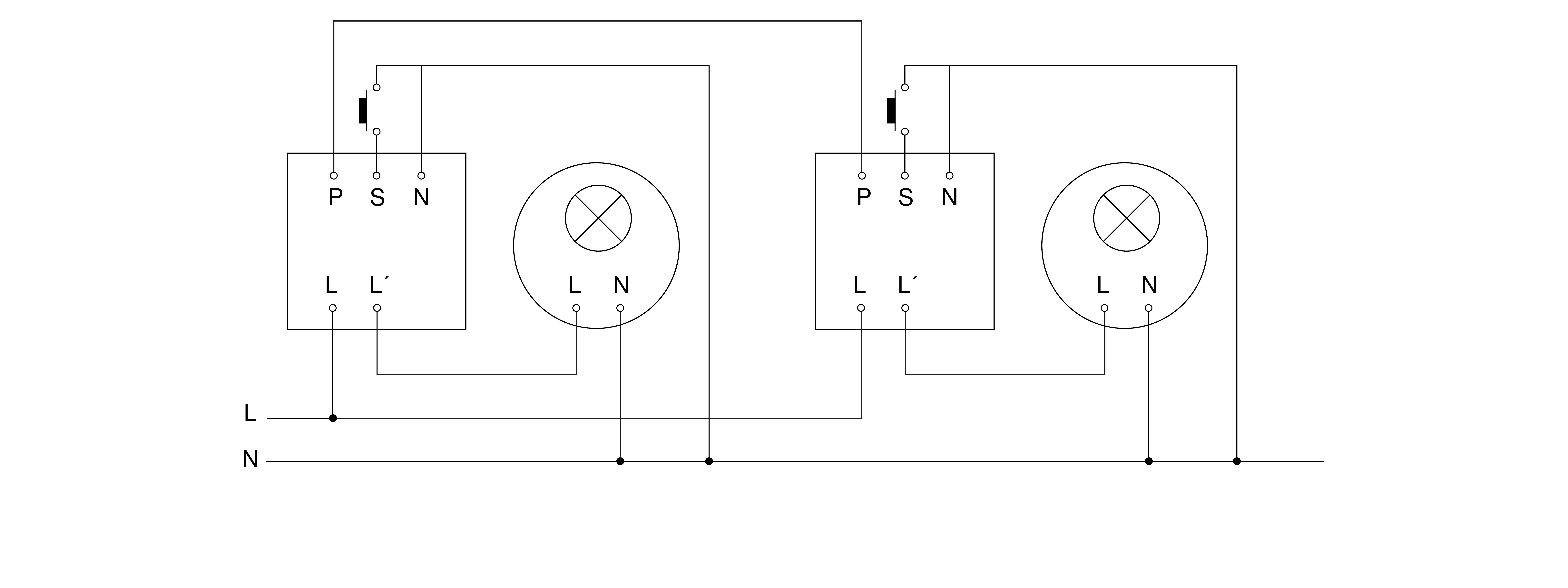

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet

IR Quattro SLIM XS 4m COM1 - square

Item no. 032951

Remote control Smart Remote

Item no. 009151

Service remote control RC8

Item no. 559410
