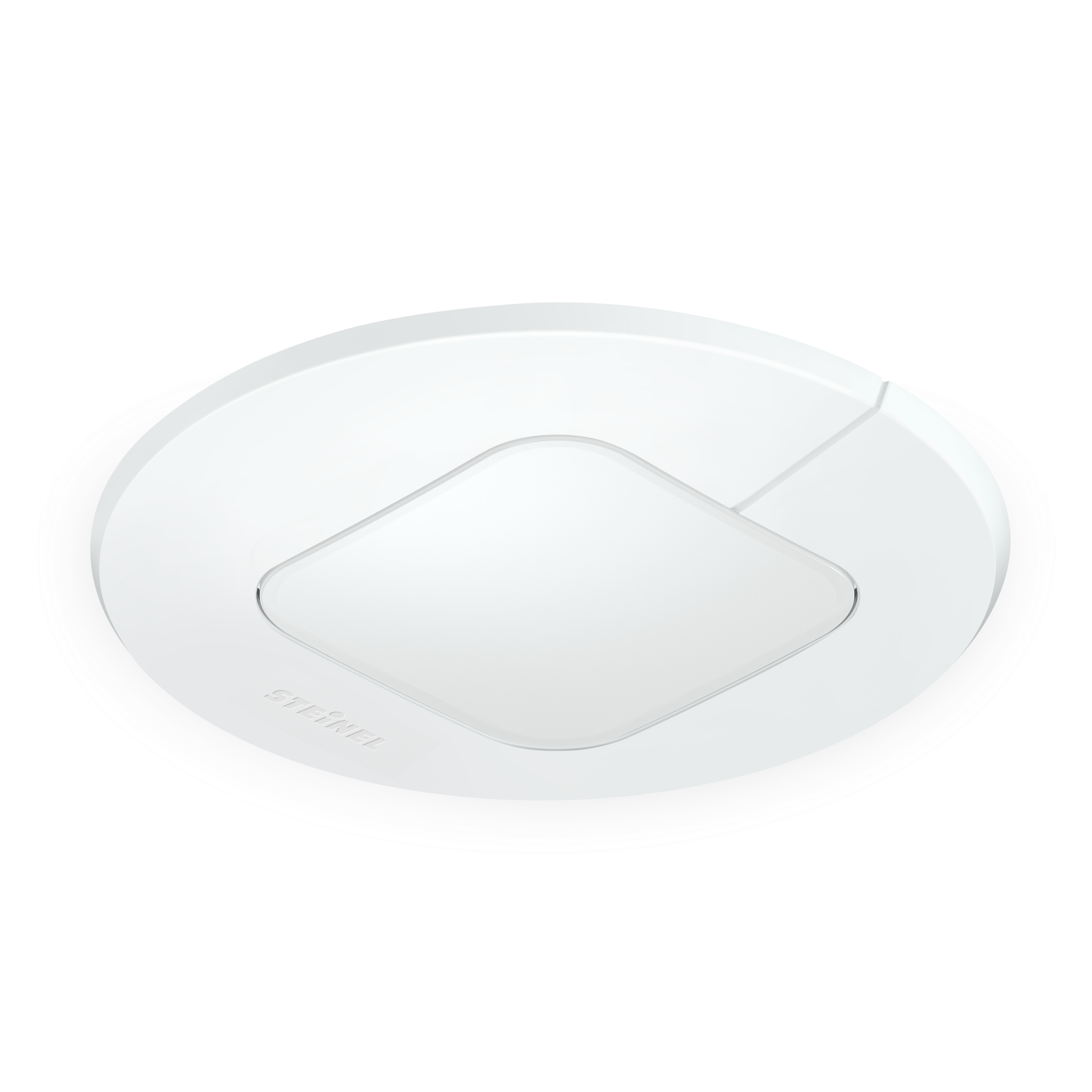

Nevalux IR Quattro SLIM XS DALI-2 Input Device - round

ELDAS® no. 535 932 500

EAN-No. 4007841 057527

This product is being replaced by a successor product.

Go to successor product · IR Quattro SLIM XS 4m DALI-2 Input Device - square (057510)

Noticeably Inconspicuous. IR Quattro SLIM XS, the extra-slim presence detector in concealed-box format. Fits into any standard concealed box. Overall height of just 6 mm. High-precision 360° infrared senor with globally unique retina lens and 16 sq.m square presence detection zone (4 x 4 m). DALI-2 Input Device enables sensors to communicate collected sensor data to higher-level lighting management systems.

Extremely slim overall height
High-quality retina lens

Identification

Variant DALI-2 Input Device - round

Version Presence detector

Dimensions

Dimensions Ø × H 94 x 50 mm

Electrical

Mains connection 16 V

Switching output 2 potential-free No

Control output DALI Addressable/slave

FIL_2_PRO interfaces DALI-2 Input Device

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Opening angle 71 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Range detail Retina lens and hexagonal Fresnel structure

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Switching zones 408 switching zones

Mounting height 2,50 – 4,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

FIL_4_PRO sensor technology Passive infrared

Connectivity

Networking Yes

Type of networking Master/slave

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 10 – 1000 lx

Time setting 30 sec – 30 min

Base light function No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature 0 – 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room one-person office, hotel room, care room, function room / ancillary room, WC / washroom, Indoors

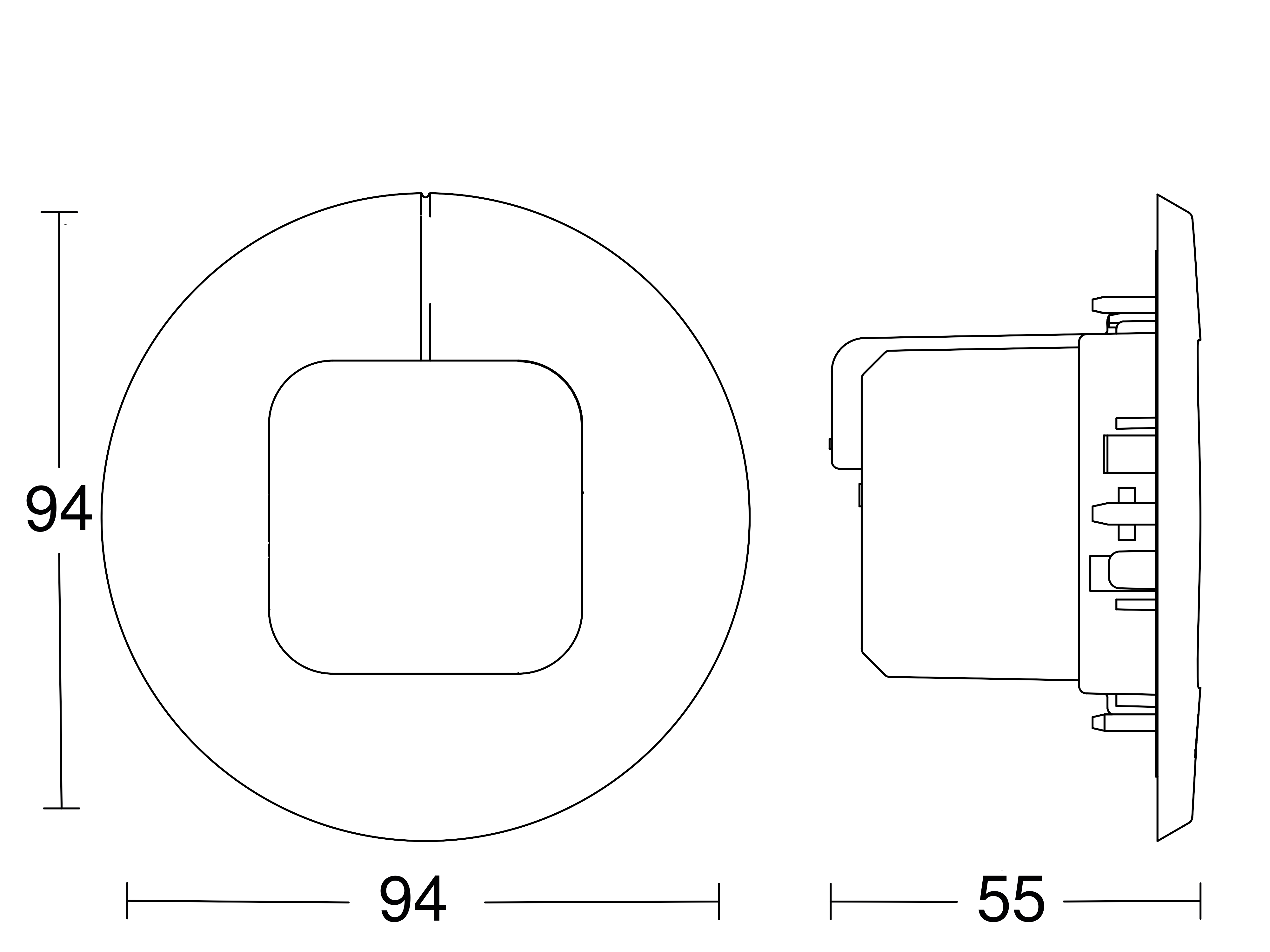

Technical drawing

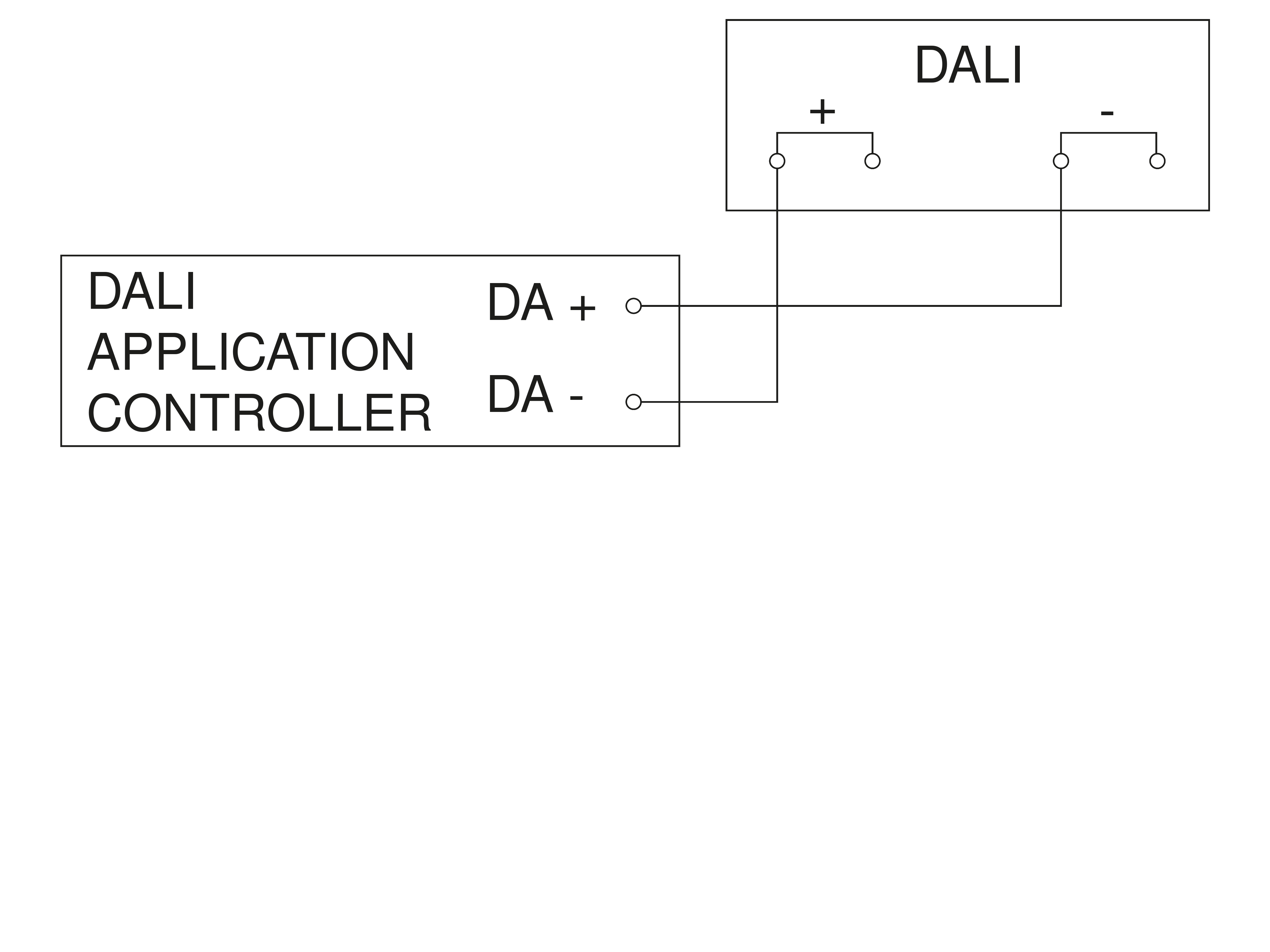

Wiring diagram 1

Circuit diagram

Data sheet User manual

IR Quattro SLIM XS 4m DALI-2 Input Device - square

Item no. 057510

Remote control Smart Remote

Item no. 009151
