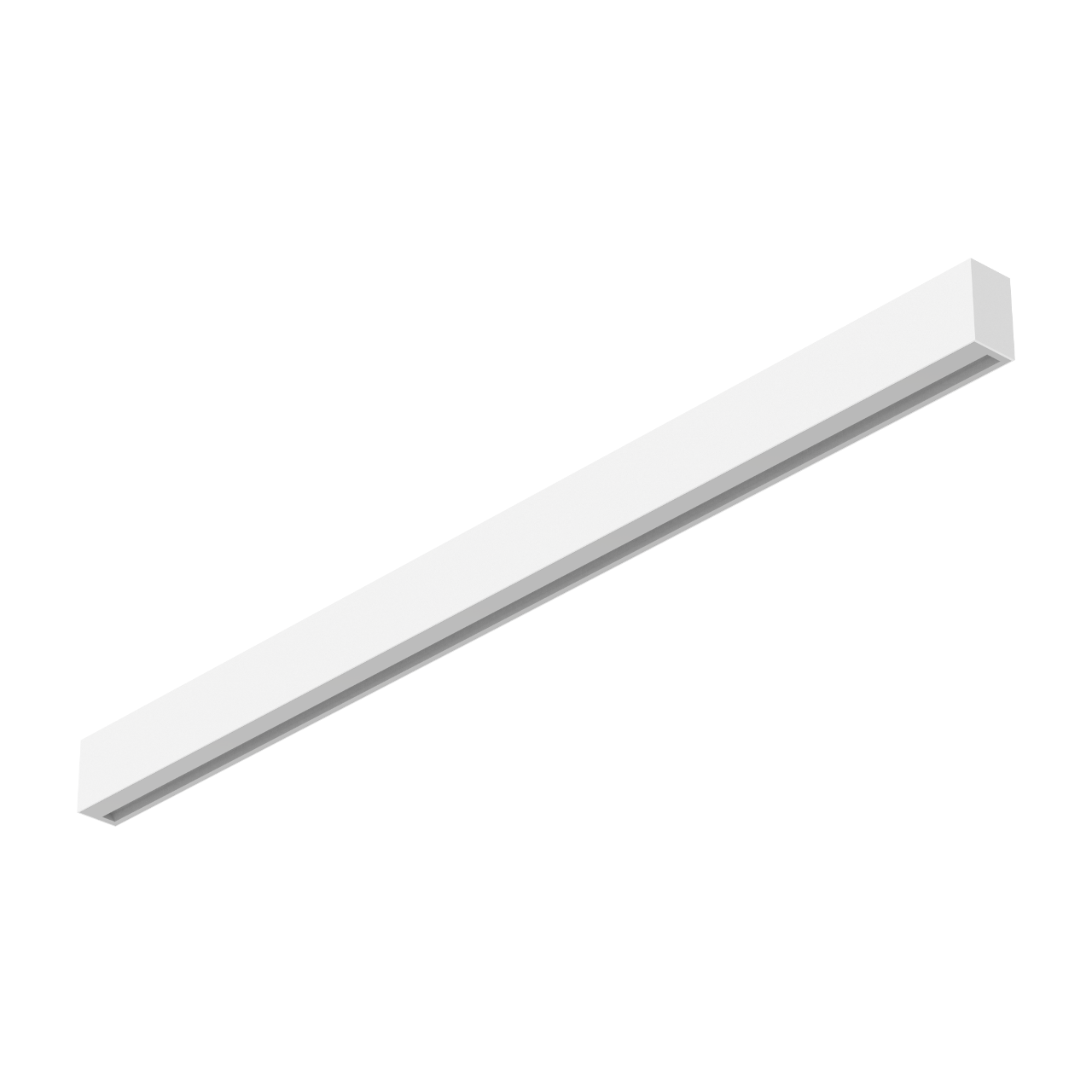

nevalux lisha C1200 Wallwasher 4K
Linear pendant and ceiling light for offices and schools. Direct and indirect, wallwasher.
Product code 220178
This product is being replaced by a successor product.
Go to successor product · lisha V2 DALI C1200 4K (221621)Dimensions L × W × H
1205 x 50 x 95 mm
1805 x 50 x 95 mm
Mounting type
Ceiling surface mounted
Beam angle
105°
Wallwasher
Control technology
Dali-Leuchte
With motion detector
No
Switch selection
The requested variant is not available. Please choose one of the following options.
- For directional lighting of walls and wall boards
- Link technology for seamless extension of the luminaire with continuous wiring
- Dimmable DALI, LiveLink compatible
- Versions with 1.2 and 1.8 meter length available
- Housing Aluminium RAL9016, white
Variants
Version
1200mm
Luminous flux
2700 lm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
36 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
500 mA
Maximum number of luminaires per circuit breaker
C10: 30x, C16: 46x, C20: 58x, B10: 18x, B16: 28x, B25: 34x
Sensor technology
With light sensor
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
2700 lm
Luminaire luminous efficacy
75 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Aluminium - Acrylic glass opal
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
G

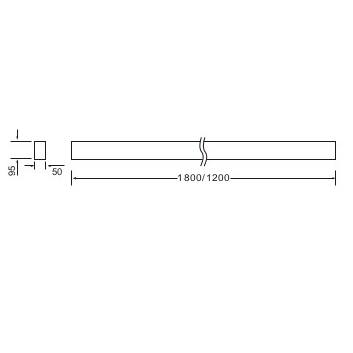

Technical drawing

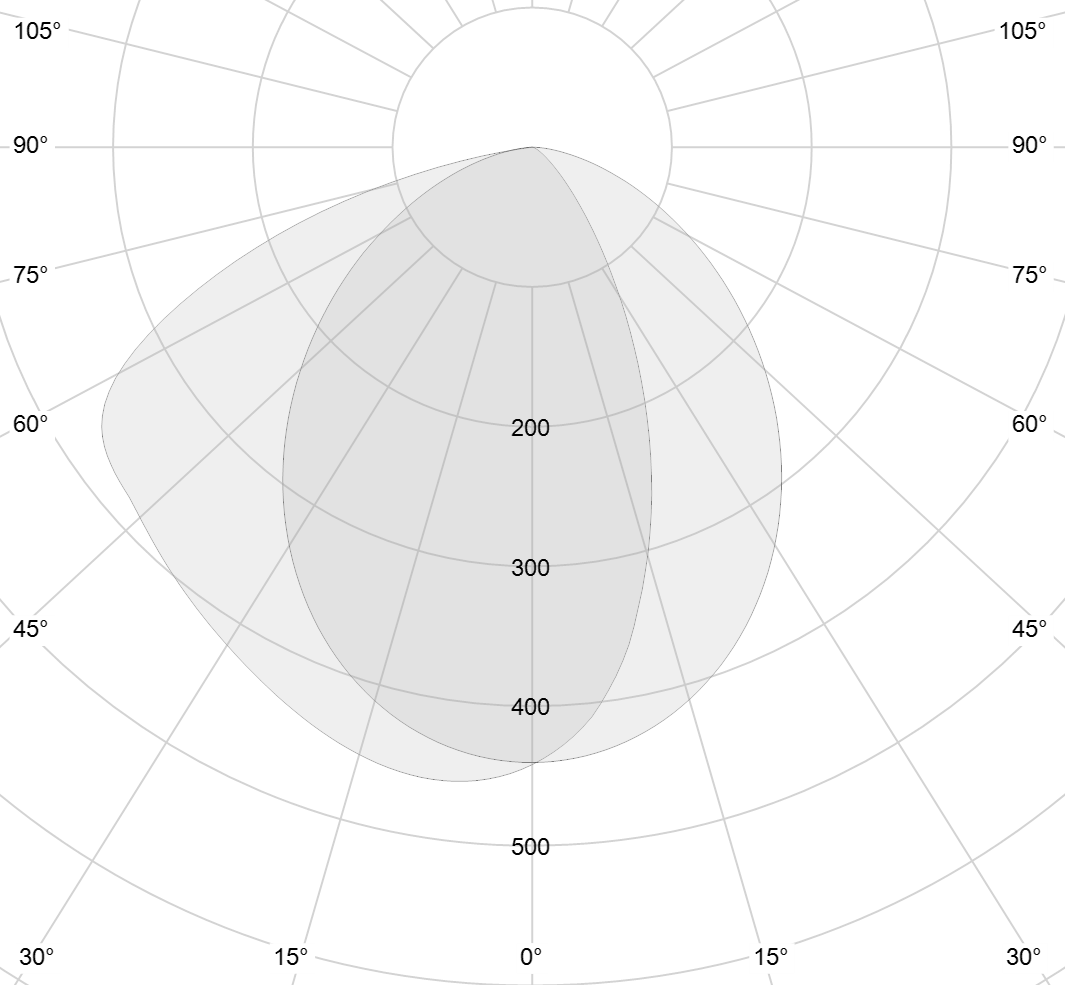

Lichtverteilungskurve
Wiring diagram 1
Wiring diagram
