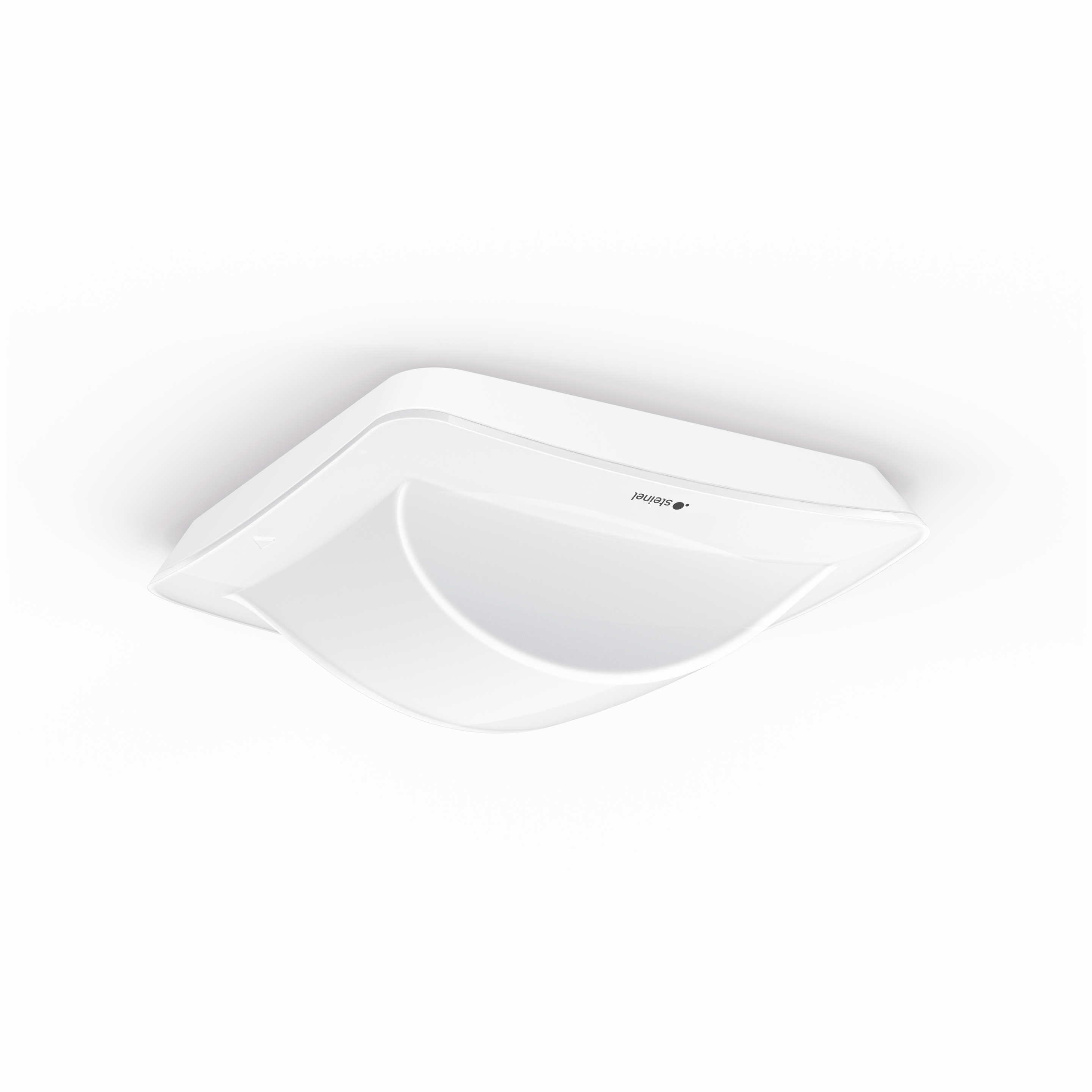

Steinel Hallway IP - concealed

Steinel Hallway IP - concealed

ELDAS® no. 535 933 608 · EAN-No. 4007841 066161

Technical data Highlights Illustrations Downloads Videos
Steinel Bluetooth Mesh

Steinel Hallway IP - concealed

ELDAS® no. 535 933 608

EAN-No. 4007841 066161

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 68 x 103 x 103 mm

Electrical

Mains connection 18 – 55 V
Supply voltage detail Passive PoE SELV, standard PoE (IEEE 802.3 af)

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 140 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range 25 x 3 m (75 m²)
Tangential range 25 x 3 m (75 m²)
Mounting height 2,00 – 4,00 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Bluetooth LAN
With bus coupler Yes

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Base light function No
Main light adjustable No
Settings via Bluetooth Web-Interface
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP20
Ambient temperature from -20 up to 50 °C
Mounting location ceiling
Application location Indoors
Mounting type Concealed wiring
Material Plastic
Application room Indoors corridor / aisle
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

UV-resistant plastic

Technical drawing

Sensor detection areas
