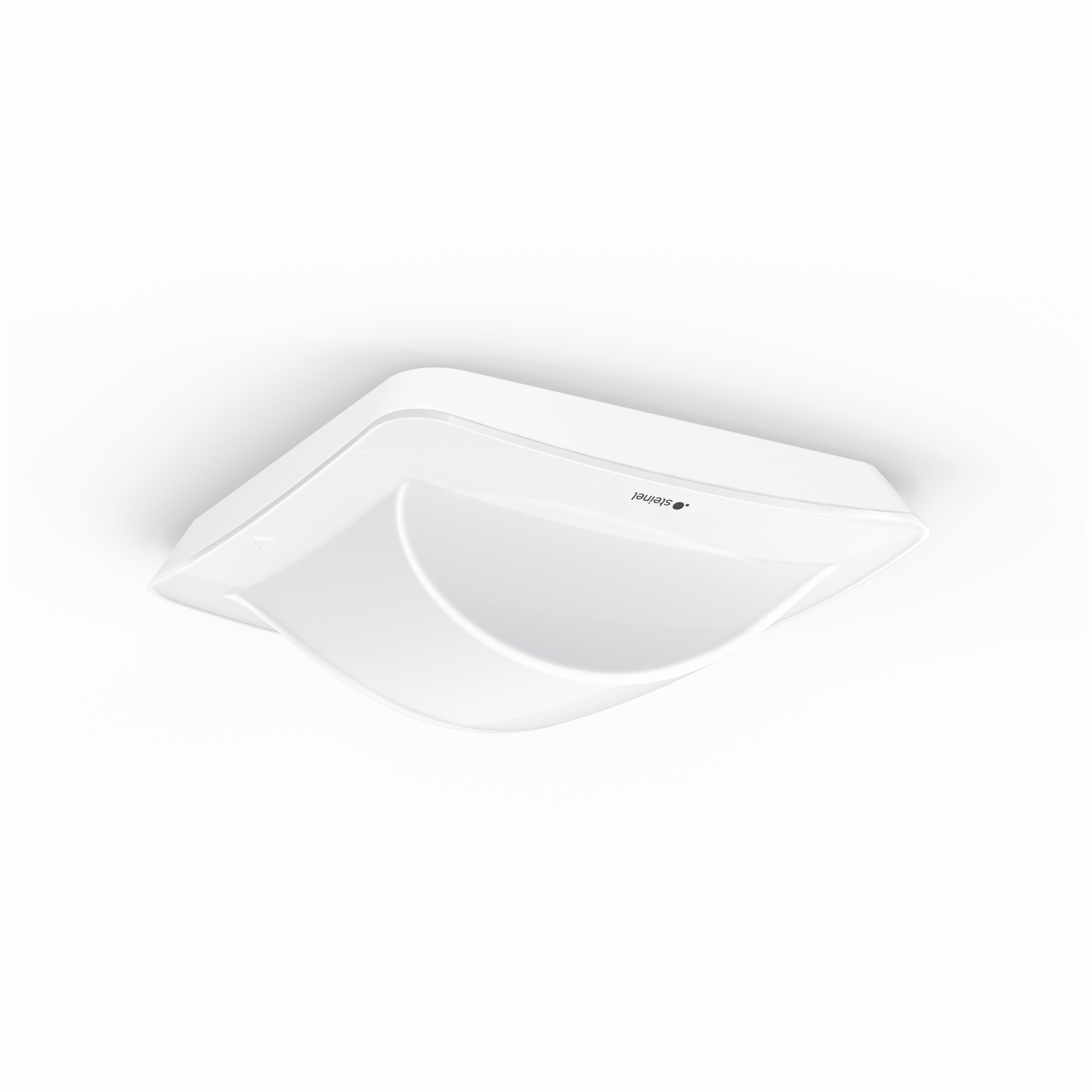

Steinel Hallway DALI-2 APC - concealed

Presence detector for long corridors. Covers up to 25 m, set up and networked via Bluetooth.

ELDAS® no. 535 937 502

EAN-No. 4007841 058029

Price: Please log in to see prices

Colour

White

Mounting type

Concealed mounting Surface mounting

Variant

230V, 1 channel 230V, 2 channels Bluetooth Input-Device DALI-2 Application Controller DALI-2 Input Device IP (REST API, MQTT, BacNet) KNX

Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.

Identification

Version Presence detector

Variants

Version DALI-2 Application Controller

Colour White

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 67 x 103 x 103 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Supply voltage detail max. 64 users

Control output DALI Addressable / broadcast 64 electronic ballasts

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °, Corridor

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 25 x 3 m (75 m²)

Tangential range 25 x 3 m (75 m²)

Mounting height 2,0 – 4,0 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

Control technology Steinel Connect

Wireless networking via BT Open Mesh

Networking via DALI 2

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 60 min

Base light function Yes

Base light function time 10 min, all day, all night

Main light adjustable 50 - 100 %

Functions Semi-/fully automatic, Constant-lighting control, Lighting scenario, Master/slave override, Neighbouring group function, TouchDIM function, Normal / test mode, Pushbutton / switch mode, Manual ON / ON-OFF, Constant-lighting control ON-OFF

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach No

Base light function in percent 10 – 90 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, corridor / aisle

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

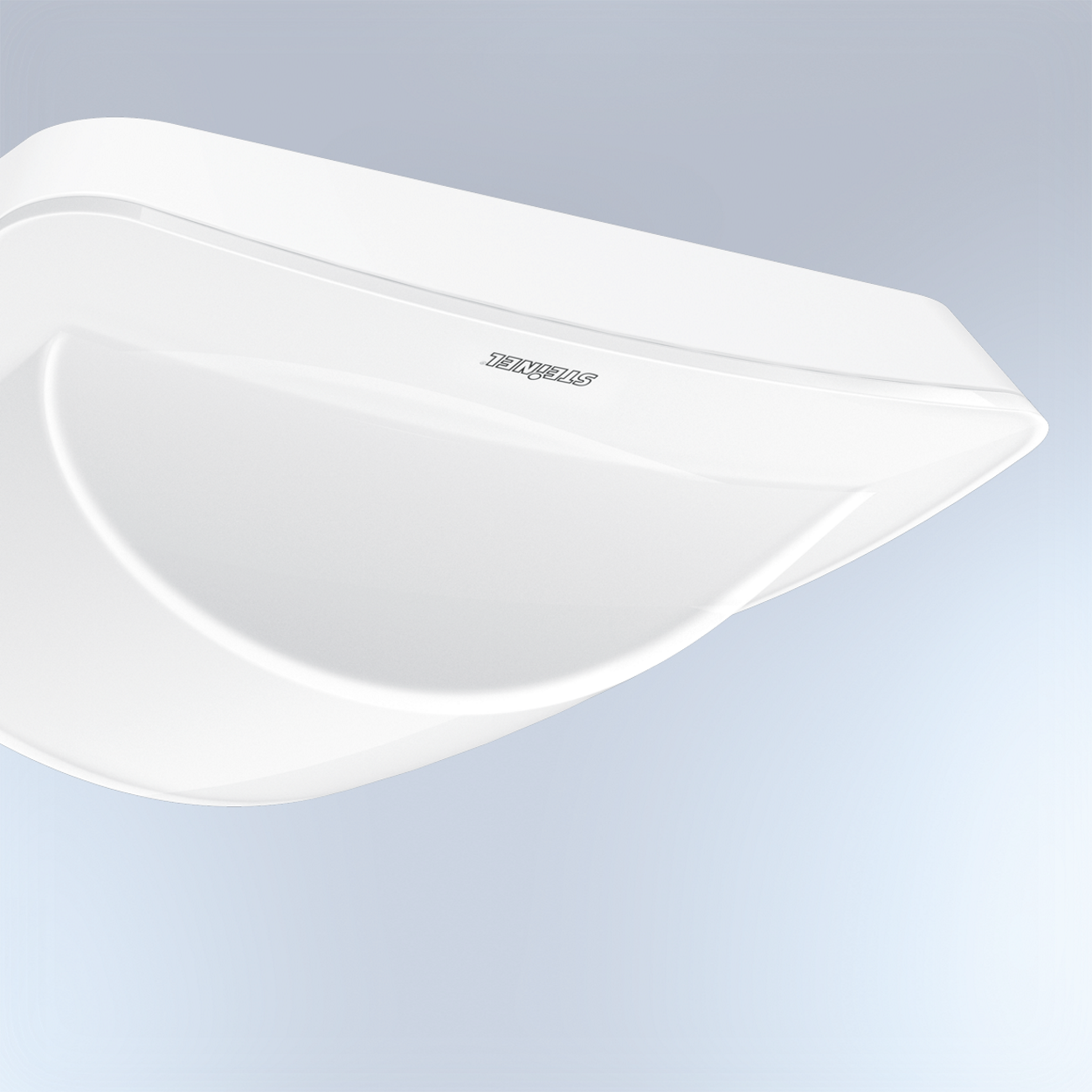

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity
