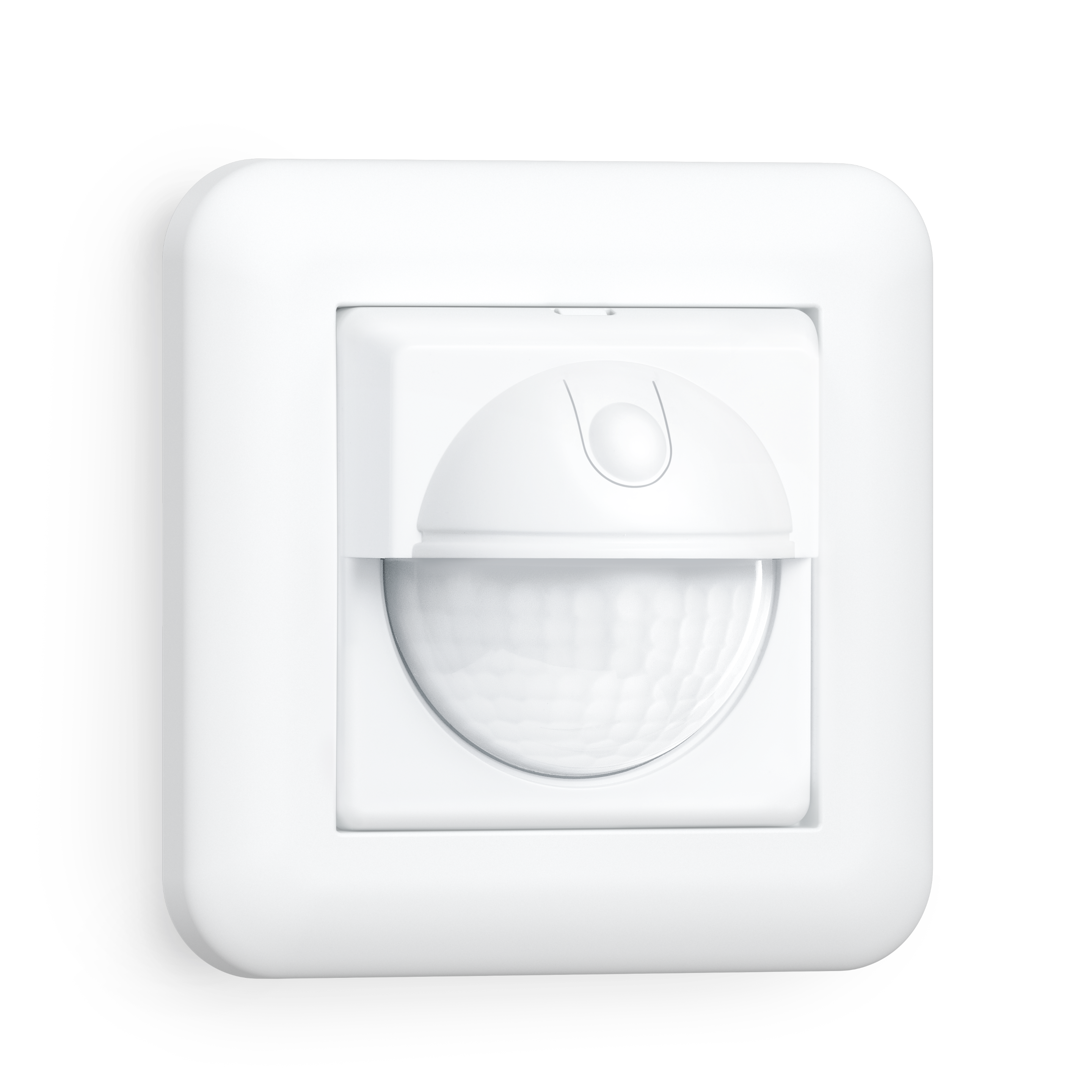

Steinel IR 180 UP easy Concealed wiring

ELDAS® no. 535 930 900

EAN-No. 4007841 055790

It is great when things simply work without great effort. As is the case with the IR 180 UP easy, which can be used to automate light in corridors, stairwells or WCs in next to no time. Simply exchange with the existing flush-mounted switch. Works every time - whether as a 2-wire or 3-wire installation. Switches all lamp types. The built-in 180° infrared sensor impresses with a reach of up to 8 m. And thanks to the integrated button, manual switching is possible at any time.

Infrared motion detector with 180° detection angle and up to 8 m detection range
For flush-mounted wall installation indoors (IP 20), for easy retrofitting to automatic light in new and existing buildings (For 2- and 3-wire installation)
Made of UV-resistant plastic for a long service life
Stepless adjustment of time (5 sec. - 30 min.) and switch-on brightness (2-1000 lux), teach function, push-button for use as conventional light switch
Reliably switches any light source with a total of max. 200 W switching load (LED light sources max. 160 W/50 pcs.)
Incl. mounting accessories - plastic-free packaging

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 57 x 81 x 81 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 200 W

Switching output 1 resistive 200 W

Fluorescent lamps ECG 150 W

Fluorescent lamps uncompensated 150 VA

Fluorescent lamps series-compensated 150 VA

Fluorescent lamps parallel-compensated 150 VA

Switching output 1 low-voltage halogen lamps 200 VA

LED lamps < 2 W 40 W

LED lamps > 2 W < 8 W 100 W

LED lamps > 8 W 160 W

Capacitive load in µF 132 µF

Switching output 1 number of LED/fluorescent lamps 4 pcs.

Sensor technology

Max. mounting height 2,20 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (6 m²)

Tangential range r = 8 m (101 m²)

Switching zones 96 switching zones

Mounting height 1,10 – 2,20 m

Optimal mounting height 1,1 m

Connectivity

Networking No

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 30 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Housing material Plastic

Cover material Plastic, structured

Mounting location wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors WC / washroom corridor / aisle function room / ancillary room kitchenette stairwell

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

Certificates & EPREL

Certificates VDE

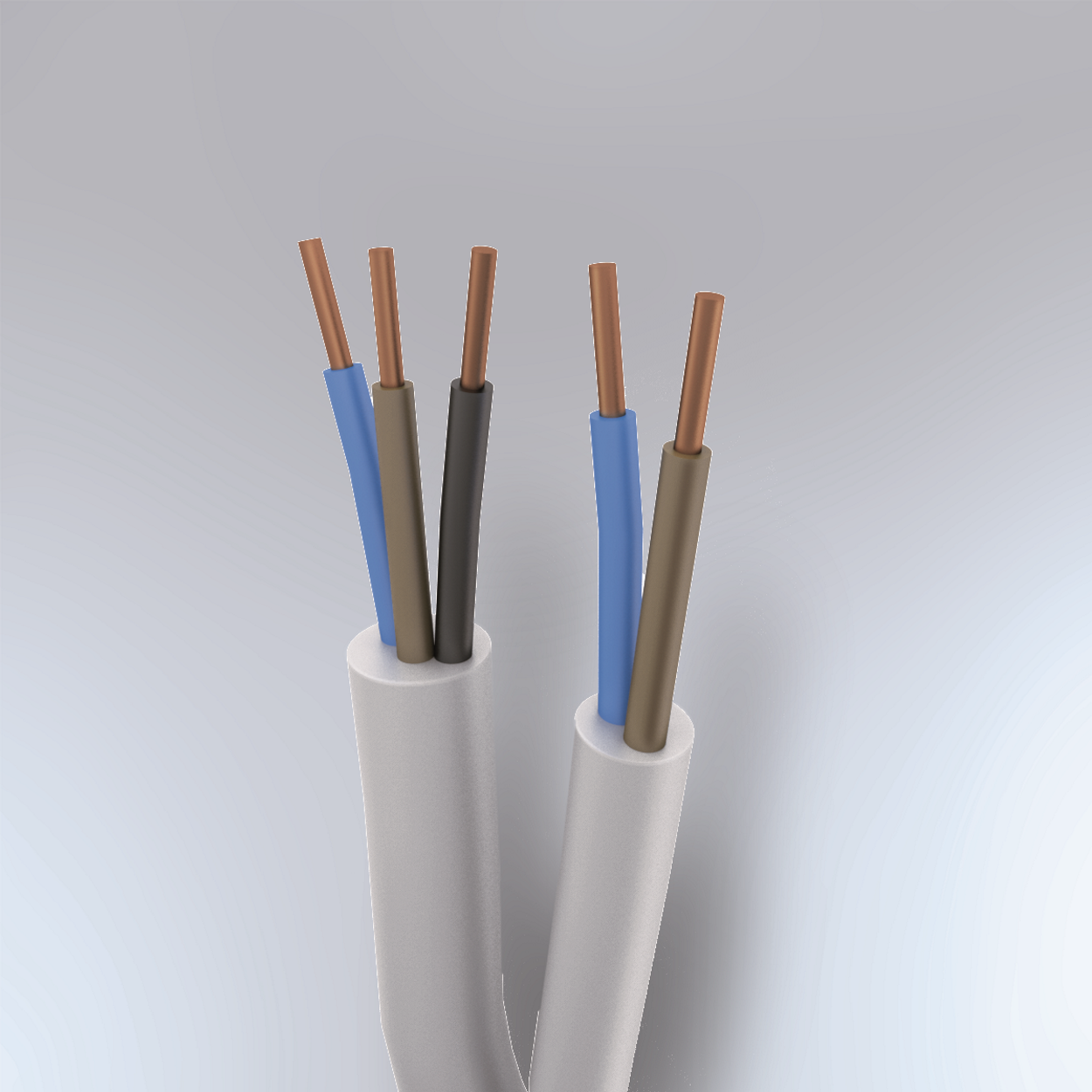

2 or 3-wire installation

Technical drawing

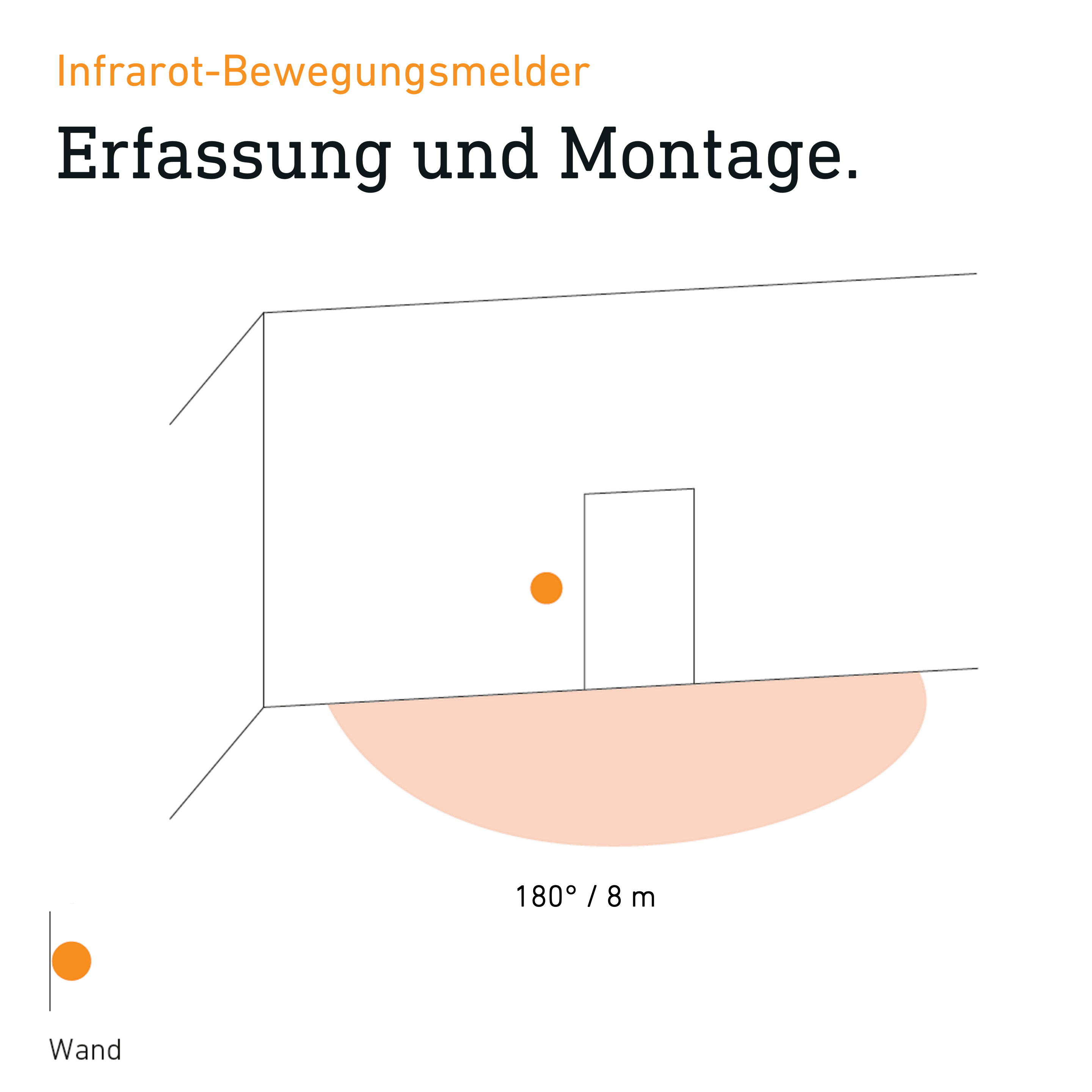

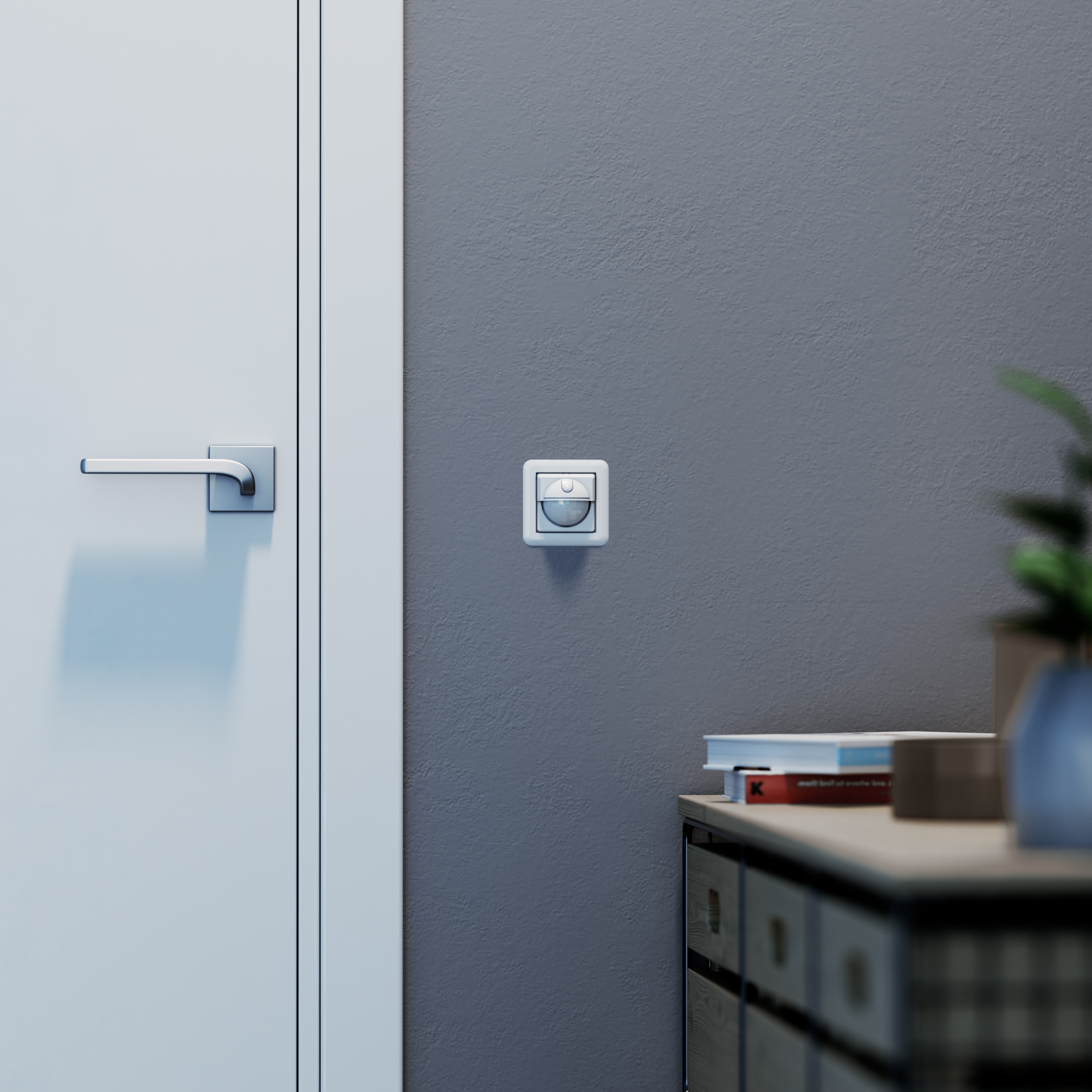

Sensor detection range

Wiring diagram 1

2-wire circuit diagram

Wiring diagram 2

3-wire circuit diagram

Data sheet User manual Declaration of conformity
