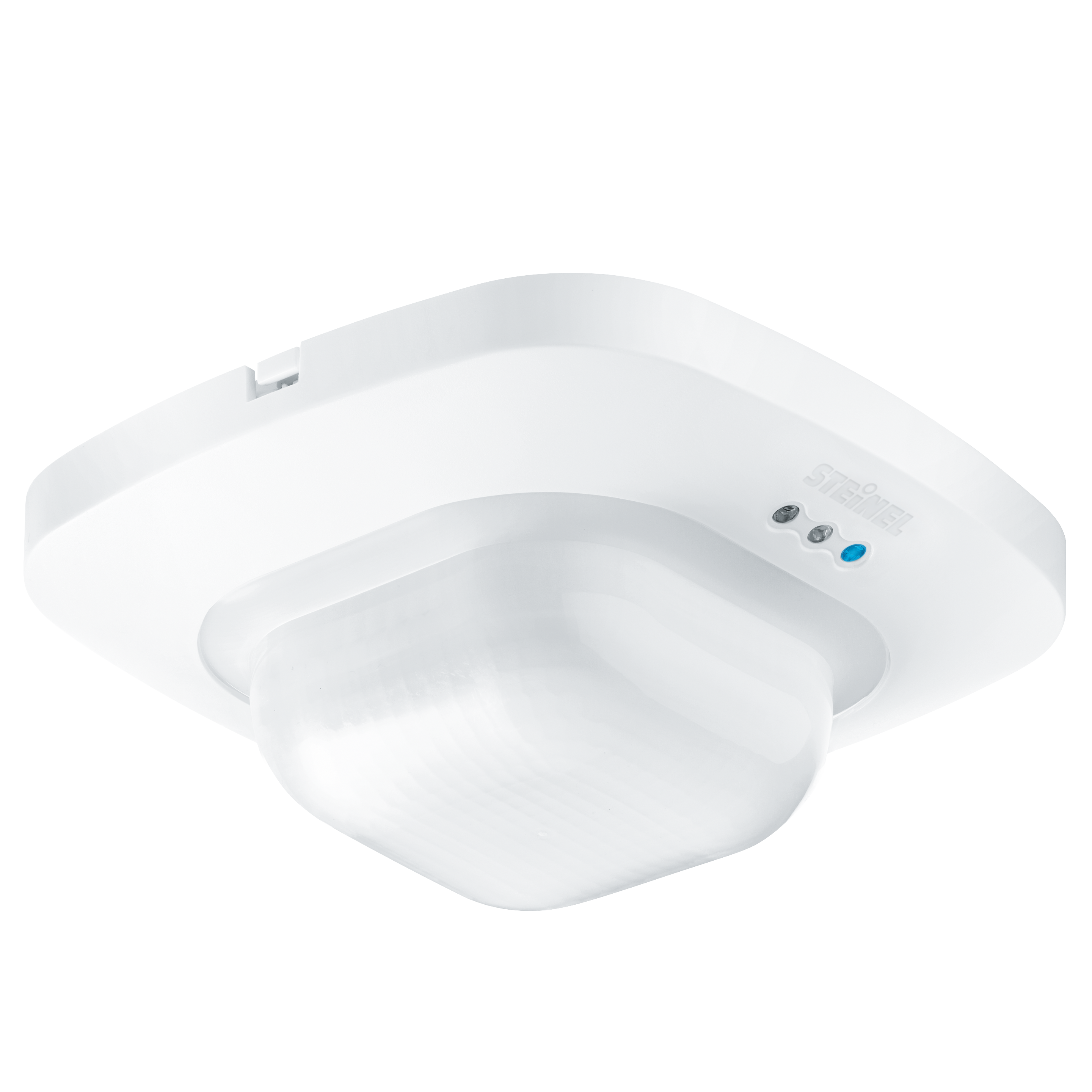

Steinel IR Quattro 8m COM2 - Concealed wiring

Presence detector for small offices, WCs and storerooms. Square coverage, no blind corners.

ELDAS® no. 535 932 705

EAN-No. 4007841 000356

Price: Please log in to see prices

Mounting type

Concealed mounting

Variant

230V, 1 channel 230V, 2 channels DALI-2 Application Controller KNX

Providing 1,760 switching zones, its sets new standards in detection quality especially in smaller-type offices, store rooms, service rooms, utility rooms and wash rooms. And the square detection zone too can be mechanically scaled without any loss of quality - a capability that's exclusive to STEINEL Professional Presence Control PRO.

hoehe: 90cm, ausfuehrung: Without sensor

Identification

Version Presence detector

Variants

Version 230V 2 channels

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 76 x 120 x 120 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 1000 VA

Fluorescent lamps parallel-compensated 1000 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Sensor technology

Max. mounting height 8,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 100 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 5 x 5 m (25 m²)

Tangential range 7 x 7 m (49 m²)

Detection planes 13

Switching zones 1760 switching zones

Mounting height 2,5 – 8,0 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

Networking quantity max. 10 sensors

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

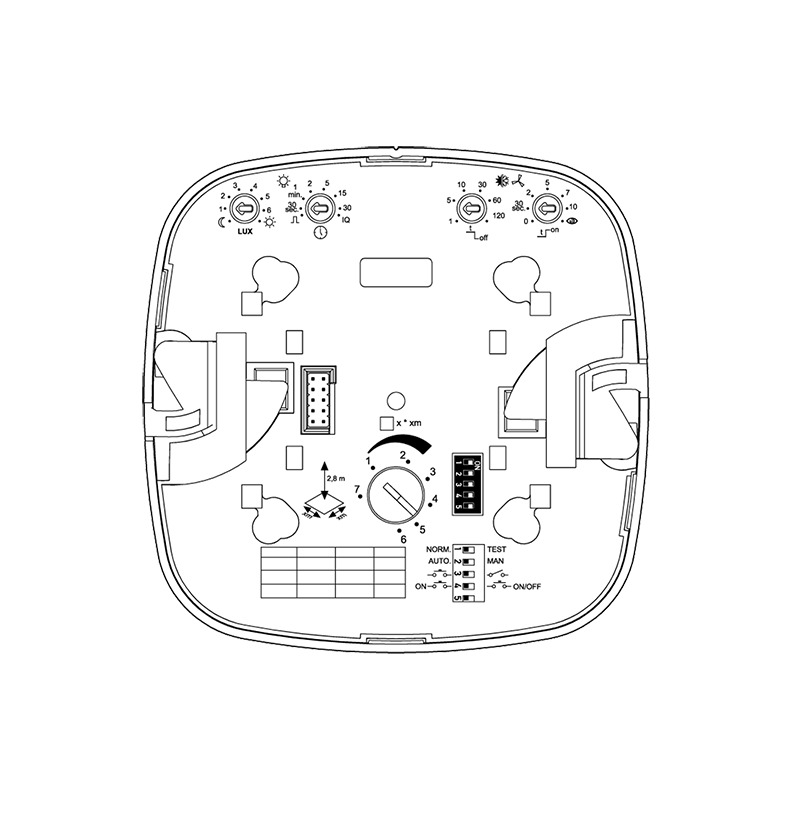

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF

Settings via Remote control, DIP switches, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, changing room, conference room / meeting room, duty room, function room / ancillary room, kitchenette, one-person office, recreation room

Colour White

RAL colour 9010
