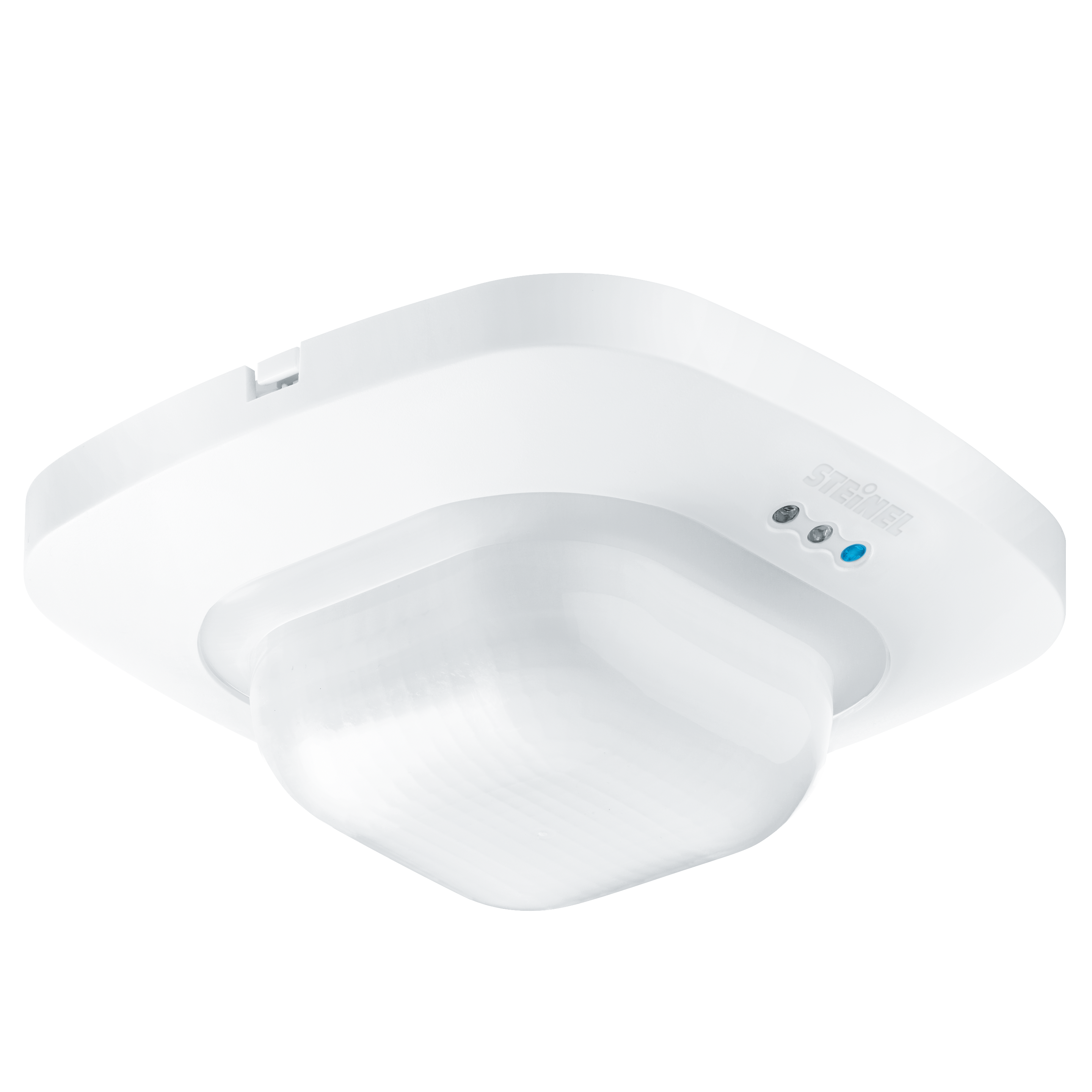

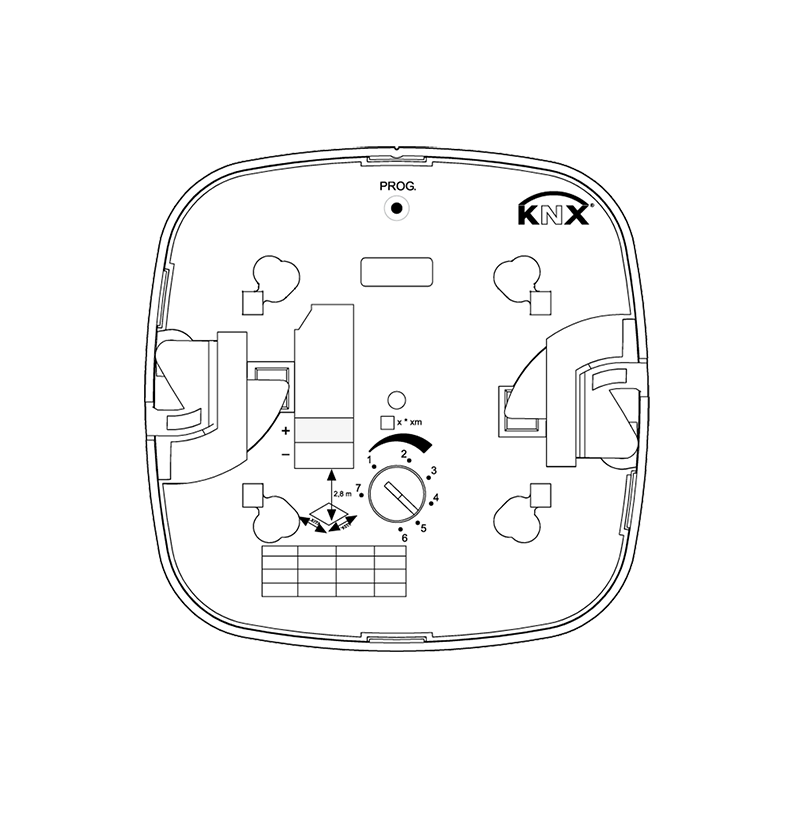

Steinel IR Quattro 8m KNX - Concealed wiring

Presence detector for small offices, WCs and storerooms. Square coverage, no blind corners.

ELDAS® no. 535 933 208

EAN-No. 4007841 058487

Price: Please log in to see prices

Mounting type

Concealed mounting

Variant

230V, 1 channel 230V, 2 channels DALI-2 Application Controller KNX

Small offices as well as storage, service, utility and laundry rooms should be integrated reliably into a KNX system too. With its 1,760 switching zones, the IR Quattro KNX is the ideal solution. Its reach is infinitely scalable inside the 16 m² square presence detection zone. Without any loss of quality whatsoever. Permitting ultra-precise planning. Thanks to Presence Control PRO.

Identification

Version Presence detector

Variants

Version KNX

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 75 x 120 x 120 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 8,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 100 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 5 x 5 m (25 m²)

Tangential range 7 x 7 m (49 m²)

Switching zones 1760 switching zones

Mounting height 2,5 – 8,0 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Networking via KNX

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 10 s – 1092 min

Base light function Yes

Main light adjustable 0 - 100 %

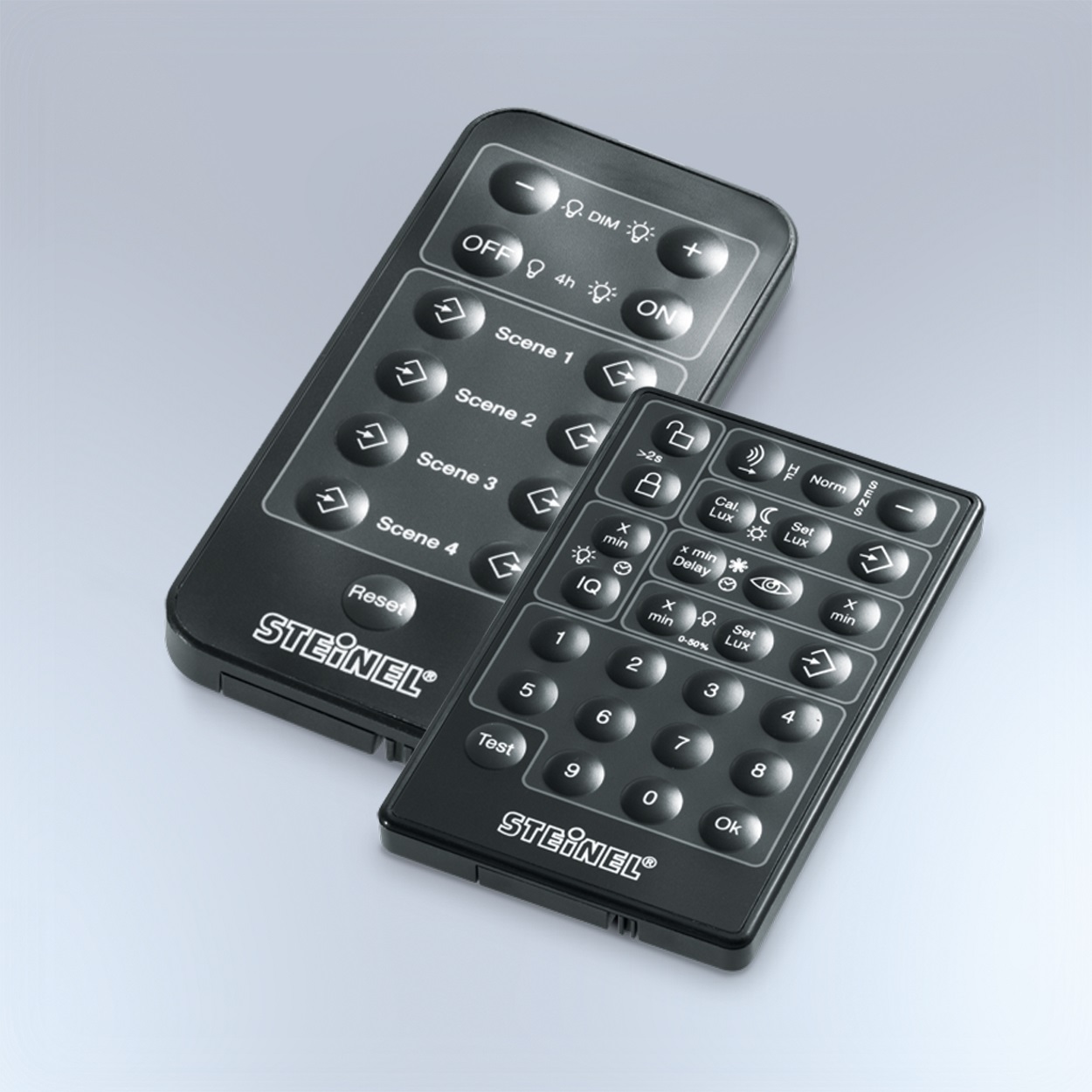

Settings via ETS software, Remote control, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, changing room, conference room / meeting room, duty room, function room / ancillary room, kitchenette, one-person office, recreation room

Colour White

RAL colour 9010
