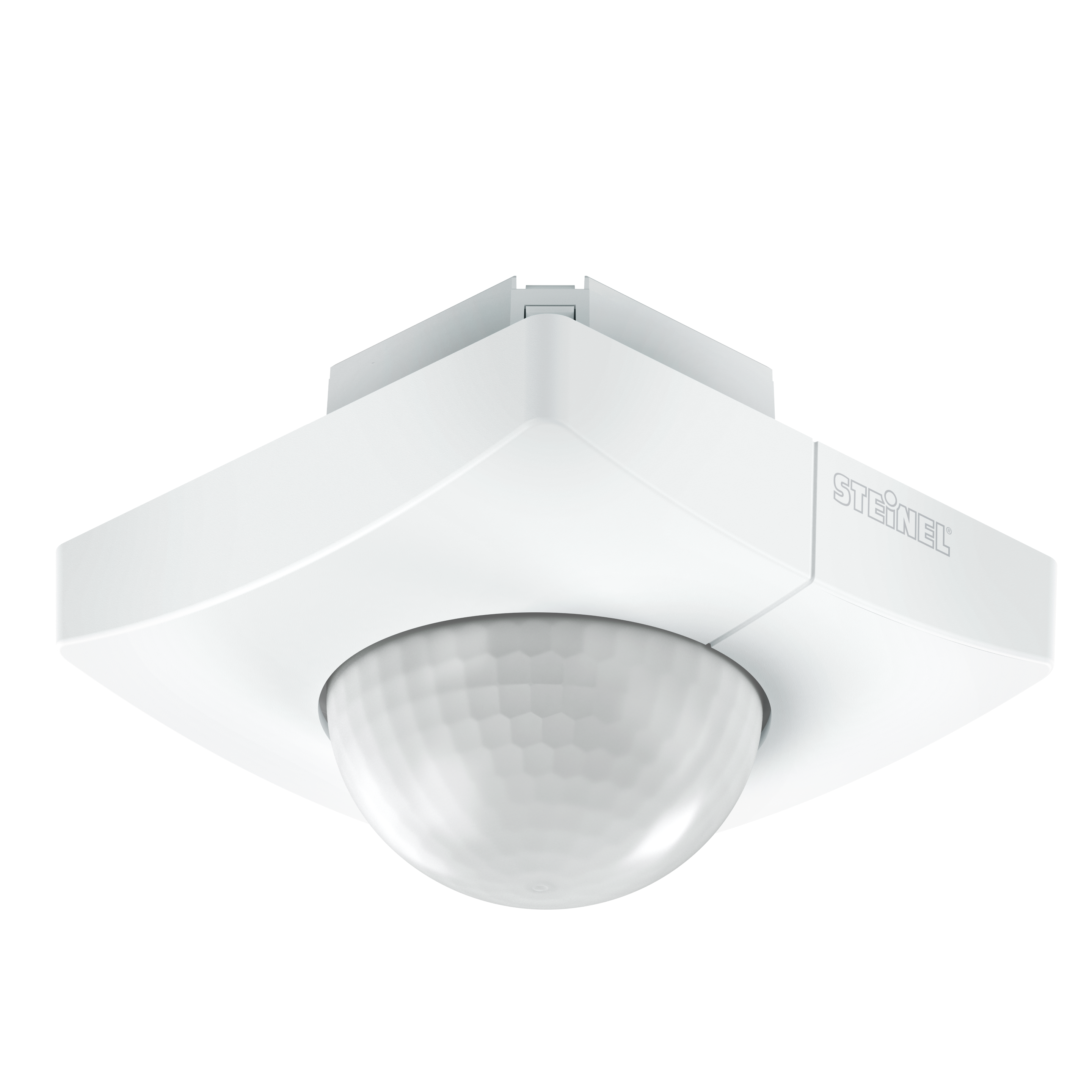

Steinel IS 3360 DALI-2 Input Device - concealed, sq.

Presence detector for warehouses, car parks and production. All-round, also for high ceilings.

ELDAS® no. 535 943 105

EAN-No. 4007841 057244

Price: Please log in to see prices

Mounting type

Concealed mounting Surface mounting

Colour

White

Variant

230V, 1 channel DALI-2 Application Controller DALI-2 Input Device KNX PF (Potential Free) PF - concealed, sq.

Max. mounting height

4,00 m

Version

Motion and Presence Detector

Large spaces, multi-storey car parks and production buildings with ceiling heights of up to 4 m rarely provide installation surfaces every metre. These environments call for presence detectors with a long reach. Like the IS 3360. It detects any tangential movement within an all-round radius of 20 metres. Even installed at heights of up to 4 metres. In short: one IS 3360 covers an area of more than 1000 m²! STEINEL Infrared technology that keeps its promises.

Variants

Version DALI-2 Input Device

Colour White

Mounting type Flush-mounted

Mounting height Mounting height 2.5 to 4 metres

Dimensions

Dimensions L × W × H 78 x 94 x 94 mm

Electrical

Mains connection 12 – 22,5 V

Supply voltage detail DALI bus

Switching output 1 potential-free No

Control output DALI Addressable / slave

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 40 m (1257 m²)

Switching zones 1416 switching zones

Mounting height 2,5 – 4,0 m

Presence range Ø 3 m (7 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

Number of DALI participants 3

With bus coupler Yes

Networking via DALI 2

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, WC / washroom, changing room, function room / ancillary room, multi-storey / underground car park, production facilities, reception / lobby, recreation room, sports hall, stairwell, warehouse

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

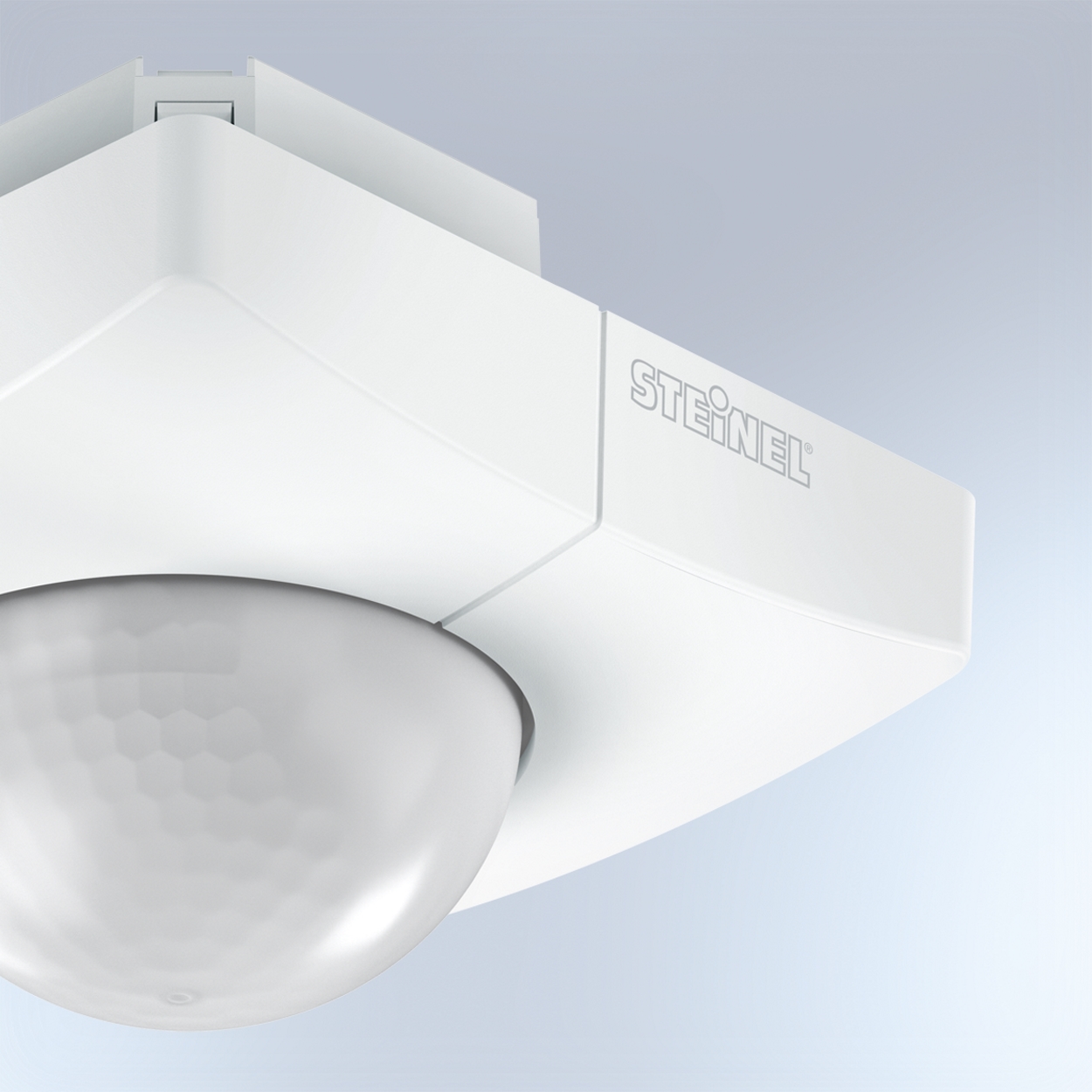

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151
