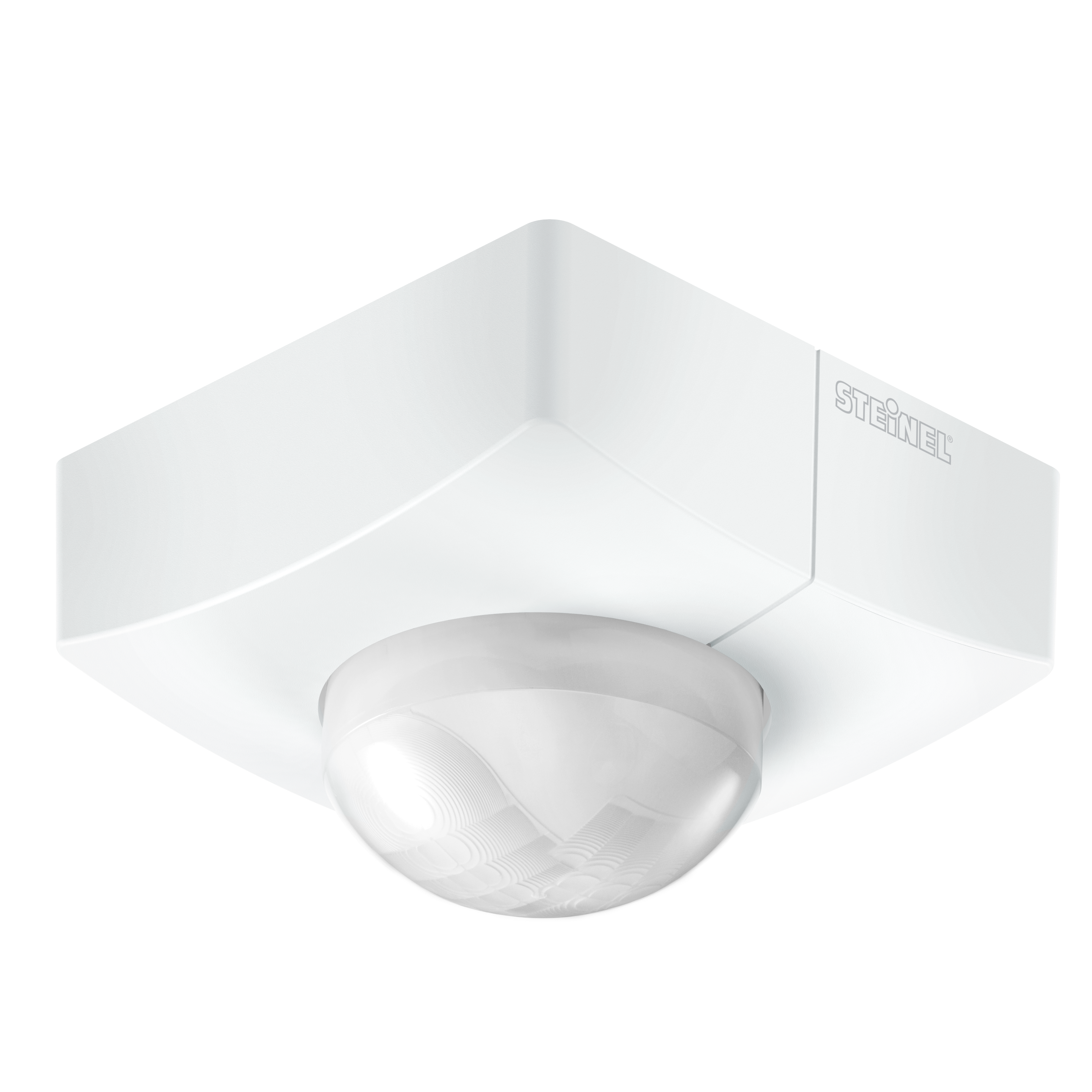

Steinel IS 345 MX Highbay COM1 - surface, sq.

Motion detector for aisles, car parks and halls. Long, narrow detection, splash-proof.

ELDAS® no. 535 941 460

EAN-No. 4007841 010492

Price: Please log in to see prices

Mounting type

Surface mounting

Variant

230V, 1 channel DALI-2 Application Controller DALI-2 Input Device KNX PF (Potential Free)

Max. mounting height

5,00 m 16,00 m

Colour

White

High-bay warehouses often have narrow aisles and high ceilings. Too high for most sensors. We have just the right solution: the IS 345 MX Highbay infrared motion detector was specially developed for mounting at heights of up to 16 m and for precision detection between narrow aisles. Perched up there, it gives you surveillance quality at the highest level, literally. So in the future, you can confidently set your sights higher when it comes to sensor systems! Available in surface-mounted and concealed installation versions, and naturally compatible with the standard interfaces.

Identification

Version Motion detectors

Variants

Version COM1

Colour White

Mounting type Surface mounted

Mounting height Mounting height 4 to 14 metres

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Sensor technology

Sensor technology passive infrared

Detection angle 360 °, Corridor

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 30 x 4 m (120 m²)

Tangential range 30 x 4 m (120 m²)

Switching zones 280 switching zones

Mounting height 4,0 – 16,0 m

Optimal mounting height 12,0 m

Connectivity

Networking Yes

Type of networking Master/Master

Networking quantity max. 10 sensors

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Manual ON / ON-OFF

Settings via Remote control, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, high-bay warehouse

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

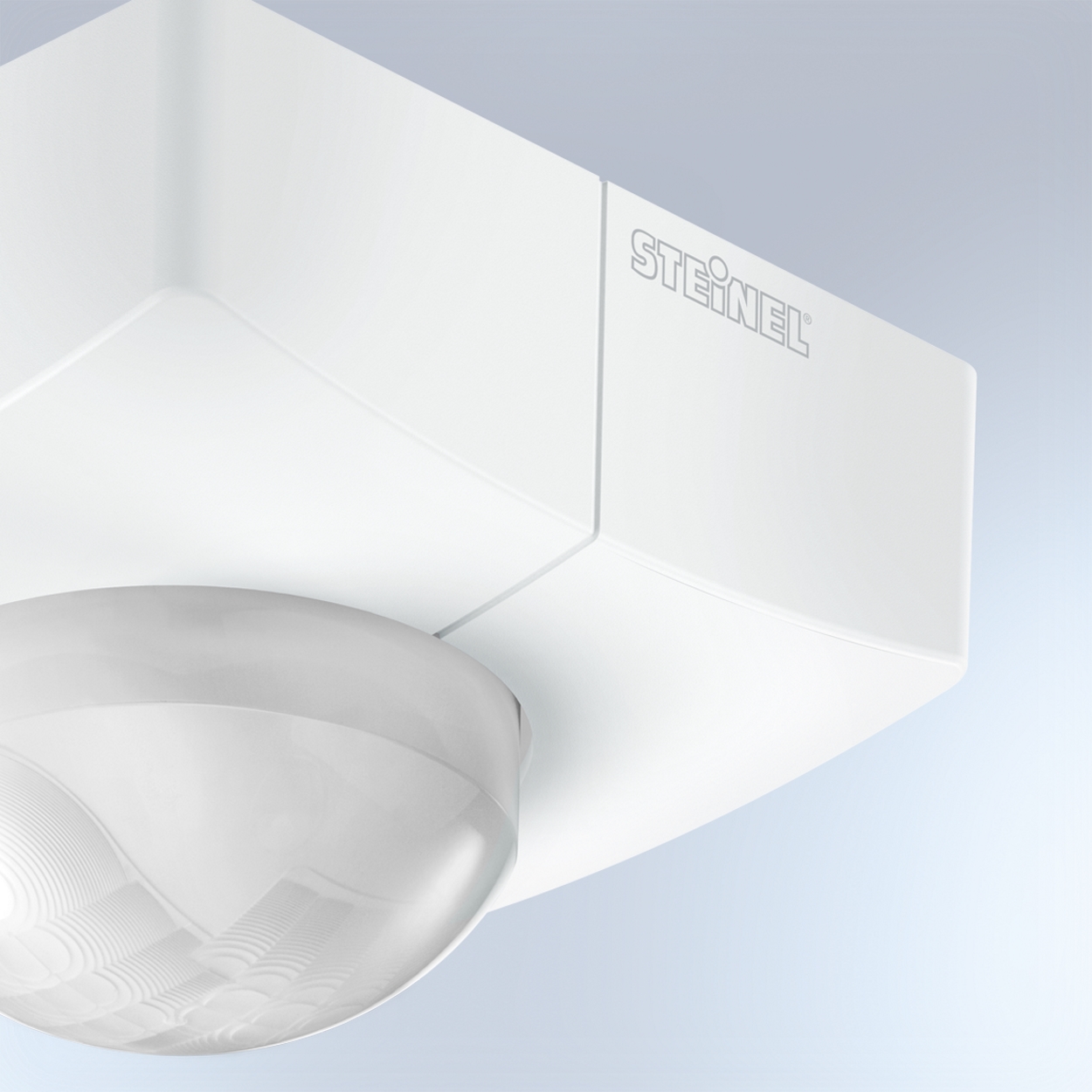

UV-resistant plastic

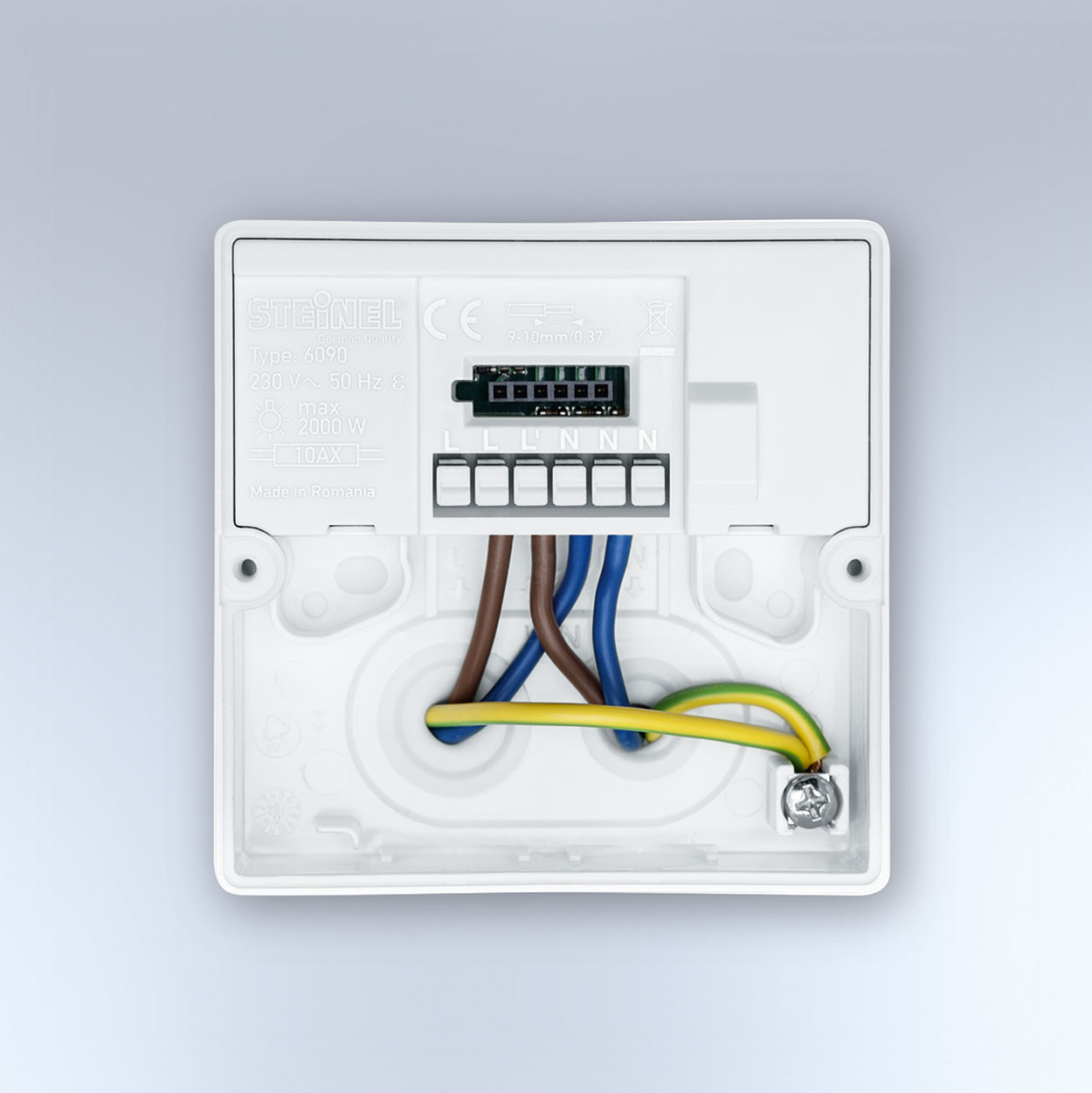

Large terminal compartment

Optional remote controls

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Circuit diagram for interconnecting several sensors

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151

Service remote control RC8

Item no. 559410

Black cover for IR-sensors surface, sq.

Item no. 056711
