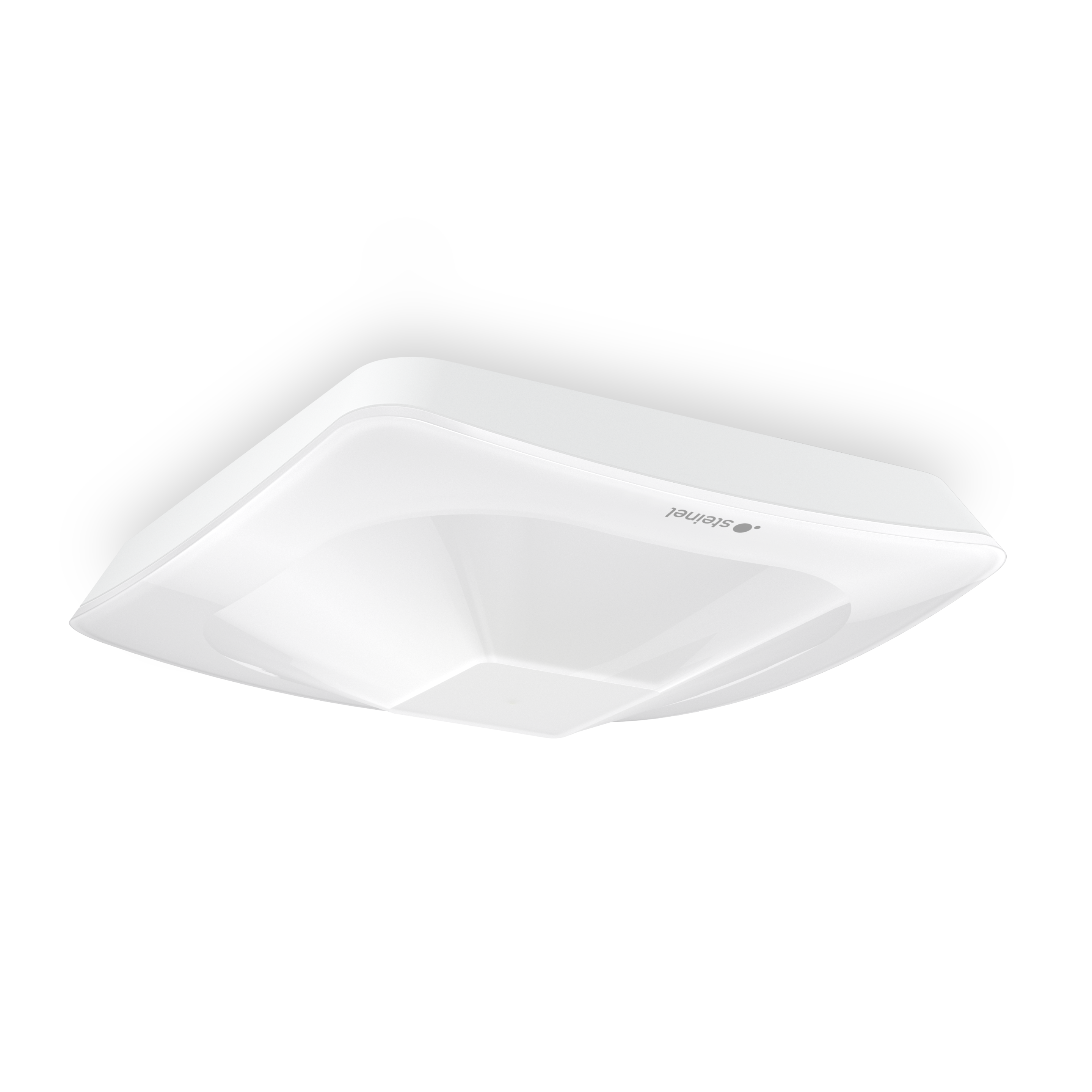

Steinel LuxMaster HF 360-2 DALI-2 APC - concealed

ELDAS® no. 535 903 141

EAN-No. 4007841 086596

Price: Please log in to see prices

Version

230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

As a further development of the HF 360, the HF 360-2 also supplies digital data in addition to light switching. As a result, the HF 360-2 intelligent sensor in the KNX, IP and DALI-2 Input Device bus interfaces additionally measures temperature and humidity. The sensor's enhanced design is geared even more closely towards the modern look of STEINEL True Presence sensors. Conveniently interconnected and adjusted via Bluetooth, the HF 360-2 provides COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX as well as IP interfaces, and it is also available as BT IPD (Slave) version. The discreet surveillance specialist provides reliable 360° HF detection that also penetrates wood, glass and stud walls and comes with a reach of up to 12 m. Suitable for mounting heights of up to 4 m.

High-frequency presence detector with 360° detection
Ideal for stairwells and toilets with cubicles
Digitally adjustable detection
Setting and networking via Bluetooth
Measurement of presence and brightness
DALI addressing of up to 64 participants in max. 4 groups
Operating modes: fully and semi-automatic, light sensor operation, night-time economy mode
Time-based control with time and day-dependent light profiles
Flexible system expansion possible with system components

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 61 x 103 x 103 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Supply voltage detail max. 64 users

Control output DALI Addressable / broadcast 64 electronic ballasts

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,5 – 4 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Networking via Bluetooth Mesh

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 30 s – 60 Min.

Base light function Yes

Base light function time 10 min, all day all night

Main light adjustable Yes

Functions Semi-/fully automatic Constant-lighting control Lighting scenario Master/slave override Neighbouring group function TouchDIM function

Settings via Bluetooth Mesh

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 90 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors WC / washroom function room / ancillary room kitchenette stairwell

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

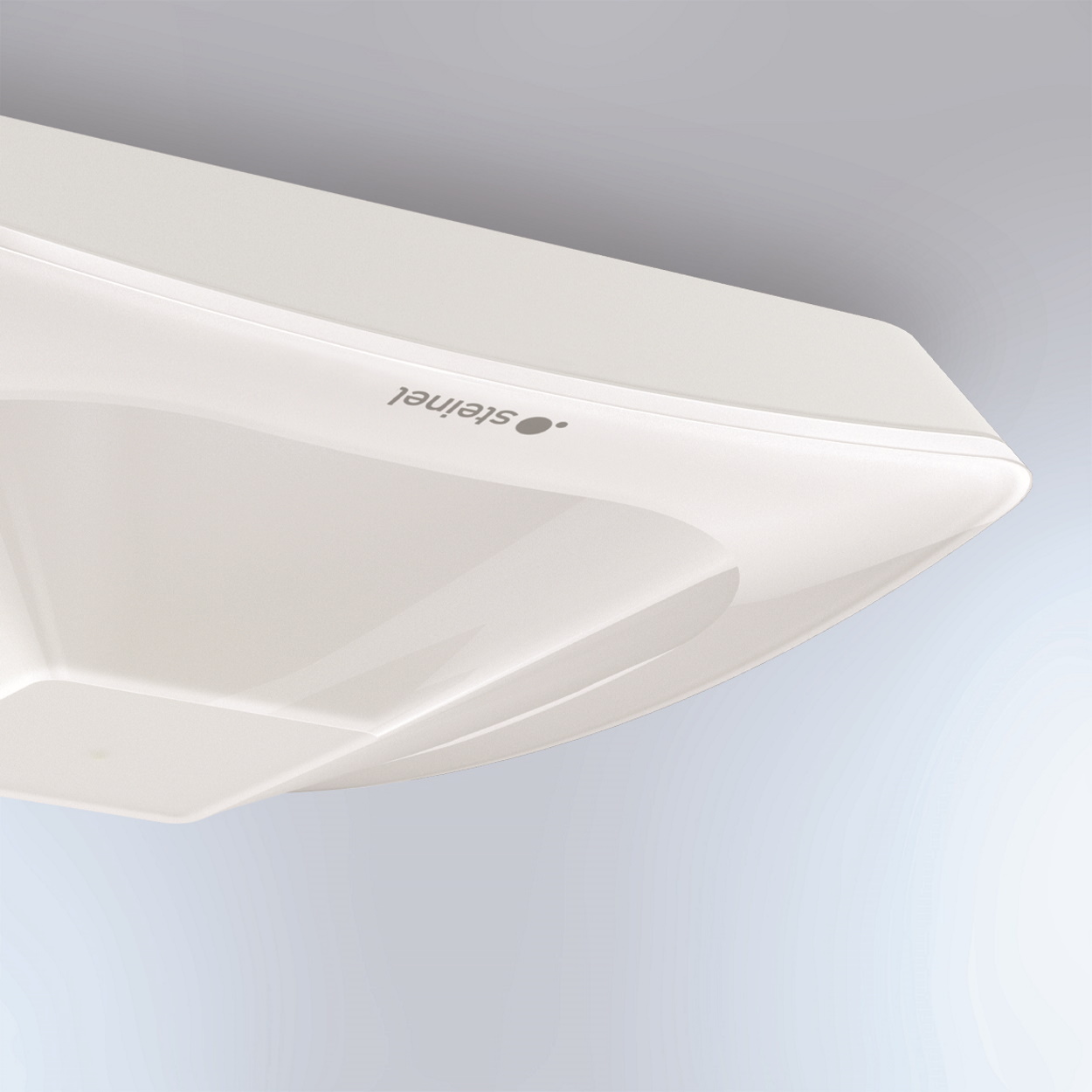

UV-resistant plastic

Technical drawing

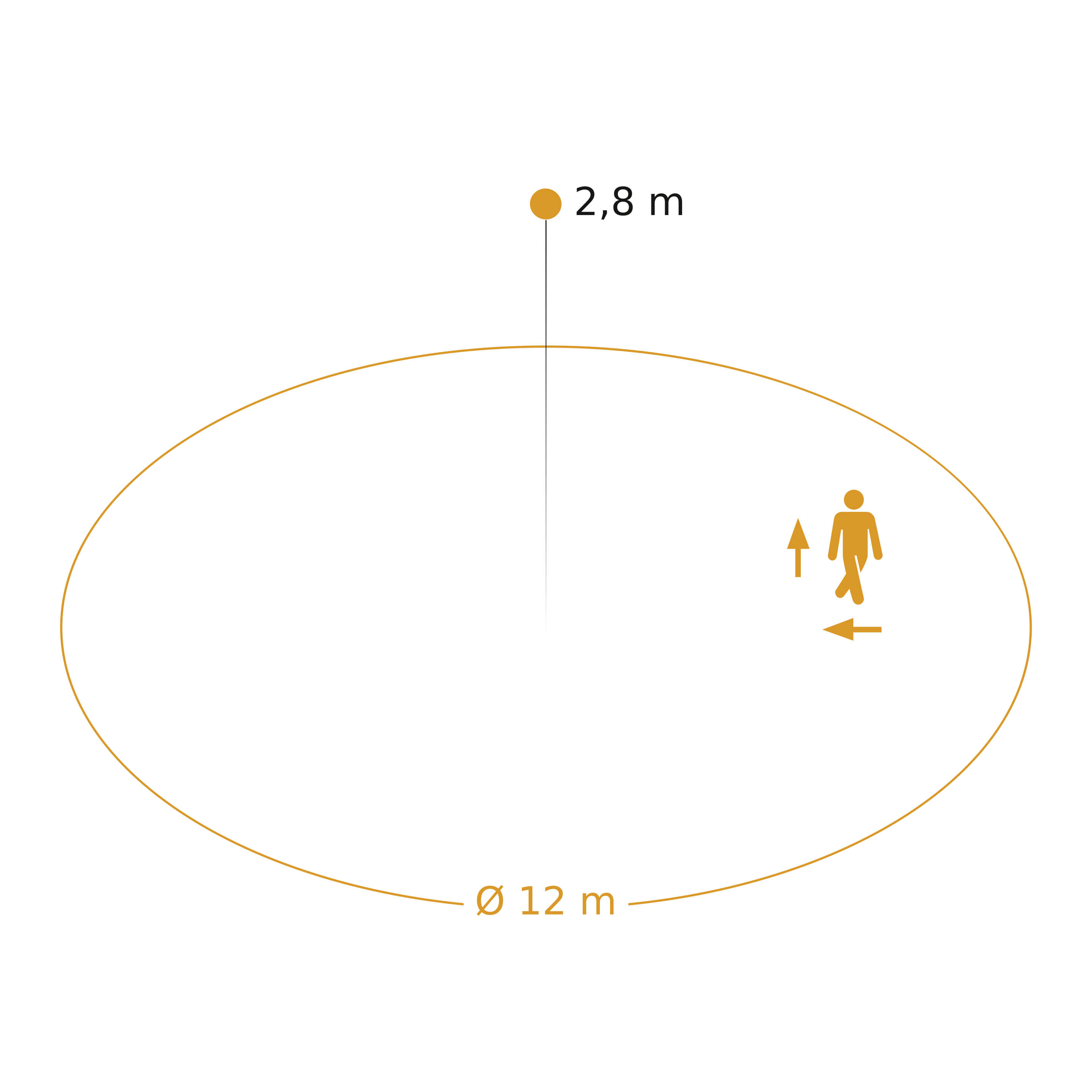

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity Product brochure
