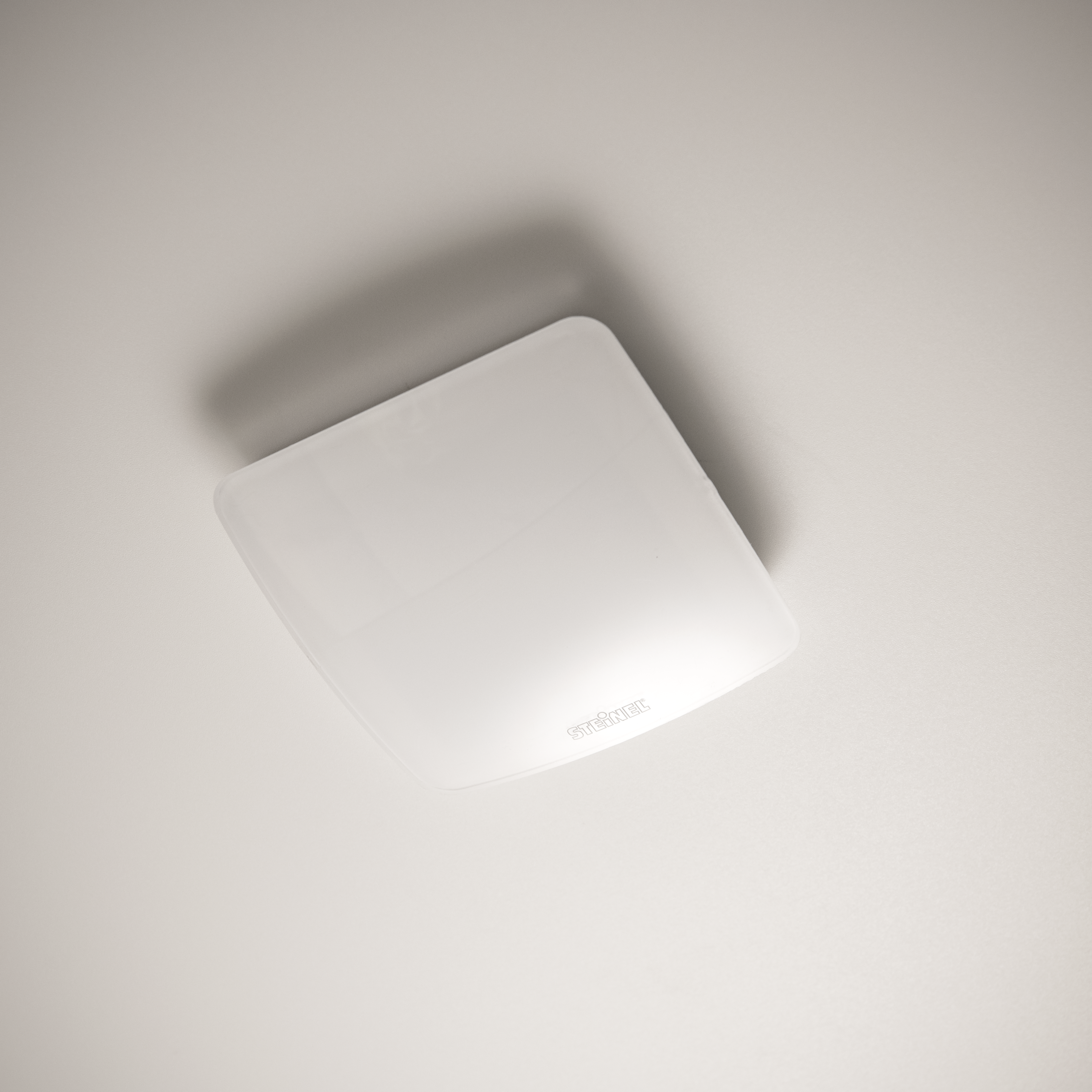

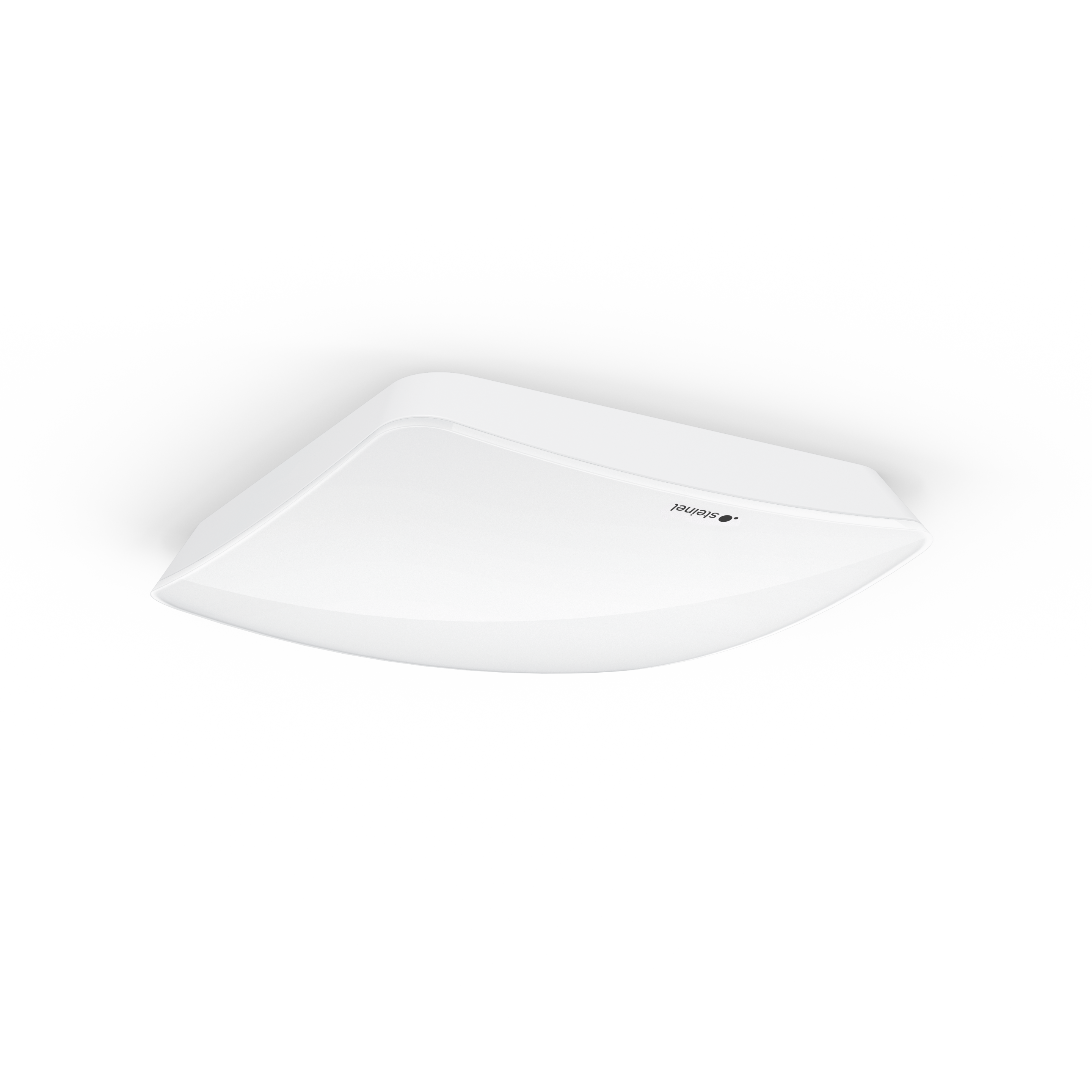

Steinel True Presence IP - concealed

Presence detector for offices, hotel rooms and lecture halls. Reliably knows if someone is in.

ELDAS® no. 535 933 908

EAN-No. 4007841 066031

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Colour

White

Mounting type

Concealed mounting Surface mounting

Variant

230V, 1 channel 230V, 2 channels Bluetooth Input-Device DALI-2 Application Controller IP (REST API, MQTT, BacNet) KNX

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Variants

Version IP (REST API, MQTT, BacNet)

Colour White

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 52 x 103 x 103 mm

Electrical

Own consumption 1,1 W

Supply voltage detail Passive PoE SELV, standard PoE (IEEE 802.3 af)

Sensor technology

Max. mounting height 12,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,0 – 12,0 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

With bus coupler Yes

Control technology Steinel Connect

Wireless networking via BT Open Mesh

Networking via IP / IT

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bluetooth, Web-Interface

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, WC / washroom, care room, changing room, classroom, conference room / meeting room, dining hall / staff restaurant, duty room, high-bay warehouse, hotel room, kitchenette, lecture hall, one-person office, open-plan office, production facilities, reception / lobby, recreation room, sports hall, warehouse

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

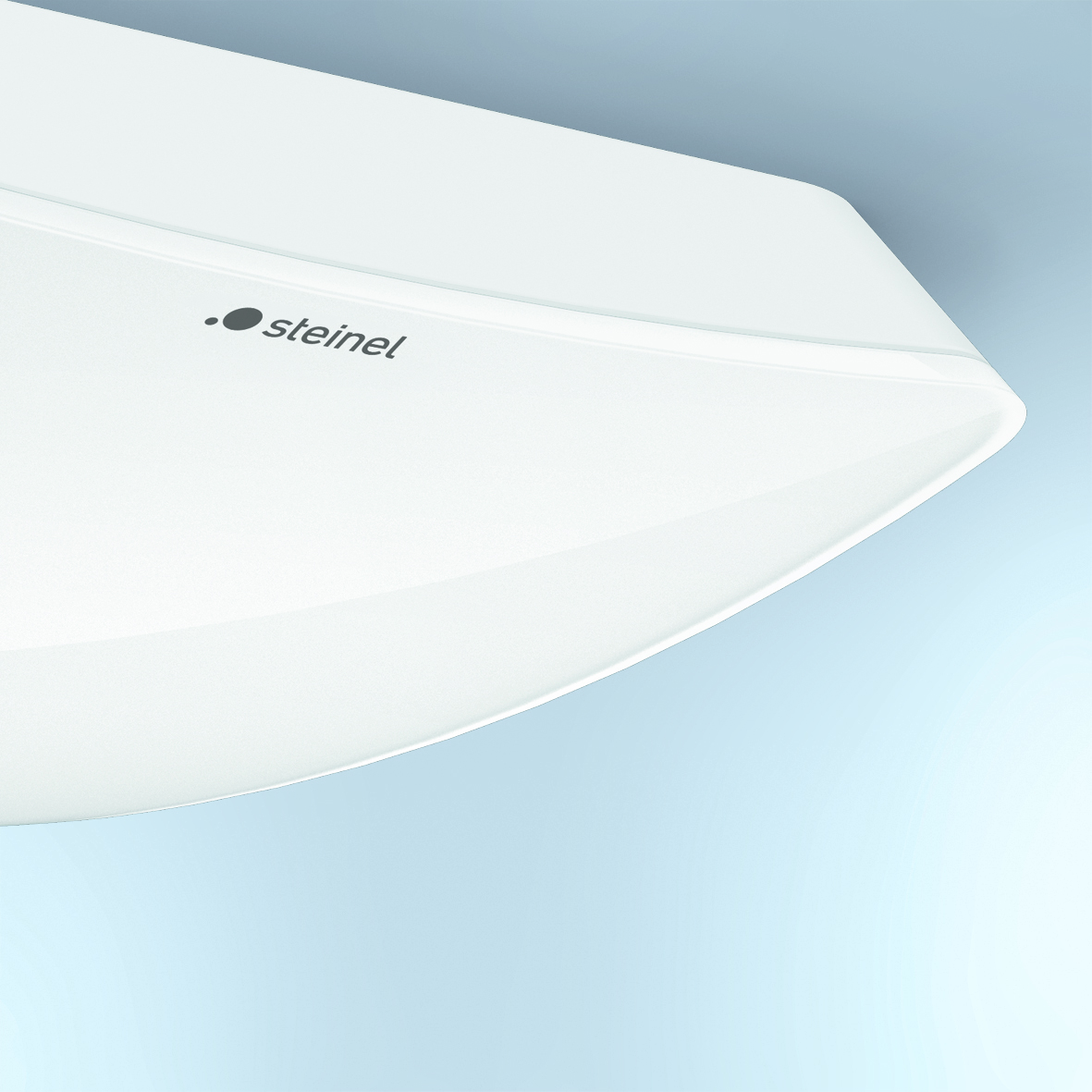

UV-resistant plastic

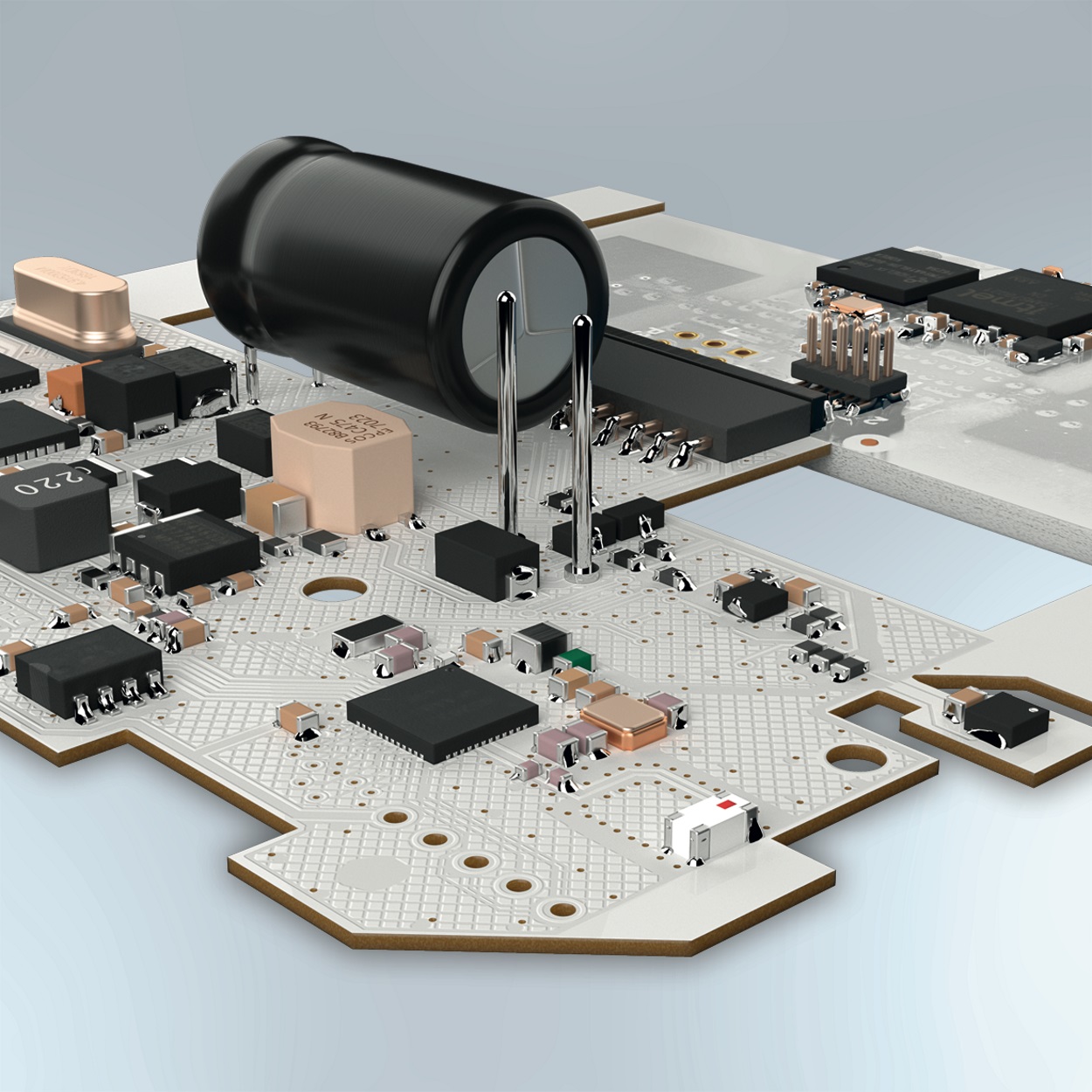

Digital high frequency sensor

Technical drawing

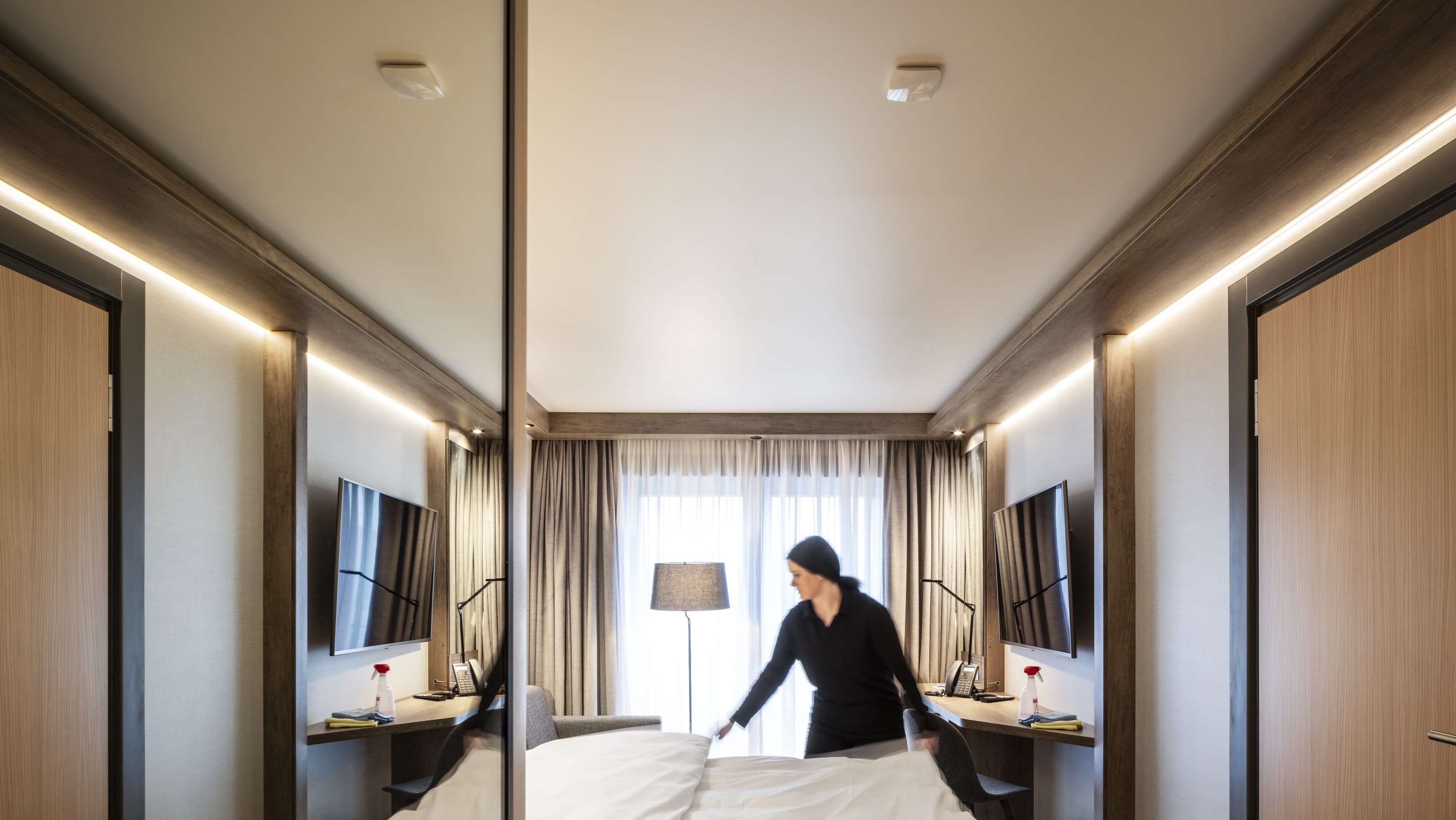

Sensor detection range
