| Surface | Motion detectors |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Potentiometers |
| With remote control | No |

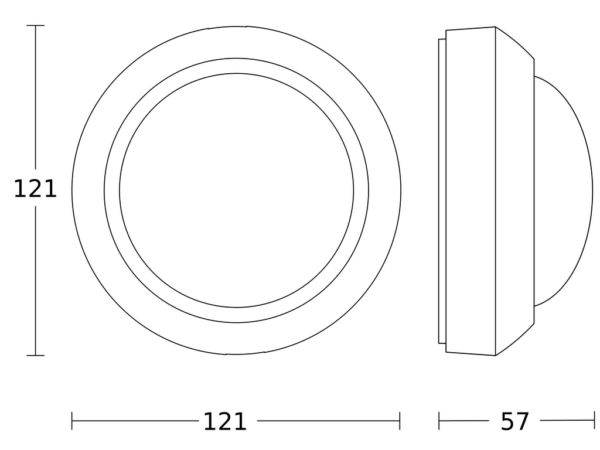

| Dimensions (Ø x H) | 121 x 57 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable |
| Application, place | Outdoors Indoors |
| Application, room | outdoors all round the building Indoors |

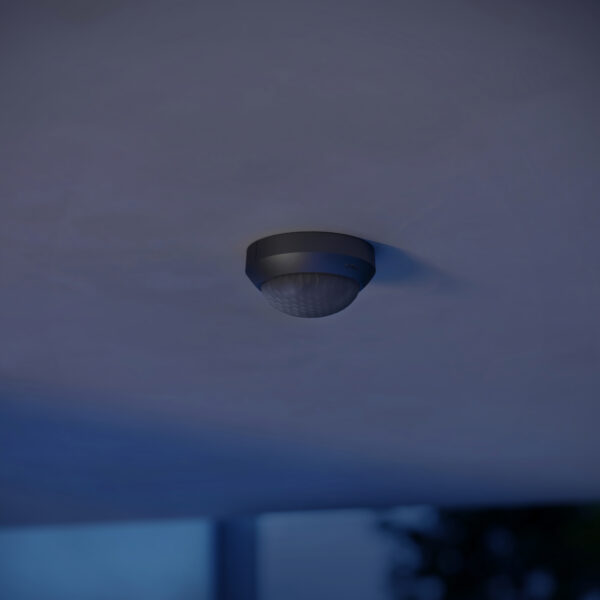

| Installation site | ceiling |
| Type of installation | Surface wiring |
| Mounting height | 2,50 – 6,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 6,00 m |
| Output | 2000 W |

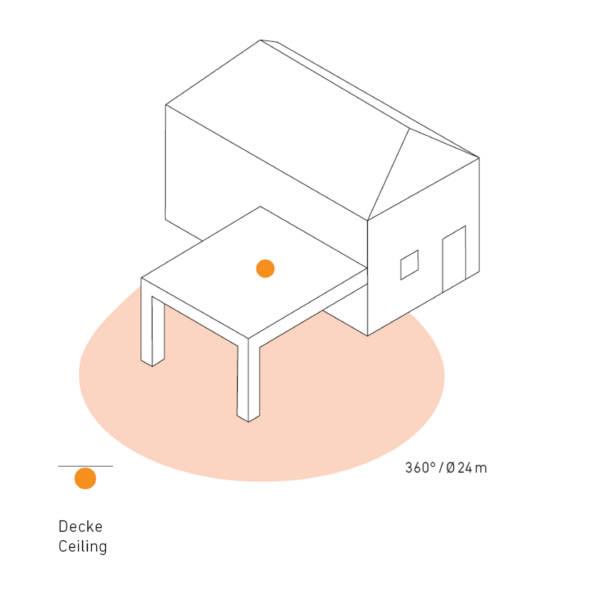

| Detection angle | 360 ° |
| Angle of aperture | 90 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |
| Radial reach | Ø 6 m (28 m²) |
| Tangential reach radius | Ø 24 m (452 m²) |
| Switching zones | 972 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | No |
| Time setting | 5 s – 15 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 2000 W |
| Soft light start | No |
| Continuous light | selectable, 4h |
| Constant-lighting control | No |
| Switching output 1, resistive | 2000 W |
| Fluorescent lamps, electronic ballast | 400 W |
| Fluorescent lamps, uncorrected | 500 VA |
| Fluorescent lamps, series-corrected | 900 VA |
| Fluorescent lamps, parallel-corrected | 400 VA |
| Switching output 1, low-voltage halogen lamps | 2000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 200 W |
| LED lamps > 8 W | 400 W |
| Capacitive load in uF | 176 µF |
| IP rating | IP54 |
| Protection class | II |
| Ambient temperature | -20 – 50 °C |
| Material | Plastic |

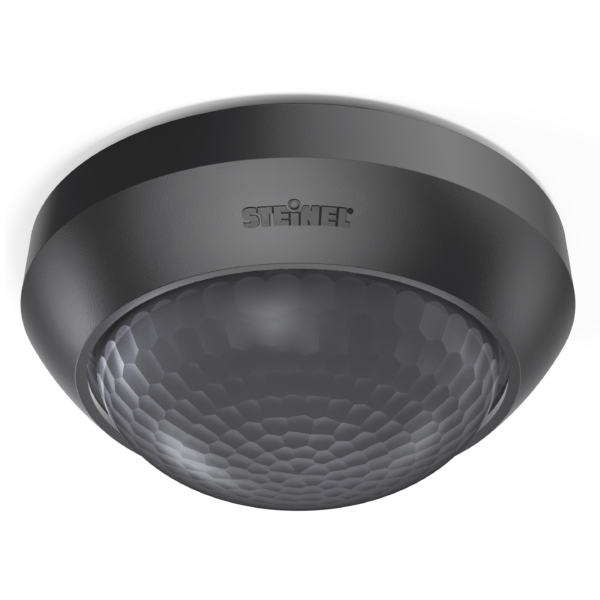

| Colour | black |
| Colour, RAL | 9005 |
| Manufacturer's Warranty | 3 years |
| Includes corner wall mount | No |
