- For universal use in lighting offices, schools, lobbies, traffic zones, etc.
- Convincing concept for simple and fast mounting
- Link technology for seamless extension of the continuous row with through-wiring
- Dimmable DALI
- Variants with 0.6, 1.2 and 1.8 meter length available
- Housing Aluminum White
Variants
Version
1800mm
Luminous flux
6000 lm (Down 3000, Up 3000)
Dimensions
Dimensions L × W × H
1810 x 51 x 85 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
50 W
Replaceable driver
Yes
Type of wiring
Through wiring included
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
Yes, LED-System
Luminous flux
6000 lm (Down 3000, Up 3000)
Beam angle
15° Wallwasher
Luminaire luminous efficacy
120 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminium
Cover material
Microprismatic acrylic glass
Mounting type
Wall surface-mounted
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

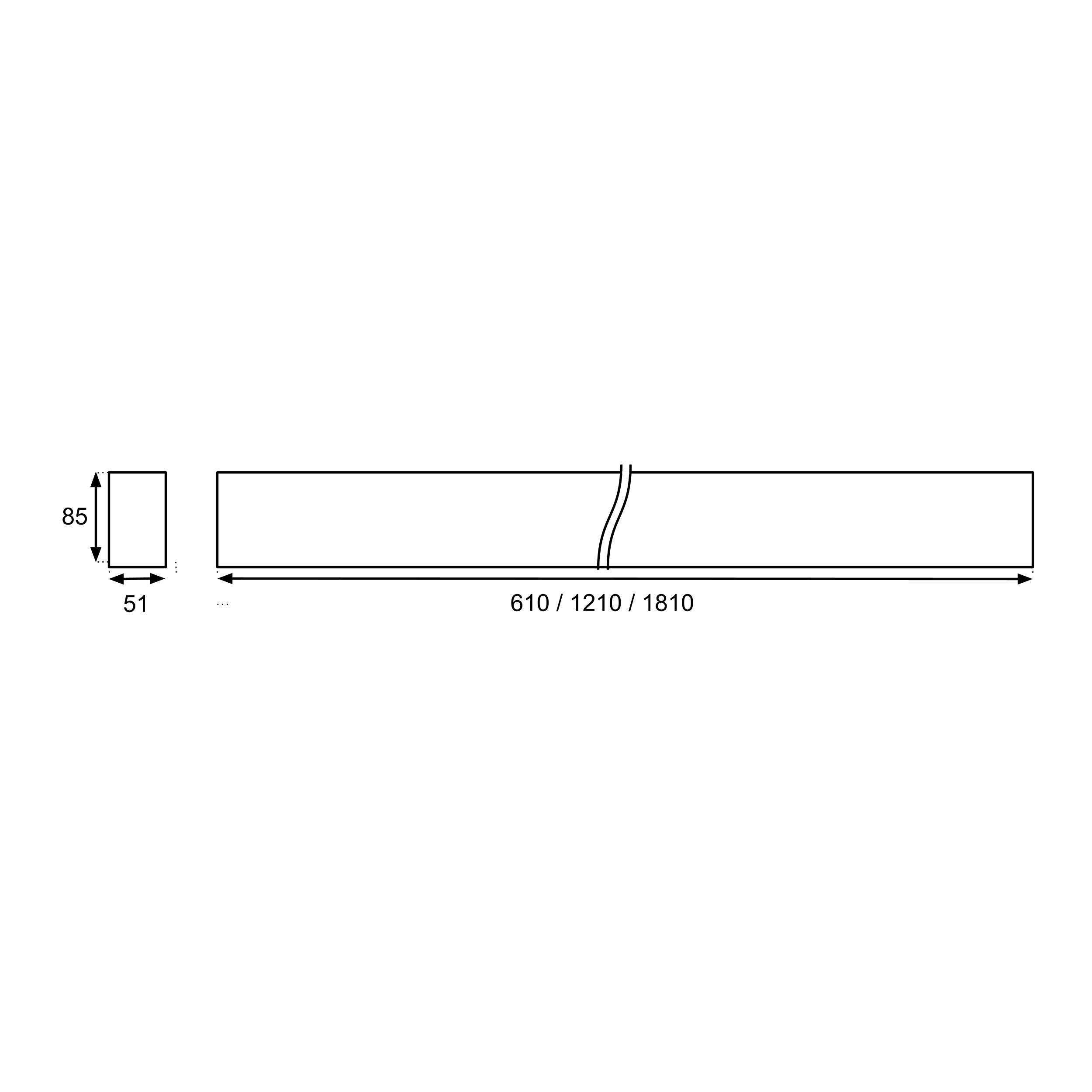

Technical drawing

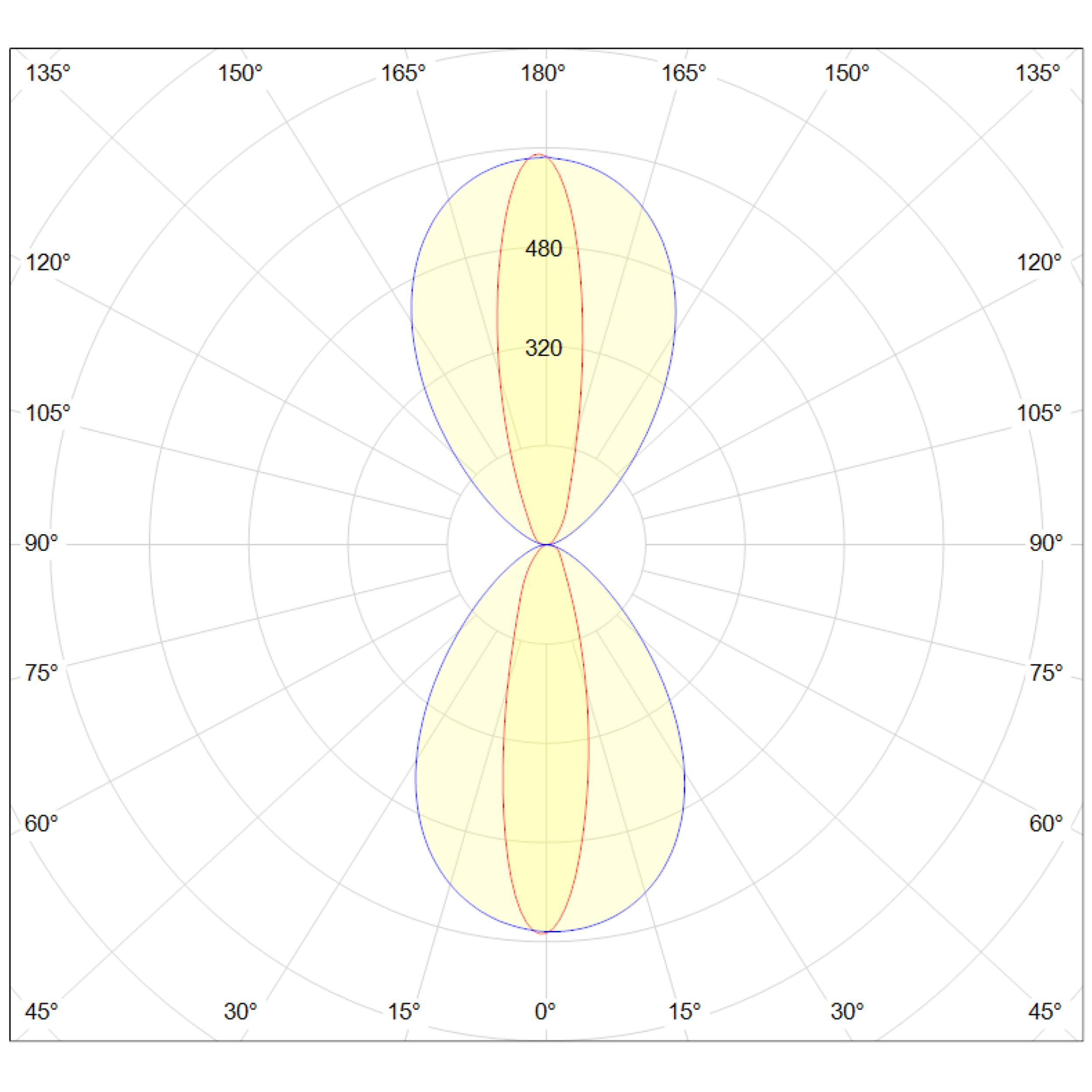

Lichtverteilungskurve

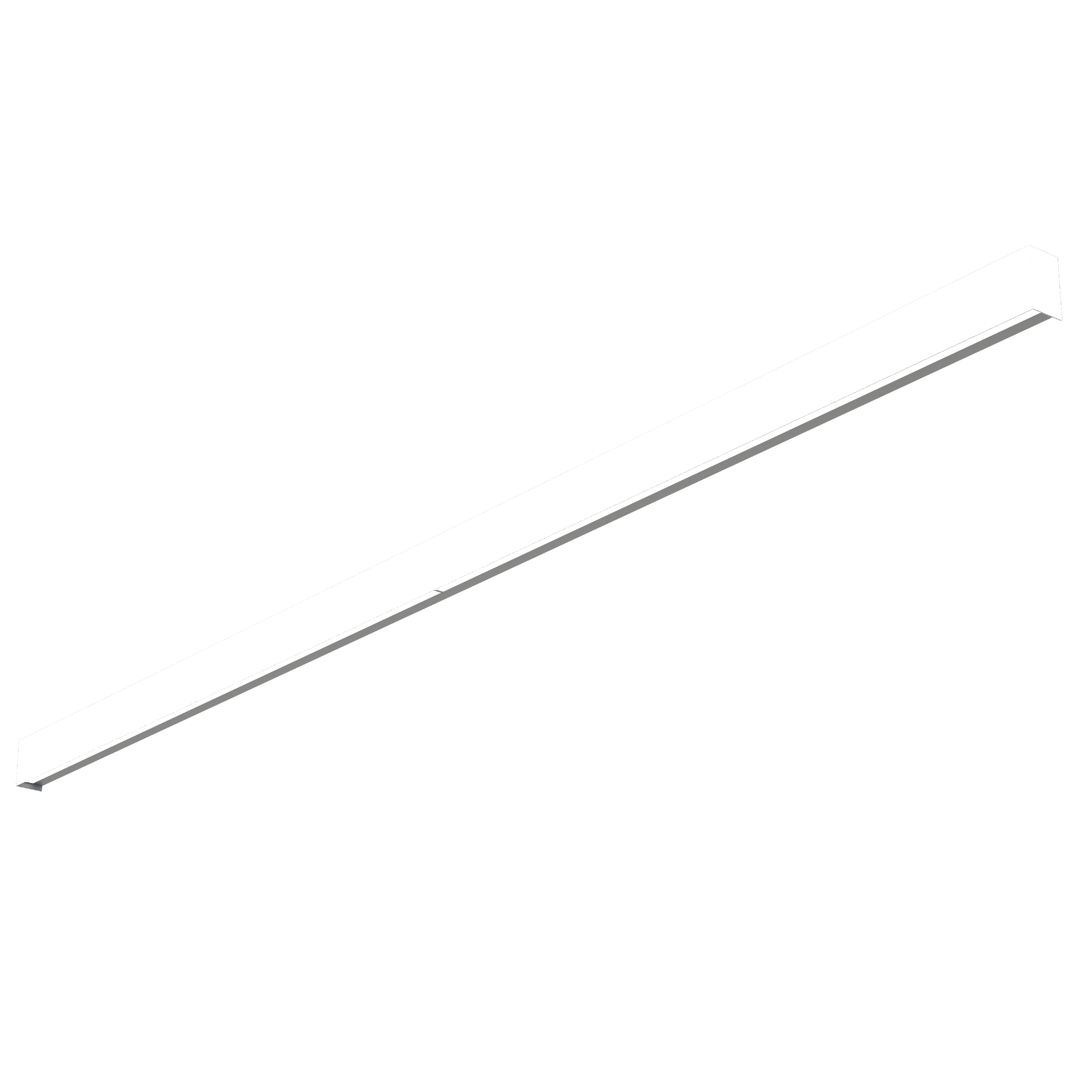

Sensor detection range
Wiring diagram 1
Wiring diagram
