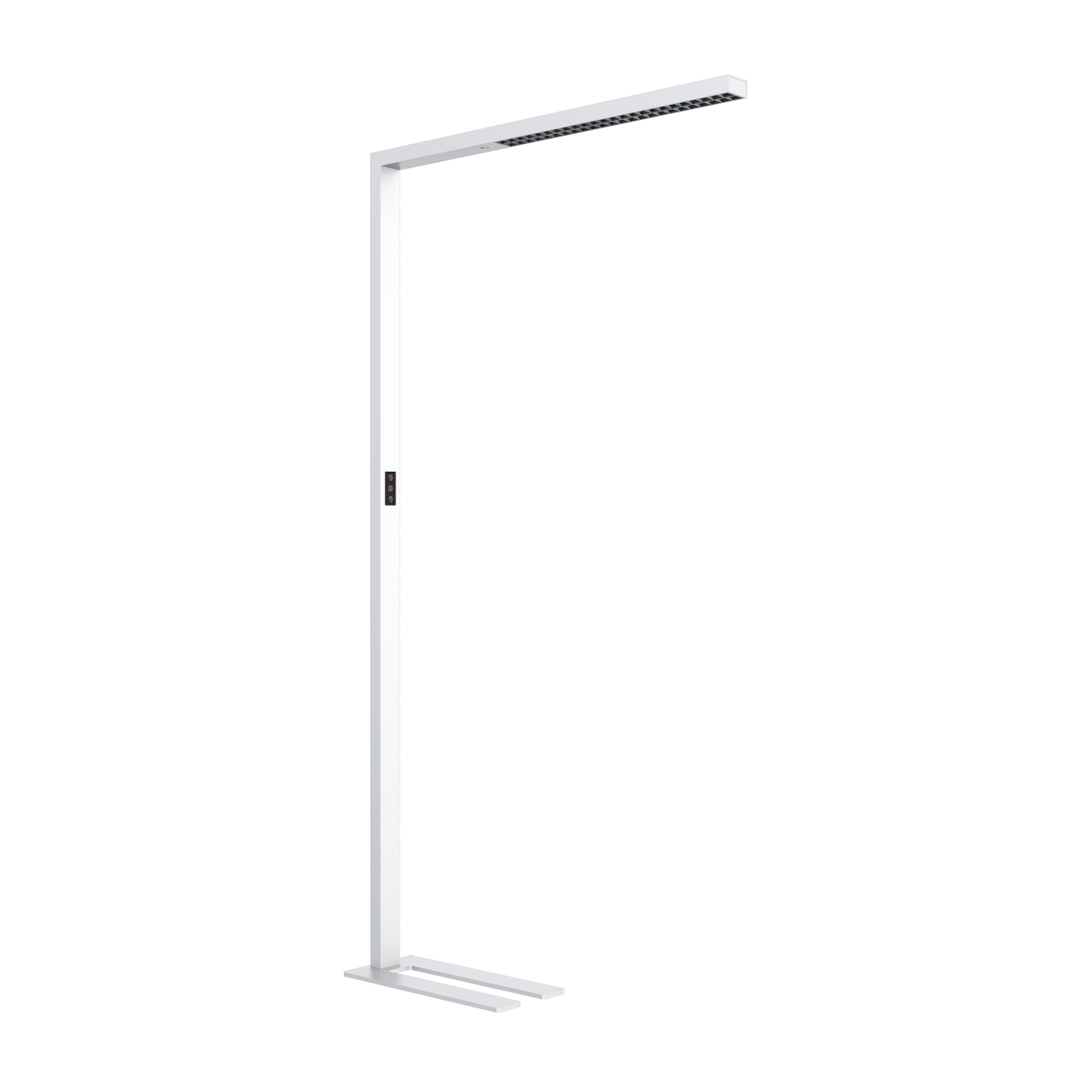

Nevalux nayo S 4K
Product code 220174
This product is being replaced by a successor product.
Go to successor product · nayo SN TW (220604)- Glare-free optics with unreached glare control UGR < 6
- Presence detector and constant light control
- Touchdimm function with glass button
- Direct and indirect light proportion independently adjustable
- High luminaire efficiency with 130 lm/w
- Dimmable driver
- Housing Aluminium RAL9016, white
Variants
Luminous flux
10400 lm (Down 3250, Up 7150)
Dimensions

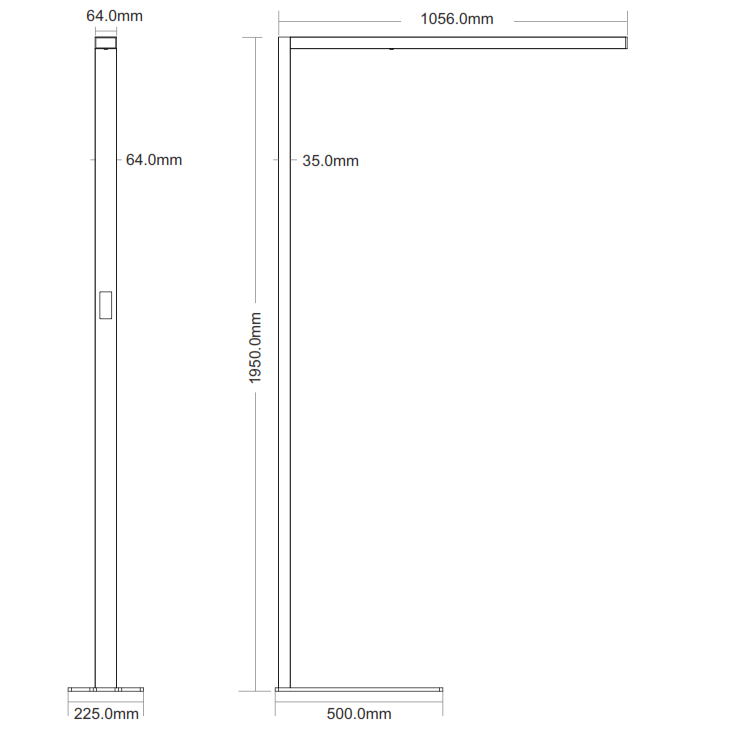

Dimensions L × W × H
1053 x 64 x 1950 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
80 W
Replaceable driver
Yes
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Presence range
Ø 3 m
With light sensor
Yes
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
10400 lm (Down 3250, Up 7150)

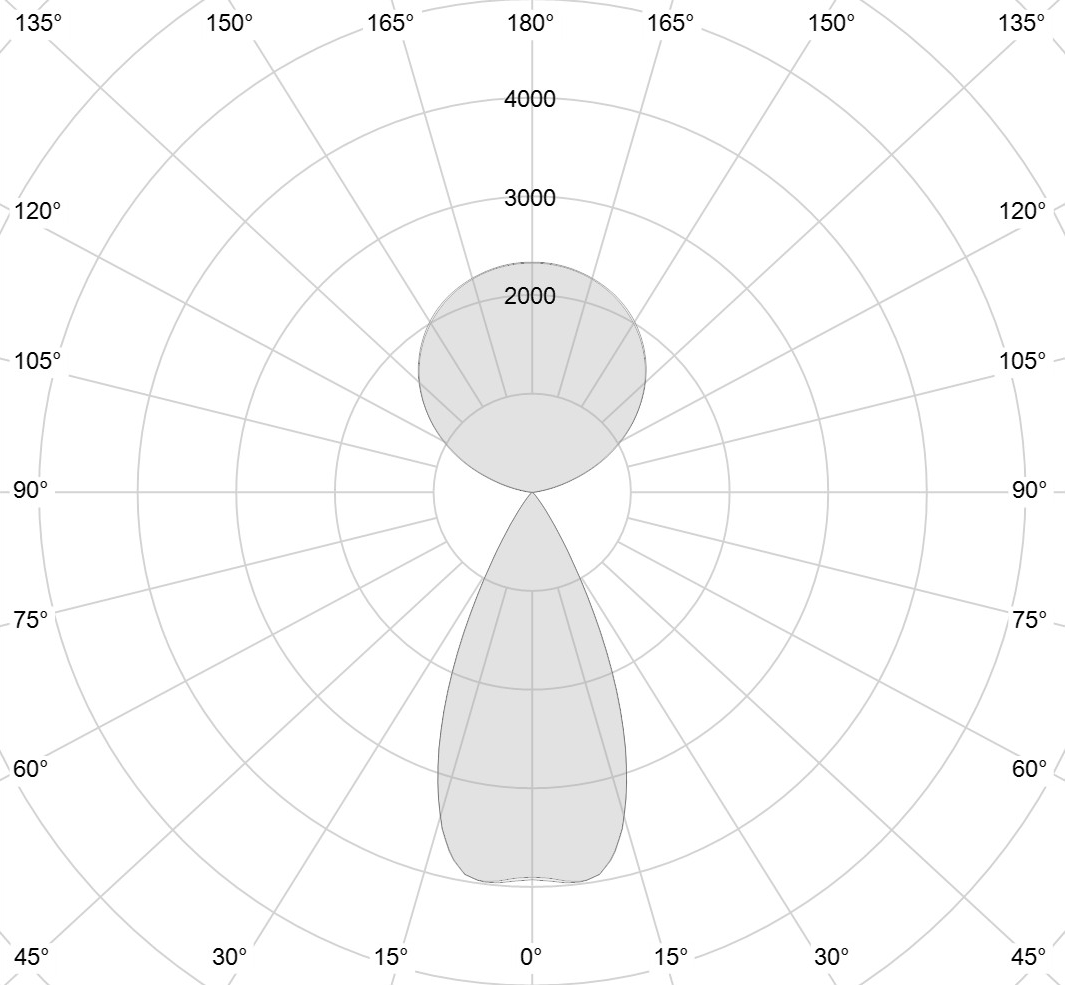

Beam angle
Down 50°, Up 110°
Luminaire luminous efficacy
130 lm/W
Glare value
UGR < 6
Lifetime
LED lifespan (25 °C)
50000 h
Settings
Direct/indirect ratio separately controllable
Yes
With switch
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Darklight Optics
Mounting type
Free standing floor
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
D
