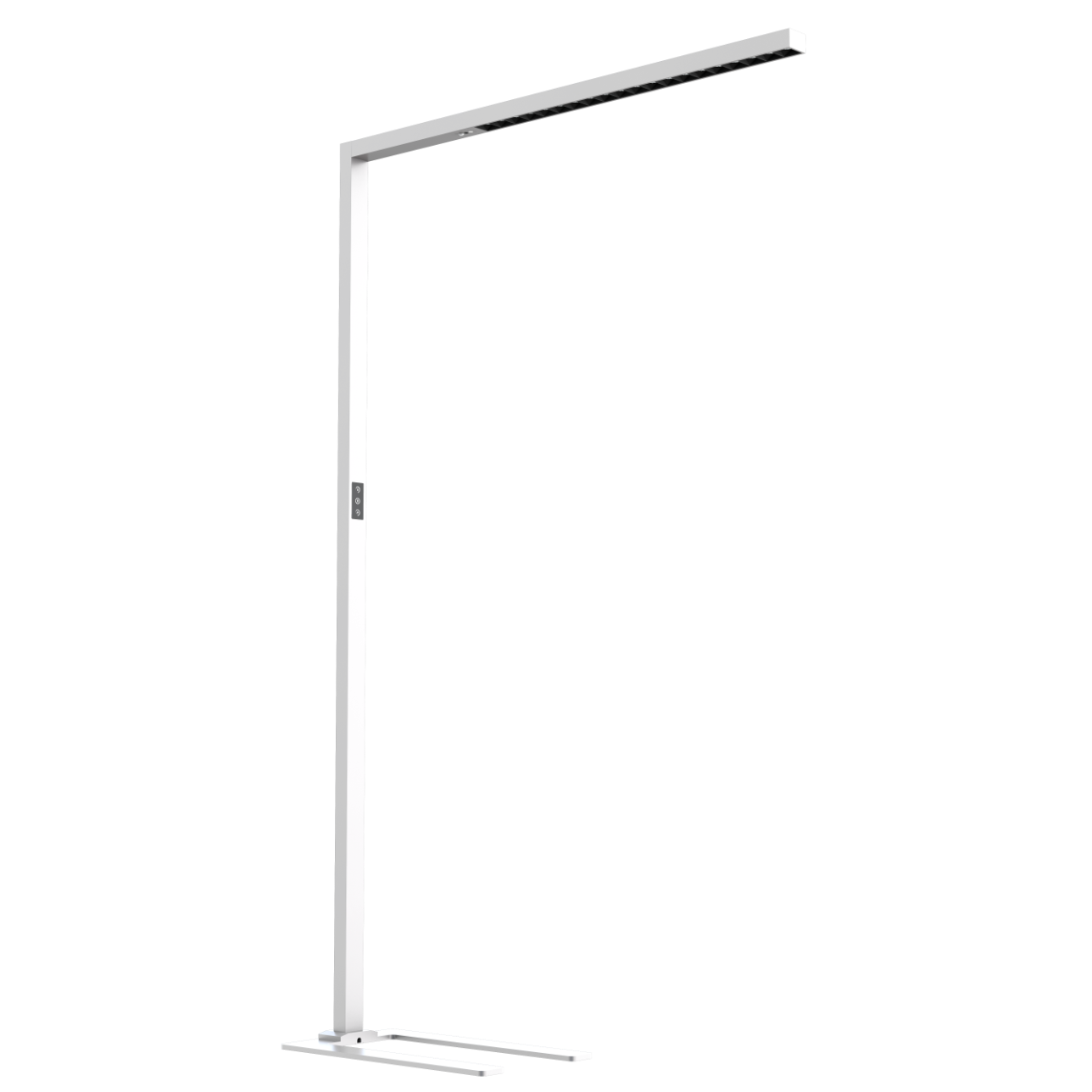

nevalux nayo SN TW
Floor lamp for two workstations. Up and down light dimmed separately, very low glare.
Product code 220604
This product is being replaced by a successor product.
Go to successor product · nayo SN Connect 4K (221486)Control technology
Einfache Sensor-Ausführung
Smartlink Connect
Switch selection
The requested variant is not available. Please choose one of the following options.

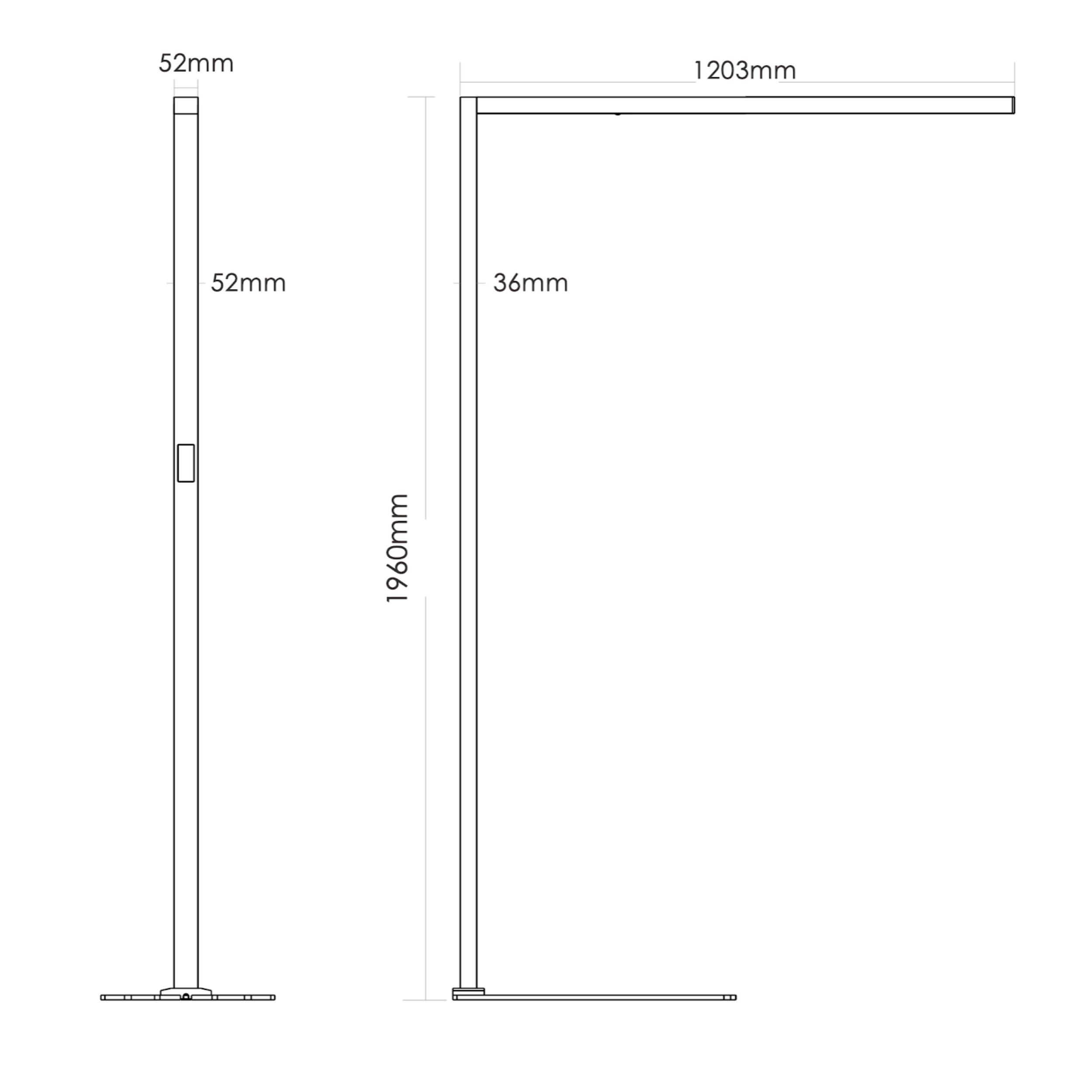

Dimensions
Dimensions L × W × H
1203 x 52 x 1960 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
80 W
Replaceable driver
Yes
LED rated current
450 mA / 1600 mA
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Presence range
Ø 3 m
With light sensor
Yes
Lighting technology
Colour temperature
3000...6000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
8000 lm (Down 2000, Up 6000)

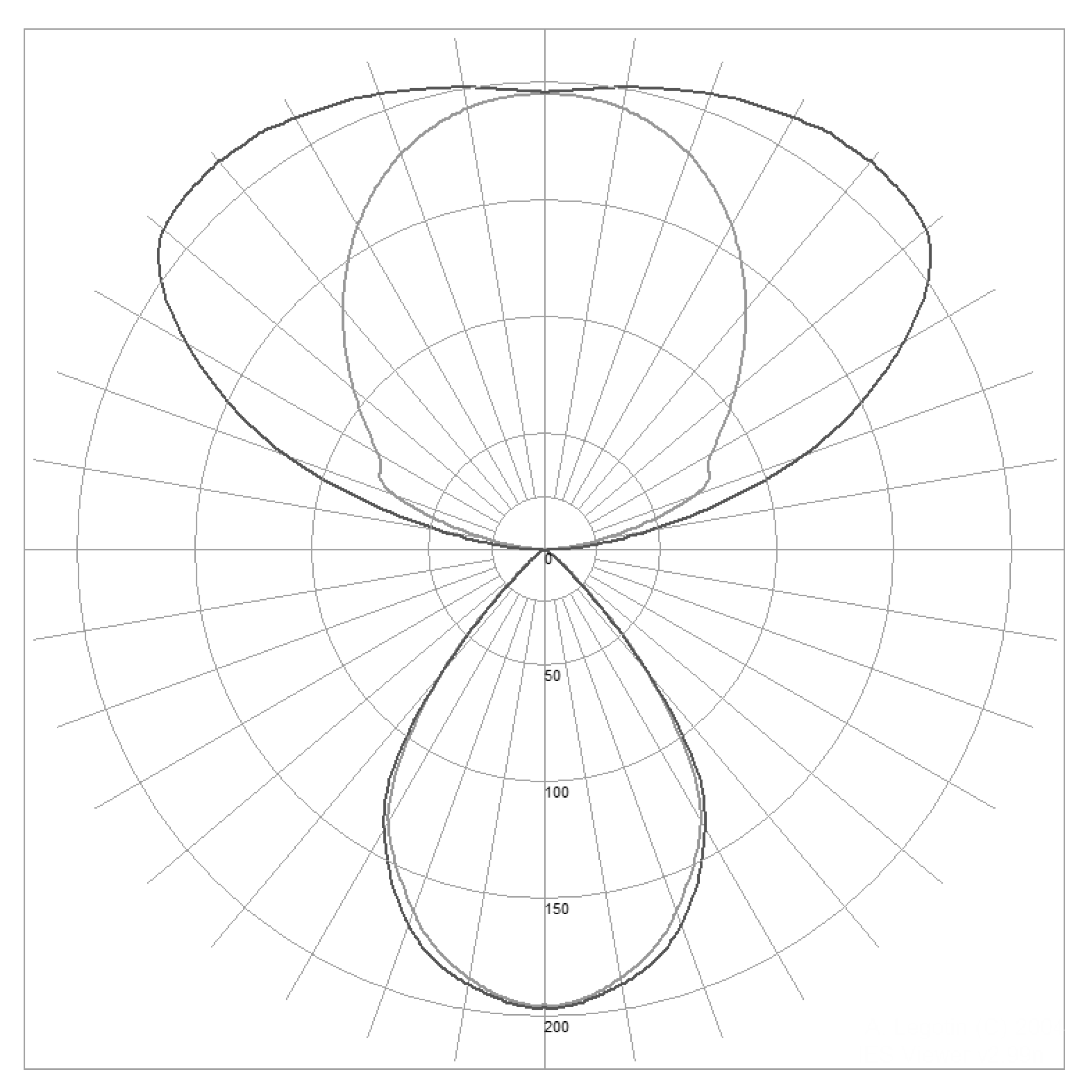

Beam angle
Down 80°, Up 140°
Luminaire luminous efficacy
100 lm/W
Glare value
UGR < 12
Lifetime
LED lifespan (25 °C)
50000 h
Settings
Direct/indirect ratio separately controllable
Yes
With switch
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Darklight Optics
Mounting type
Floor standing
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
F
