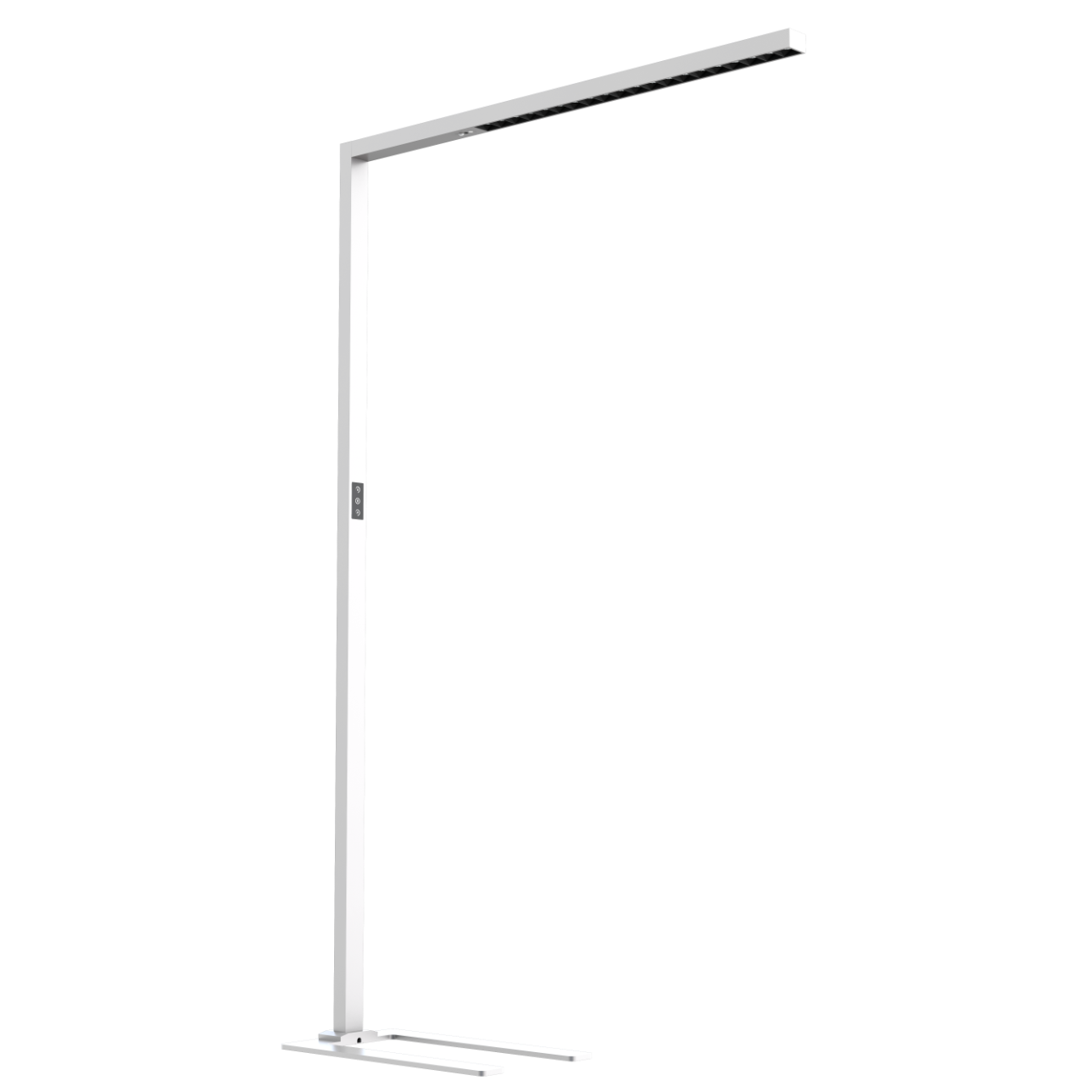

nevalux nayo SN Connect 4K

Floor lamp for two workstations. Up and down light dimmed separately, very low glare.

Product code 221486

Control technology

Einfache Sensor-Ausführung Smartlink Connect

The new nevalux Connect free-standing luminaires impress with their built-in, networkable lighting control system, which is developed in Switzerland. The control system meets all the requirements of a modern lighting management system. Luminaires can be easily combined into groups. The swarm function ensures comfort in open-plan offices and the cleaning light creates the best conditions for cleaning work. The control system is constantly being further developed and fulfils the demands of modern buildings of the future.

For stylish and efficient lighting of 2 workstations
Available as intelligent Connect or as simple sensor variant
Connect variant with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
Direct and indirect light independently dimmable
Very good glare control values (UGR < 12)
High quality finish
Housing aluminum white

Dimensions

Dimensions L × W × H 1203 x 52 x 1960 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 80 W

Replaceable driver Yes

LED rated current 450 mA / 1600 mA

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Presence range 4 x 4 m (16 m²)

With light sensor Yes

Connectivity

With radio network control Yes

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80 - 89

Illuminant LED

Luminous flux 9600 lm (Down 2400, Up 7200)

Beam angle Down 80°, Up 140°

Luminaire luminous efficacy 120 lm/W

Glare value UGR < 12

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes

Direct/indirect ratio separately controllable Yes

With program-controlled lighting control Yes

Constant light output control Yes

With switch Yes

Housing & material

Protection class (IP) IP20

Protection class I

Ambient temperature -20...+45 °C

Housing material Aluminium

Cover material Darklight Optics

Mounting type Floor standing

Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class E

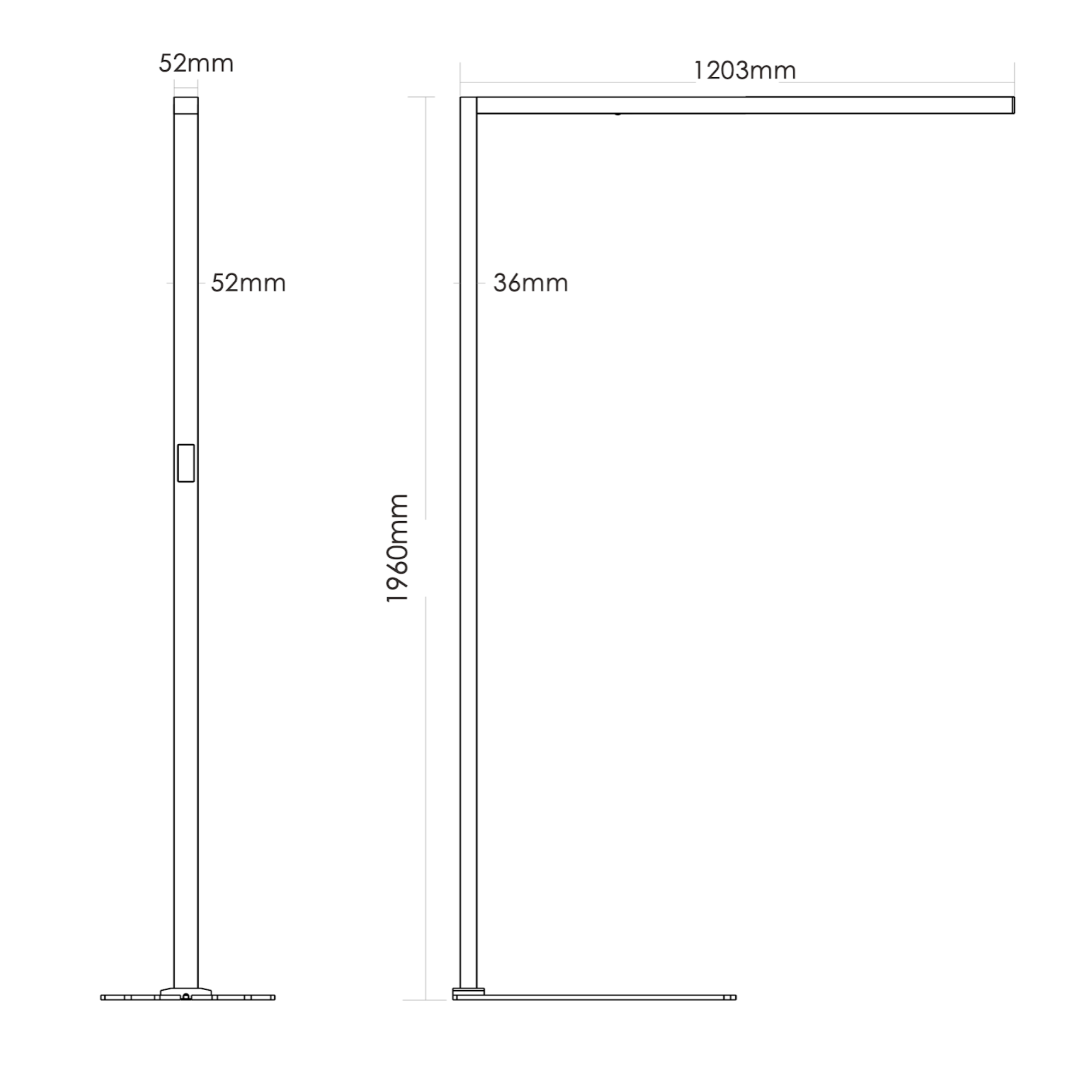

Technical drawing

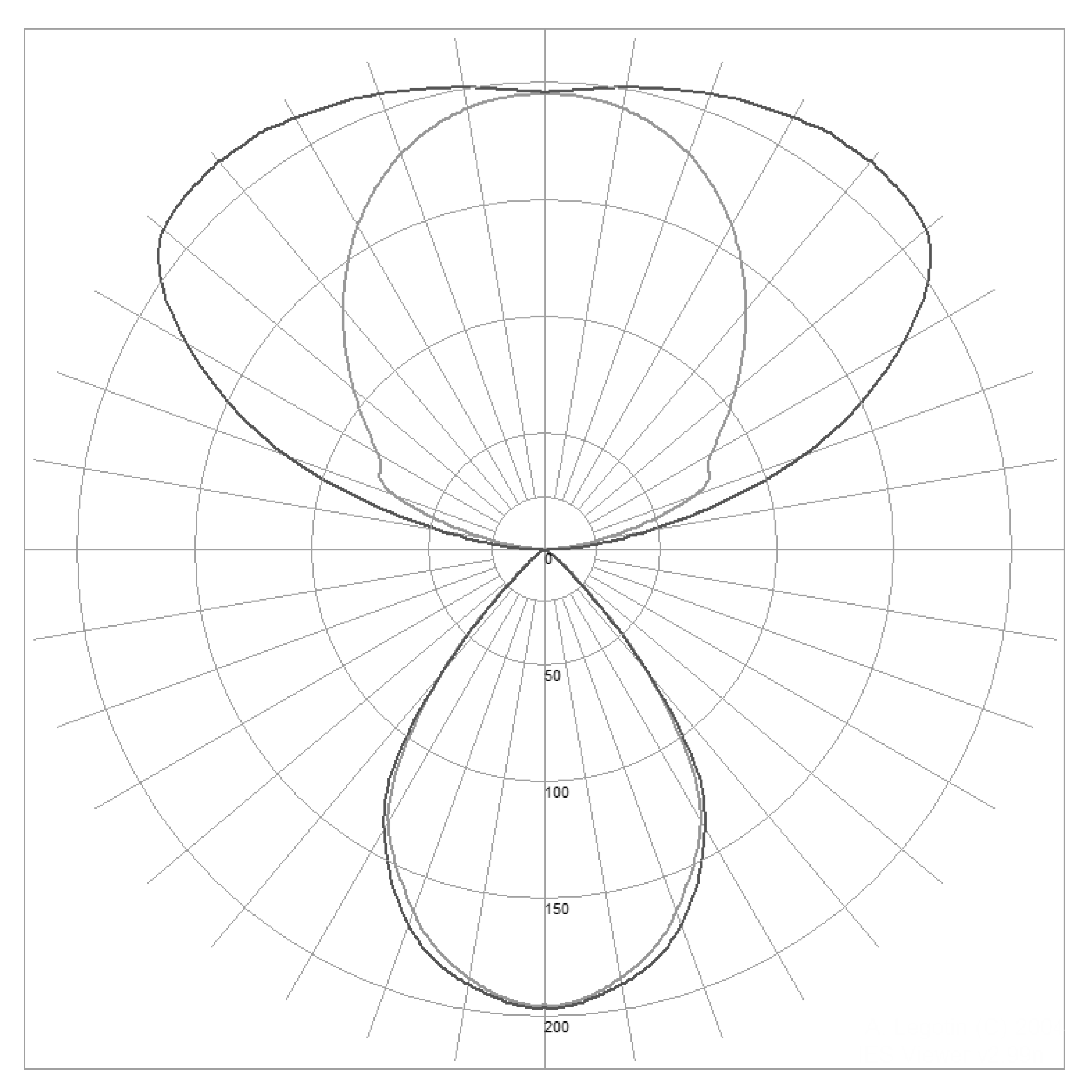

Lichtverteilungskurve

Data sheet User manual LDT file (light distribution)
