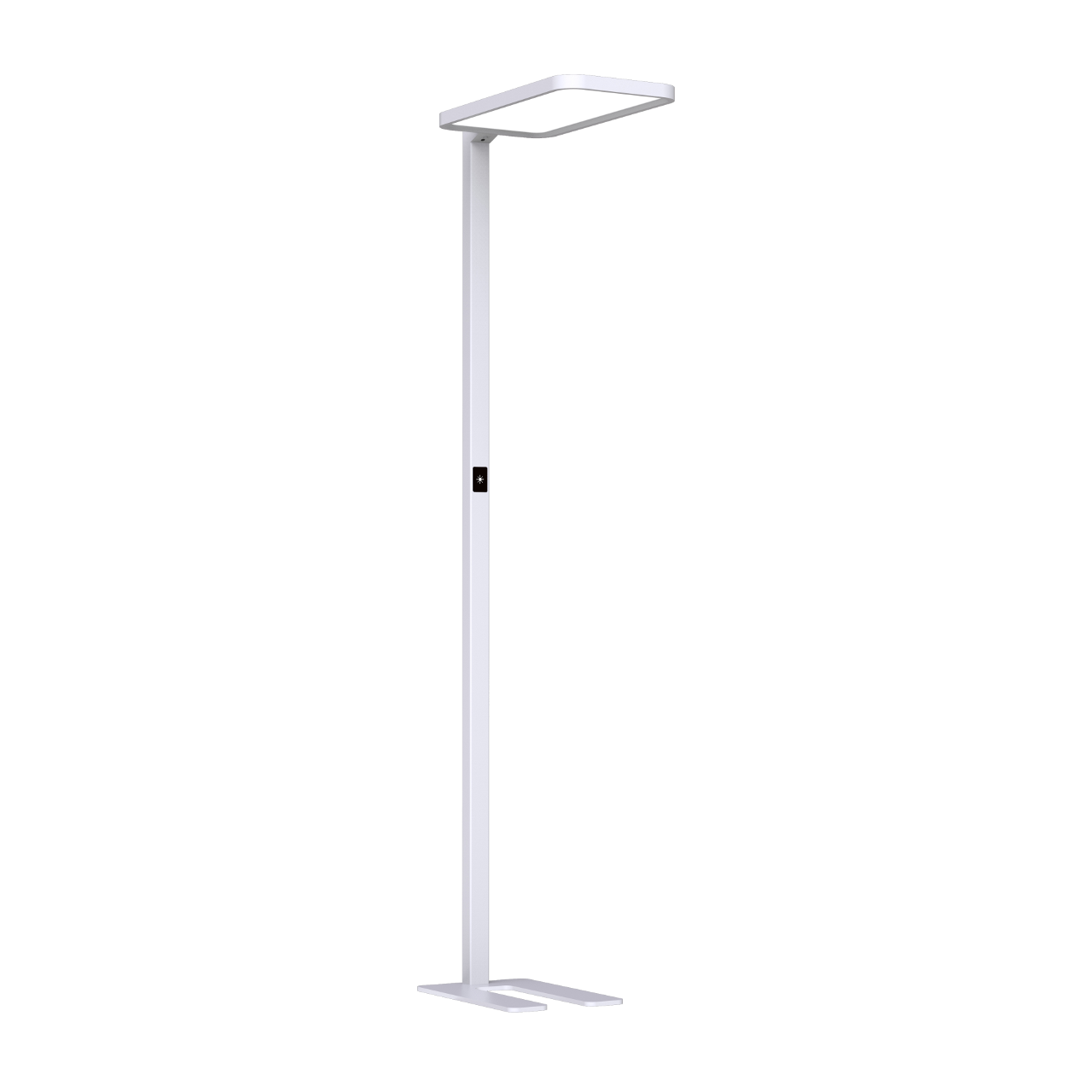

nevalux nefera S Connect 4K

Office floor lamp with presence detector. Direct and indirect light, networked via SmartLink.

Product code 221485

Control technology

Einfache Sensor-Ausführung Smartlink Connect

The new nevalux Connect free-standing luminaires impress with their built-in, networkable lighting control system, which is developed in Switzerland. The control system meets all the requirements of a modern lighting management system. Luminaires can be easily combined into groups. The swarm function ensures comfort in open-plan offices and the cleaning light creates the best conditions for cleaning work. The control system is constantly being further developed and fulfils the demands of modern buildings of the future.

The new nevalux Connect free-standing luminaires impress with their built-in, networkable lighting control system, which is developed in Switzerland. The control system meets all the requirements of a modern lighting management system. Luminaires can be easily combined into groups. The swarm function ensures comfort in open-plan offices and the cleaning light creates the best conditions for cleaning work. The control system is constantly being further developed and fulfils the demands of modern buildings of the future.

Dimensions

Dimensions L × W × H 610 x 310 x 1950 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 80 W

Replaceable driver Yes

LED rated current 2000 mA

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Presence range 4 x 4 m (16 m²)

With light sensor Yes

Connectivity

With radio network control Yes

Wireless networking via BT SIG Mesh

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80 - 89

Illuminant LED

Luminous flux 8000 lm (Down 4000, Up 4000)

Beam angle Down 90°, Up 110°

Luminaire luminous efficacy 100 lm/W

Glare value UGR < 19

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes

Direct/indirect ratio separately controllable No

With program-controlled lighting control Yes

Constant light output control Yes

With switch Yes

Housing & material

Protection class (IP) IP20

Protection class I

Ambient temperature -20...+45 °C

Housing material Aluminium

Cover material Microprismatic acrylic glass

Mounting type Floor standing

Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class F

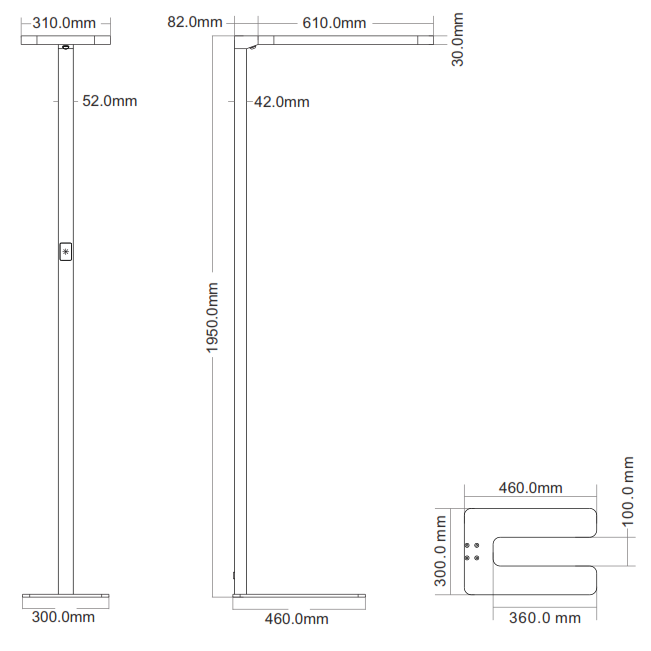

Technical drawing

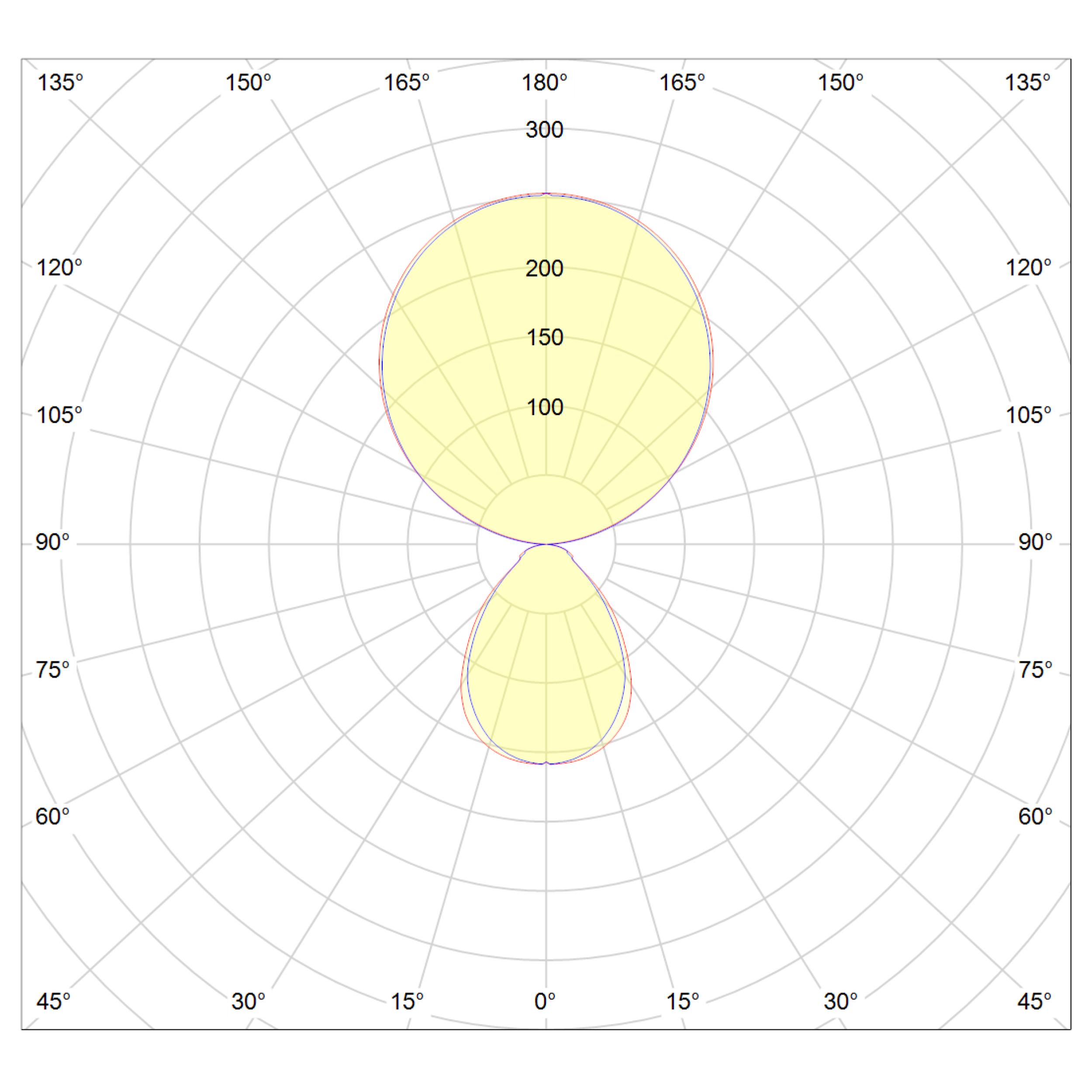

Lichtverteilungskurve

Data sheet User manual LDT file (light distribution)
