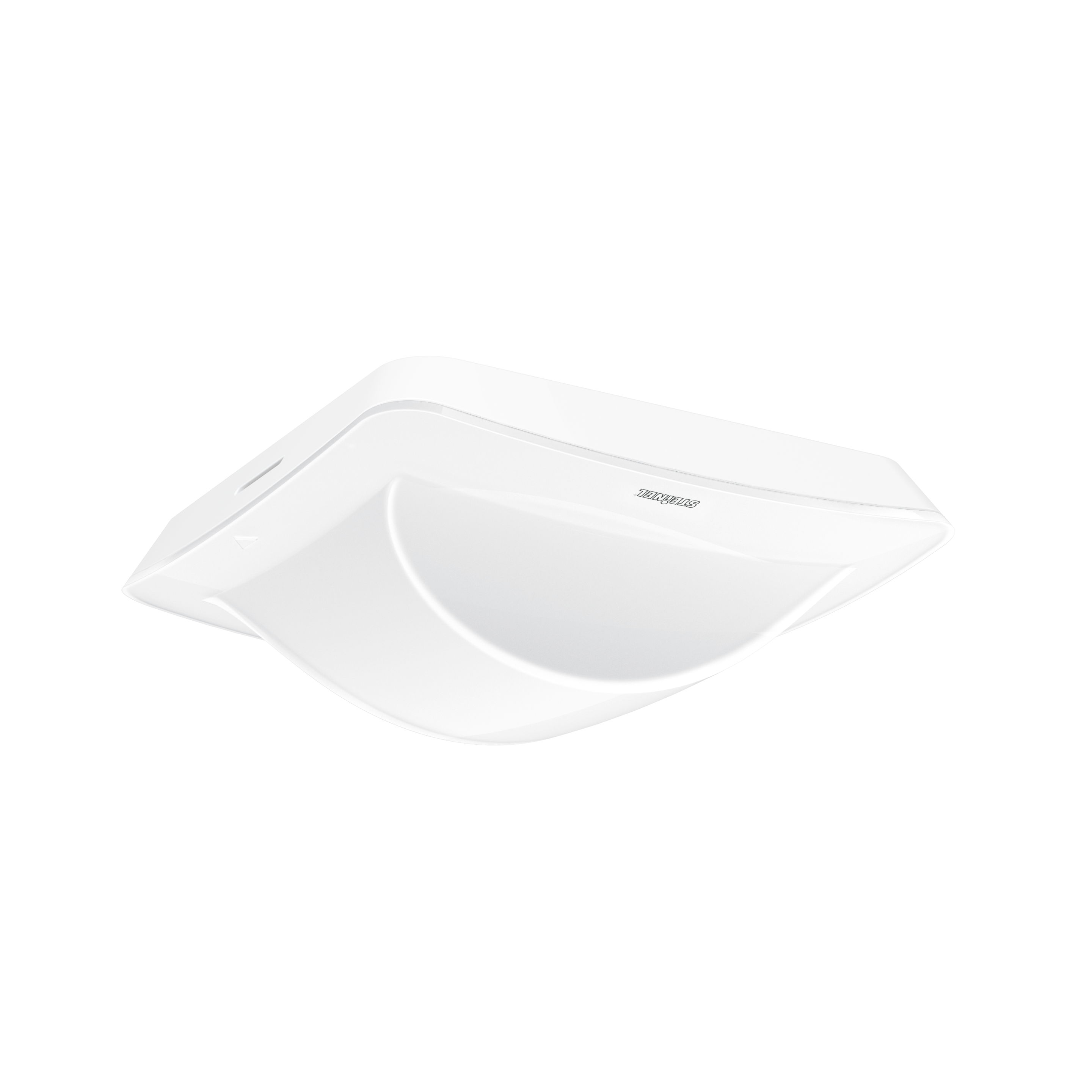

Nevalux Hallway KNX - Concealed wiring

ELDAS® no. 535 930 021

EAN-No. 4007841 058036

Manufacturer

Steinel Nevalux

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

The cleverer hallway sensor knows more. Hallway identifies the direction of movement and know whether someone is approaching or leaving. It can also tell whether person present are on the right or left. Perfect radial detection up to 25 m – ideal for long corridors and hallways. Reach can be adjusted in both directions. Contemporary True Presence® design. Featuring Bluetooth technology. Interfaces for COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX, IP and BT IPD (Slave).

UV-resistant plastic

Identification

Variant KNX - Concealed wiring

Version Presence detector

Dimensions

Dimensions L × W × H 65 x 103 x 103 mm

Electrical

Mains connection 30 V

Own consumption 0,7 W

Supply voltage detail KNX bus

FIL_2_PRO interfaces KNX

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 25 x 3 m (75 m²)

Tangential range 25 x 3 m (75 m²)

Mounting height 2 – 4 m

Optimal mounting height 2,8 m

FIL_4_PRO sensor technology High frequency

Connectivity

Networking Yes

Type of networking Master/master, Master/slave

KNX functions Comfort, Photo-cell controller, Individual pyro evaluation, Basic light level function, Light level, HVAC output, Constant-lighting control, Light output 4x, Presence output, Day / night function, Dewpoint, Logic gate

With bus coupler Yes

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 10 – 1000 lx

Time setting 10 sec – 1092 min

Base light function Yes

Settings via ETS software, Bluetooth, Bus

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -25 – 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room Indoors, corridor / aisle

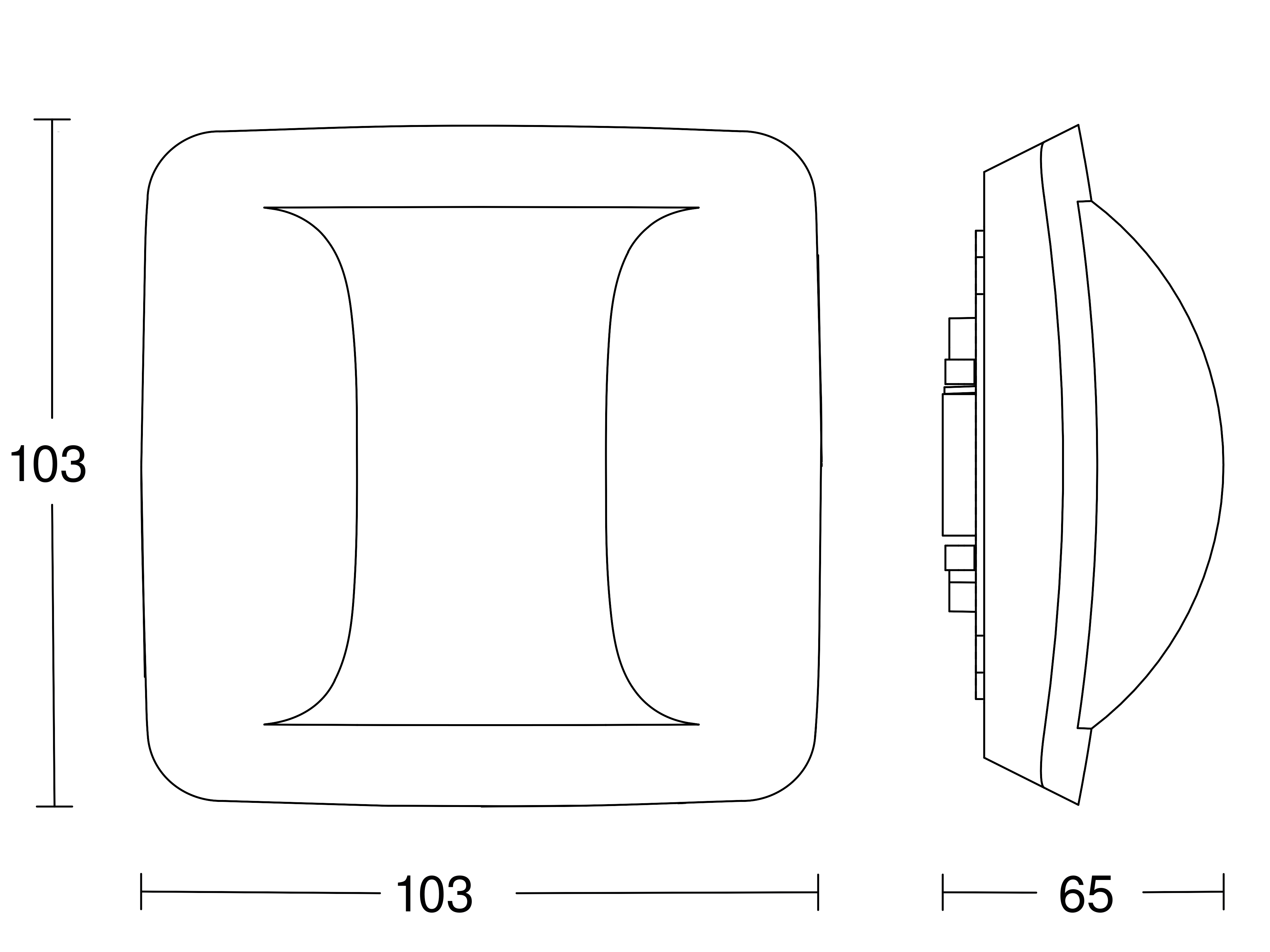

Technical drawing

Data sheet User manual
